Pneumatic regular butterfly valve F-top

TECHNICAL SPECIFICATIONS:

Size: 1/2"-12", DN10-DN300

Pressure: vacuum to 10bar (1.0 MPa)

Seal: EPDM SILICON FKM FFKM HNBR FVMQ NBR

Connection method: thread, clamp, welding, flange

Drive mode: manual, turbo, pneumatic, electric

Surface: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Temperature: EPDM -20℃ to +130℃, Depending on the seal material

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC

Get a Quote
Share:
RELATED VIDEOS
FEATURES

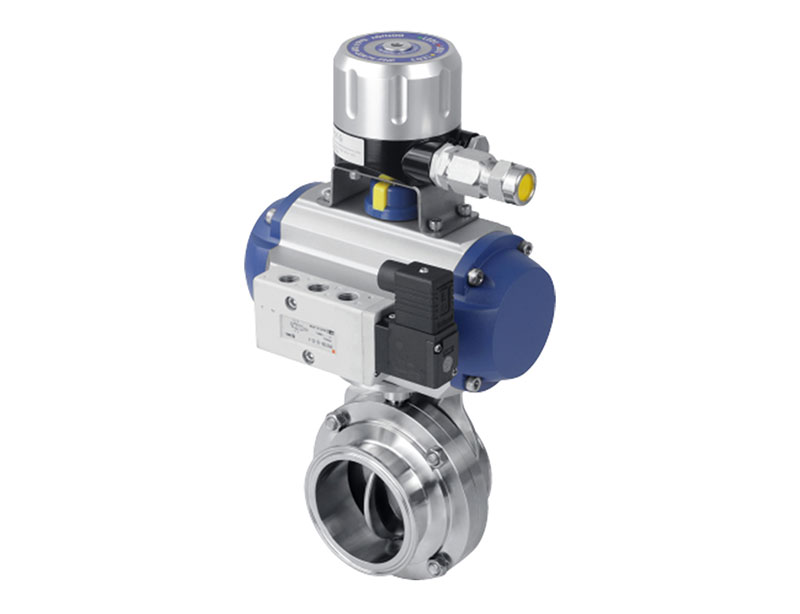

Air pneumatic actuated sanitary butterfly valves with feedback top F-TOP,/limit switch box, China factory /manufacturers



Why it is called butterfly valve?

Sanitary butterfly valve is called so because of its disc, which is positioned in the center of the valve body and is supported by a stem. The disc is typically constructed from a thin stainless steel material and is designed to pivot around a central axis. When the stem is turned, the disc rotates and moves out of the fluid flow path, allowing the fluid to pass through the valve. The disc resembles the wings of a butterfly, which is why this type of valve is called a butterfly valve. The butterfly valve is commonly used in food,dairy,beverage and pharmecy applications due to its low weight, compact size, and ease of operation.

Advantage

Donjoy has been producing butterfly valves for more than 27 years.

Manufacturing more than 3 million units for various industries, Very flexible valve body combination, super long life, super small torque, Forged valve body, forged valve disc, Fully automatic robot production line.

Technical Features

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Temperature: EPDM -20℃ to +130℃, Depending on the seal material

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

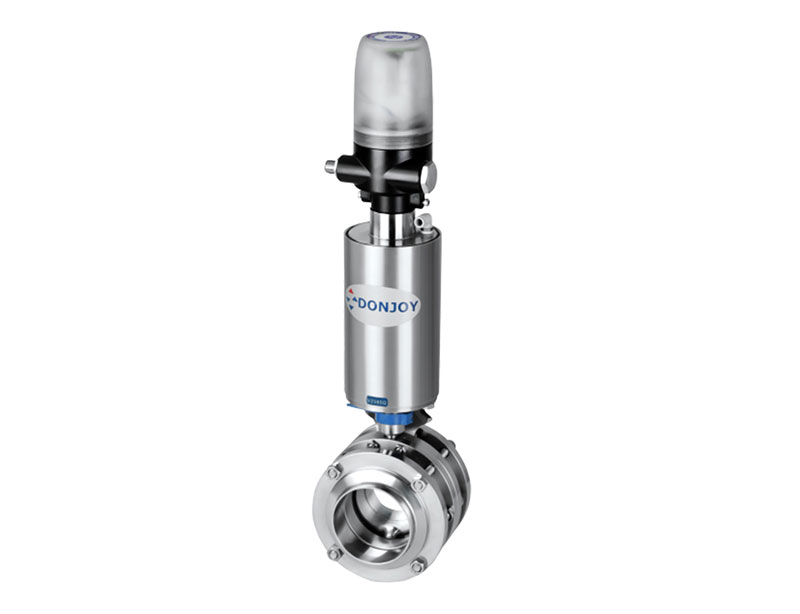

Various pneumatic actutor configurations

Performance Curve

Operating Torque for manual butterfly valve

Size 1/2"-1" ≤DN25,Torque 3NM

Size 1.5" DN32,Torque 4NM

Size 2" DN40,Torque 5NM

Size 2.5" DN50,Torque 10NM

Size 3" DN65,Torque 14NM

Size 3.5" DN80,Torque 18NM

Size 4" DN100,Torque 25NM

Size 5" DN125,Torque 40NM

Size 6" DN150,Torque 55NM

Size 8" DN200,Torque 80NM

Size 10"-12” DN250,Torque 100NM

Sanitary butterfly valve drawing

Package

THEORY OF OPERATION
DOWNLOAD
File Language Size
Butterfly valves catalogue English 21.1MB
Sanitary valves catalogue English 30.2MB
