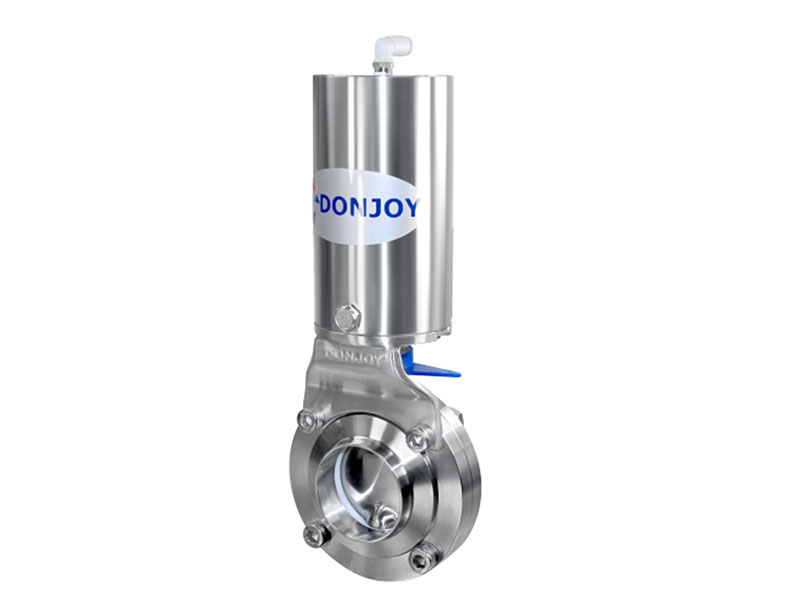

Pneumatic regular butterfly valve C-top

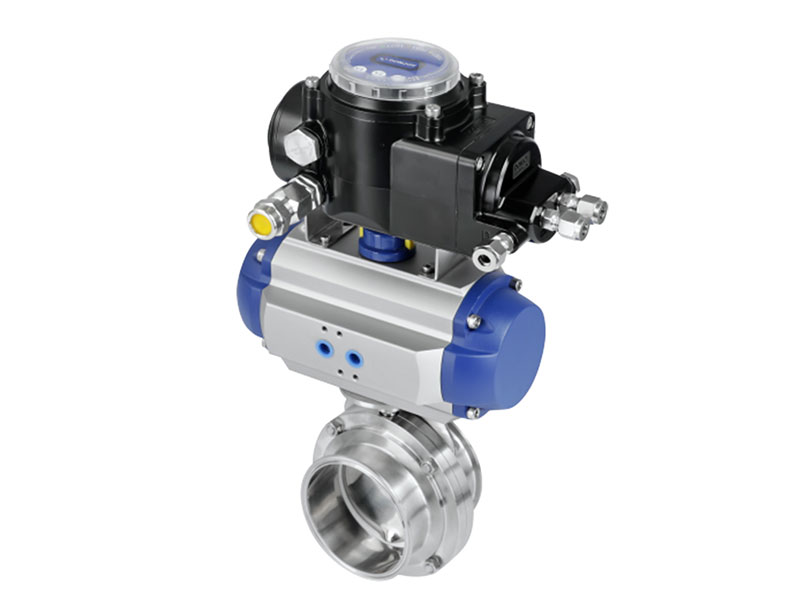

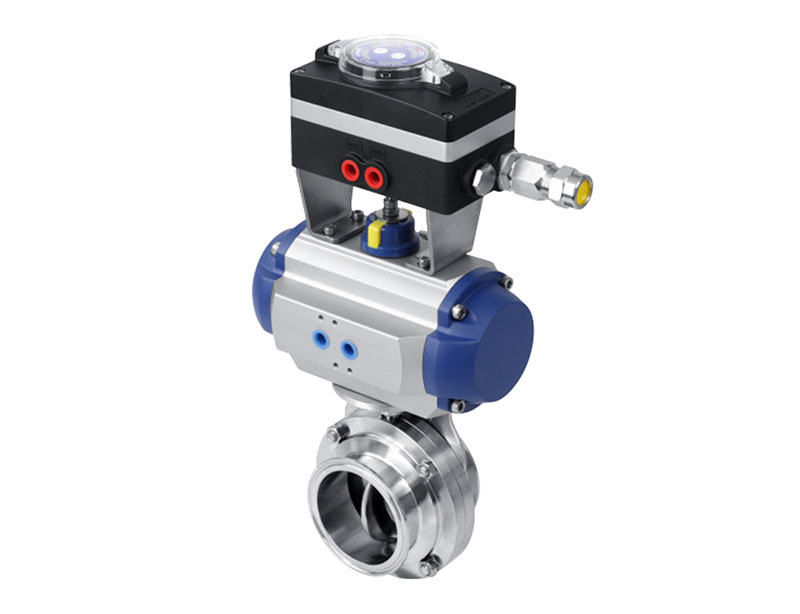

Wholesale DONJOY sanitary stainless steel 304 316l butterfly valve with horizontal pneumatic actuator and control head C-TOP

Why it is called butterfly valve?

Sanitary butterfly valve is called so because of its disc, which is positioned in the center of the valve body and is supported by a stem. The disc is typically constructed from a thin stainless steel material and is designed to pivot around a central axis. When the stem is turned, the disc rotates and moves out of the fluid flow path, allowing the fluid to pass through the valve. The disc resembles the wings of a butterfly, which is why this type of valve is called a butterfly valve. The butterfly valve is commonly used in food,dairy,beverage and pharmecy applications due to its low weight, compact size, and ease of operation.

Advantage

Donjoy has been producing butterfly valves for more than 27 years.

Manufacturing more than 3 million units for various industries, Very flexible valve body combination, super long life, super small torque, Forged valve body, forged valve disc, Fully automatic robot production line.

Technical Features

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Temperature: EPDM -20℃ to +130℃, Depending on the seal material

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

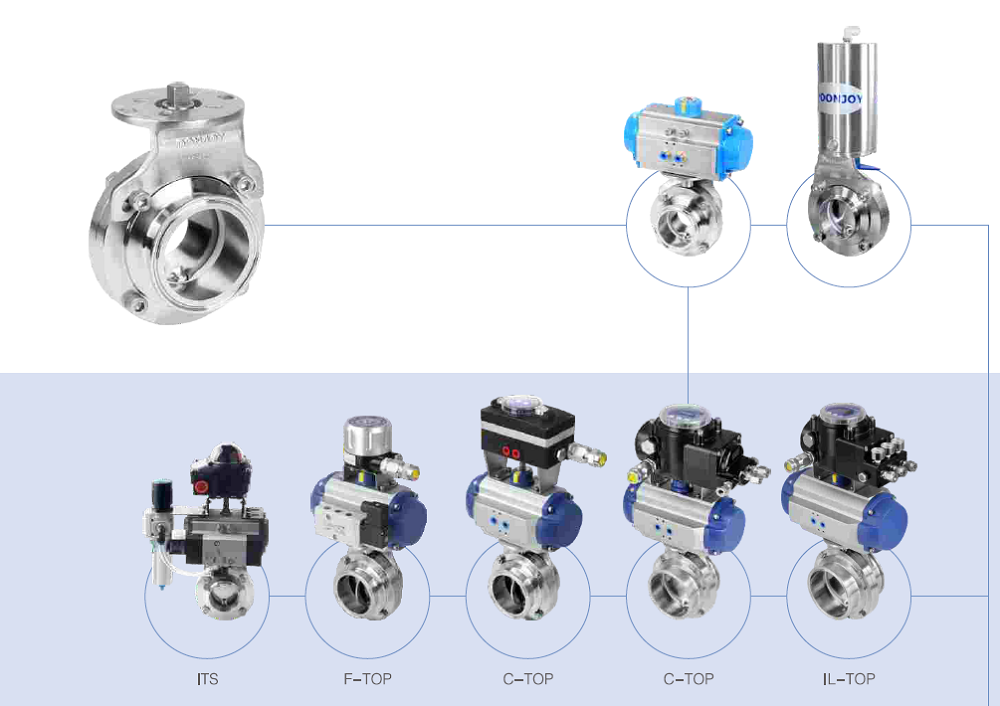

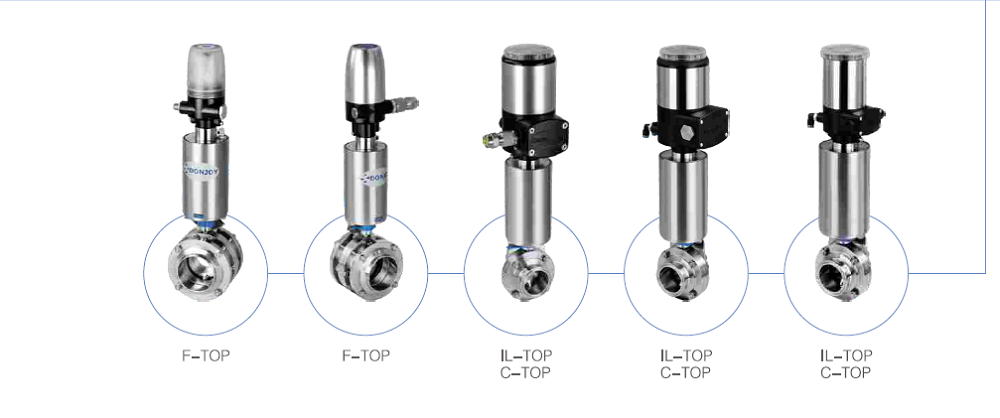

Various pneumatic actutor configurations

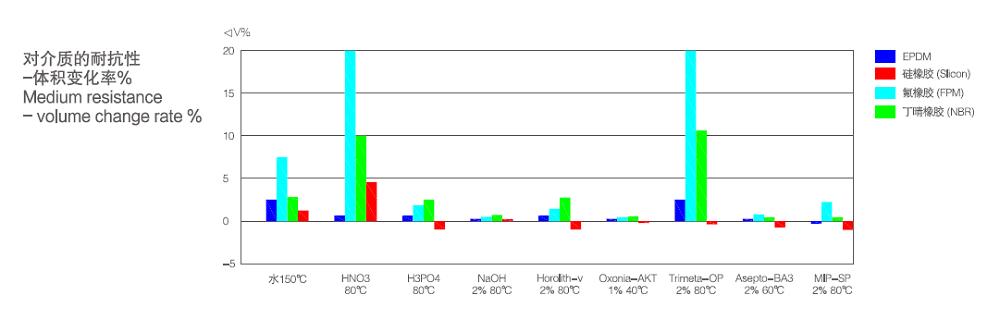

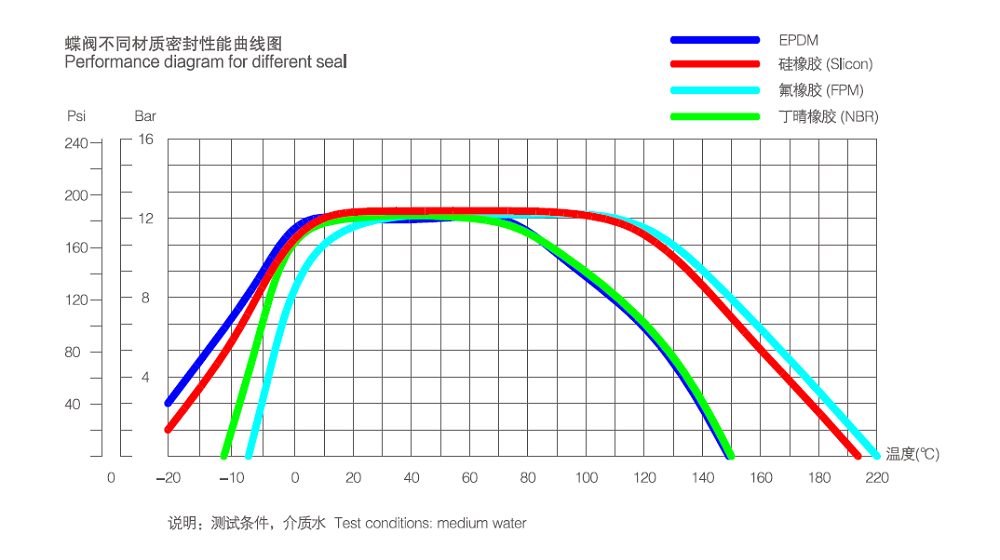

Performance Curve

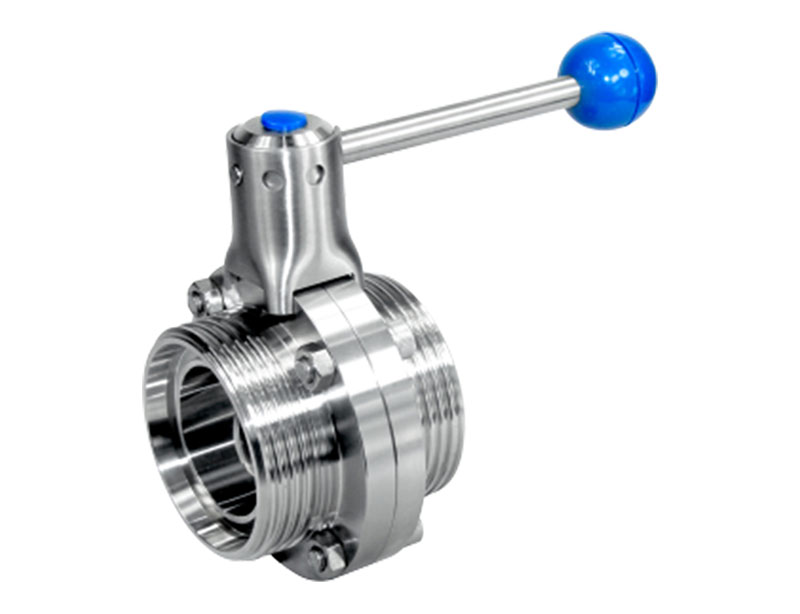

Operating Torque for manual butterfly valve

Size 1/2"-1" ≤DN25,Torque 3NM

Size 1.5" DN32,Torque 4NM

Size 2" DN40,Torque 5NM

Size 2.5" DN50,Torque 10NM

Size 3" DN65,Torque 14NM

Size 3.5" DN80,Torque 18NM

Size 4" DN100,Torque 25NM

Size 5" DN125,Torque 40NM

Size 6" DN150,Torque 55NM

Size 8" DN200,Torque 80NM

Size 10"-12” DN250,Torque 100NM

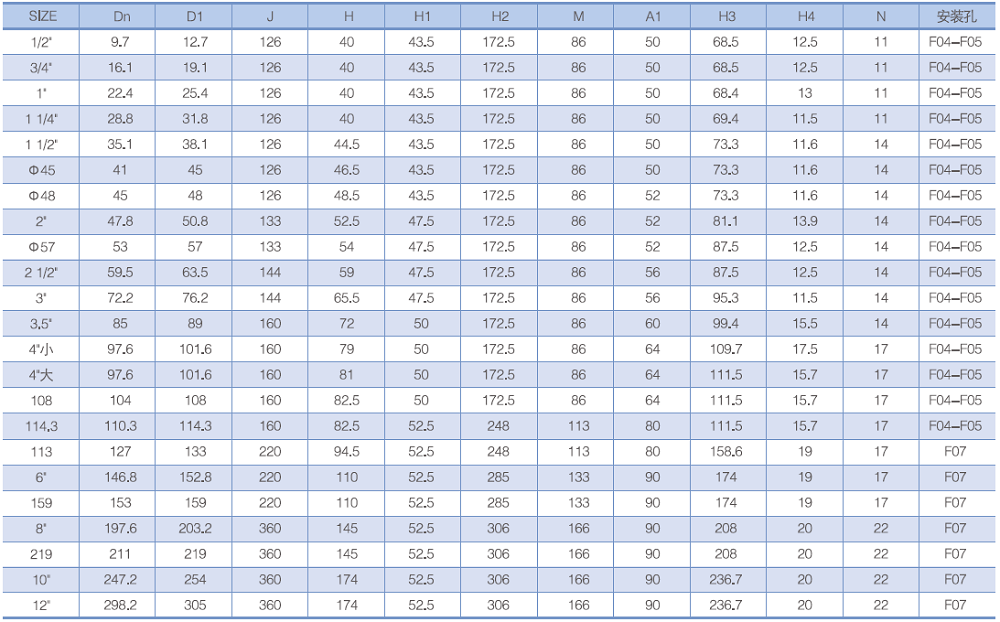

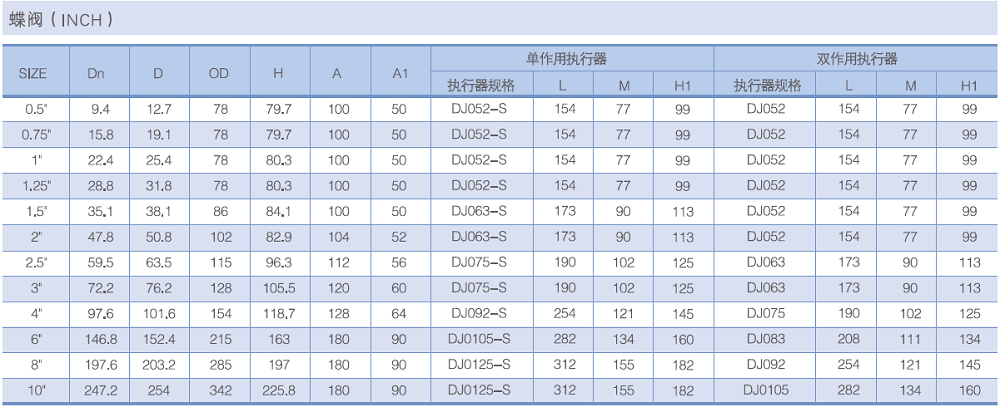

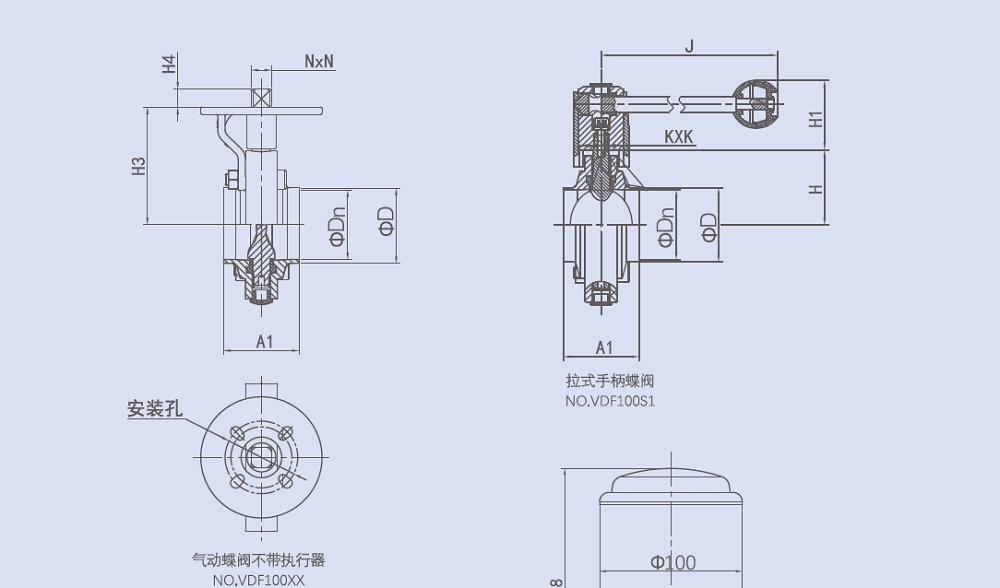

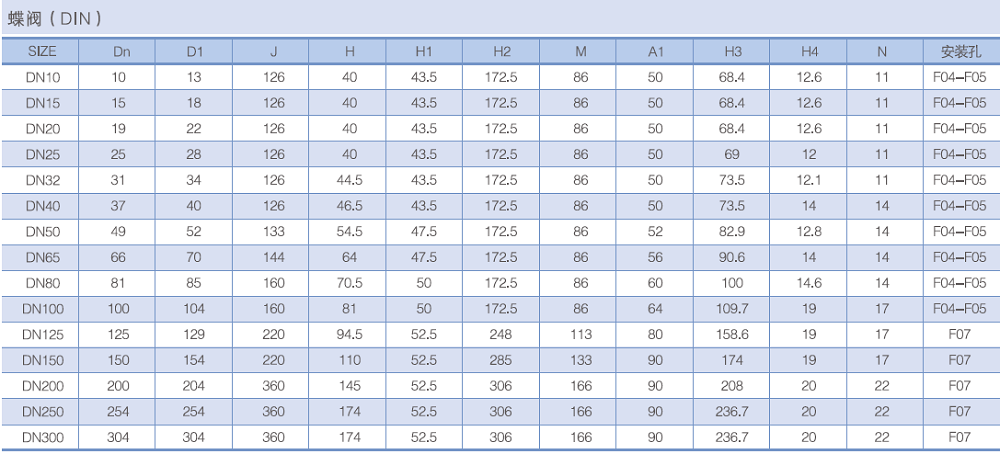

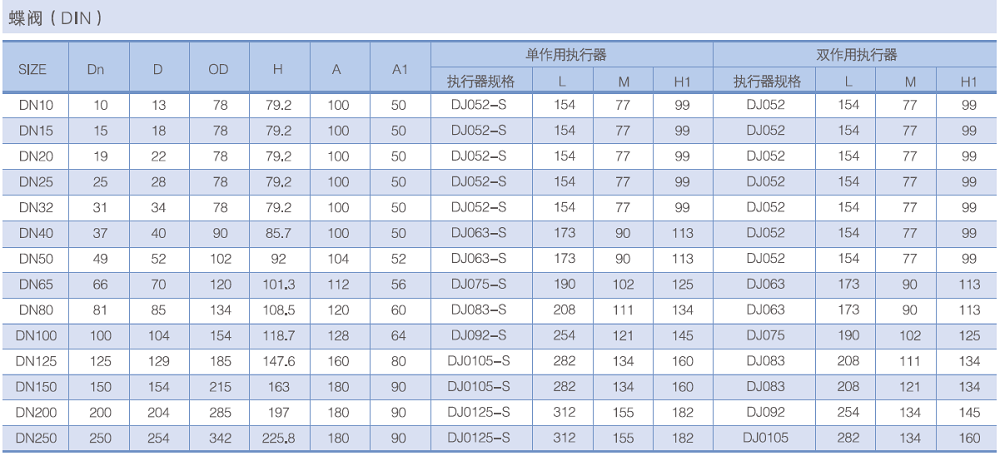

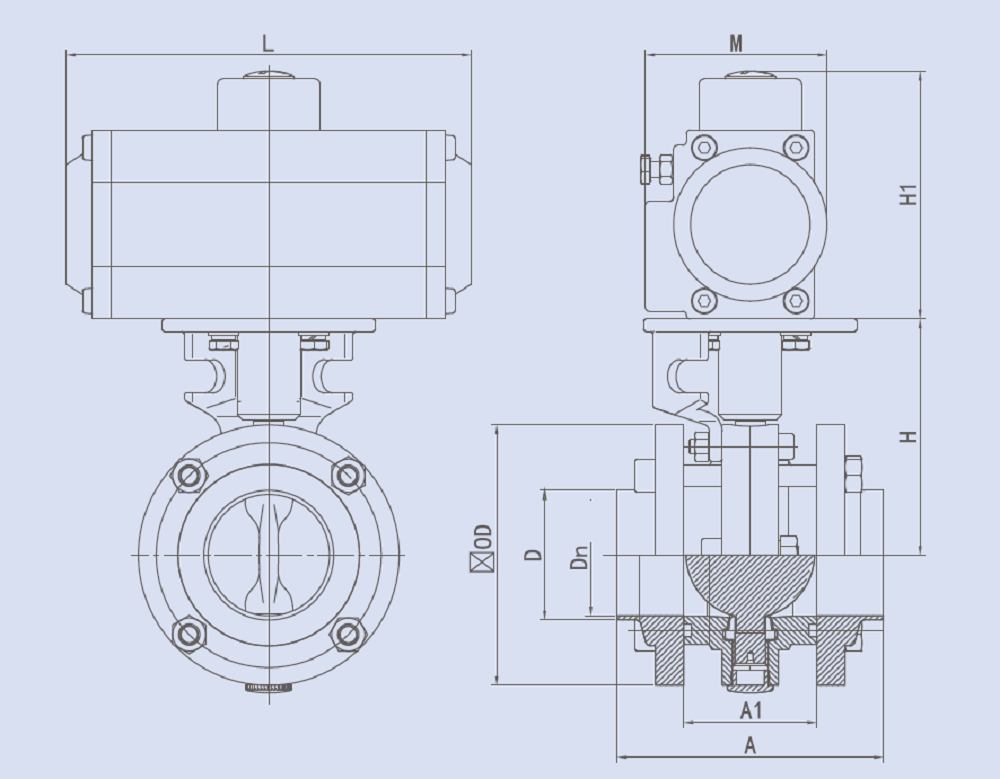

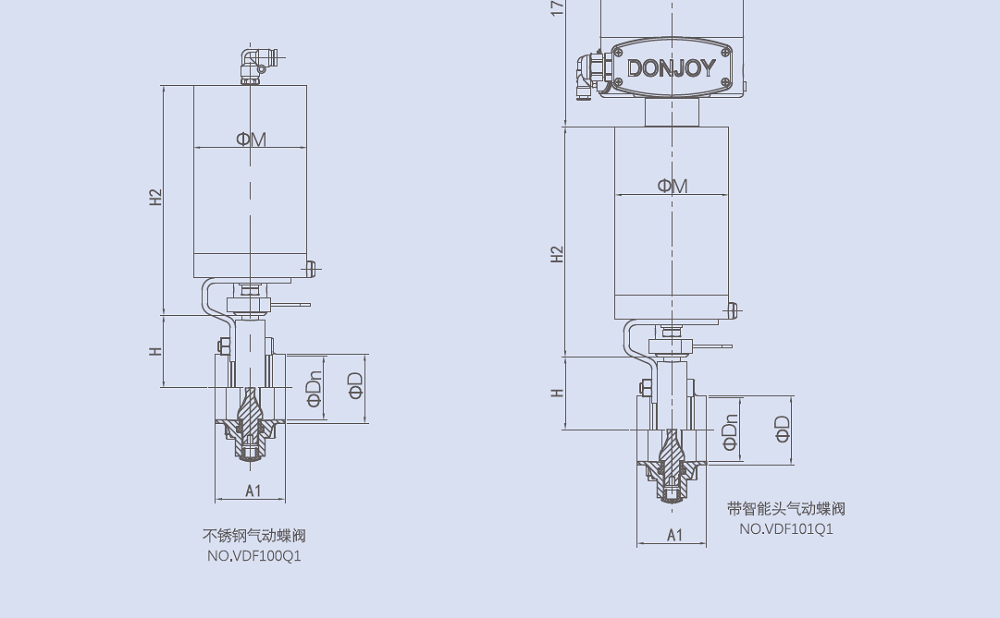

Sanitary butterfly valve drawing
