Size: 2.5"-12", DN65-DN300
Material Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Seal: EPDM SILICON FKM FFKM HNBR FVMQ NBR
Connection method: clamp, welding, flange, tank bottom flange

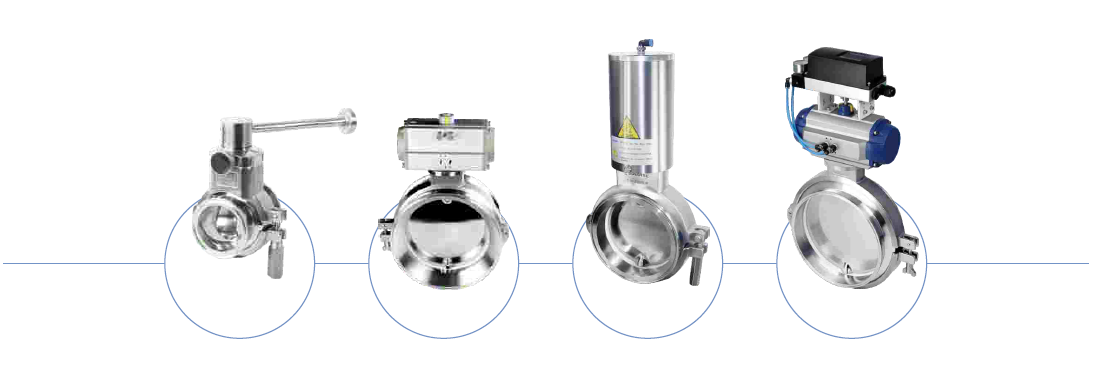

Drive mode: manual, pneumatic, electric
Surface: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

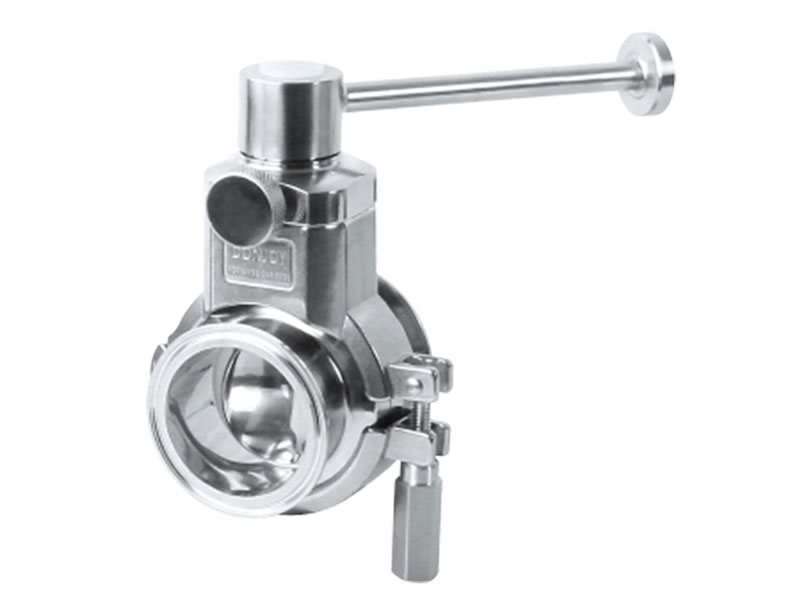

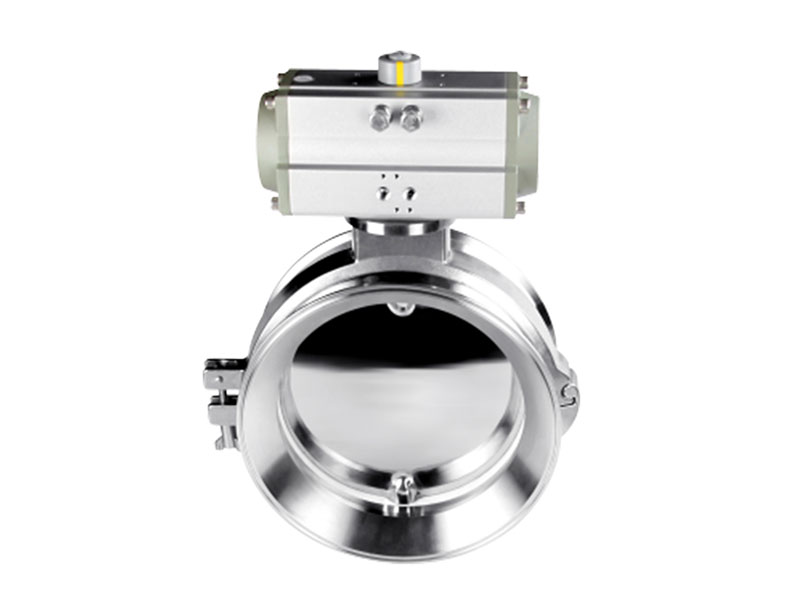

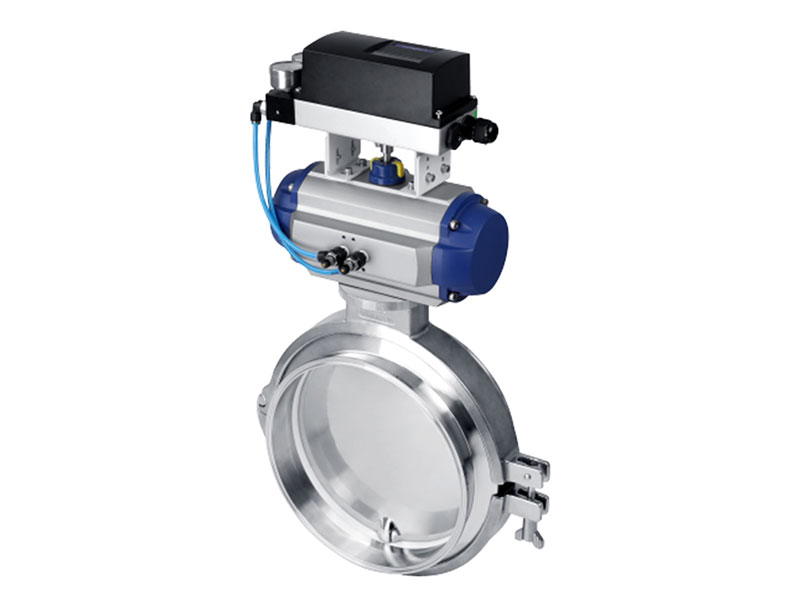

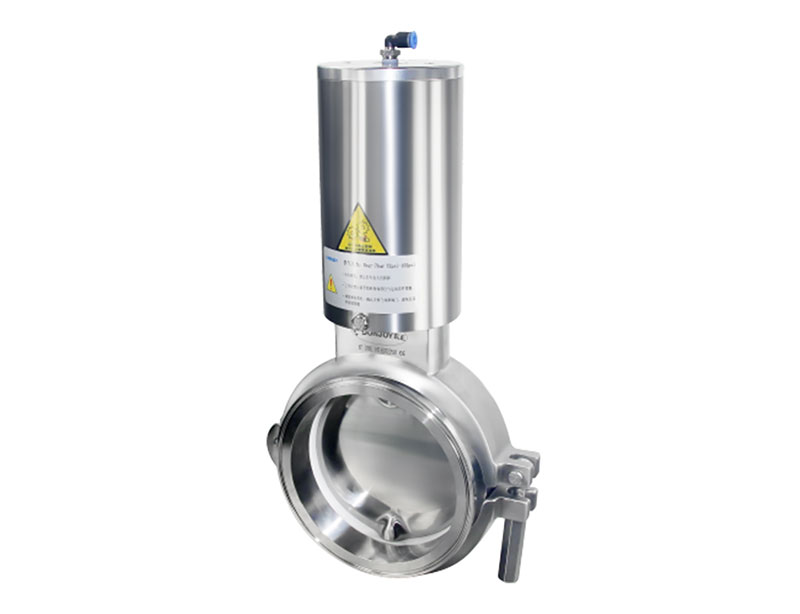

Sanitary stainless steel 316L powder butterfly valve for dairy and food industry.
What is a pwder butterfly valve?

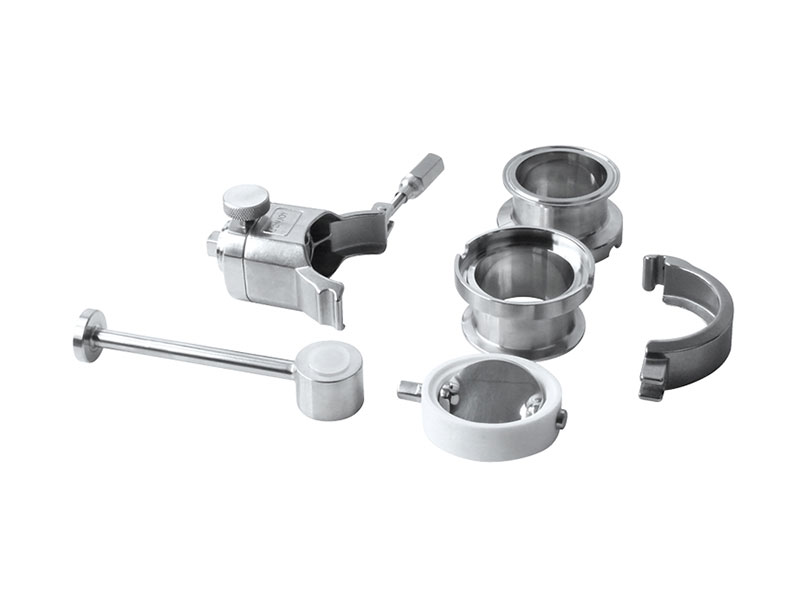

DJ-DF-F butterfly valve is mainly designed and used for all kinds of container equipments of powder, granule, capsule.etc. This butterfly valve have characteristics, which the normal butterfly don't have, such as small torque, no much friction when seal open and close, long life, no seal powder fall off, short valve body, bear pressure can be adjusted. This valve can be disassembled, maintained and cleaned without professional tool. It is safe, reliable and lower cost. Easy operation, manual, pneumatic and motor-driven configuration valve can be interchanged.
Small friction Long life Easy to clean Easy to disassemble Pressure can be adjusted Suit for vacuum Powder system solution
Technical Features
●Temperature: EPDM -20℃ to +130℃, Depending on the seal material
●Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
●Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC

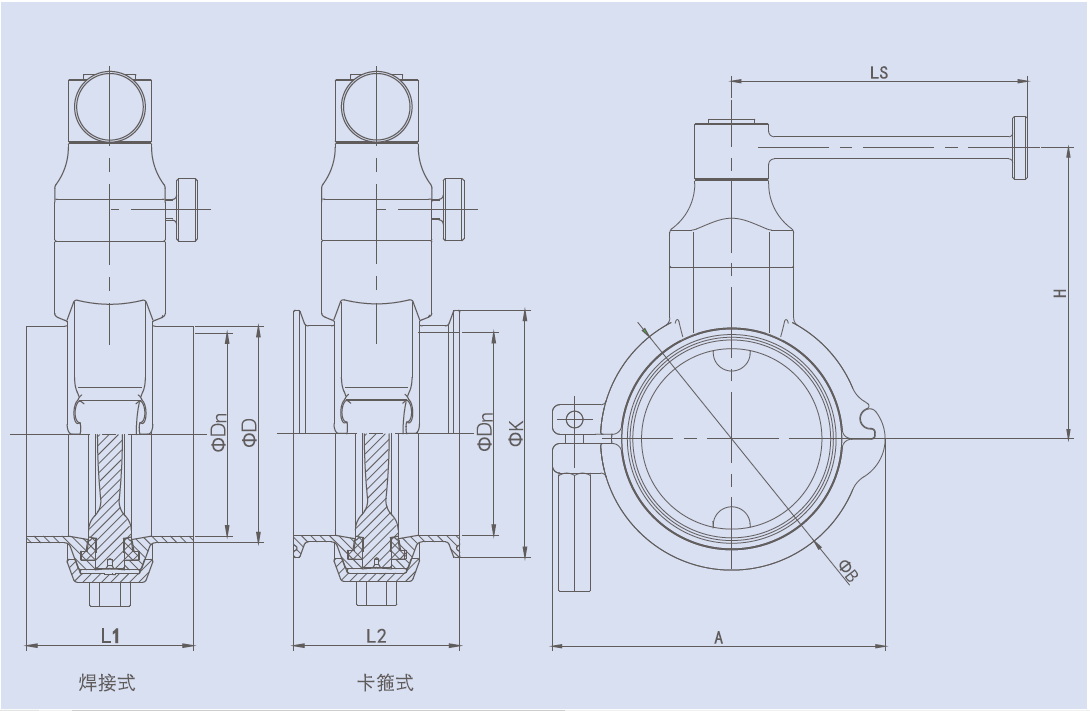

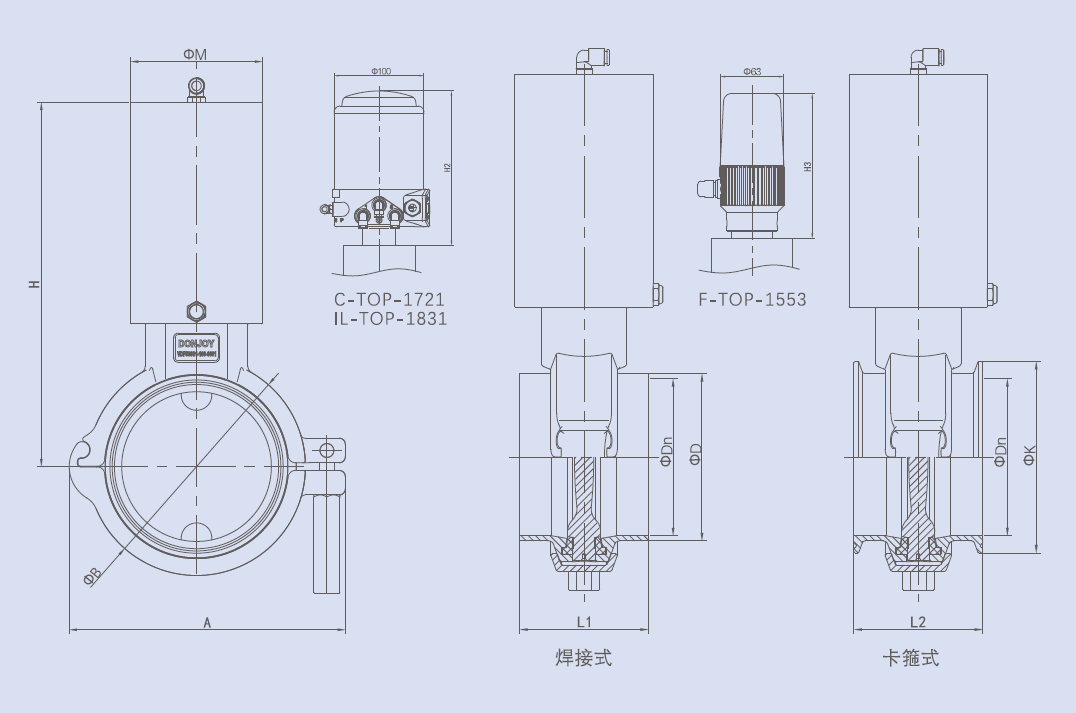

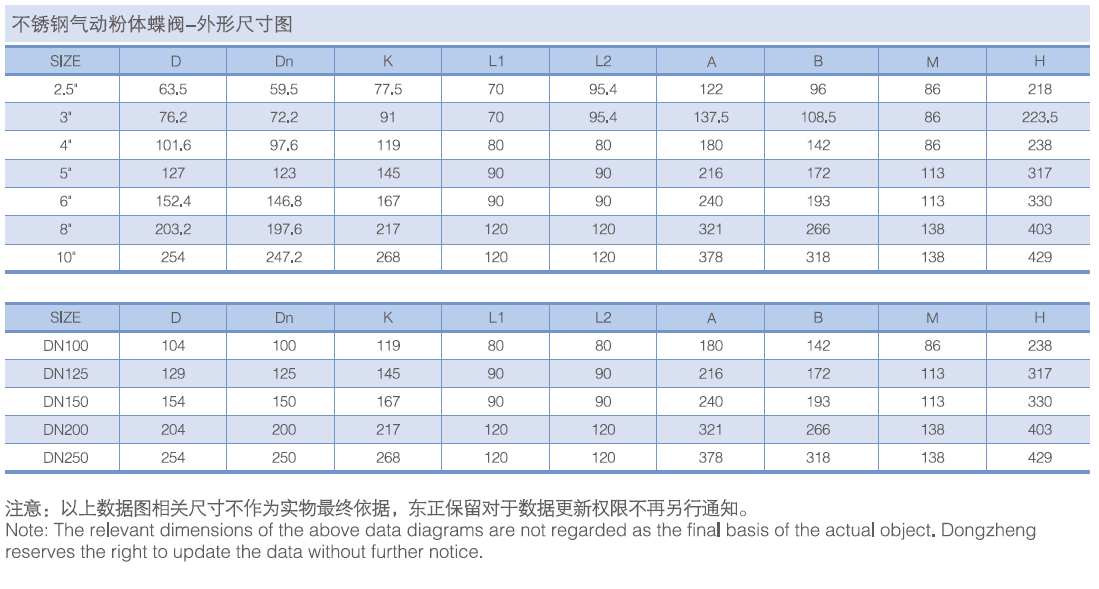

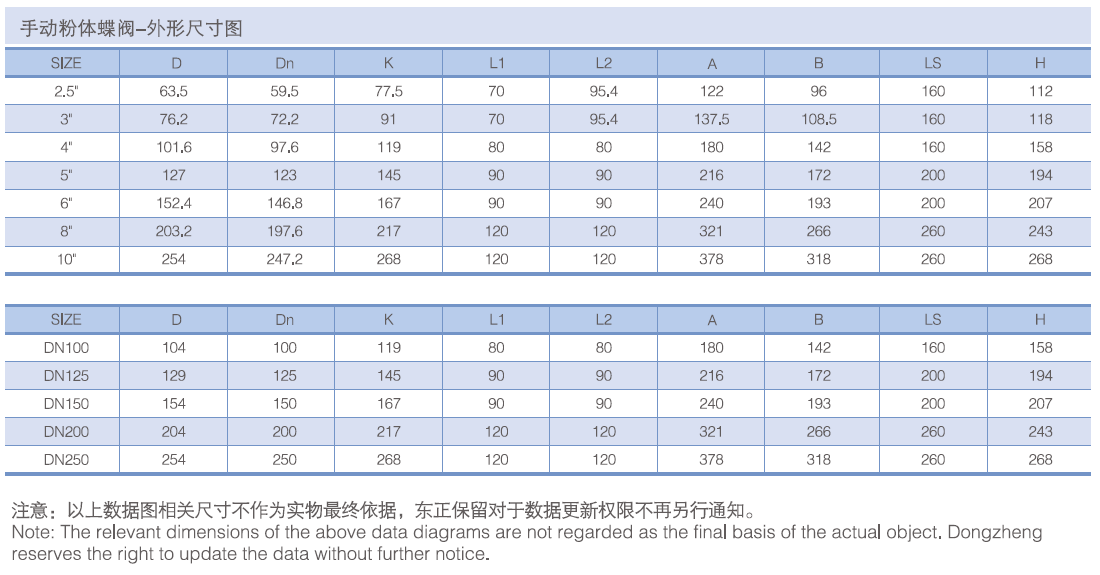

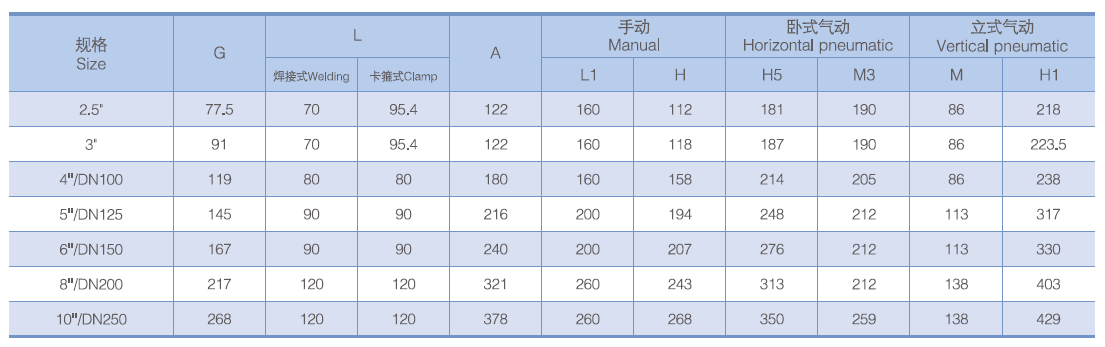

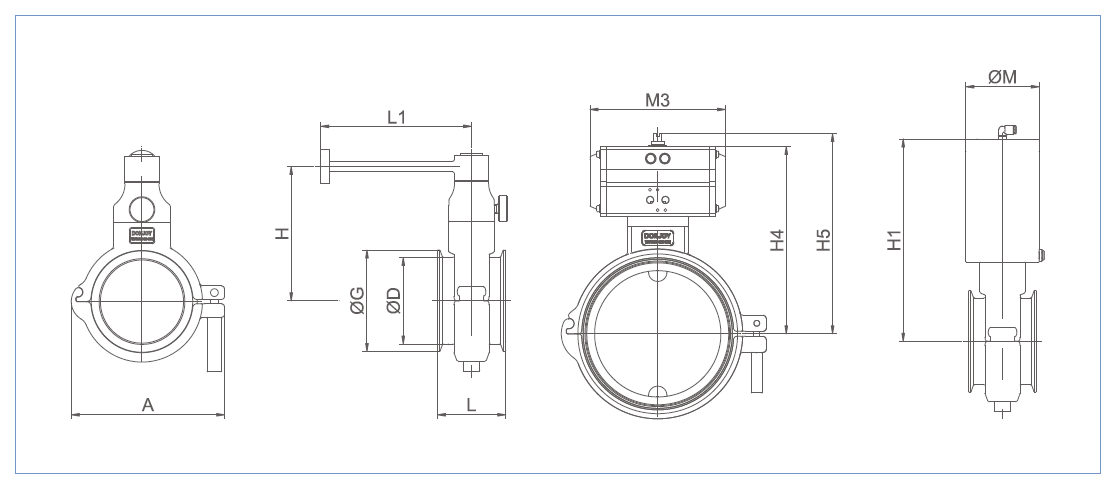

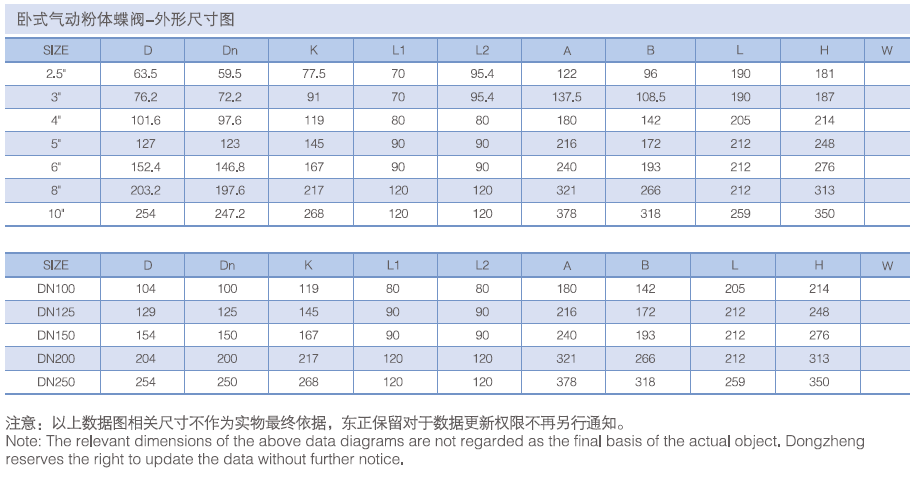

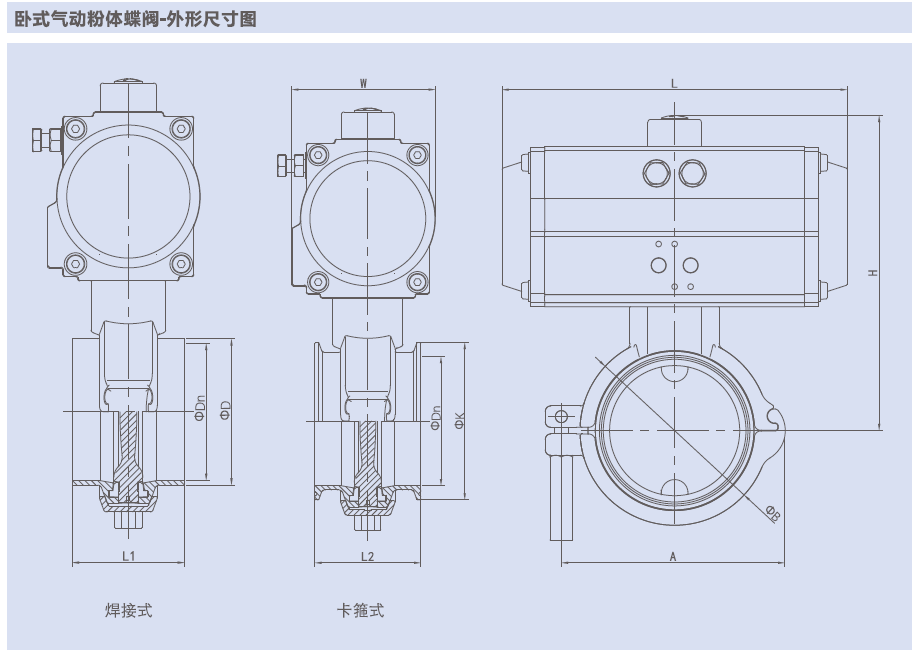

Product Drawing
Torque
| Operating Torque(N.M) | 2.5" | DN65/3" | DN80 | DN100/4" | DN125/5" | DN150/6" | DN200/8" | DN250/10" | DN300/12" |
| 10 | 14 | 20 | 25 | 35 | 45 | 55 | 65 | 65 |
Package
| File | Language | Size |
|---|---|---|
 Powder butterfly valve catalogue |
English | 21.1MB |
| Sanitary valves catalogue |
English | 30.2MB |
