Mixproof butterfly valve DF-FHB

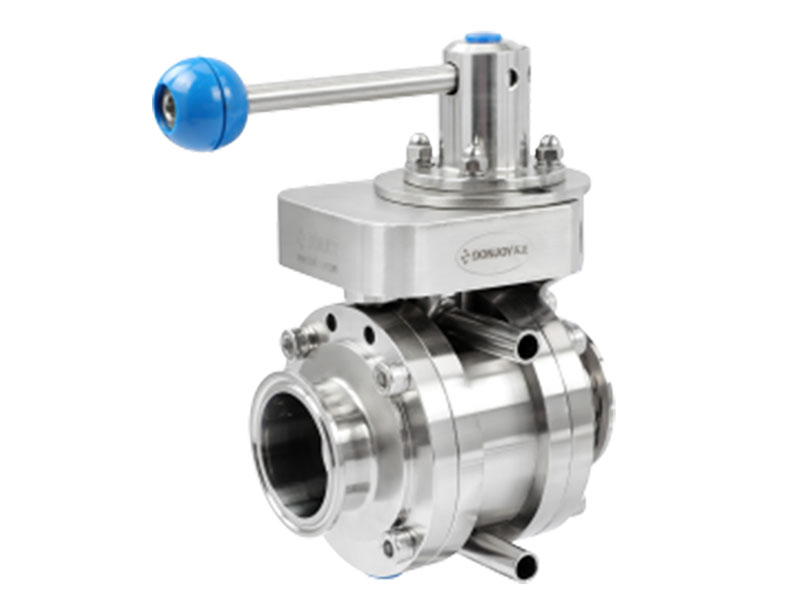

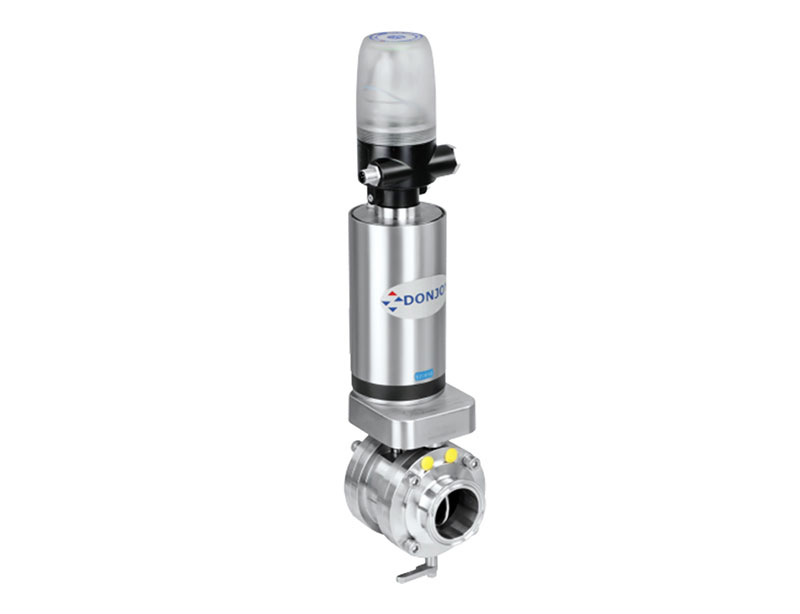

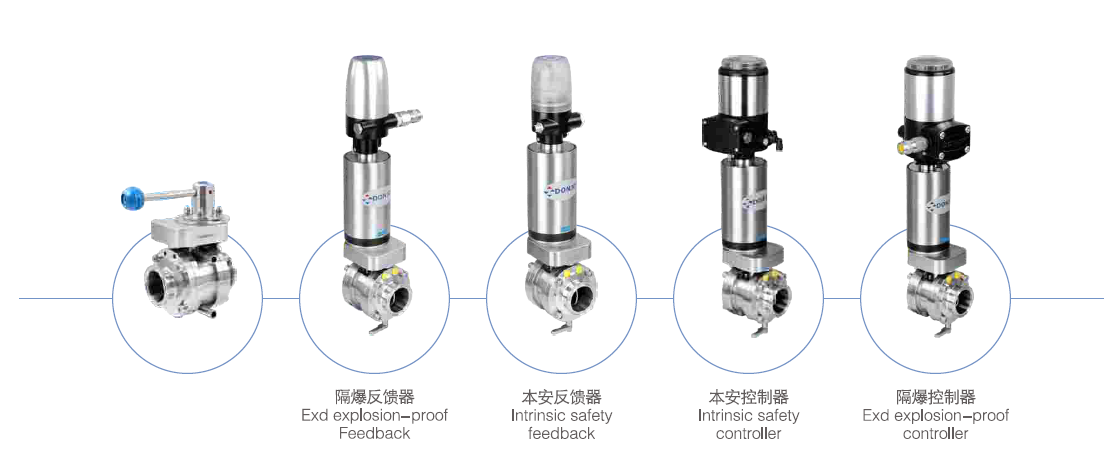

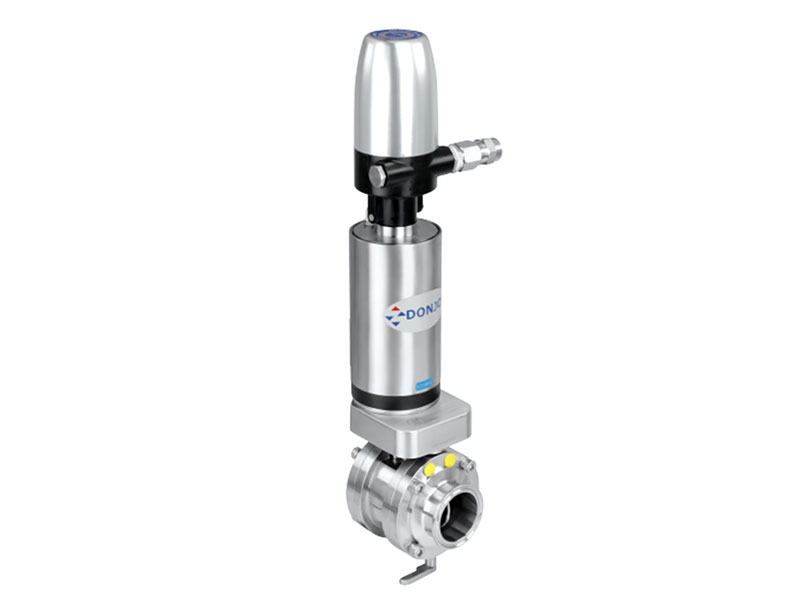

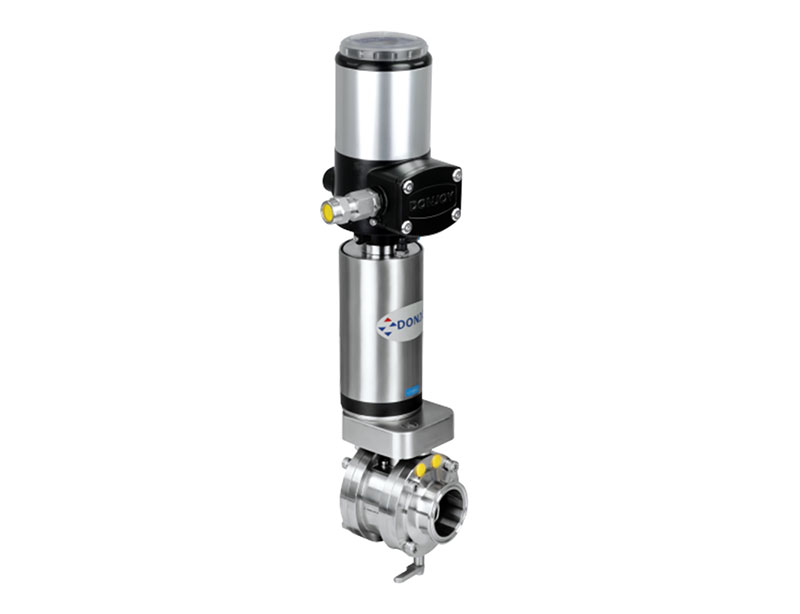

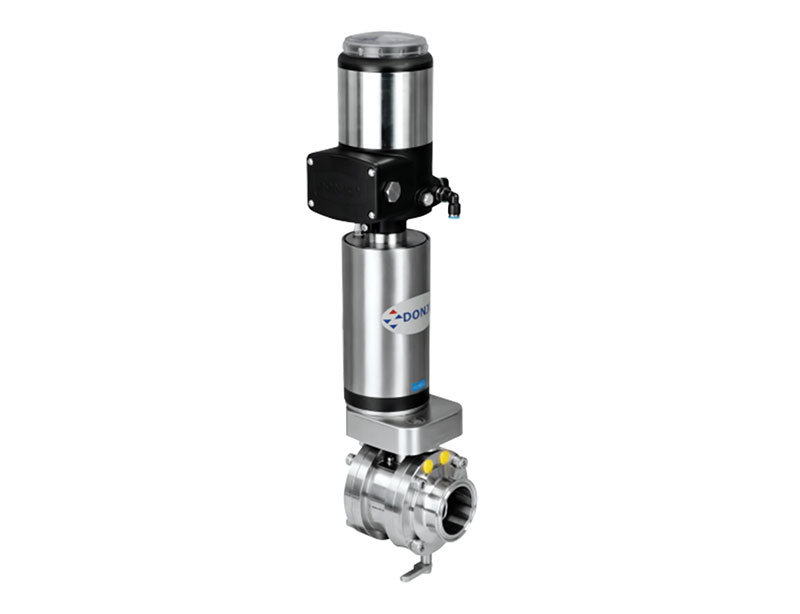

Sanitary SS316L double seat mixproof valve ,manual or pneumatic type.

What is a mixproof butterfly valve?

DF-FHB series mixproof double seat butterfly valve is widely used in various industrial fluid process applications such as food, pharmaceutical, beverage, beer, liquor, water treatment, cosmetics, new energy, daily washing and so on. The mixproof butterfly valve provides an easy and safe means of material separation to prevent accidental mixing of materials in the event of damage to the seal. It is most commonly used to isolate materials that require safe separation and a single set of CIP cleaning (not a valve array assembly), or into the tank assembly terminal (eg, CIP return) or CIP solution into the tank (by cleaning the ball).

Double seat seal protection, Internal leakage can be observed, Valve cavity can be cleaned, Zero pollution risk

Technical Features

Surface: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Temperature: EPDM -20 ℃ to +130℃, Depending on the seal material

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC

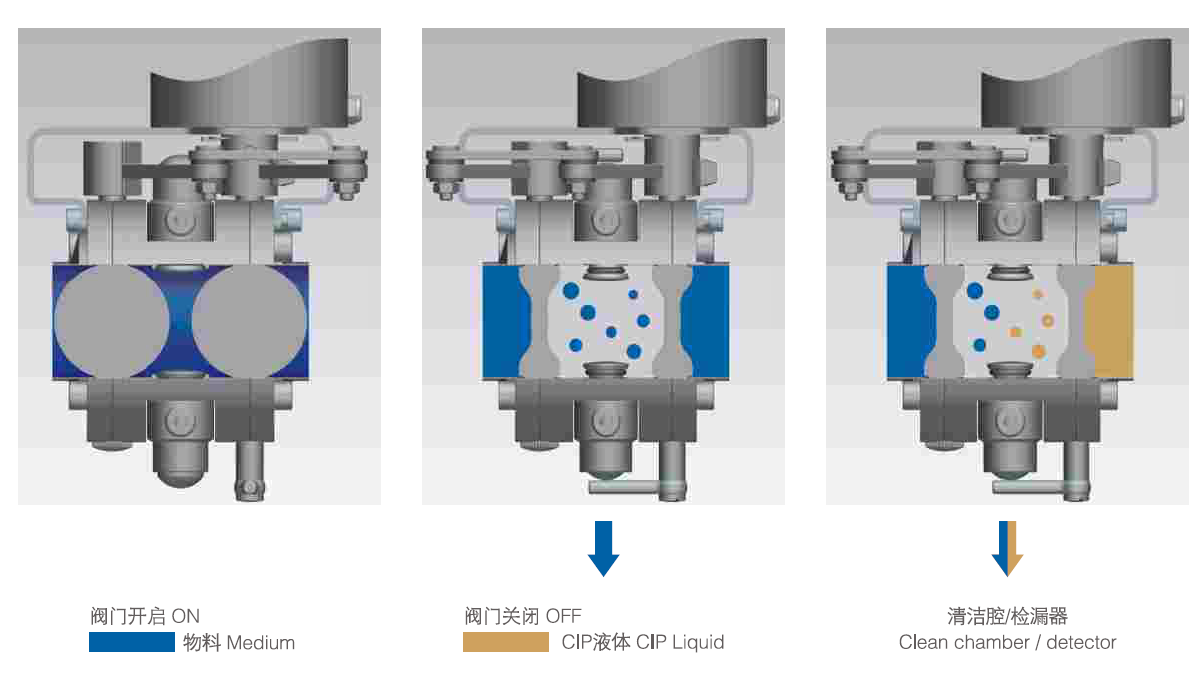

Working Princple

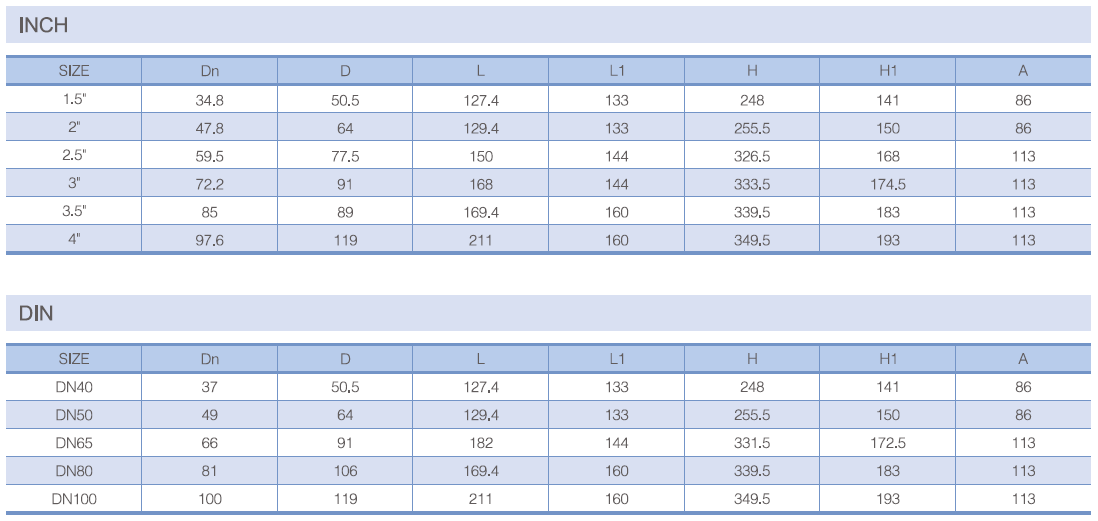

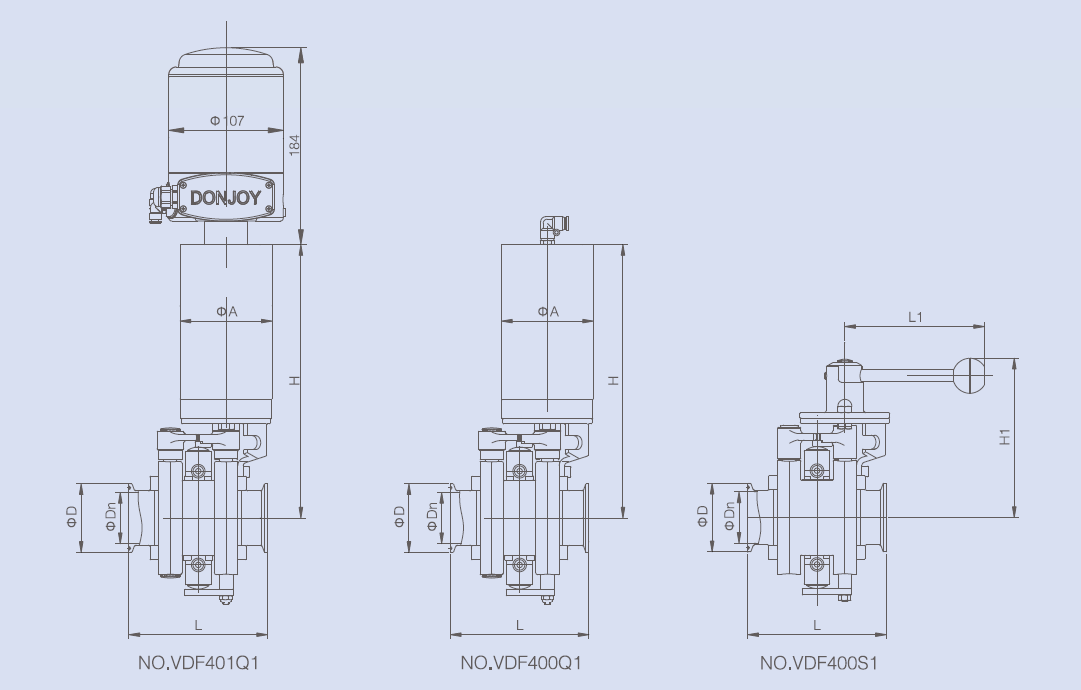

Product Drawing

Operating Torque(N.M)
