Three way ball valve QF-3T-23

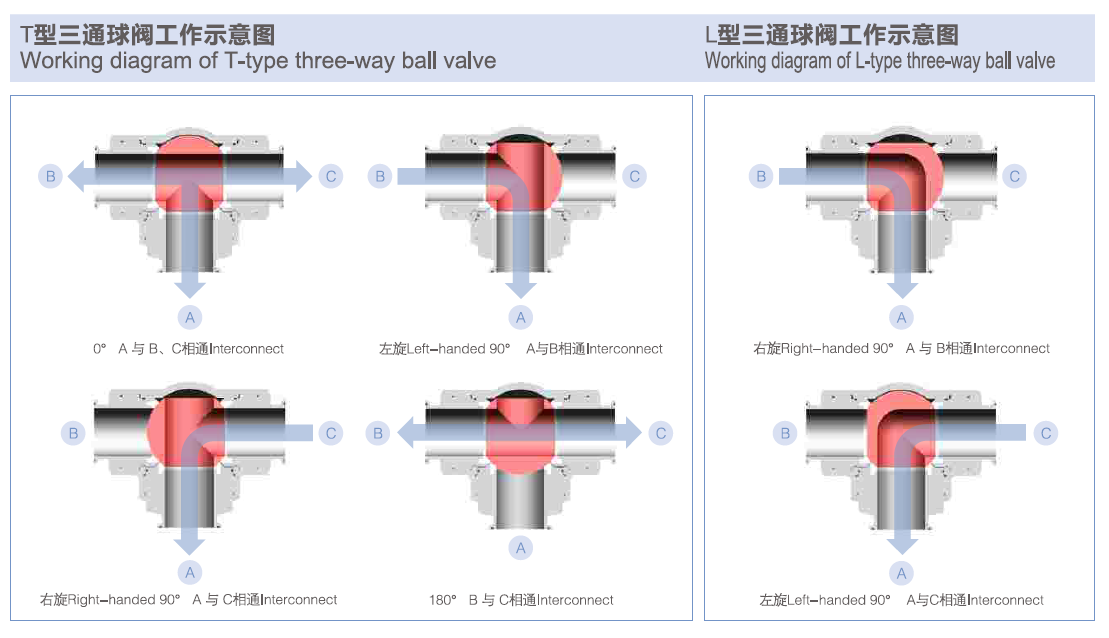

Sanitary stainless steel 304 316l food grade 3 way ball valve T type and L type

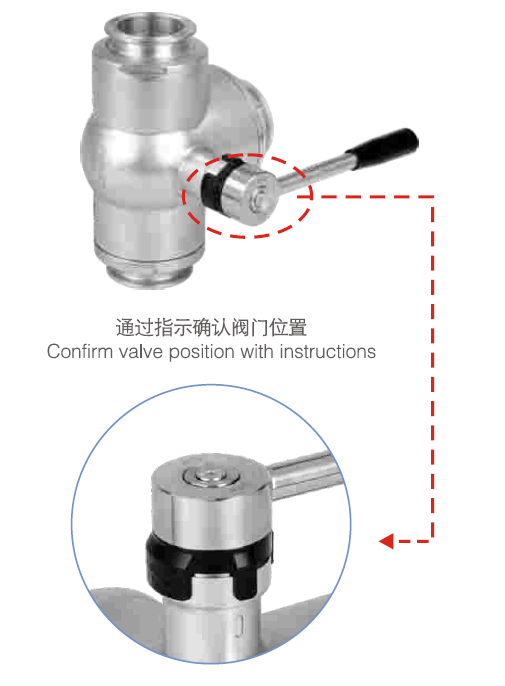

sanitary 3 way valves are well-designed, which has technical characteristics such as smaller retention, smaller volume, higher pressure, clearer opening position indication, less torque, and more aesthetics.

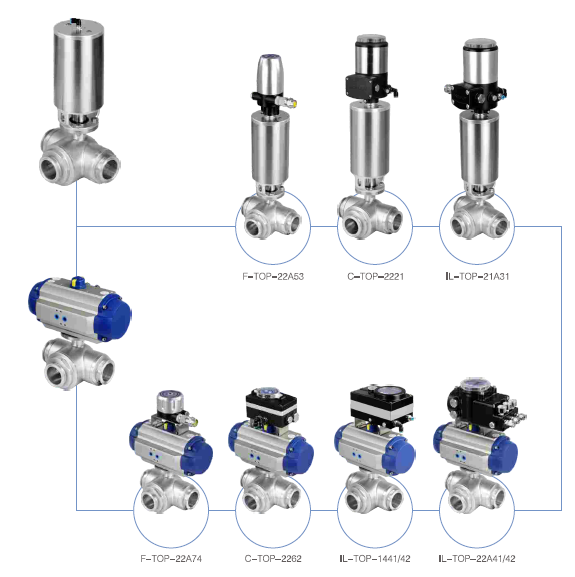

Sanitary 3 way ball valve configuration

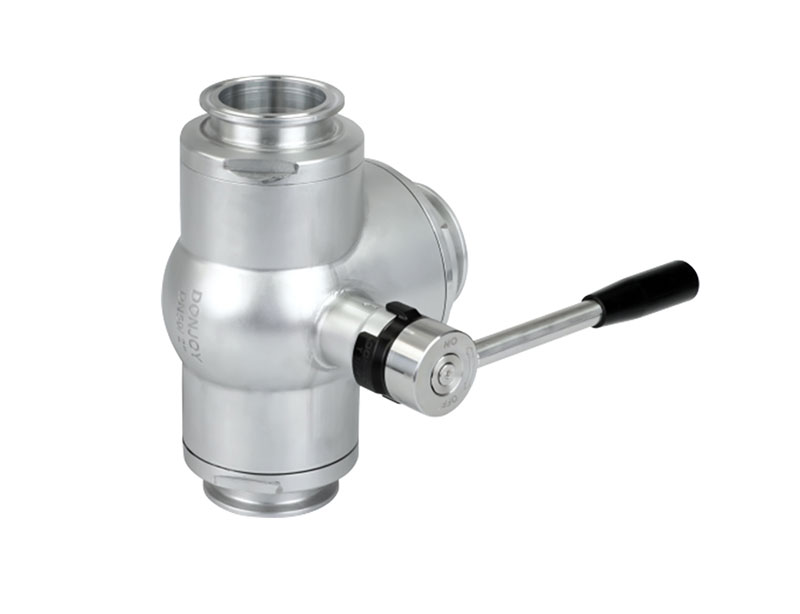

1.Sanitary manual 3 way ball valve (stainless steel handle)

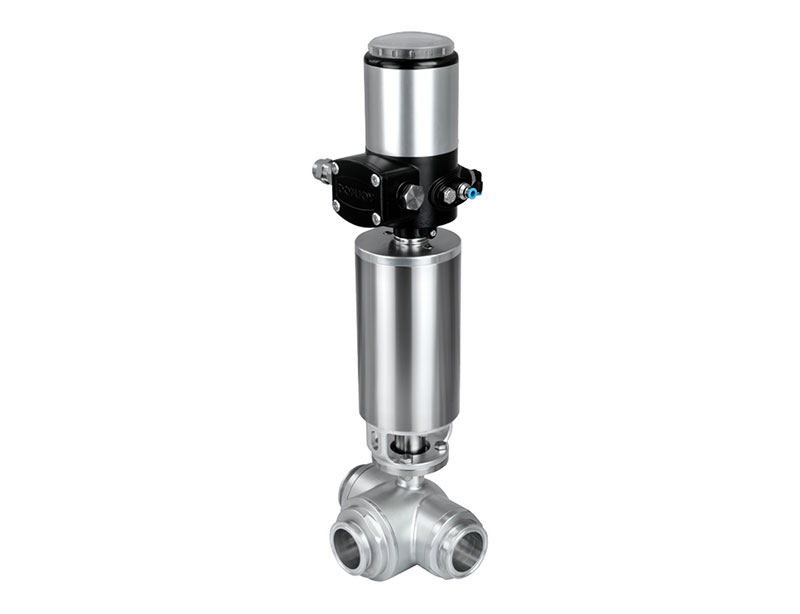

2.Sanitary pneumatic 3 way ball valve (Vertical stainless steel pneumatic actuator: Single acting or double acting)

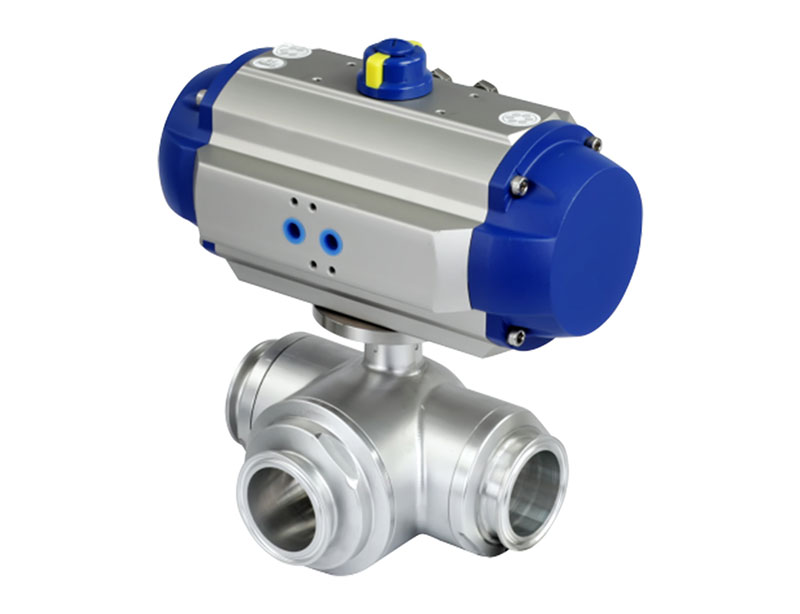

3.Sanitary pneumatic 3 way ball valve (horizontal aluminum pneumatic actuator: Single acting or double acting)

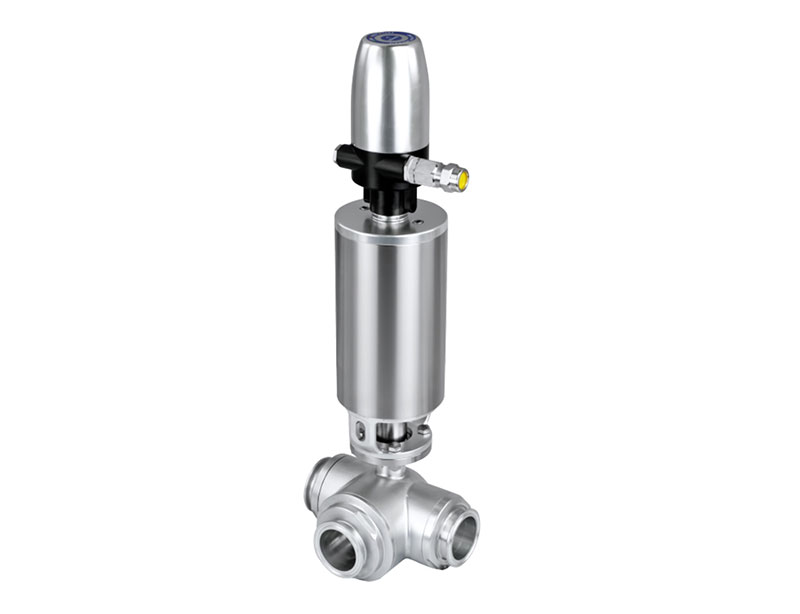

4.Sanitary pneumatic 3 way ball valve with controller c-top (To switch on/off and feedback the current valve position)

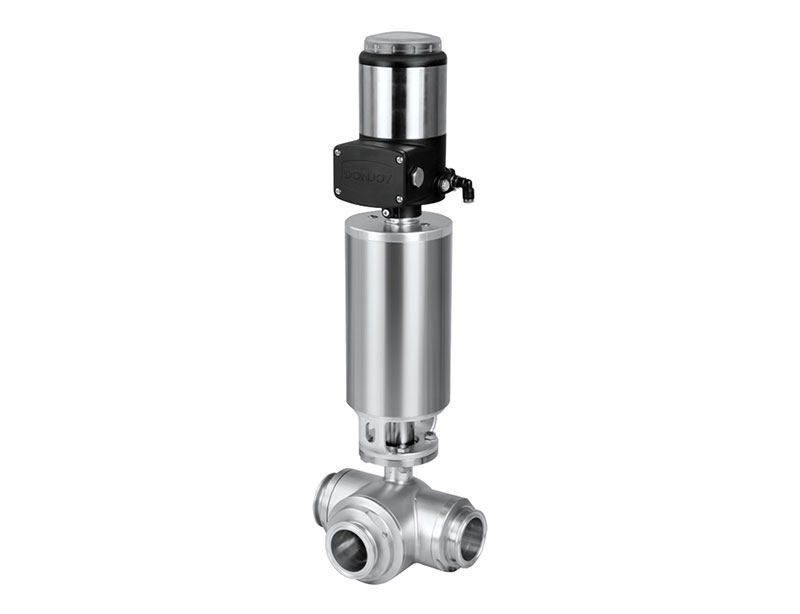

5.Sanitary pneumatic 3 way ball valv with positioner IL-top (To adjust the flow rate and feedback the current valve position)

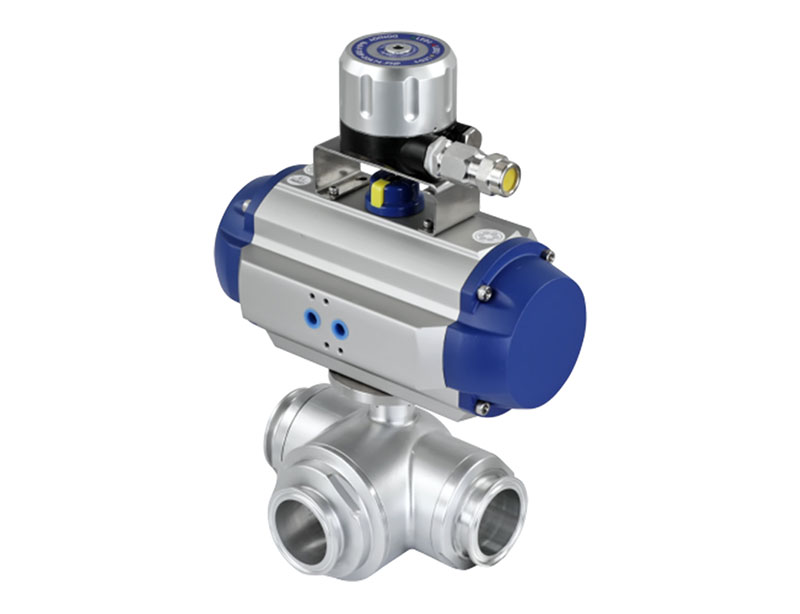

6.Sanitary pneumatic 3 way ball valve with feedback F-TOP (To feedback the current valve position)

Sanitary three way ball valves surface finish:

1.Inside and outside CNC (Default)

2.Inside and outside mirror polish (Optional)

3.Inside CNC ,outside sandblast (Optional)

4.Electropolish Ra0.38um inside (Optional)

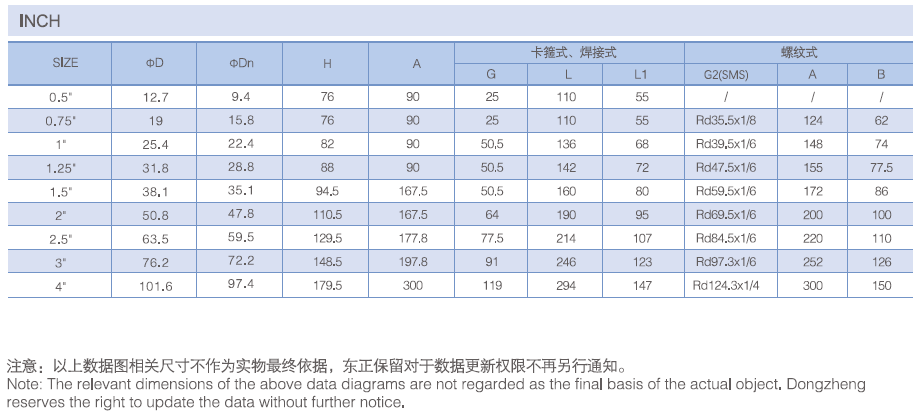

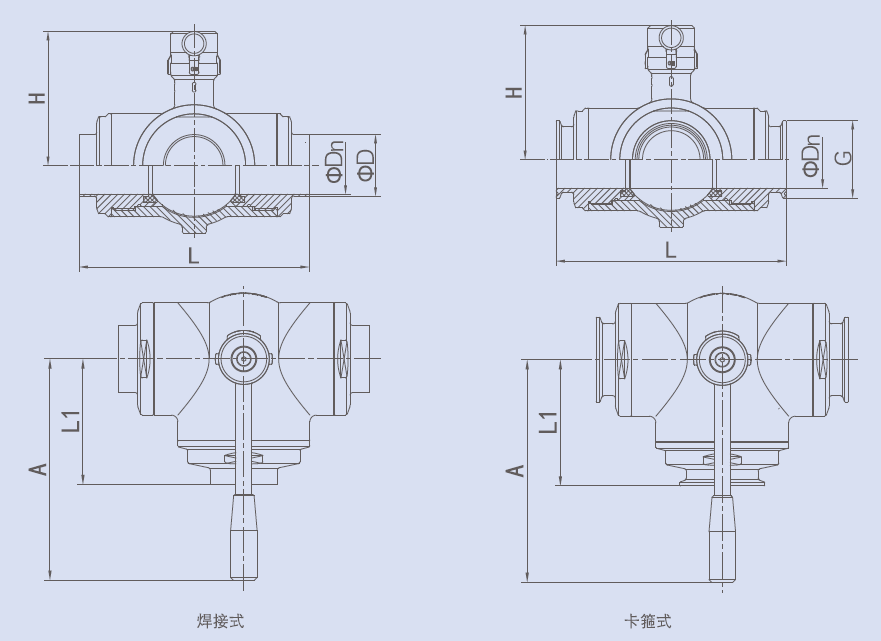

Product Drawing

Package:

By air/express:Carton box

By sea/train/land:Wooden box
