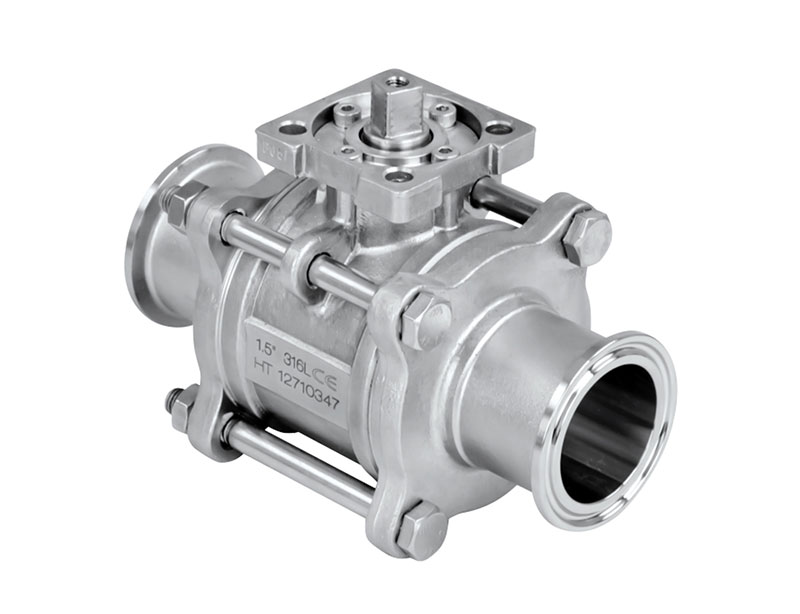

Three-piece ball valve QF-3P

Full bore Hygienic Sanitary 3PC ball valve with stainless steel 304 316L material 1000WOG

Small torque, long service life, full degreasing, sealing elastic compensation, small size, no internal retention, dead angle in appearance, very flexible function combination, maintenance without professional tools, economical, simple and reliable.

Sanitary Ball valve

Donjoy series ball valves are designed in strict accordance with the high cleanliness requirements of the United States 3-A-68-00, with small torque, long life, full degreasing, sealing elastic compensation, small size, no internal retention, appearance close to no dead ends, and very flexible functional combination , It is economical, simple and reliable series sanitary ball valve that can be maintained without professional tools. After more than 20 years and more than 3 million pieces of manufacturing and application experience, combined with the latest technology and material applications, it is innovatively designed based on rich on-site installation and product application experience. It can be applied to all kinds of food, pharmaceuticals, beverages, beer, liquor, water treatment, cosmetics, new energy, daily chemical washing, etc. at the same time.

Technical Features

Connection method: Thread, clamp, welding, flange

Surface finish: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Temperature: PTFE -20℃ to +130℃, Depending on the seal material

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

Sanitary 3pc ball valve Performance Curve-Temperature

Temperature -pressure graph

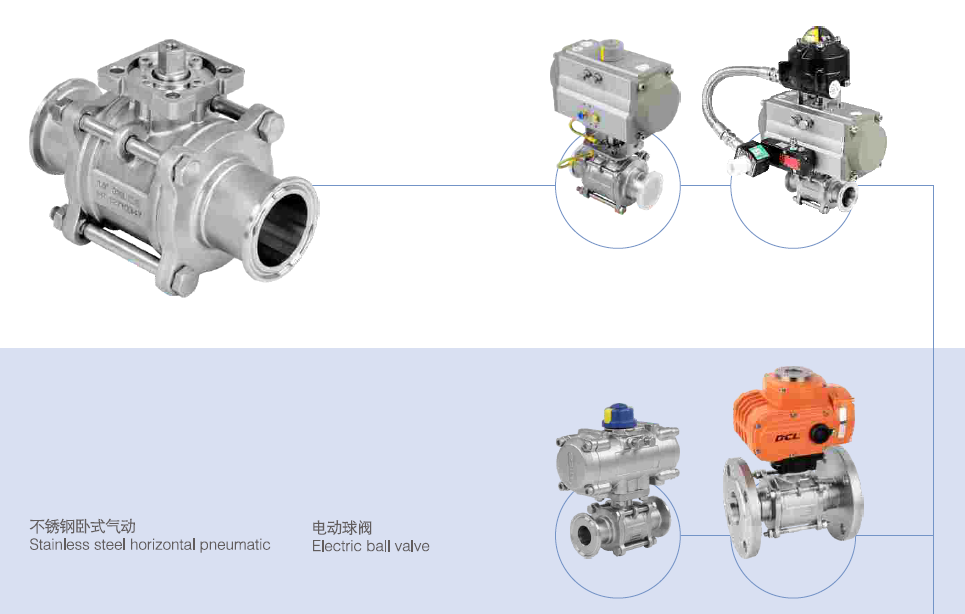

Sanitary three piece ball valve Configuration

1.Sanitary manual 3pc ball valve

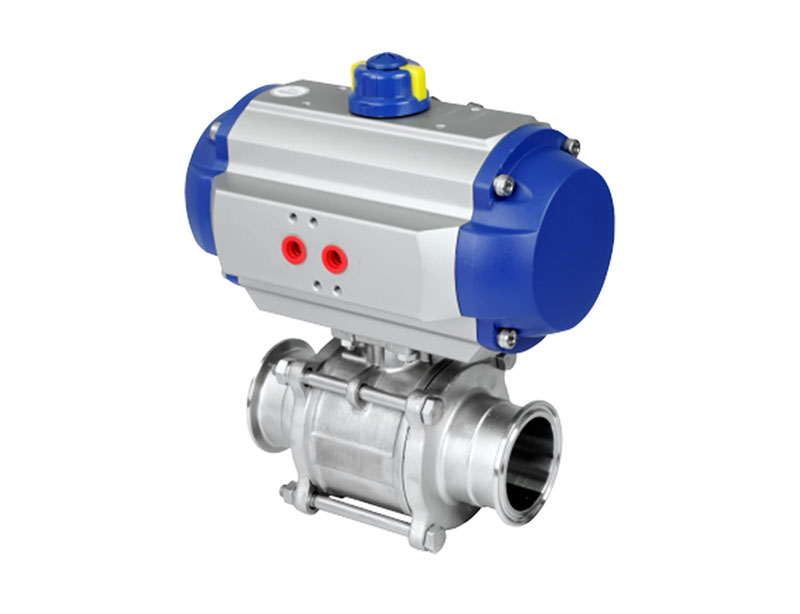

2.Sanitary pneumatic 3pc ball valve ( vertical stainless stseel air actuator)

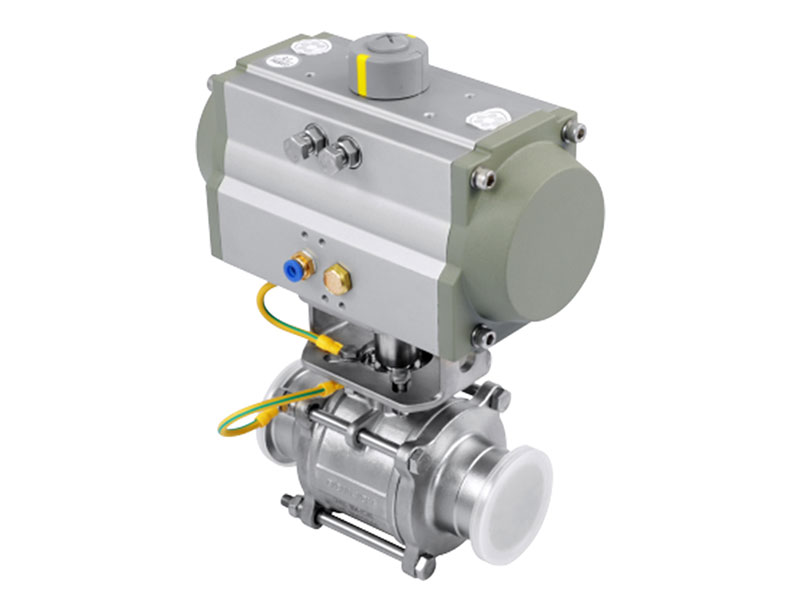

3.Sanitary pneumatic 3pc ball valve ( horizontal aluminum air actuator)

4.Sanitary electronic 3PC ball valve

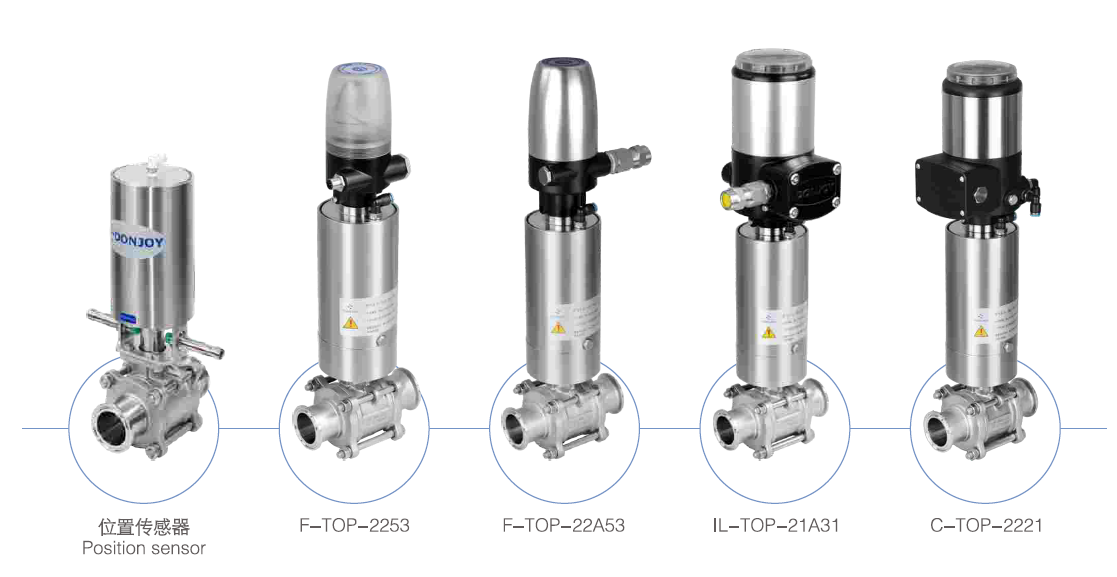

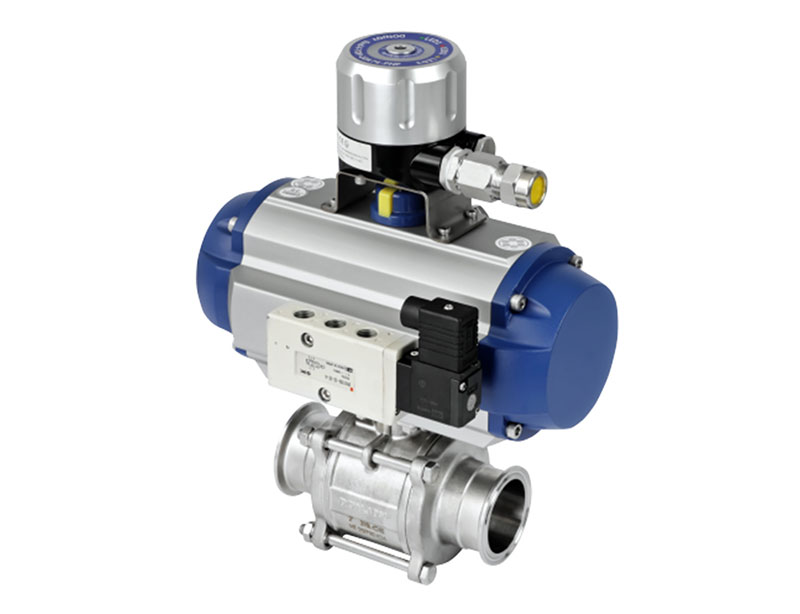

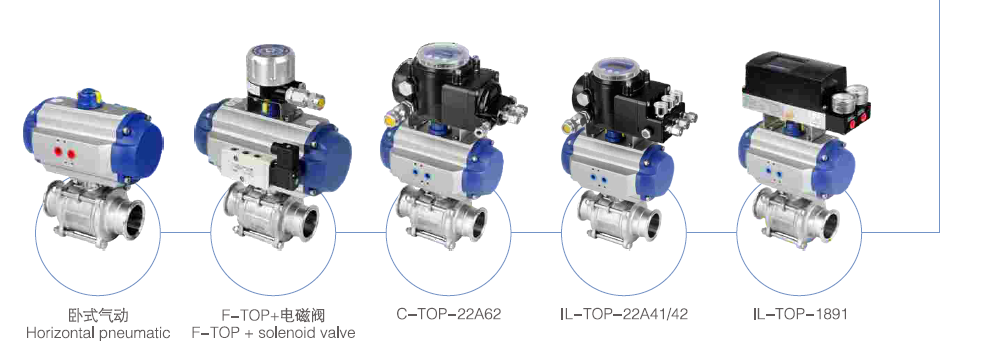

5.Sanitary pneumatic 3pc ball valve with control top C-TOP (To on/off valve and feedback the current valve position,including solenoid valve)

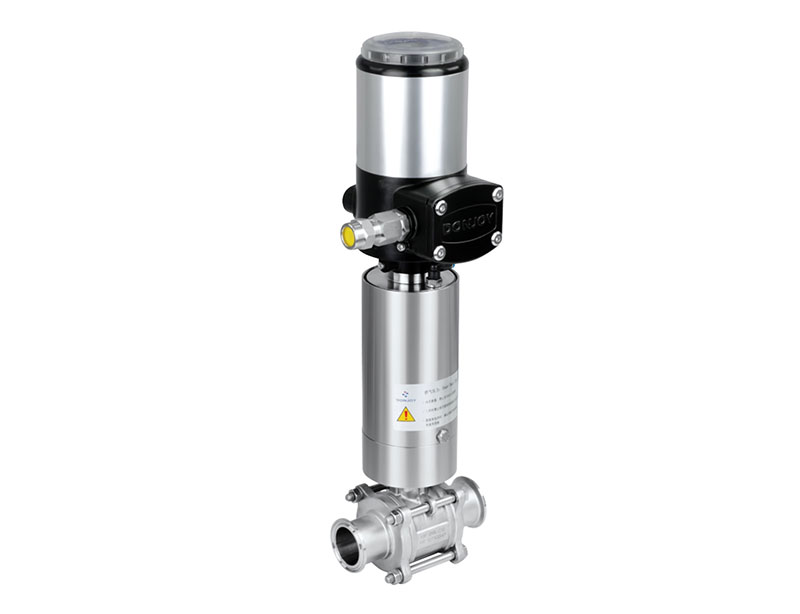

6.Sanitary pneumatic 3pc ball valve with positioner IL-TOP (To adjust the valve flow rate and feedback the current valve position)

7.Sanitary pneumatic 3pc ball valve with limit switch  (To feedback the current valve position)

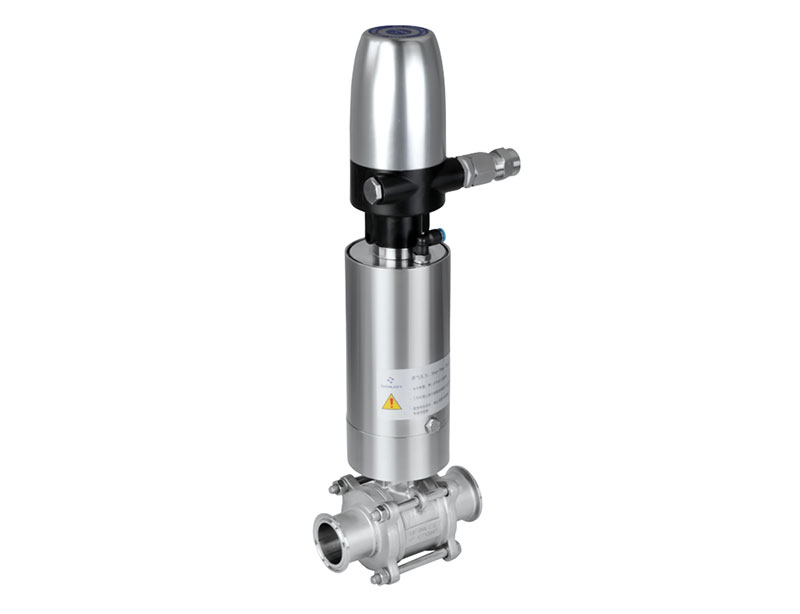

8.Sanitary pneumatic 3pc ball valve with feedback top F-TOP (To feedback the current valve position)

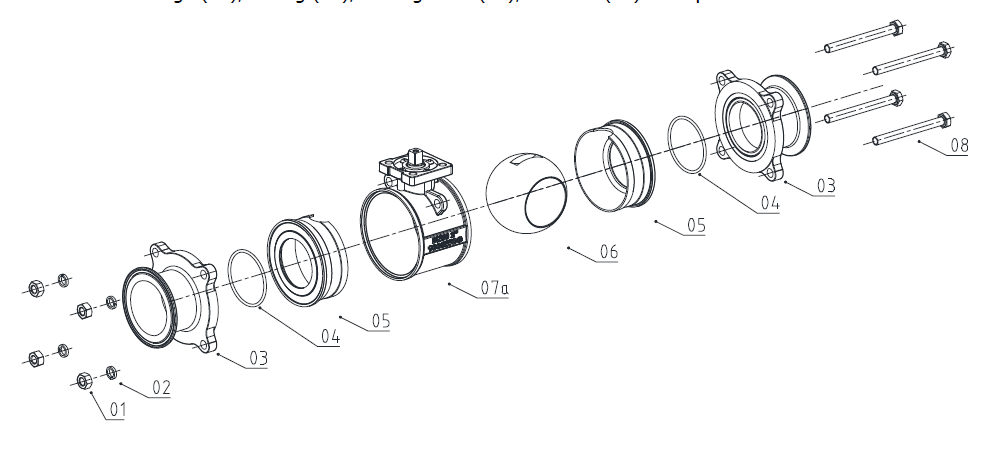

Explosive Drawing

Torque

Package

By air/express:Carton box

By sea/train/land:Wooden box
