Tank bottom ball valve QF-GD

DONJOY Sanitary hygienic stainles steel manual /pneumatic tank bottom ball valve

The tank bottom valve has two designs of valve core contraction and valve core extension, and has a very flexible valve body combination and various functional configurations, such as sterilization type, jacket insulation, damping buffer type, etc. Various automatic controls such as valve positioners, control units, feedback devices, and position sensors can also be installed.

Technical Features

Temperature: -20℃ to +150℃, Depending on the seal material

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-53-06; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

Sanitary tank bottom ball valve application

Sanitary tank bottom ball valve welding to the bottom of tank or vessels in sanitary process systems for discharge,mainy used in food,dairy,beverage,pharmaceutical industries.

Tank bottom ball valve is suitable for manual, pneumatic, electric and other driving devices, including positioner, control unit, feedback, position sensor, etc.

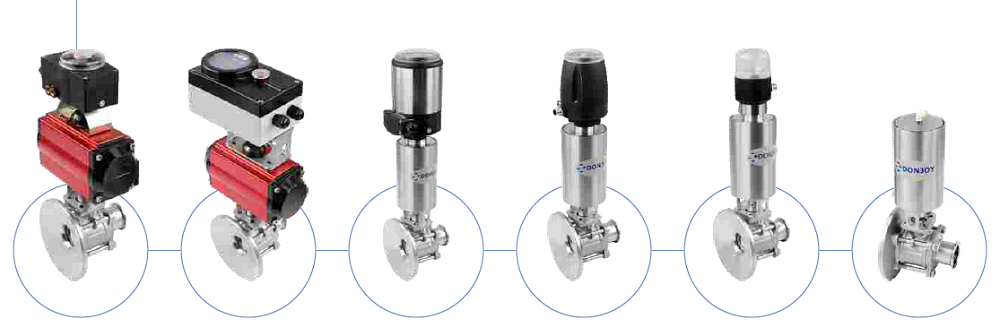

Sanitary tank bottom ball valve configuration:

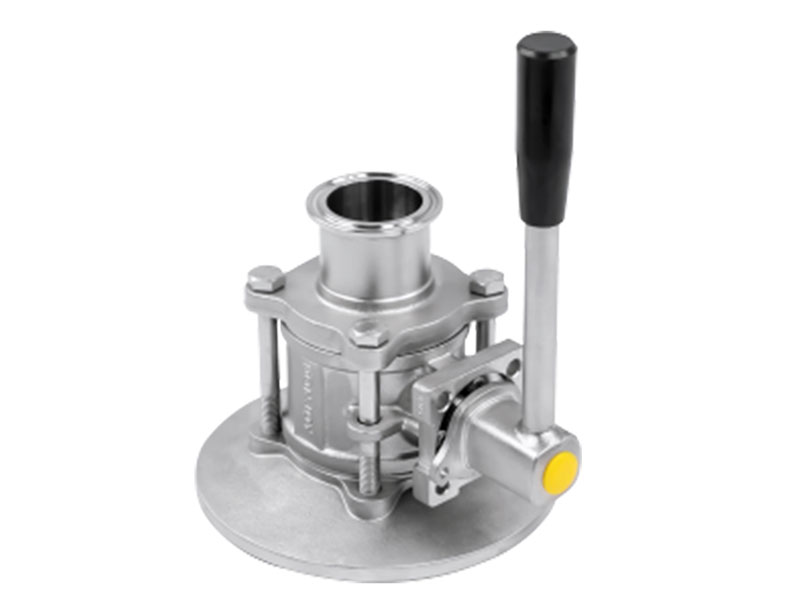

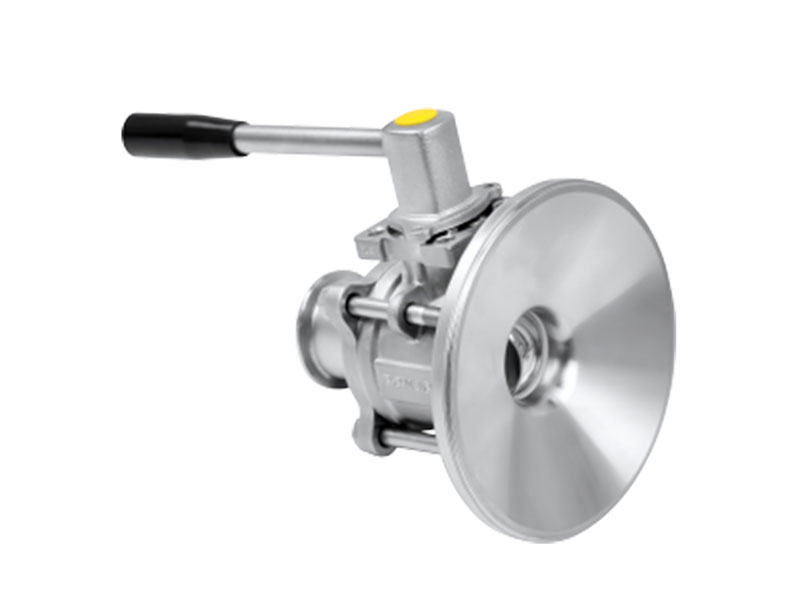

1. Sanitary manual tank bottom ball valve with stainless steel handle

2.Sanitary pneumatic tank bottom ball valve (vertical stainless steel pneumatic actuator:single acting ,double acting )

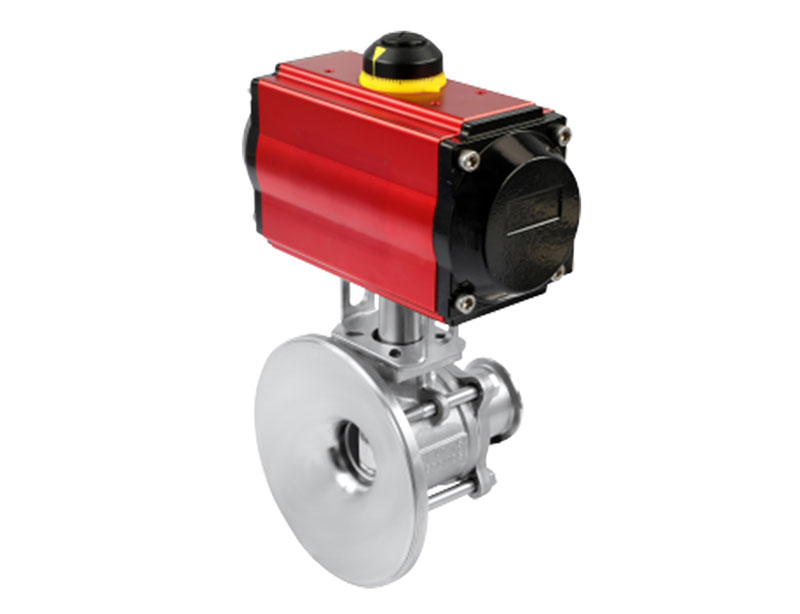

3.Sanitary pneumatic tank bottom ball valve (Horizontal aluminum pneumatic actuator:single acting ,double acting )

4.Sanitary pneumatic tank bottom ball valve with control top C-TOP (To switch on/off and feedback the current valve position)

5.Sanitary pneumatic tank bottom ball valve with positioner IL-TOP (To adjust the valve flow rate and feedback the current valve position)

6.Sanitary pneumatic tank bottom ball valve with feedback top F-TOP (To feedback the current valve position)

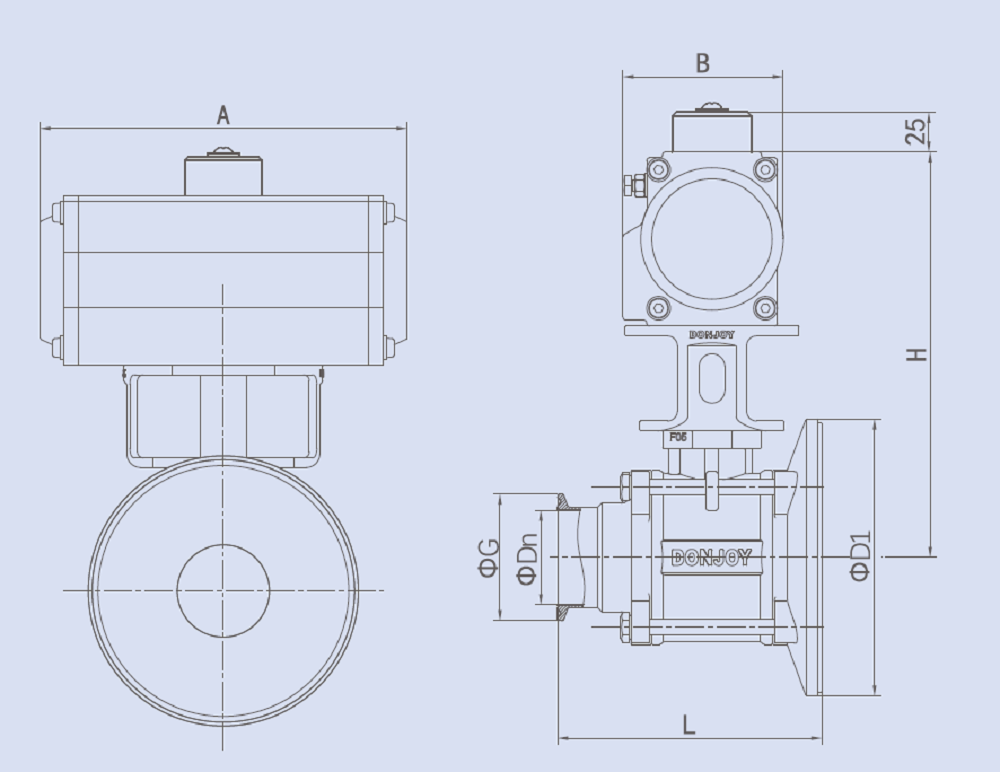

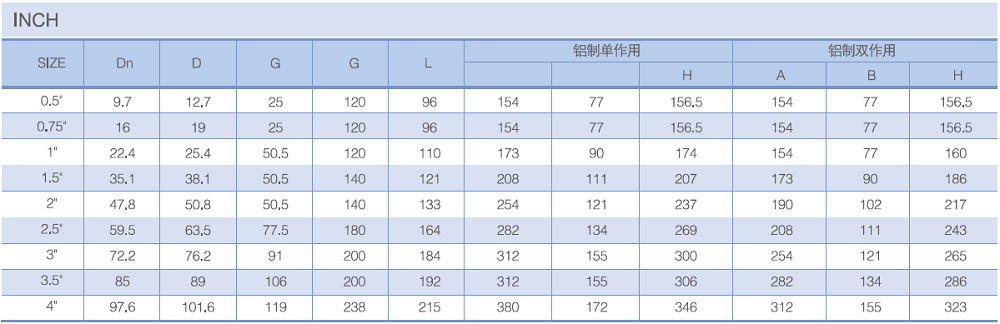

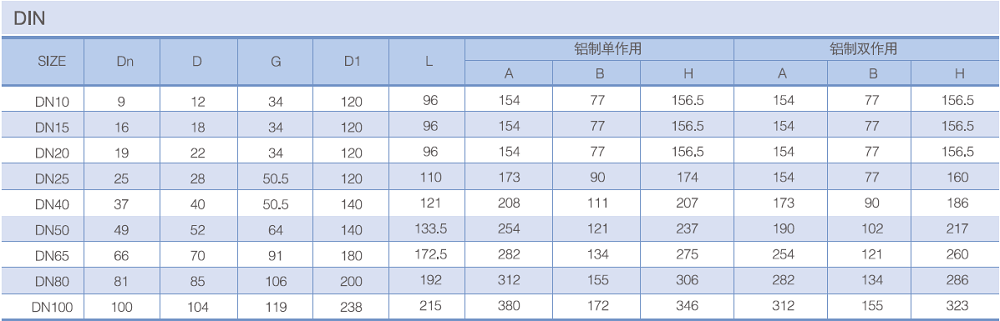

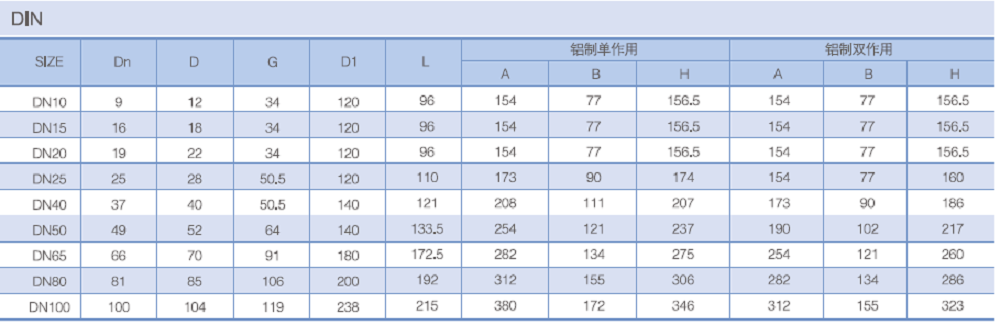

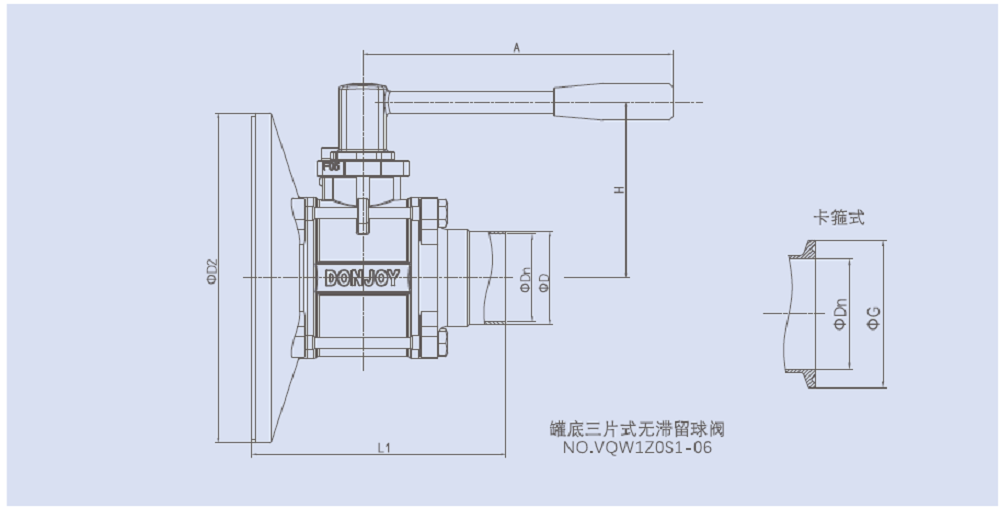

Hygienic tank bottom ball valve drawing

Package

By air/express:Carton box

By Sea/train/land:Wooden box
