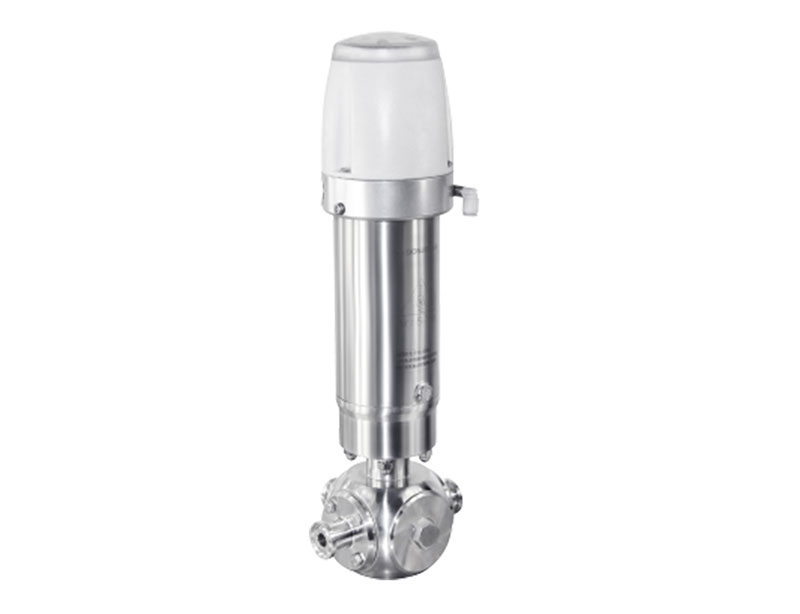

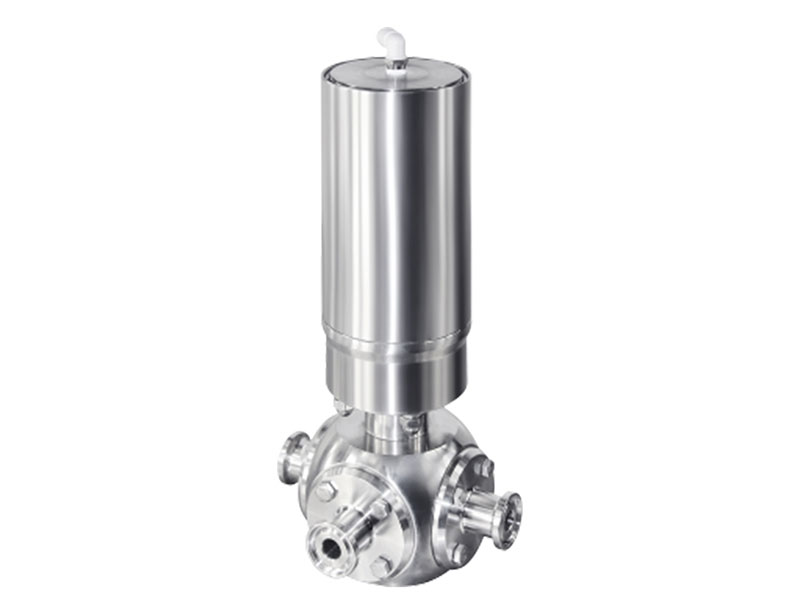

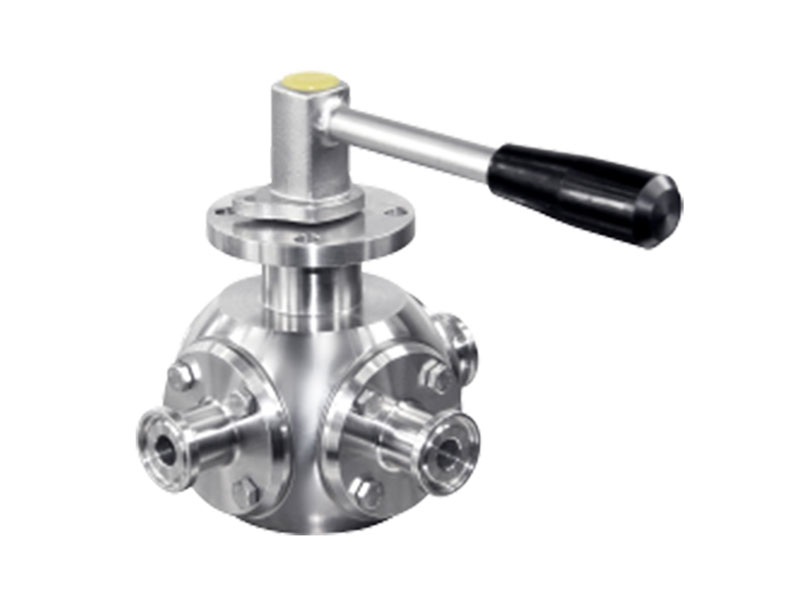

MINI Three way ball valve QF-MINI

TECHNICAL SPECIFICATIONS:

Size: 1/2"-4", DN10-DN100

Pressure: Vacuum to 10bar (1.0 MPa)

Sealing: TFM; PTFE; PTFE+Carbon; PEEK

Drive mode: manual, turbo, pneumatic, electric

Connection method: Thread, clamp, welding, flange

Surface finish: Ra≤0.8μm

Get a Quote
Share:
RELATED VIDEOS
FEATURES

Sanitary ss304 316l three way ball valves with 1/2" 3/4" DN15 DN20 for wine beer milk dairy food

Advantage

Only 2N.M torque, long service life, full degreasing, sealing elastic compensation, very small size, no internal retention, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable.

Sanitary Ball valve

Donjoy series ball valves are designed in strict accordance with the high cleanliness requirements of the United States 3-A-68-00, with small torque, long life, full degreasing, sealing elastic compensation, small size, no internal retention, appearance close to no dead ends, and very flexible functional combination , It is economical, simple and reliable series sanitary ball valve that can be maintained without professional tools. After more than 20 years and more than 3 million pieces of manufacturing and application experience, combined with the latest technology and material applications, it is innovatively designed based on rich on-site installation and product application experience. It can be applied to all kinds of food, pharmaceuticals, beverages, beer, liquor, water treatment, cosmetics, new energy, daily chemical washing, etc. at the same time.



What is a sanitary ball valve?

Sanitary ball valve is a type of valve used in industries that require high levels of cleanliness and hygiene. It is specifically designed to prevent the accumulation of bacteria and other microorganisms that can contaminate the production process or the product itself. The valve uses a ball-shaped disc that rotates inside the valve body to control the flow of liquids or gases. The valve is constructed of materials that are easy to clean, and its design includes minimal gaps and crevices that could trap contaminants. Sanitary ball valves are commonly used in industries such as food and beverage, pharmaceuticals, and biotechnology.

Technical Features

Connection method: Thread, clamp, welding, flange

Surface finish: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Temperature: PTFE -20℃ to +130℃, Depending on the seal material

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

Package

THEORY OF OPERATION
DOWNLOAD
File Language Size
Ball valve catalogue English 30.33MB
Sanitary valves catalogue English 30.2MB
