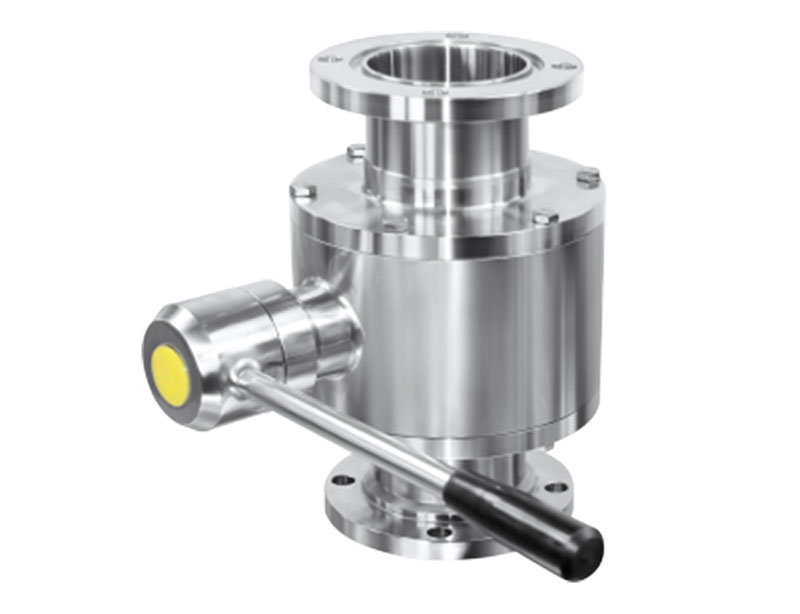

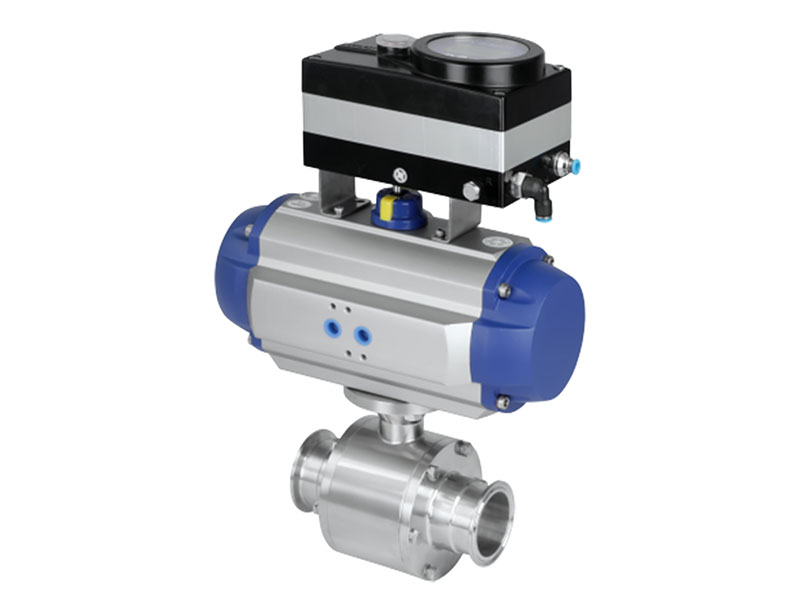

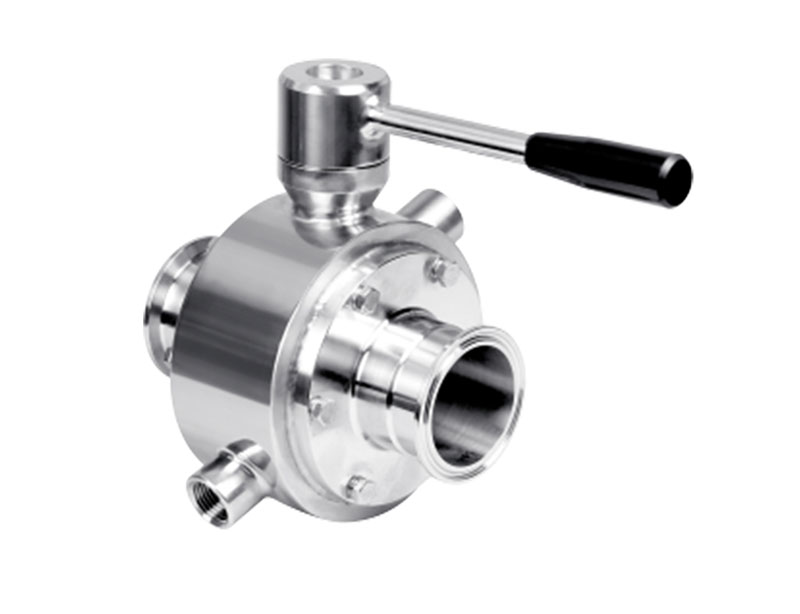

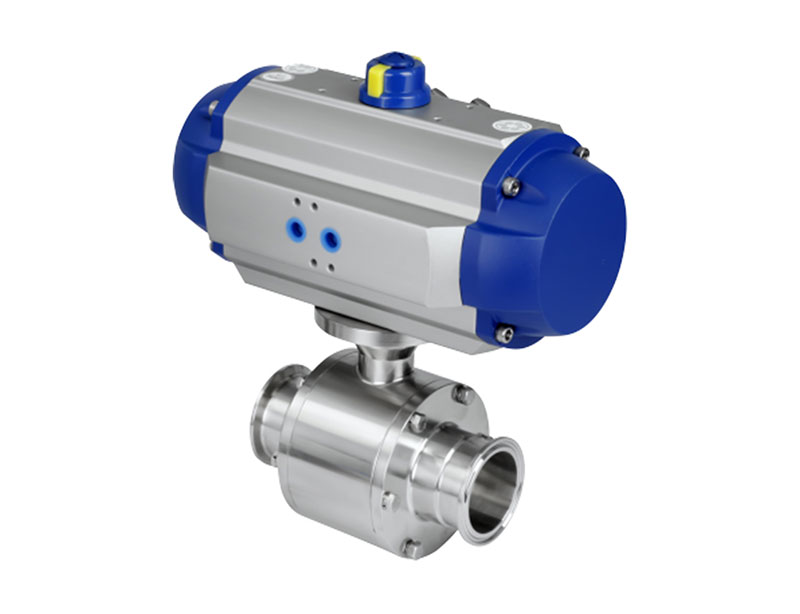

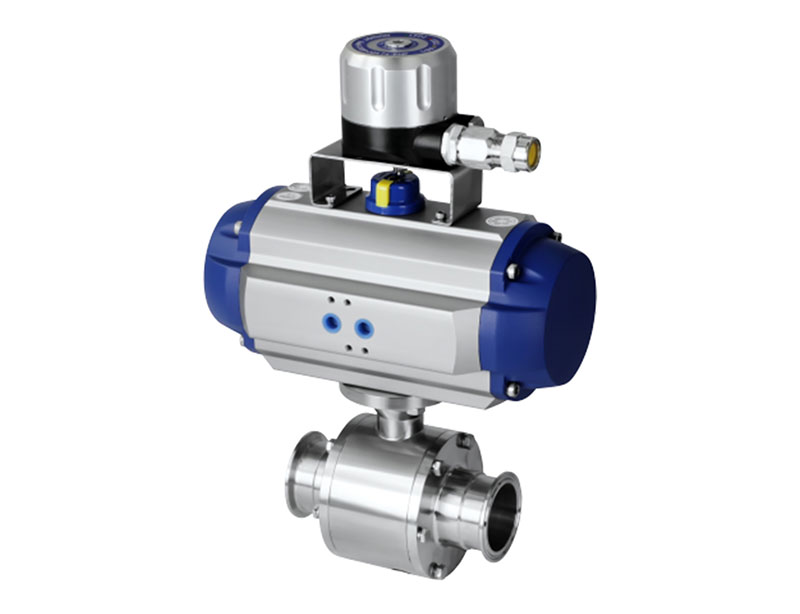

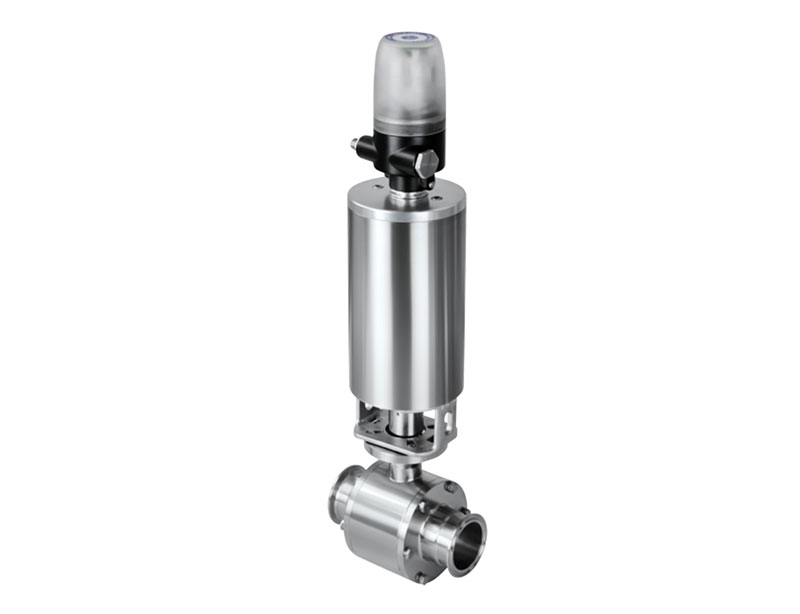

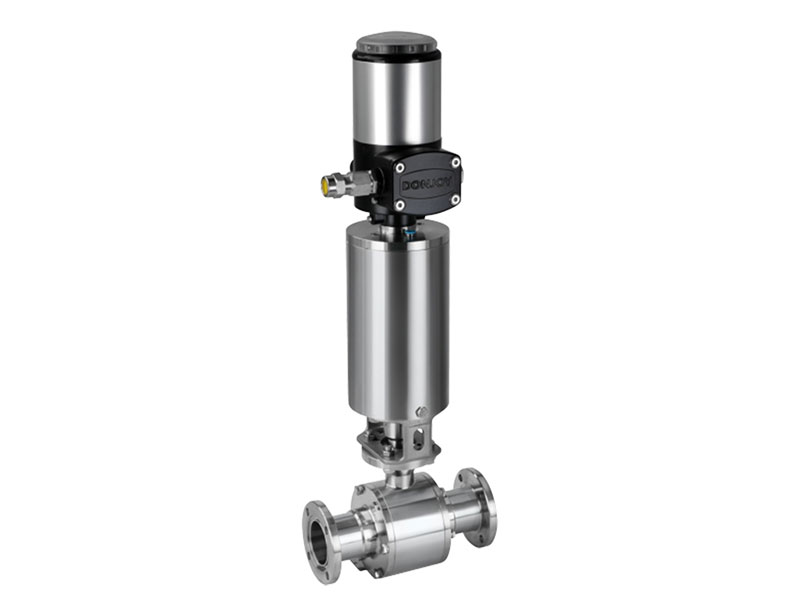

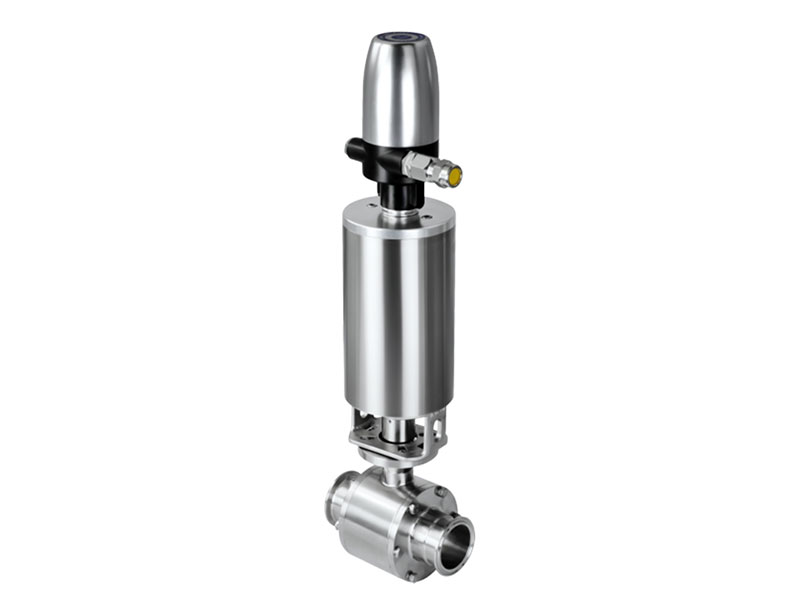

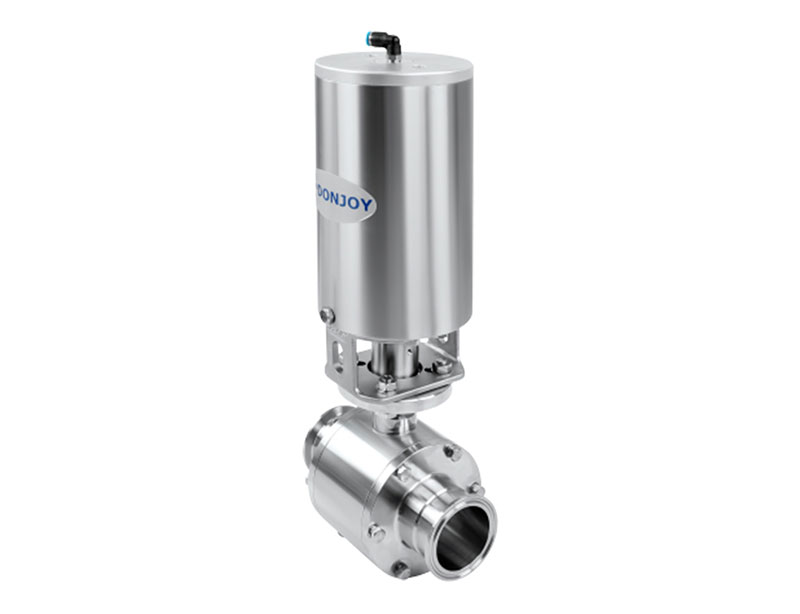

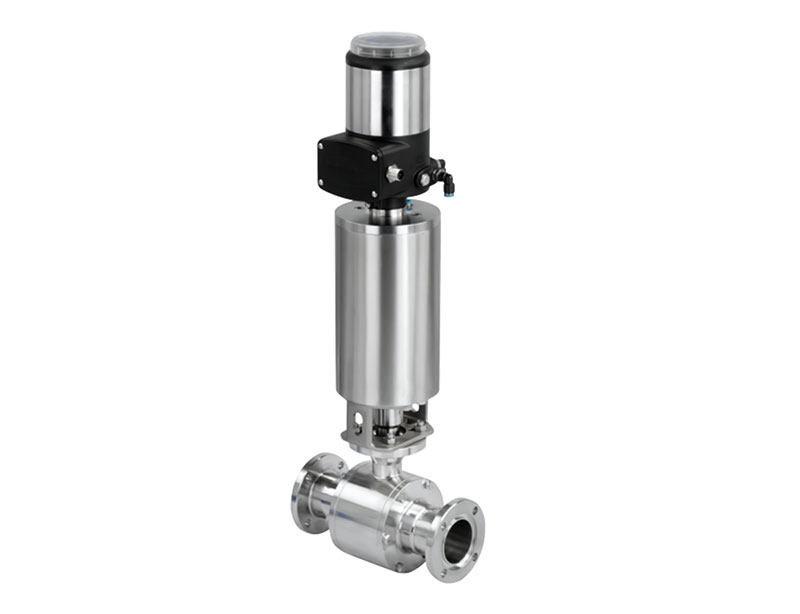

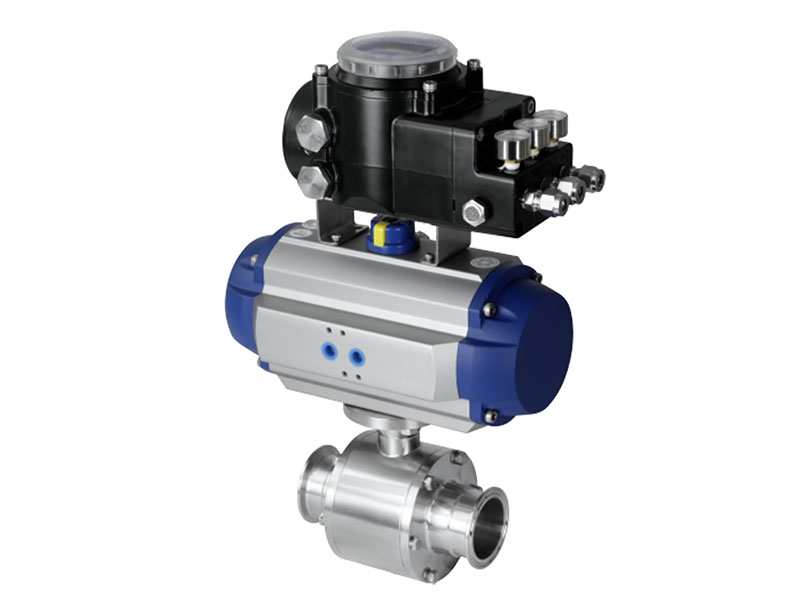

Inside & outside non-retention ball valve QFWW-2T

Sanitary ball valves/Hygienic ball valve/Food grade ball valves with 3A CE FDA certification

Small torque, long service life, full degreasing, sealing elastic compensation, small size, no internal retention, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable.

Sanitary Ball valve

Donjoy series ball valves are designed in strict accordance with the high cleanliness requirements of the United States 3-A-68-00, with small torque, long life, full degreasing, sealing elastic compensation, small size, no internal retention, appearance close to no dead ends, and very flexible functional combination , It is economical, simple and reliable series sanitary ball valve that can be maintained without professional tools. After more than 20 years and more than 3 million pieces of manufacturing and application experience, combined with the latest technology and material applications, it is innovatively designed based on rich on-site installation and product application experience. It can be applied to all kinds of food, pharmaceuticals, beverages, beer, liquor, water treatment, cosmetics, new energy, daily chemical washing, etc. at the same time.

Technical Features

Connection method: Thread, clamp, welding, flange

Surface finish: Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Temperature: PTFE -20℃ to +130℃, Depending on the seal material

Material: 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

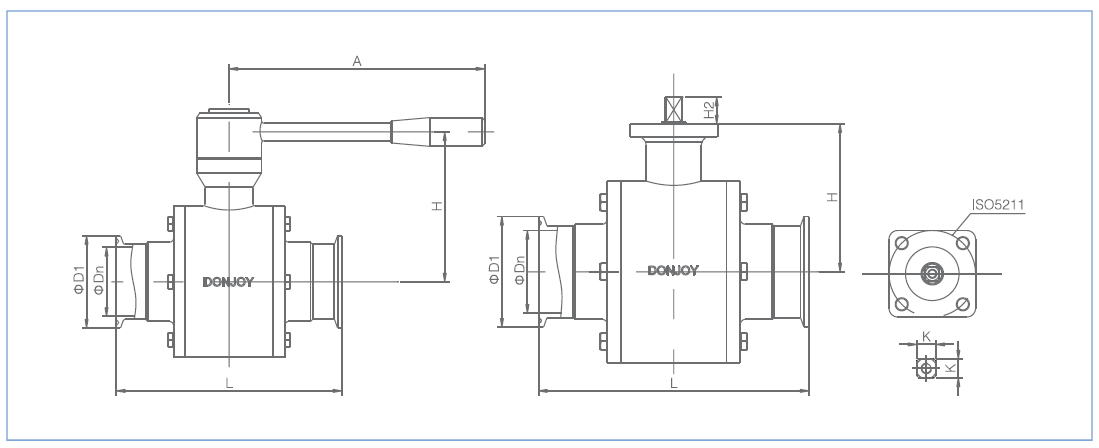

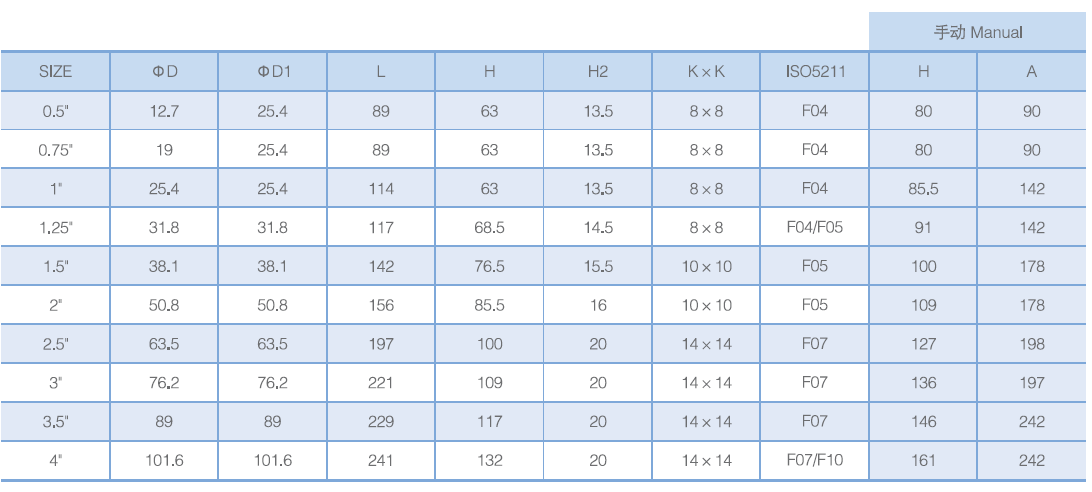

Product Drawing

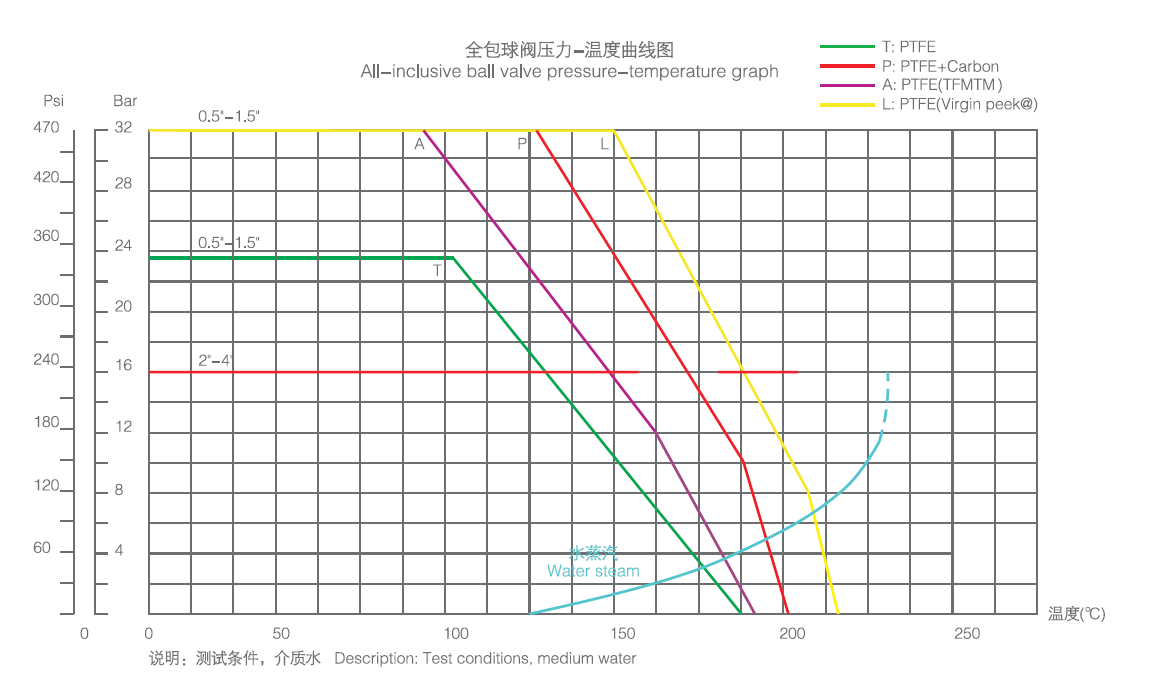

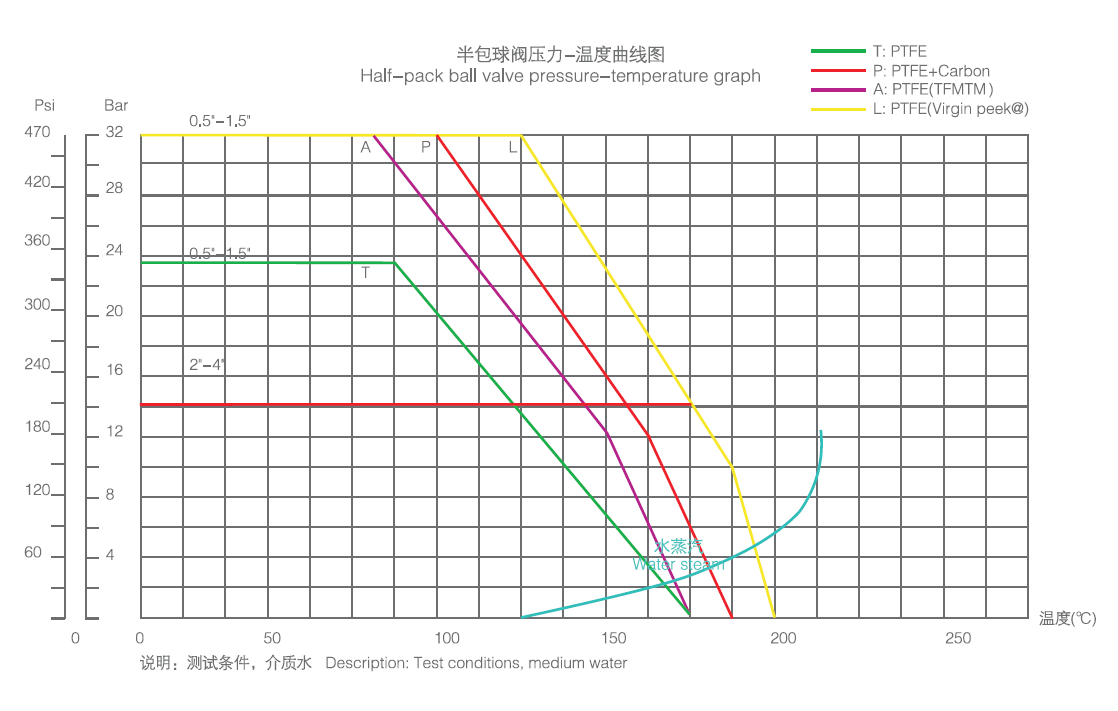

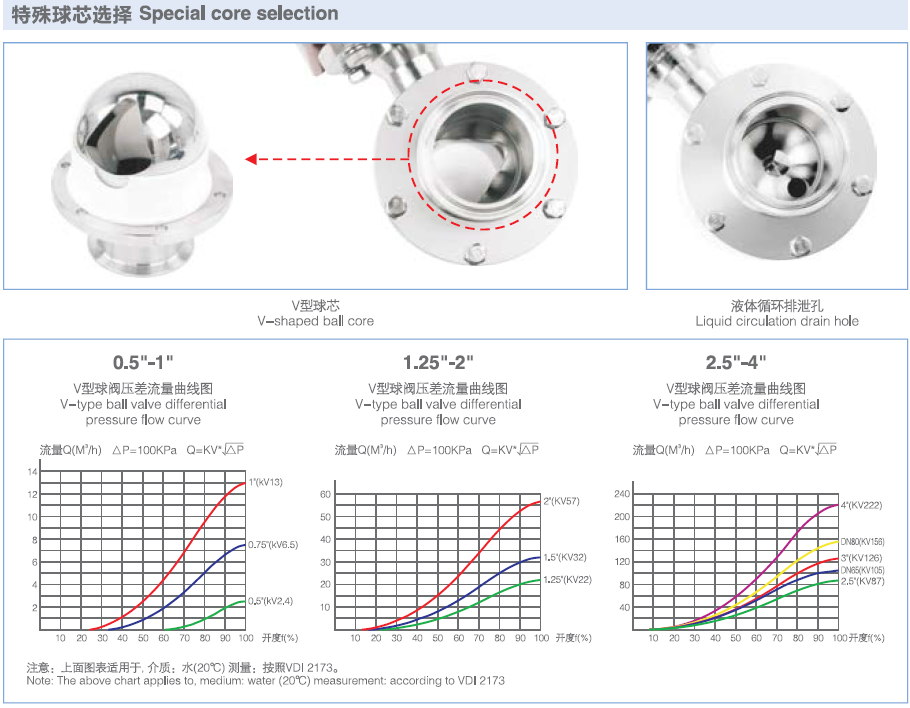

Performance Curve

For temperature graph

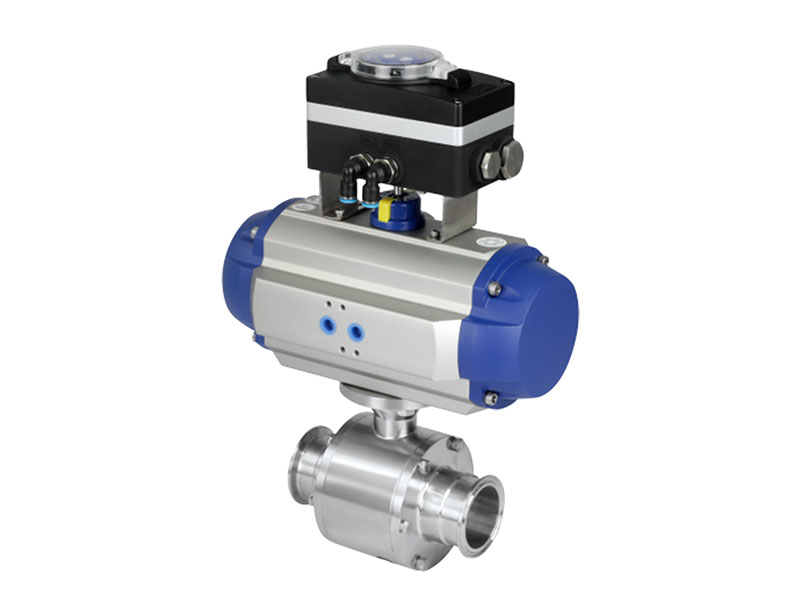

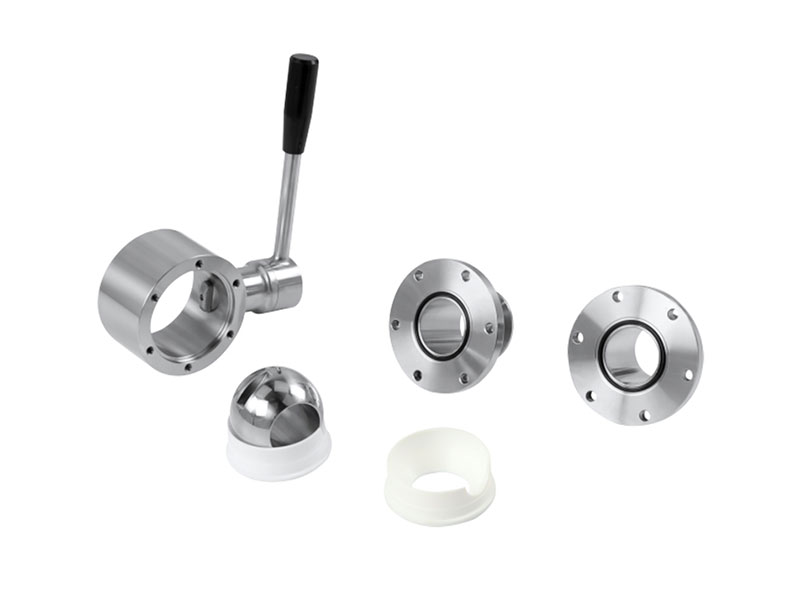

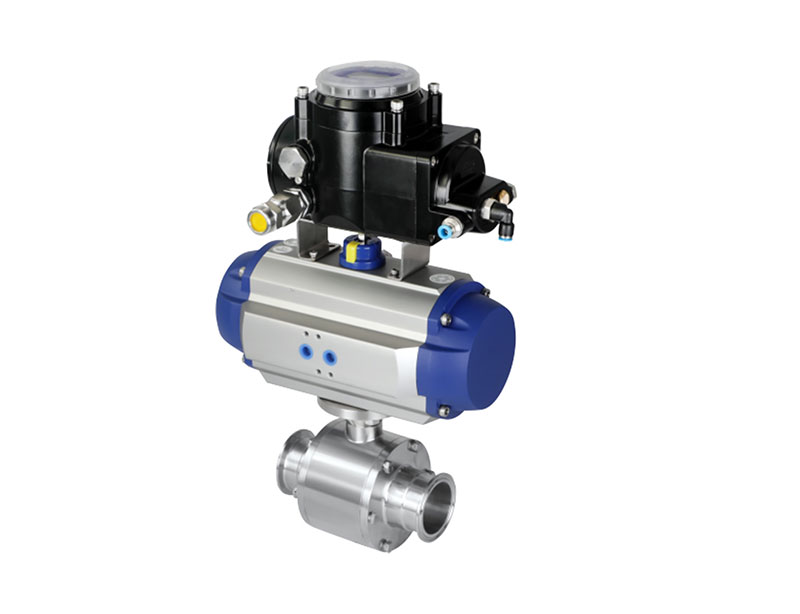

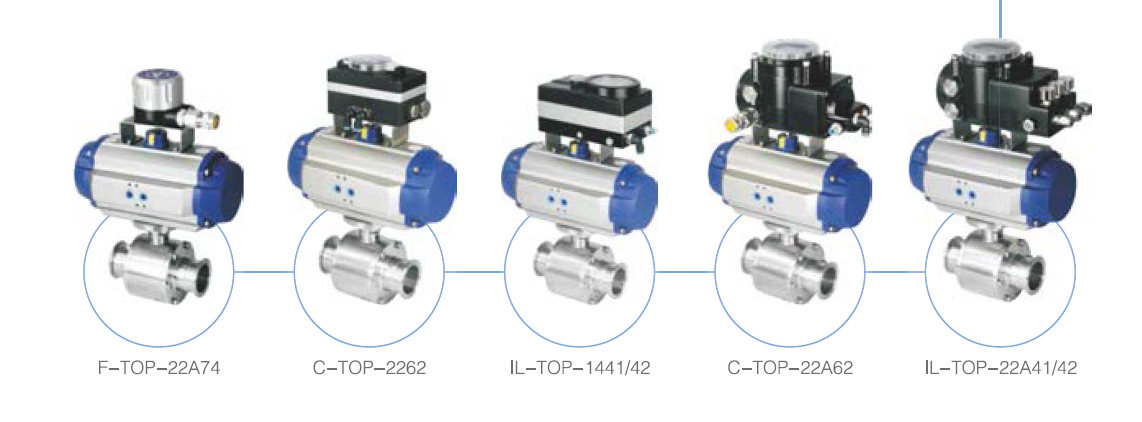

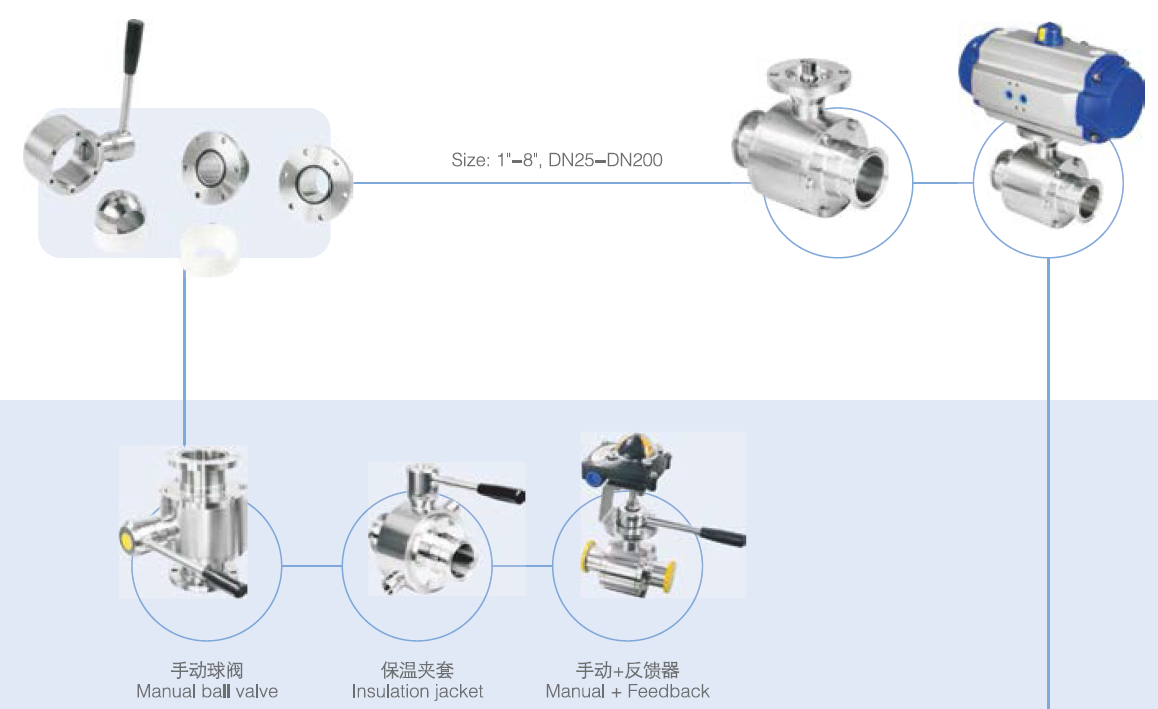

Configuration

Package

By air/express:Carton box

By sea/train/land:Wooden box

Sanitary ball valve is a type of valve used in industries that require high levels of cleanliness and hygiene. It is specifically designed to prevent the accumulation of bacteria and other microorganisms that can contaminate the production process or the product itself. The valve uses a ball-shaped disc that rotates inside the valve body to control the flow of liquids or gases. The valve is constructed of materials that are easy to clean, and its design includes minimal gaps and crevices that could trap contaminants. Sanitary ball valves are commonly used in industries such as food and beverage, pharmaceuticals, and biotechnology.
