Input: 4-20 mA
Output: 4-20mA
Bus communication: HART 6/7
Pressure:1.4-7 bar ,Pressure must be larger than max. actuator pressure
Output Pressure: Min. 0Bar; Max. Source pressure - 0.2Bar
Medium: Filtered, dry, Oil-free or max. 30mg/cubic meter

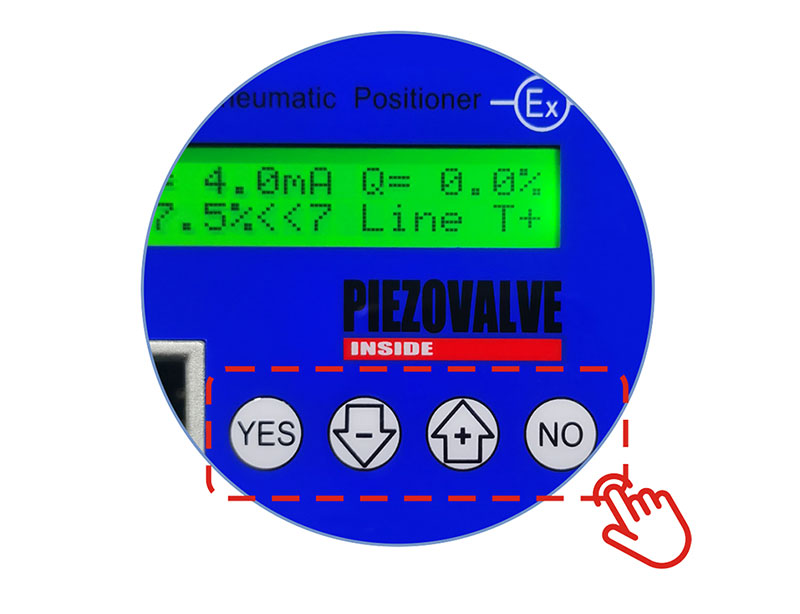

With LED display
What is valve positioner?
Valve positioner is a device that controls the position of a valve. It receives an input signal from a controller such as PLC/DCS or other automatic control system instructions that tells it what position the valve should be in, and it adjusts the valve accordingly. It is commonly used in industrial processes to accurately control the opening and closing of valves. The positioner receives a control signal and adjusts the position of the valve actuator to achieve the desired valve position. This helps in improving the accuracy and responsiveness of the valve, which is crucial in many industrial applications.
Model Table
| Model | Applicable actuator | Unput Signal | Communicaiton protocol | Output signal | Remarks |
| Standard flow valve positioner suitable for ≤∅114 250mL | |||||
| IL-TOP-189141 | Single acting | 4-20MA | NO | NO | Recommend version |
| IL-TOP-189142 | Double acting | 4-20MA | NO | NO | |
| IL-TOP-189141-hart | Single acting | NO | HART 6/7 | NO | Option version |
| IL-TOP-189142-hart | Double acting | NO | HART 6/7 | NO | |
| IL-TOP-189141-P | Single acting | 4-20MA | NO | 4-20MA | Option version |
| IL-TOP-189142-P | Double acting | 4-20MA | NO | 4-20MA | |
● Single key automatic setting function
● Precision of dead zone can be set
● Failsafe position setting
● English menu setting
● Repeated positioning accuracy error ≤0.2%
● No gas consumption when the valve position is maintained
● Curve setting
● Intrinsic safety and explosion proof certification
● IP66 protection grade
| File | Language | Size |
|---|---|---|
 Valve positioner catalogue |
English | 22.6MB |
