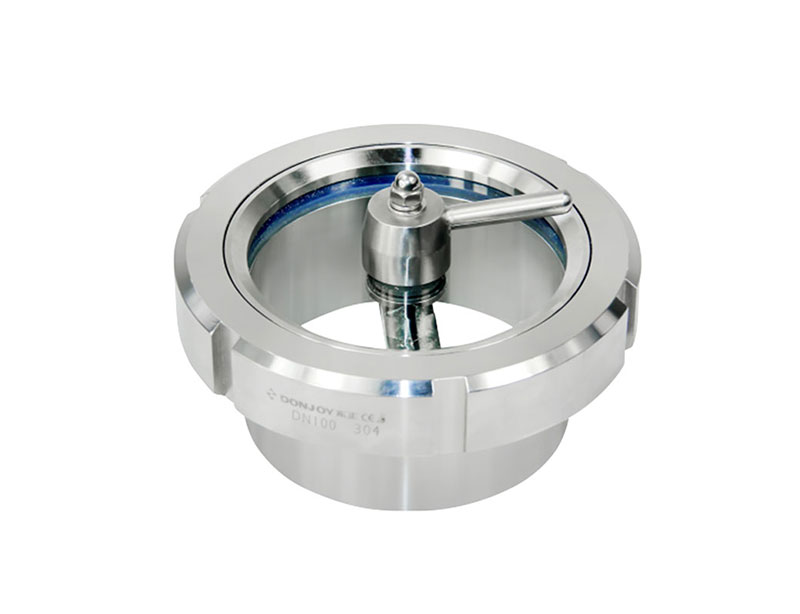

Union sight glass DJ-SJ-YR

TECHNICAL SPECIFICATIONS:

Temperature: -20℃ to 150℃

Pressure: Vacuum to 10bar

Material: 304/316L, 1.4301/1.4404

Size: 1"-6" DN25-DN150

Glass material:borosilicat

Get a Quote
Share:
Sight Glass And Lighting
Flange Sight Glass Four-Way Sight Glass Union Sight Glass Straight Sight Glass Sight Glass Light New Product
RELATED VIDEOS
FEATURES

DONJOY is a leading manufacturer of sanitary stainless steel 304/316L valves ,pipe fittings and pump products in Wenzhou,China

DONJOY with 29000m2 area ,200 workers around (including 10 professional engineers and 10 inspectors),100 CNC lathes and 100 patented technologies.

Stainless steel sanitary union sight glass with light DC24V AC220V wholesale

View mirror lighting series is a white cold light source, all stainless steel, IP67 protection, high clean, no dead Angle lamp.

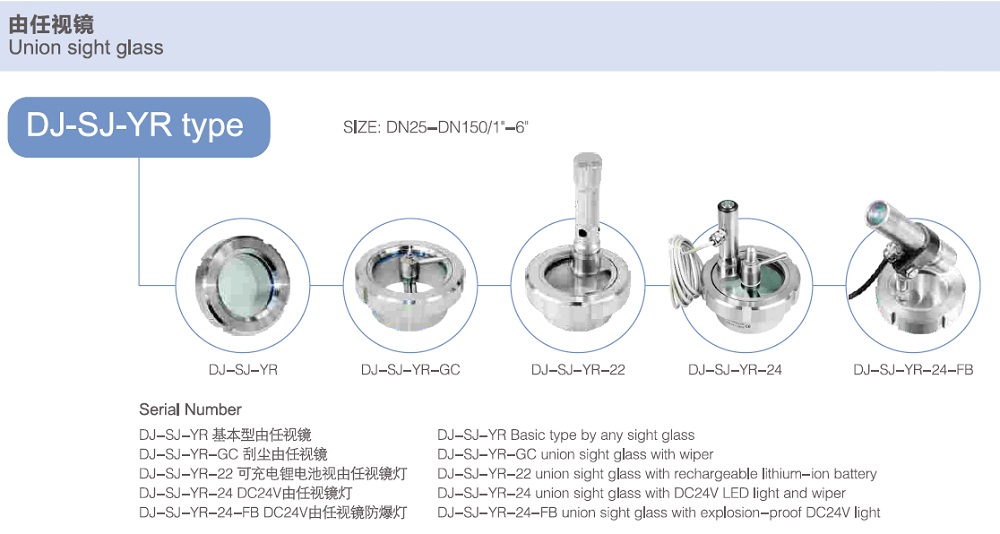

Different union sight glass configuration

  1. Union sight glass
  2. Union sight glass with wipper
  3. Union sight glass with rechargeable lithium iron battery

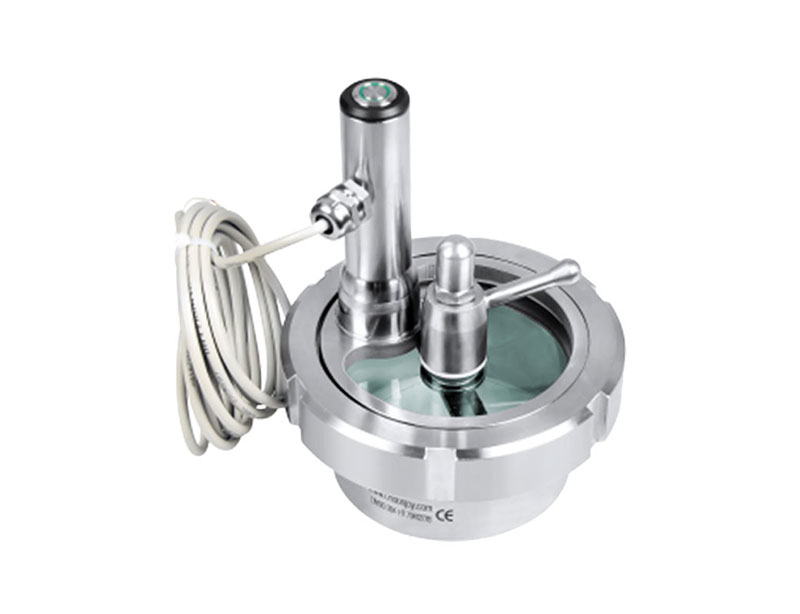

  4. Union sight glass with DC24V light and wipper

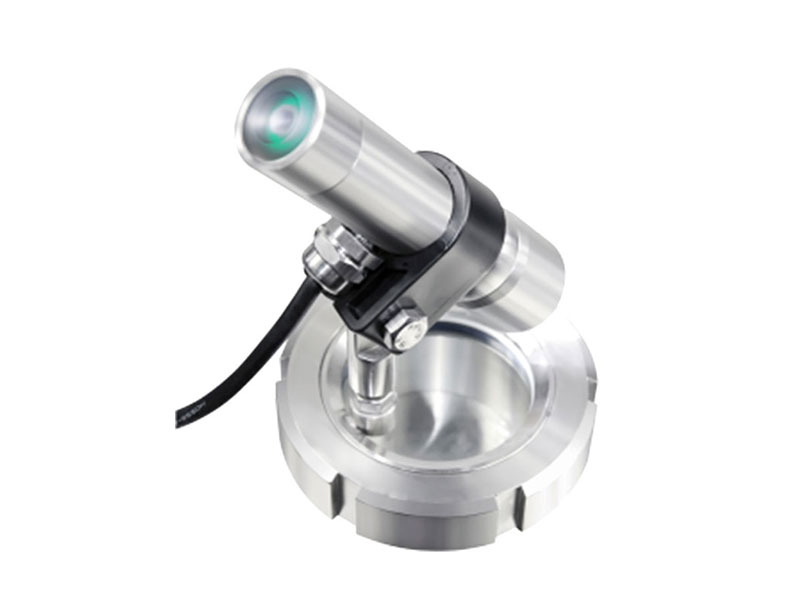

  5. Union sight glass with explosive proof DC24V light

Sight glass light :5W,15W,DC24V

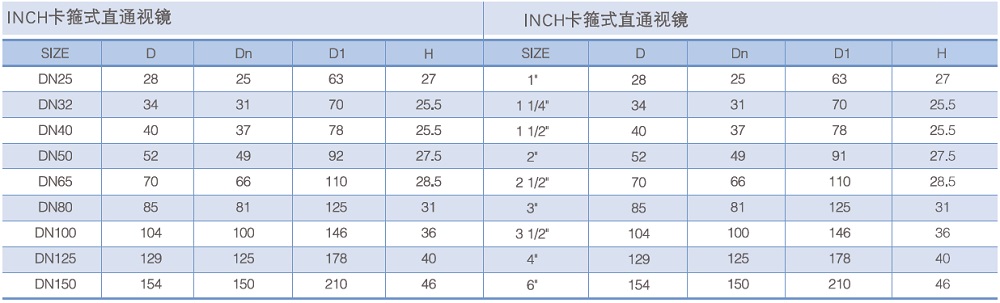

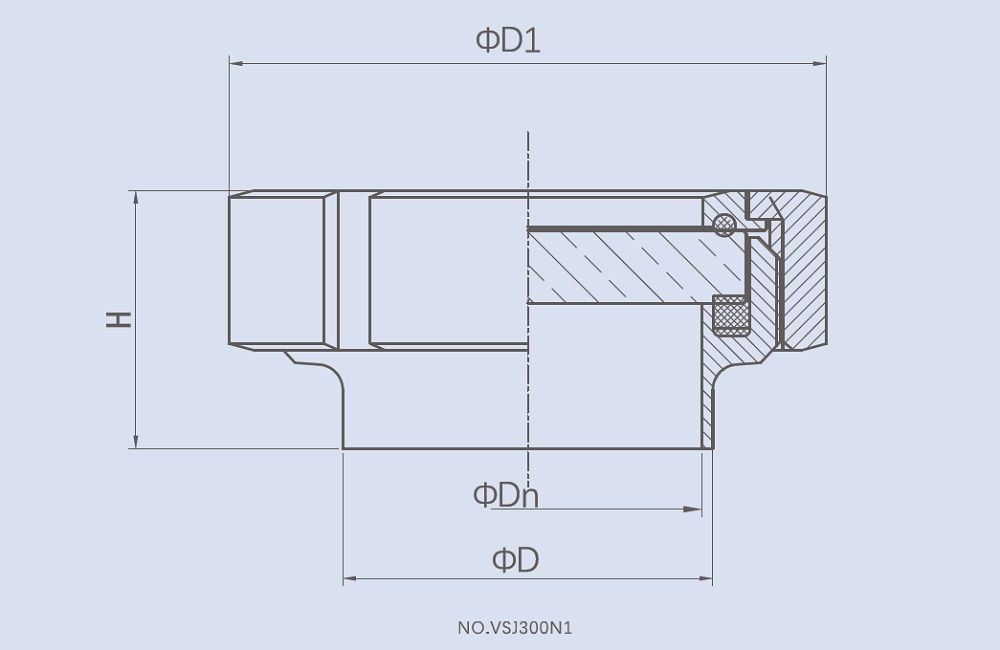

Union sight glass dimension

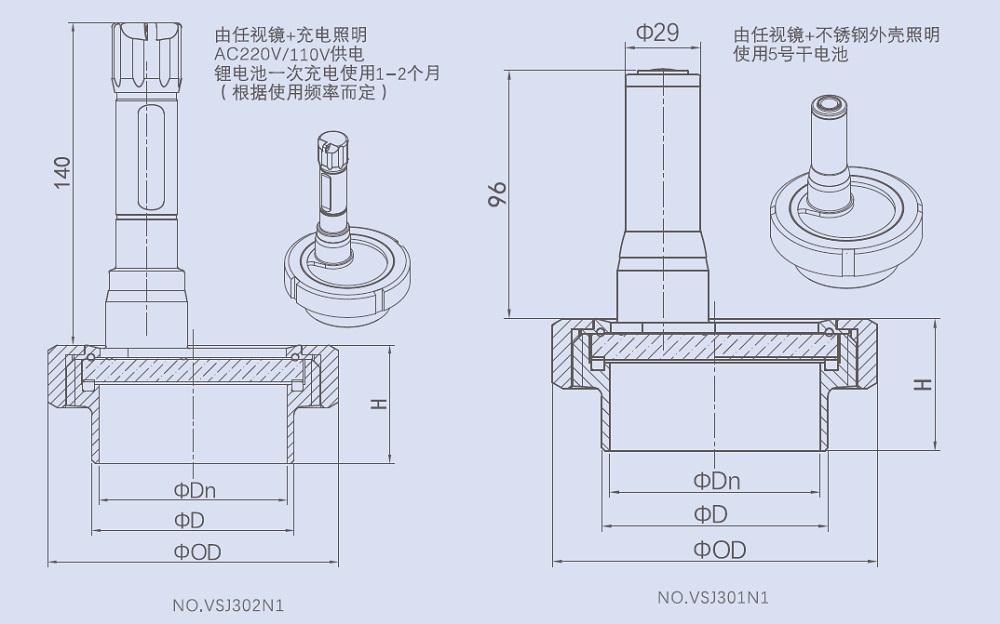

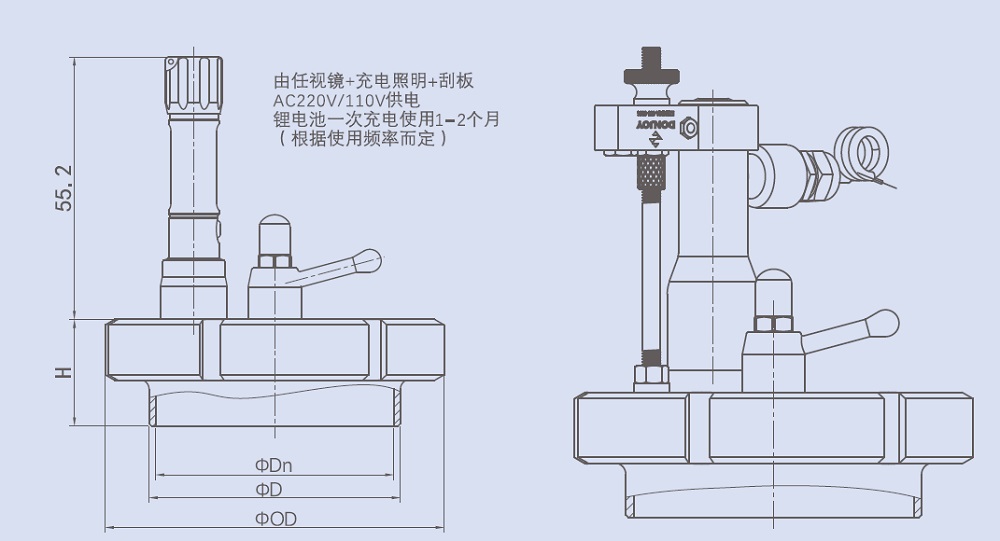

Union sight glass with AC220V/110V light ,with battery

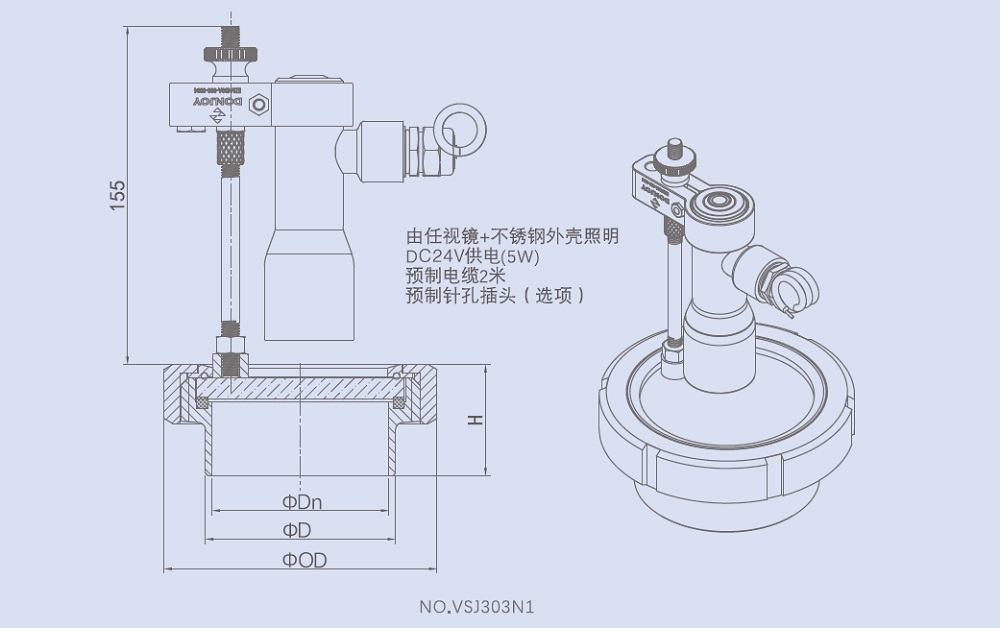

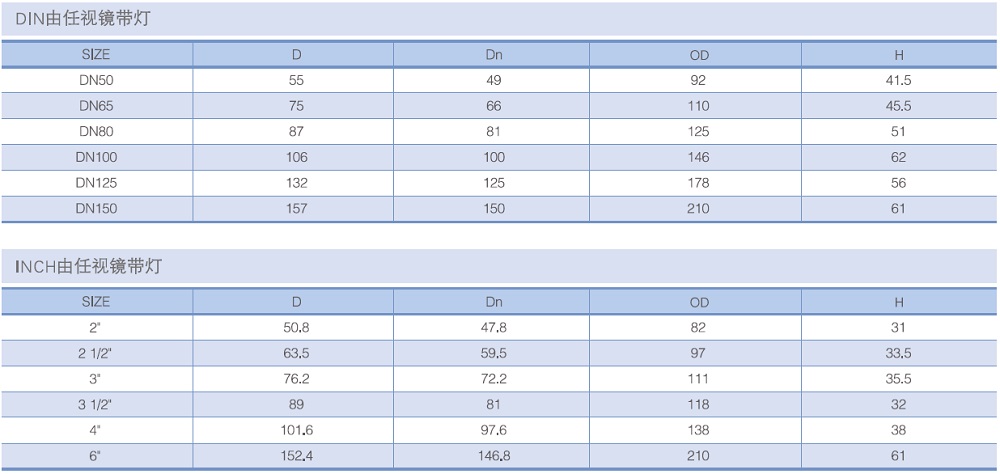

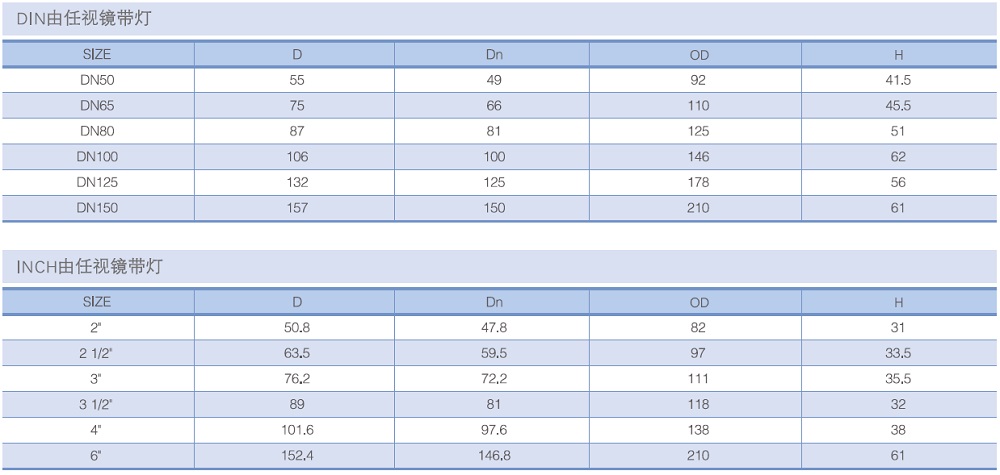

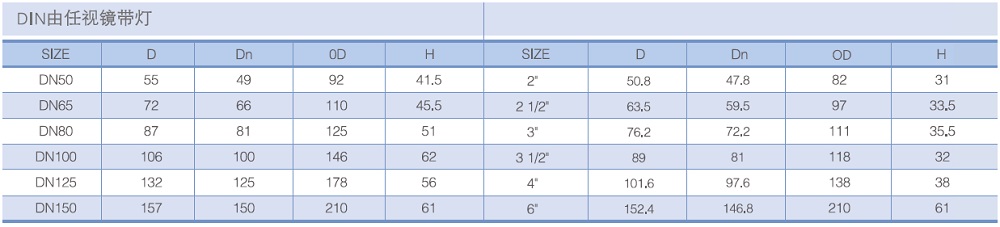

Union sight glass with DC24V light dimension

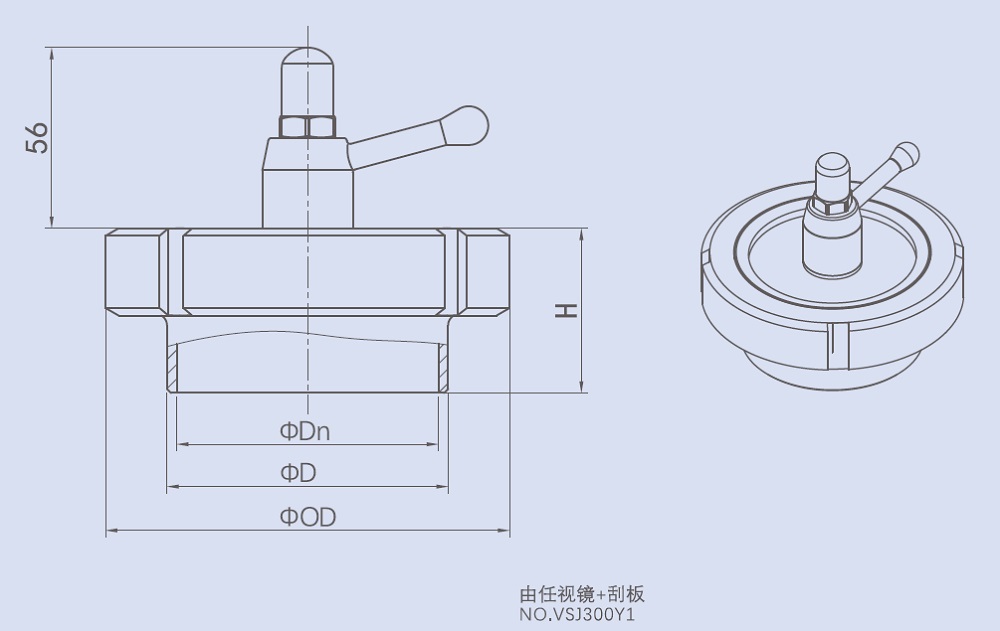

Union  sight glass with wipper drawing

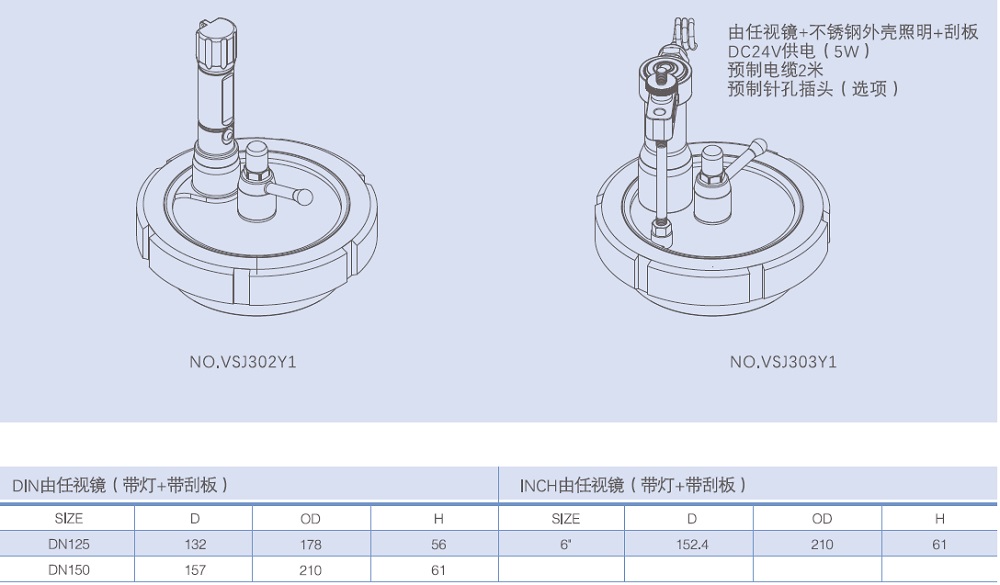

Union sight glass with light and wipper/scrapper dimension

THEORY OF OPERATION
DOWNLOAD
File Language Size
Sight glass with light catalogue English 19.72MB
Sanitary valves catalogue English 30.2MB
RELATED PRODUCTS
Sight glass light DJ-SJ-LED-22
Straight sight glass DJ-SJ-ZT

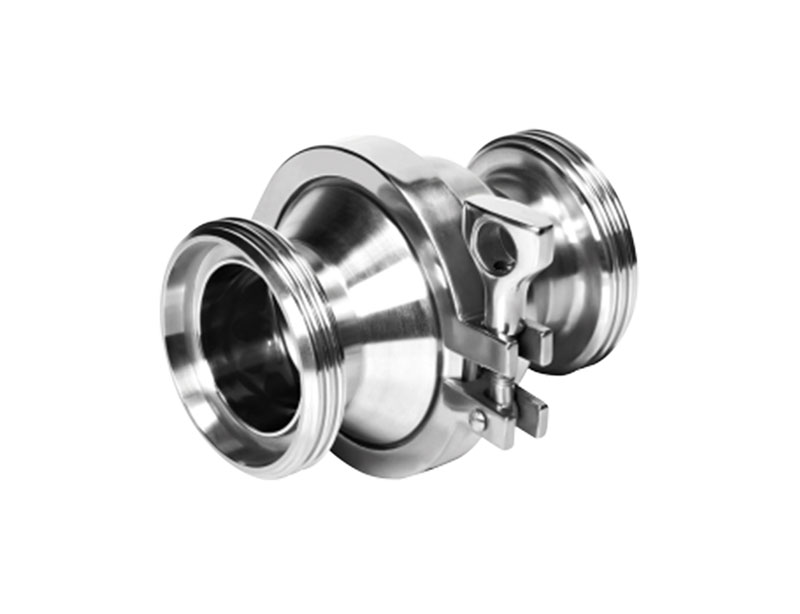

Intermediate clamp check valve ZHF-ZK09 type

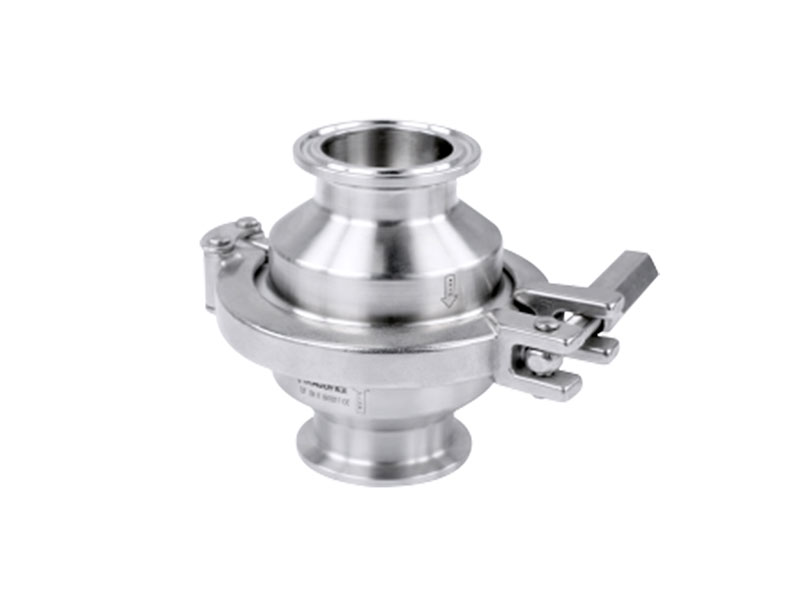

Intermediate clamp check valve ZHF-ZK type
