Size: 1/4"-3/4",DN6-DN15
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: vacuum to 10bar (1.0 Mpa)

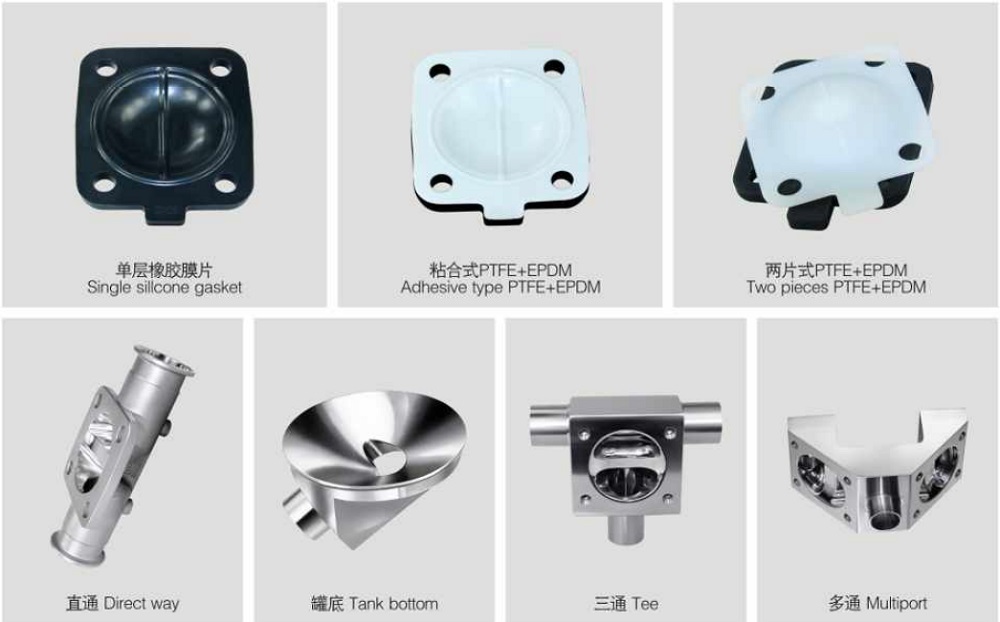

Seal: EPDM SILICON FKM FFKM HNBR NBR EPDM+PTFE
Connection way: threaded, clamp, welding, flange

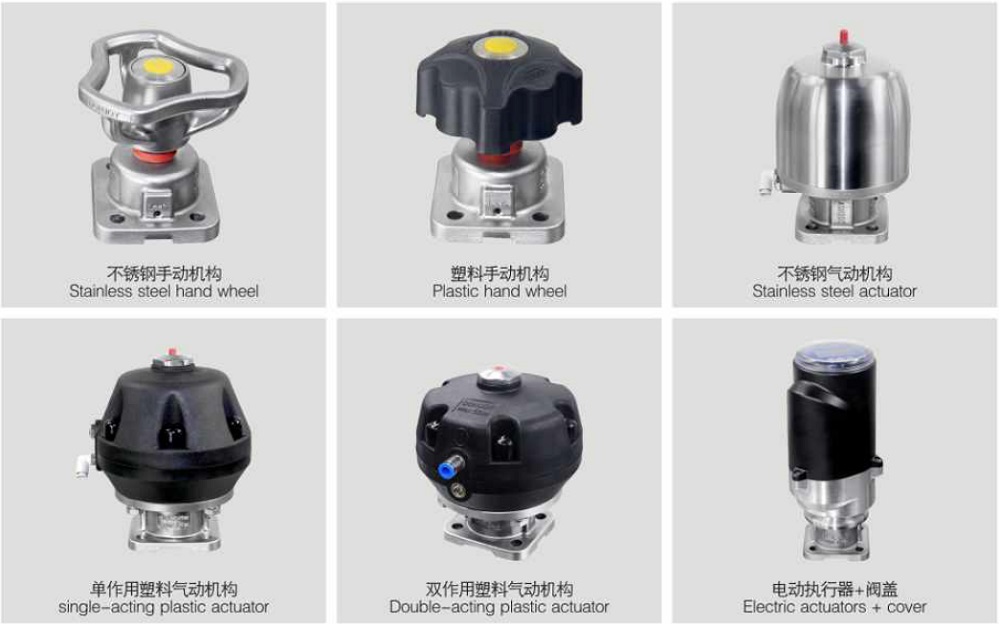

Drive mode: manual, pneumatic, electric
Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

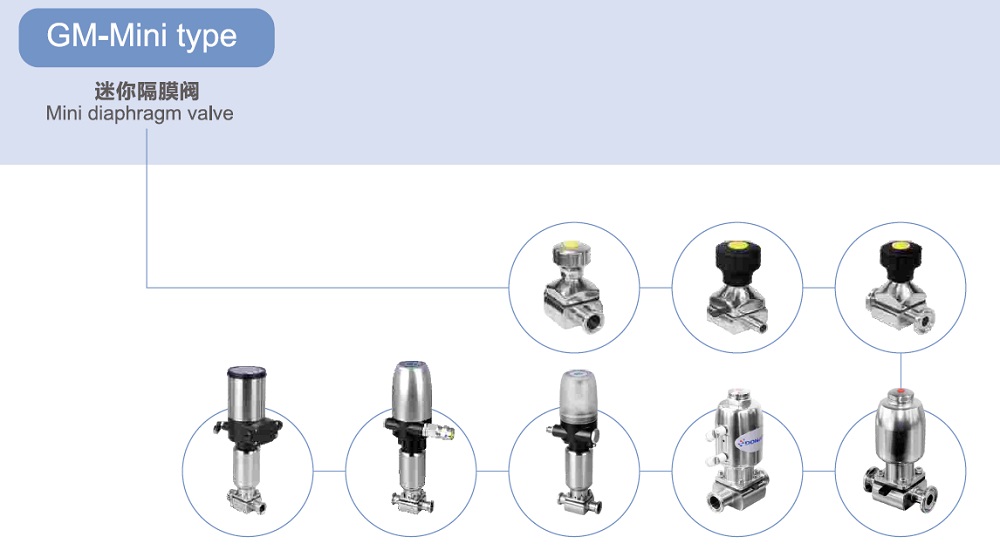

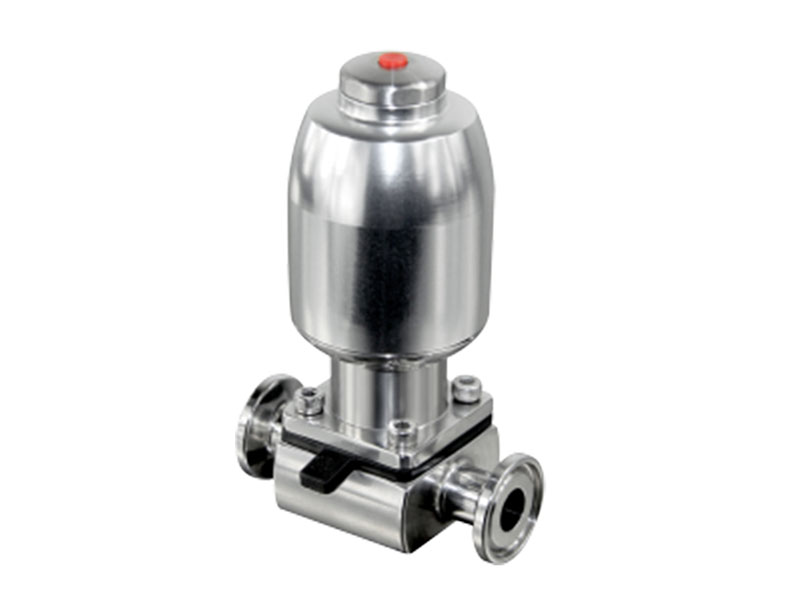

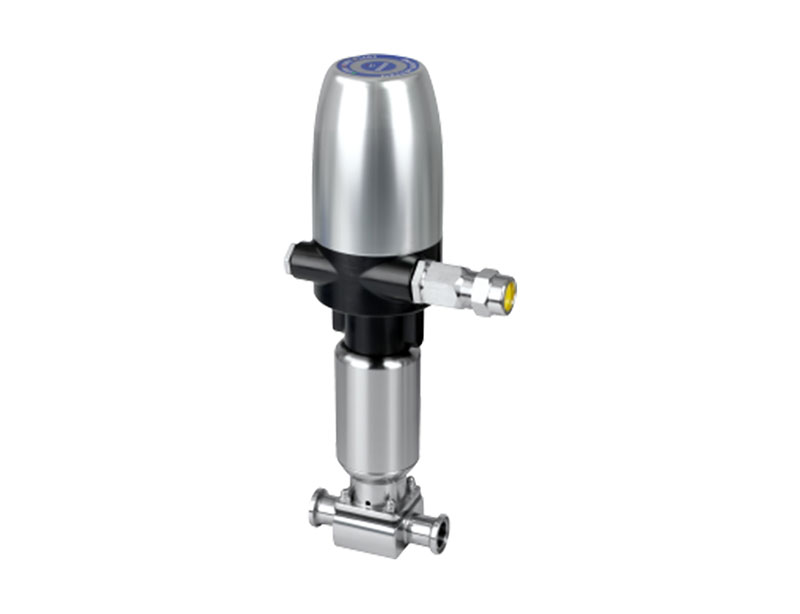

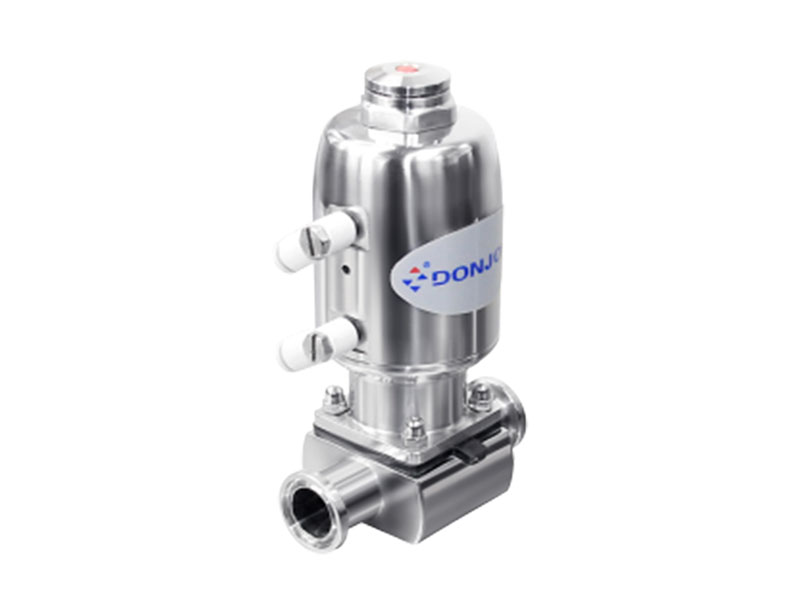

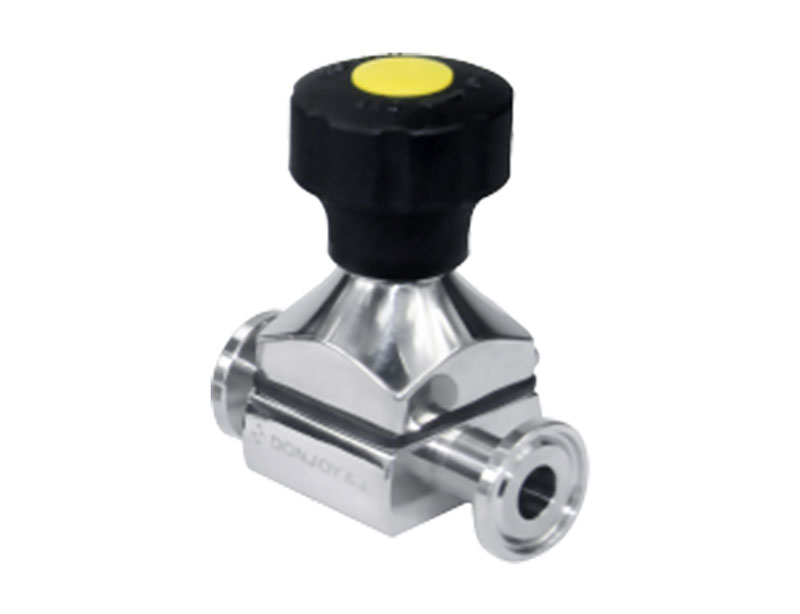

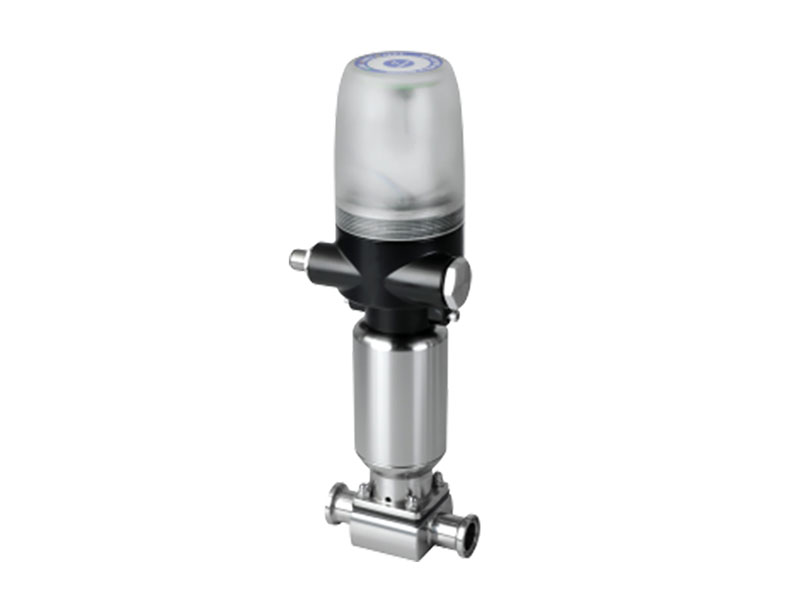

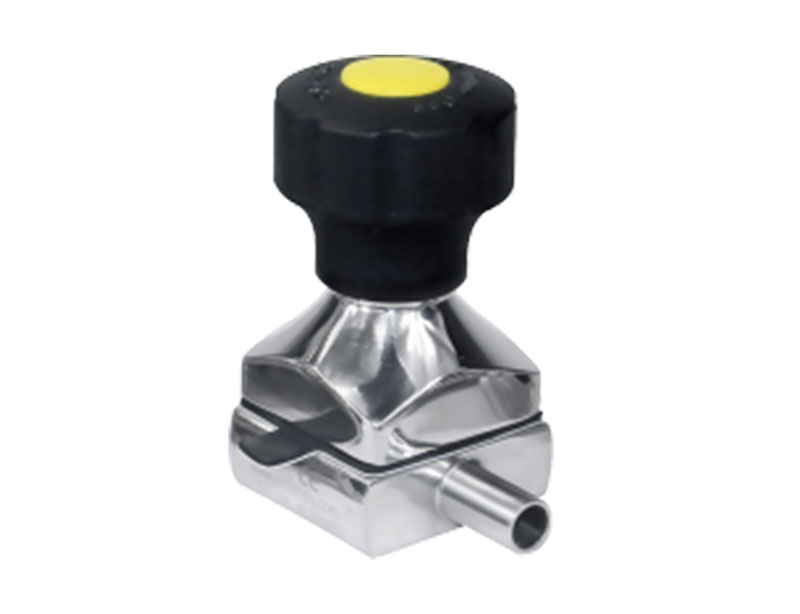

Sanitary food grade stainless steel wine diaphragm valve 1/2" 3/4" DN10 DN15
Donjoy has been manufacturing high-cleanliness diaphragm valves for 20 years and has applied more than 500,000 pieces in various fields, involving more than 300 varieties, such as 2-way, 3-way, U-shaped 3-way, multi-ports, adjustable, manual, pneumatic, electric, etc. And they are interchangeable.
Certificates
All synthetic resin and additive are comply with FDA certification
Material chemical composition, physical properties and manufacturing process are documented
All diaphragm seal consistency with FDA certificate
-21-CFR-FDA 177.1550 perfluorocarbon synthetic resin
-21-CFR-FDA-177.2600 rubber
USP 28 class VI CHAPTER 87 IN VITON and CHAPTER 88 IN - VITON consistency the authentication
3-A consistency authentication NO: 54-02-1580
EN 10204-3.1 Certificate on traceability of stainless steel Chemical composition synthesis
CE-PED/97/23/EC N.O.: TUV DGR 0036-QS-1153-14
Technical Features
Temperature: -20℃ to +150℃, Depending on the seal material
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

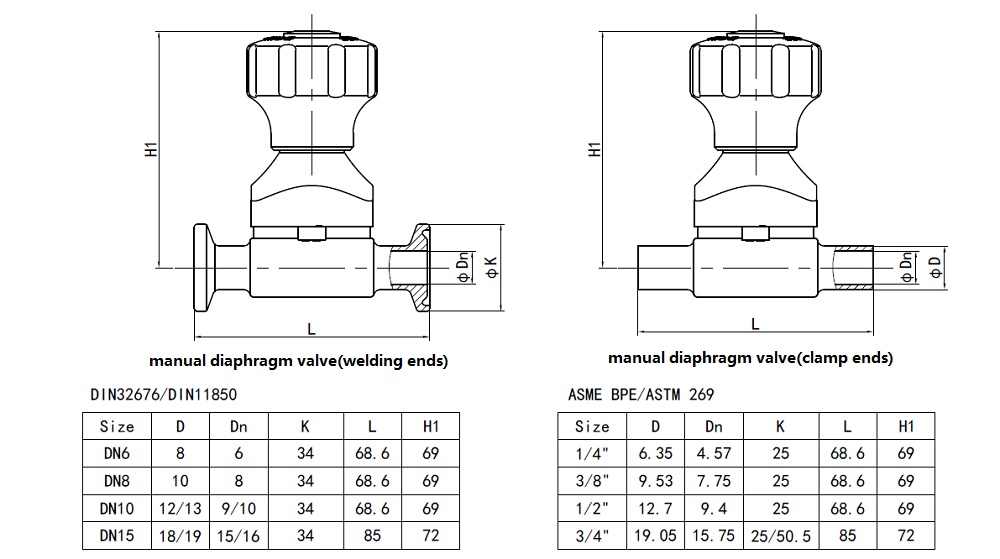

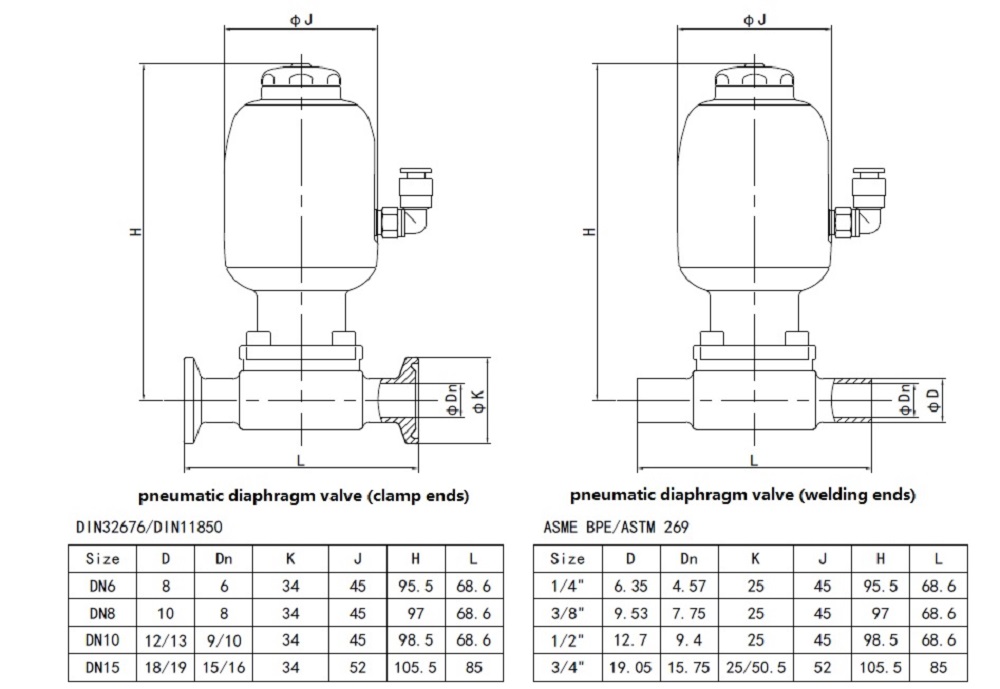

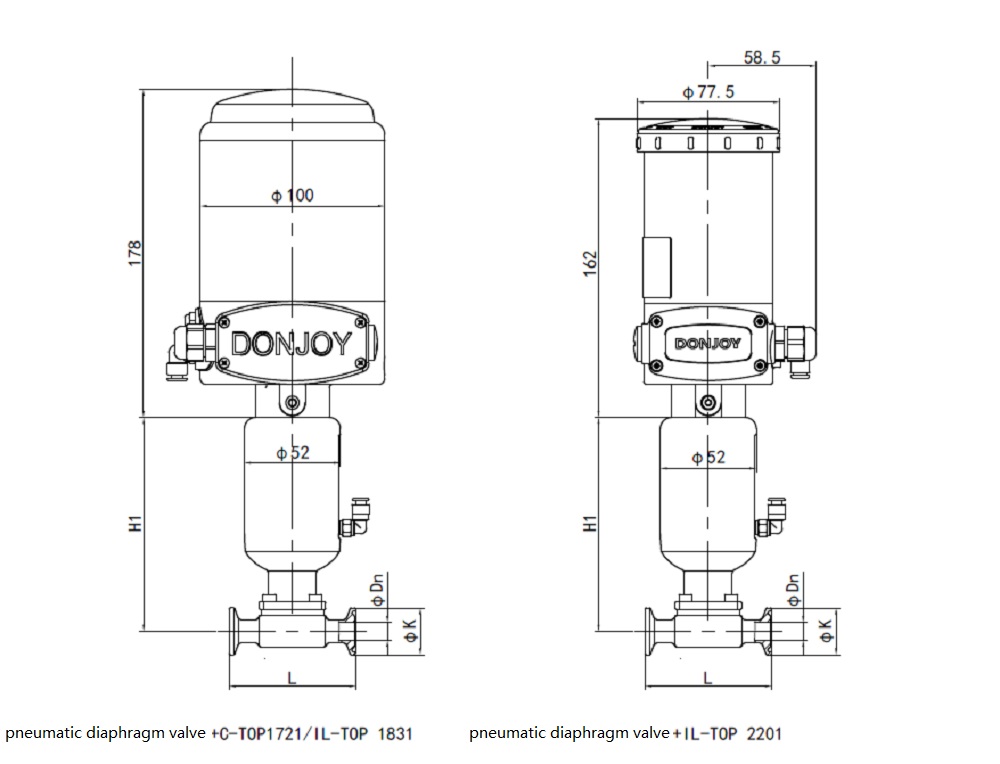

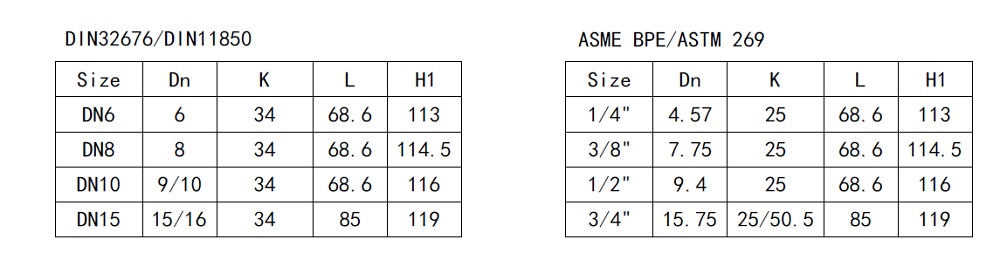

Sanitary diaphragm valve drawing
Hygienic diaphragm valve package
| File | Language | Size |
|---|---|---|
 Diaphragm valve catalogue(Newest) |
English | 18.63MB |
| Diaphragm valve catalogue(old versiob) |
English | 7.16MB |
| Sanitary valve catalogue |
English | 30.2MB |
