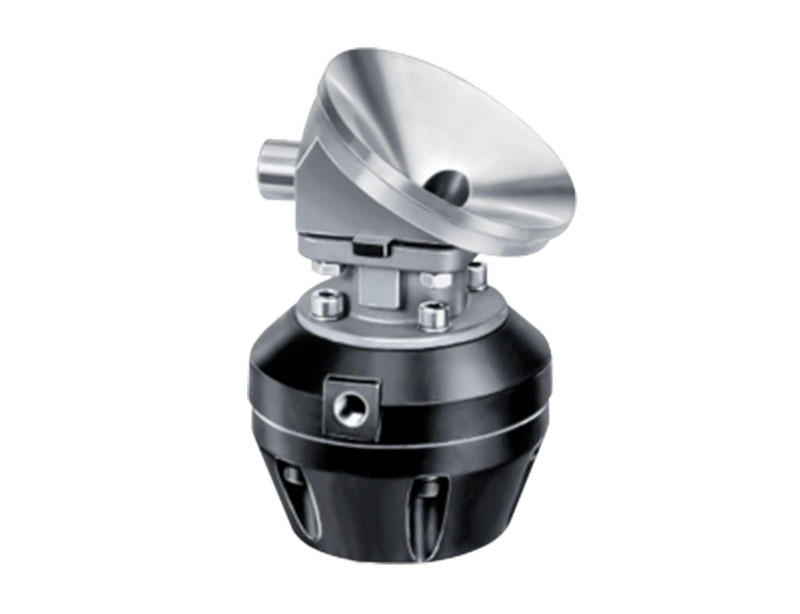

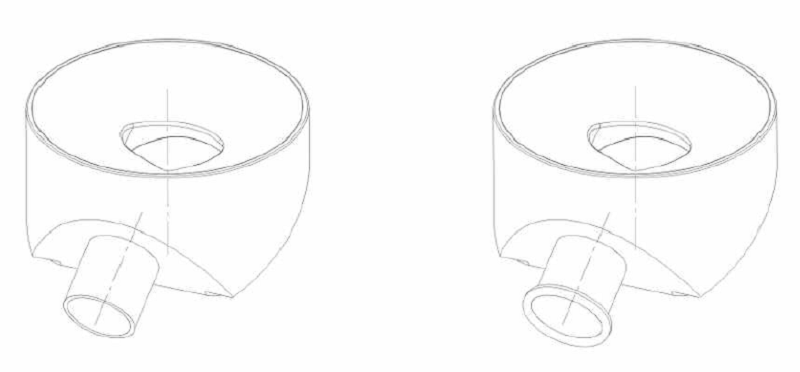

Tank bottom diaphragm valve GM-GD

DONJOY Pharmaceutical sanitary sus 316L tank bottom diaphragm valve

Donjoy has been manufacturing high-cleanliness diaphragm valves for 20 years and has applied more than 500,000 pieces in various fields, involving more than 300 varieties, such as 2-way, 3-way, U-shaped 3-way, multi-ports, adjustable, manual, pneumatic, electric, etc. And they are interchangeable.

Tank bottom diaphragm valve certificates

All synthetic resin and additive are comply with FDA certification

Material chemical composition, physical properties and manufacturing process are documented

All diaphragm seal consistency with FDA certificate

-21-CFR-FDA 177.1550 perfluorocarbon synthetic resin

-21-CFR-FDA-177.2600 rubber

USP 28 class VI CHAPTER 87 IN VITON and CHAPTER 88 IN - VITON consistency the authentication

3-A consistency authentication NO: 54-02-1580

EN 10204-3.1 Certificate on traceability of stainless steel Chemical composition synthesis

CE-PED/97/23/EC N.O.: TUV DGR 0036-QS-1153-14

Technical Features

Temperature: -20℃ to +150℃, Depending on the seal material

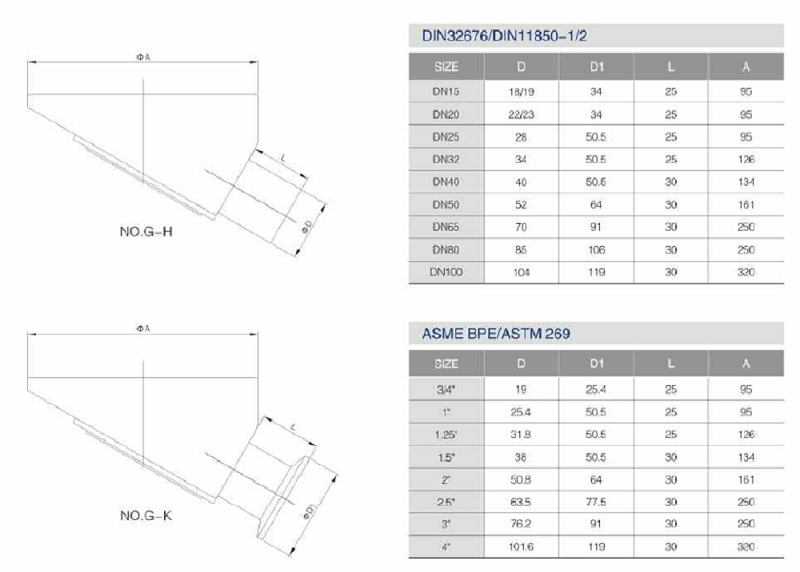

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

Diaphragm choose

1. One piece diaphragm EPDM+PTFE  (Max temperature 120℃)

PTFE diaphragm tablet has high chemical resistancemhigh stability,goof flexiblity.long life,high sealing,no cold degeneration,and not affected by temperature fluctuations excellent performance,whether it is thermal cycle,cold cycle,or steam disinfection system.

2. Single diaphragm EPDM/Silicon/FPM (Max temperature 120℃)

Rubber diaphragm embedded a layer of vulcanized fiber layer enhance its mechanical properties,teh diaphragm in pressure and temperature has high seal stbility.reinforcingfiber hardening in stainless steel bolt,as as to ensure better rubber and metal bond together,

Therefore rubber diaphragm more suitable for use in vacuum environment.

3. 2PC diaphragm EPDM+PTFE  (Max temperature 150℃)

By EPDM and PTFE composed of diaphragm,the characteristics of the diaphragm is the valve is in the closed position,diaphragm itself shape can and body sealing,which reduces the diaphragm tolerance adn prolong the service life of the diaphragm.

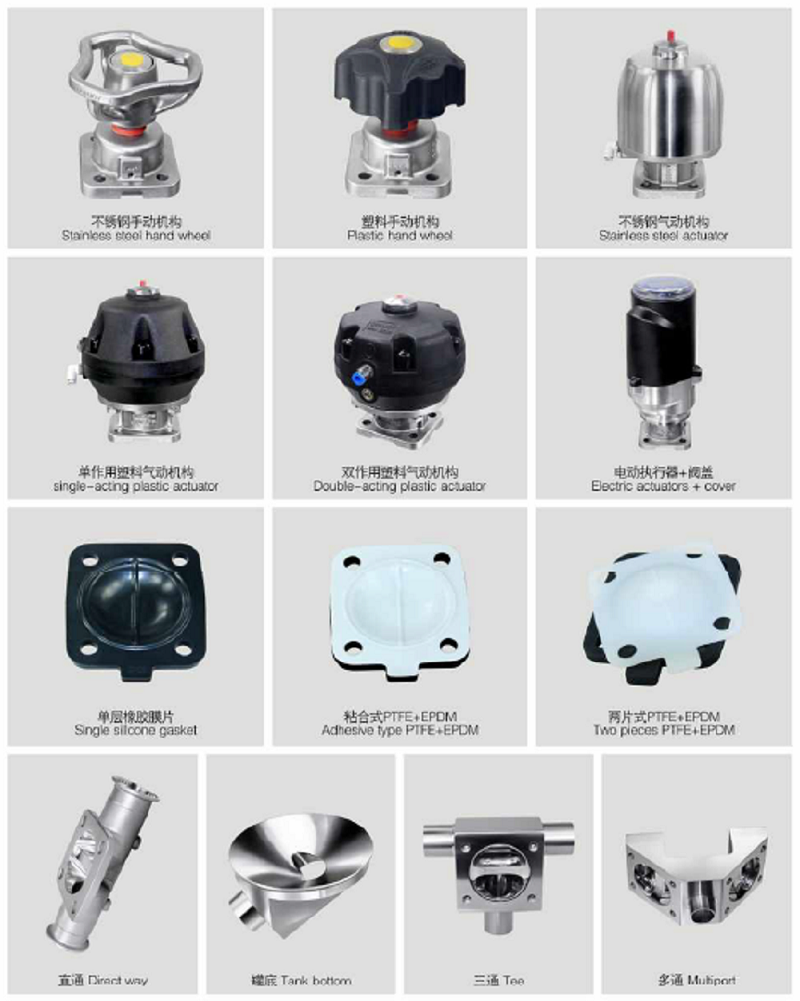

Various sanitary tank bottom diaphragm valve configuration

1.Stainless steel handle

2.Plastic handle

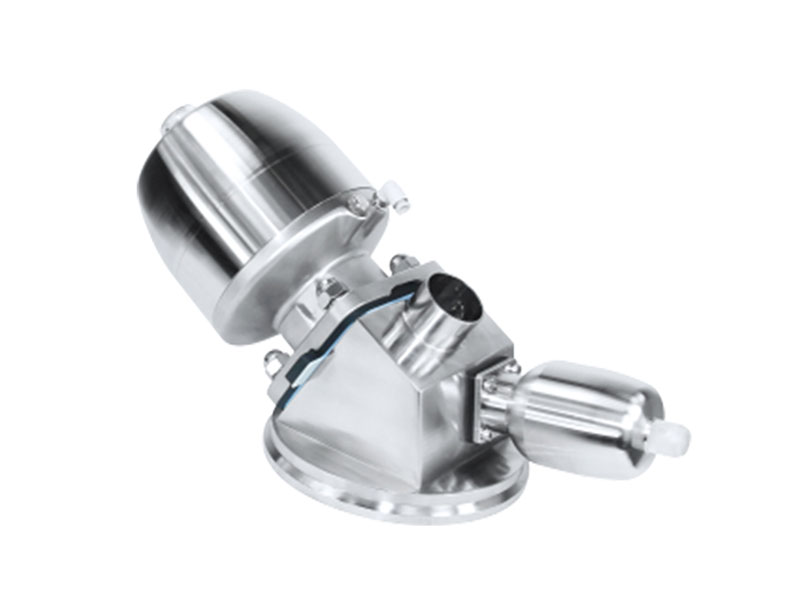

3. Stainless steel pneuamtic actuator

4.Plastic pneumatic actuator

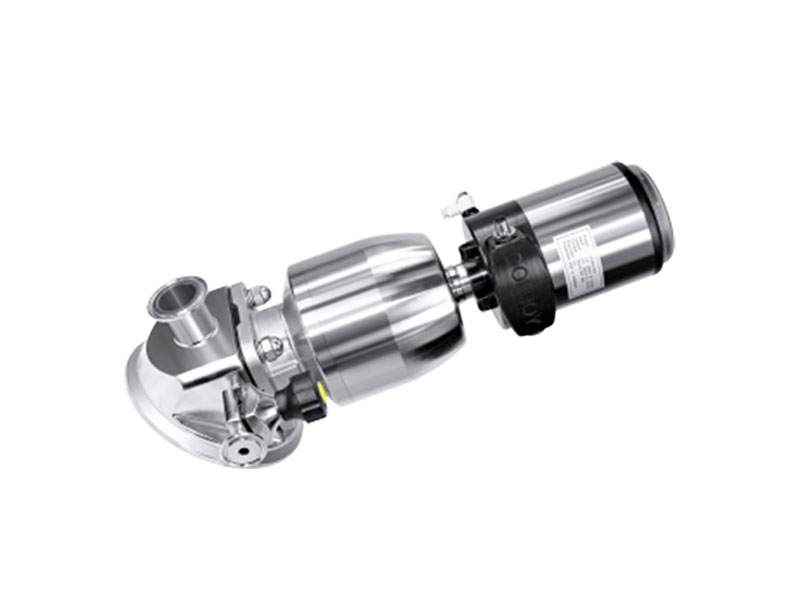

5. Pneumatic actuator +valve c-top (To open/close the valve and feedback the current valve position)

6.Pneumatic actuator +positioner IL-top (To adjust the valve flow rate and feedback the current valve position)

7.Pneumatic actuator+ switch box (To feedback the current valve position)
