Manual tank bottom radial diaphragm valve

TECHNICAL SPECIFICATIONS:

Size: 1/2"-3", DN10-DN65

Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Pressure: vacuum to 10bar (1.0Mpa)

Seal: EPDM FKM PTFE

Connection way: threaded, clamp, welding, flange

Drive mode: manual, pneumatic, electric

Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Get a Quote
Share:
RELATED VIDEOS
FEATURES

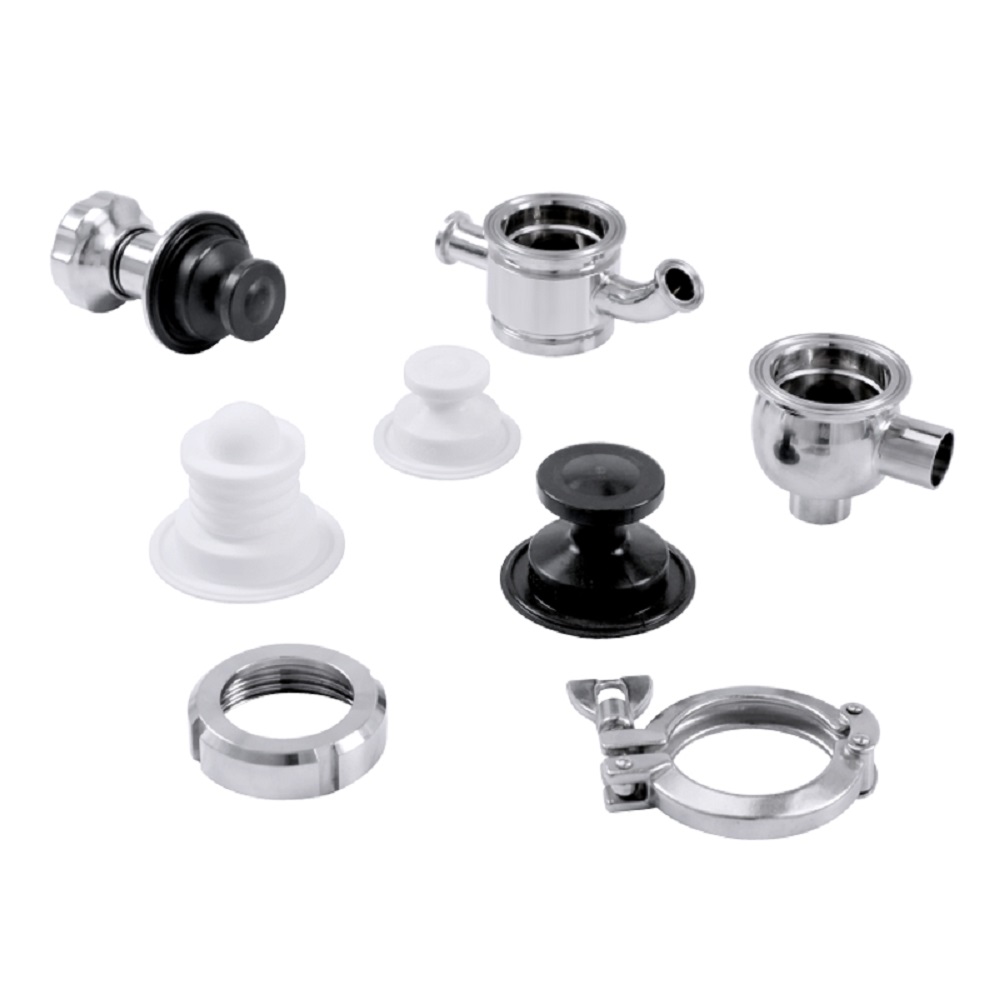

Aseptic manual radial tank bottom diaphragm valve SS316L tri clamp

It has the characteristics of simple maintenance and installation, high efficiency, small size, light weight, low flow resistance and economy. There are more than 20 types of valve body combinations.

Certificates

All synthetic resin and additive are comply with FDA certification

Material chemical composition, physical properties and manufacturing process are documented

All diaphragm seal consistency with FDA certificate

-21-CFR-FDA 177.1550 perfluorocarbon synthetic resin

-21-CFR-FDA-177.2600 rubber

USP 28 class VI CHAPTER 87 IN VITON and CHAPTER 88 IN - VITON consistency the authentication

3 - A consistency the authentication NO.: 54-02-1580

EN 10204-3.1 Certificate on traceability of stainless steel Chemical composition synthesis

CE-PED/97/23/EC N.O.: TUV DGR 0036-QS-1153-14

Technical Features

●Temperature: -20℃ to +150℃, Depending on the seal material

●Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

●Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

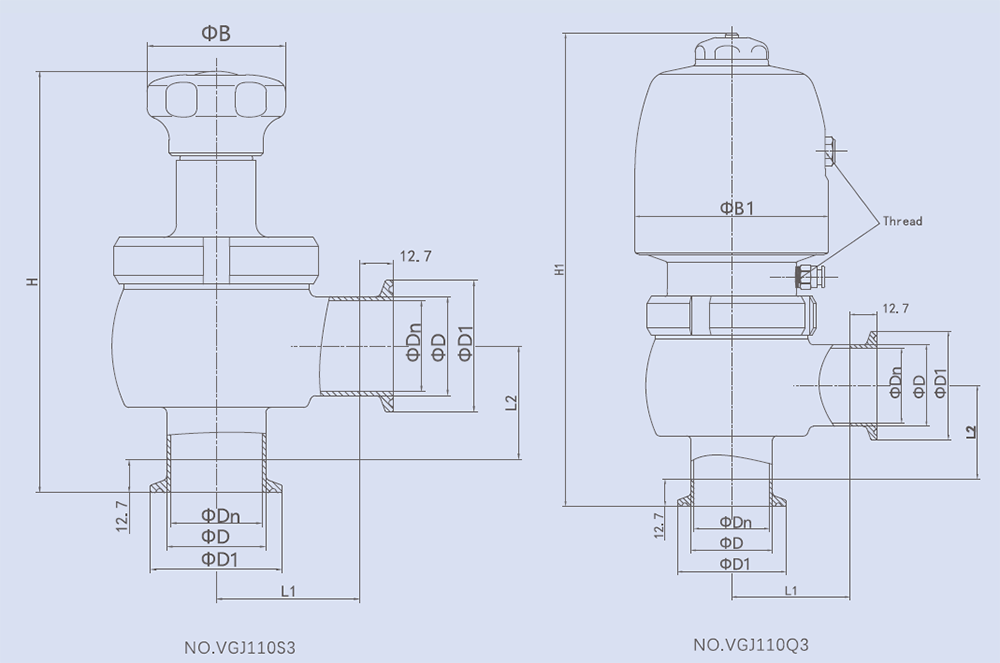

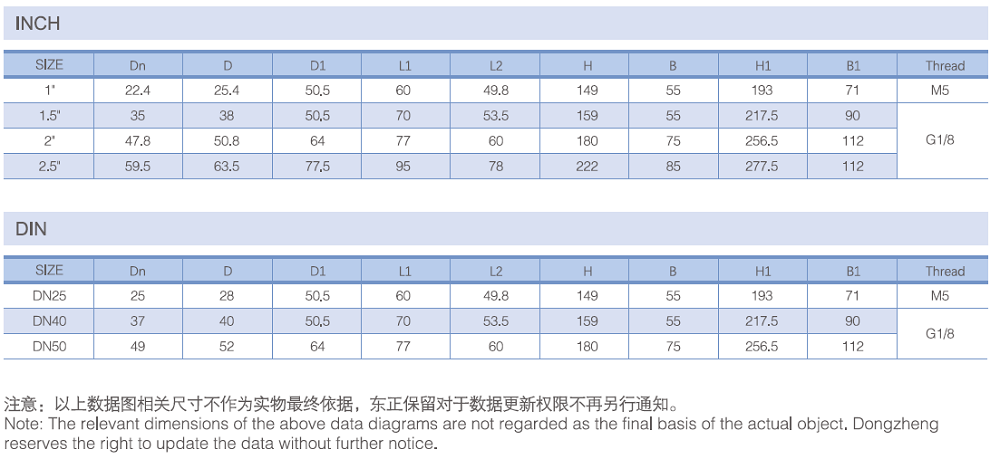

Sanitary Radial diaphragm valve drawing

THEORY OF OPERATION
DOWNLOAD
File Language Size
Radial diaphragm valve catalogue English 14.83MB
Diaphragm valve catalogue English 18.63MB
Sanitary valves catalogue English 30.2MB
