Straight sight glass DJ-SJ-ZT

DONJOY is a leading manufacturer of sanitary stainless steel 304/316L valves ,pipe fittings and pump products in Wenzhou,China

DONJOY with 29000m2 area ,200 workers around (including 10 professional engineers and 10 inspectors),100 CNC lathes and 100 patented technologies.

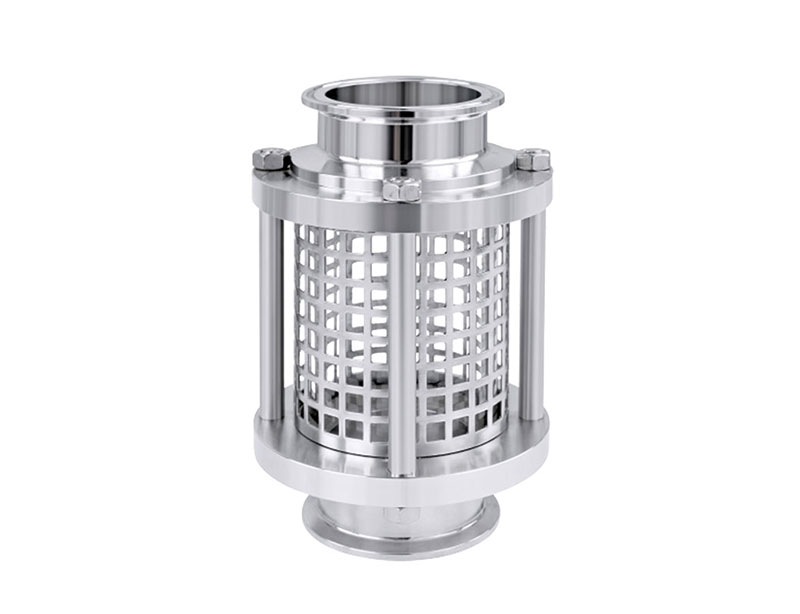

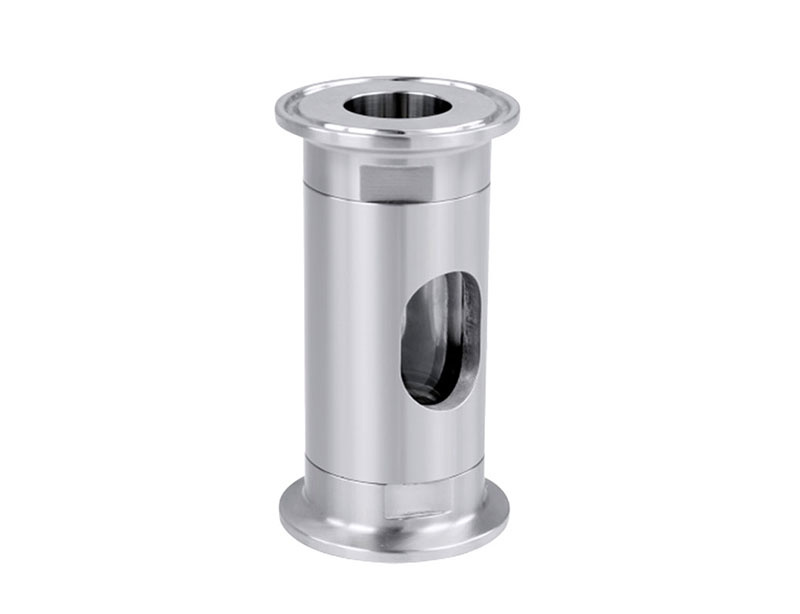

China wholesale manufacturer Sanitary inline straight stainless steel 304 316l sight glass with borosilicate glass

Straight sight glass application:

Inline straight sight glass is comprised of stainless steel frame and glass.Through it,operator can observe the flowing of the liquid substance clearly and precisely in the fields of food,cosmetics,pharmaeutical and fine chemical industries,

View mirror lighting series is a white cold light source, all stainless steel, IP67 protection, high clean, no dead Angle lamp.

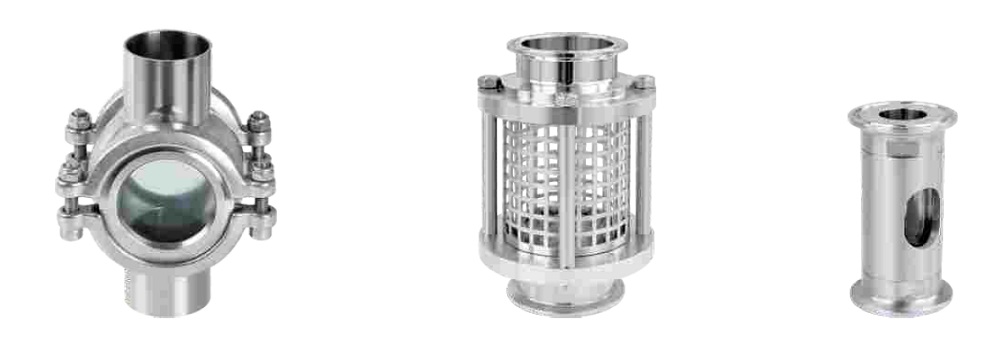

Inline sight glass type:

1. With stainless steel protective cover

2. Without stainless steel protective cover

3. With stainless steel protective sleeve

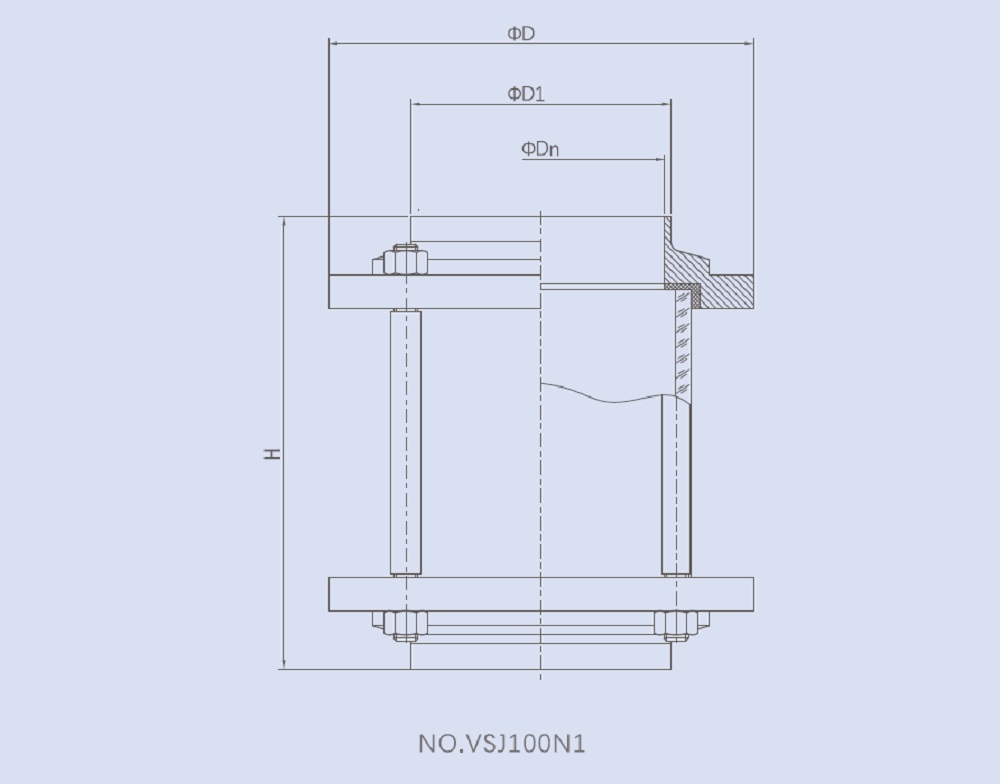

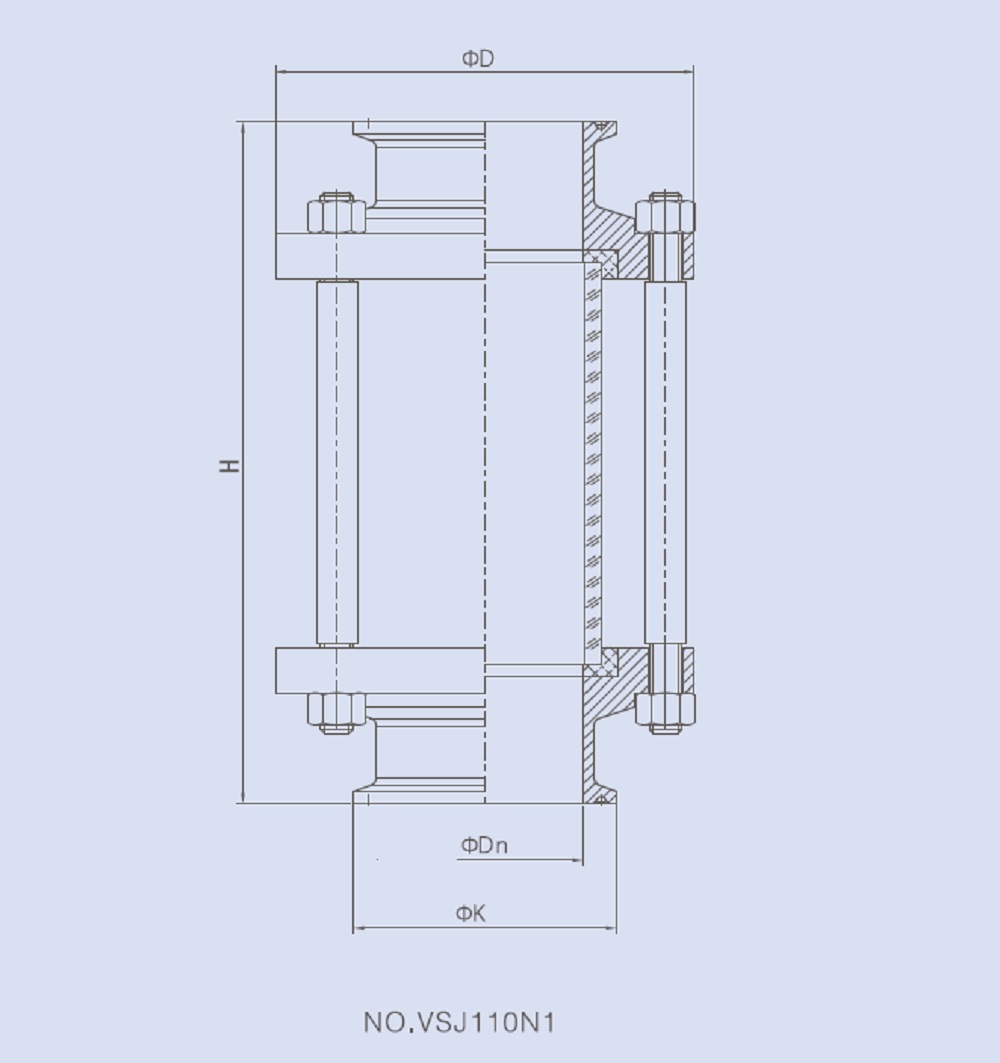

Hygienic sight glass drawing

Safety level can be selected according to user needs:

1. flameproof series

2. Basic series
