Specifications: 1/2"-6", DN10-DN150
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: Vacuum to 10bar (1.0 Mpa)
Seal: EPDM FKM HNBR PTFE
Connection method: Thread, clamp, welding, flange
Drive mode: manual, pneumatic, electric
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
China sanitary tank outlet bottom valve supplier
The tank bottom valve has two designs of valve core contraction and valve core extension, and has a very flexible valve body combination and various functional configurations, such as sterilization type, jacket insulation, damping buffer type, etc. Various automatic controls such as valve positioners, control units, feedback devices, and position sensors can also be installed.
Technical Features
Temperature: -20℃ to +150℃, Depending on the seal material
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Certification: FDA 177.2600; 3A-53-06; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.
Specifications: 1/2"-6", DN10-DN150
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: Vacuum to 10bar (1.0 Mpa)
Seal: EPDM FKM HNBR PTFE
Connection method: Thread, clamp, welding, flange
Drive mode: manual, pneumatic, electric
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

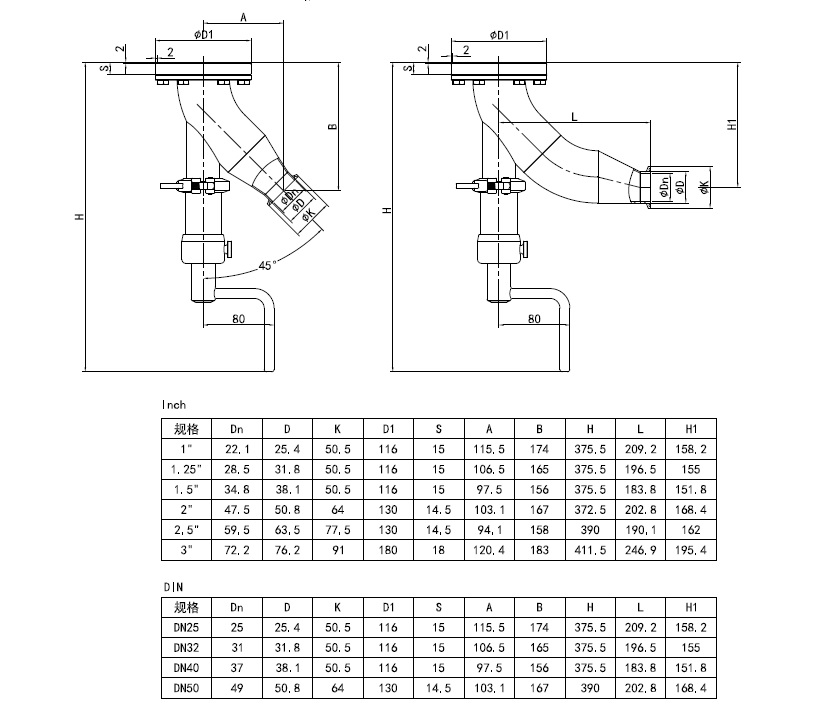

Sanitary tank outlet bottom valve drawing
| File | Language | Size |
|---|---|---|
 Tank bottom valve catalogue |
English | 16.82MB |
| Siingle seat valve and mixproof valve catalogue |
English | 6.93MB |
| Sanitary valves catalogue |
English | 30.2MB |
