Specifications: 1/2"-6", DN10-DN150
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: Vacuum to 10bar (1.0 Mpa)
Seal: EPDM FKM HNBR PTFE
Connection method: Thread, clamp, welding, flange
Drive mode: manual, pneumatic, electric
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

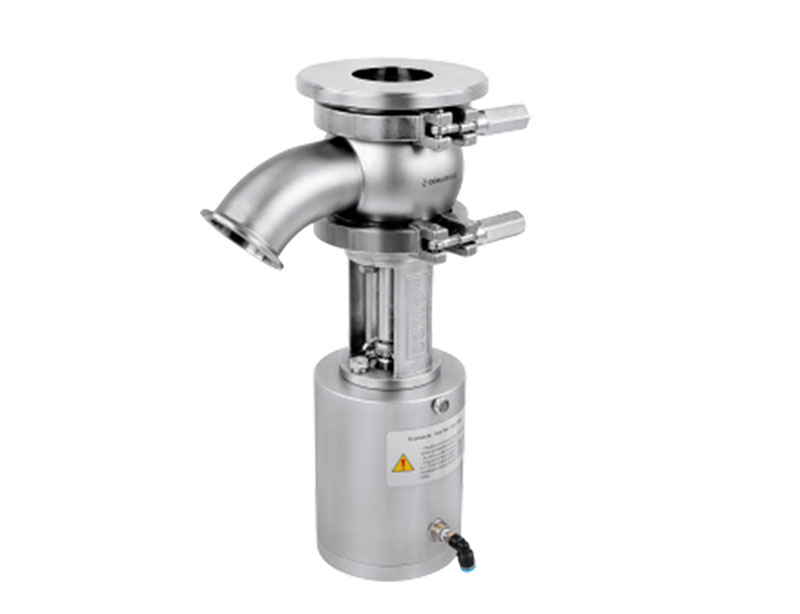

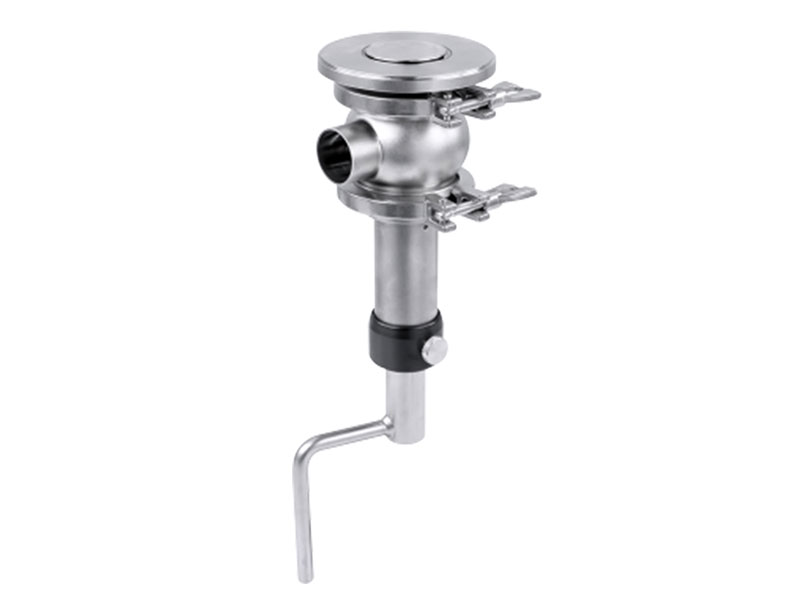

sanitary pneumatic tank outlet valve/tank bottom valve(Valve spool extention)

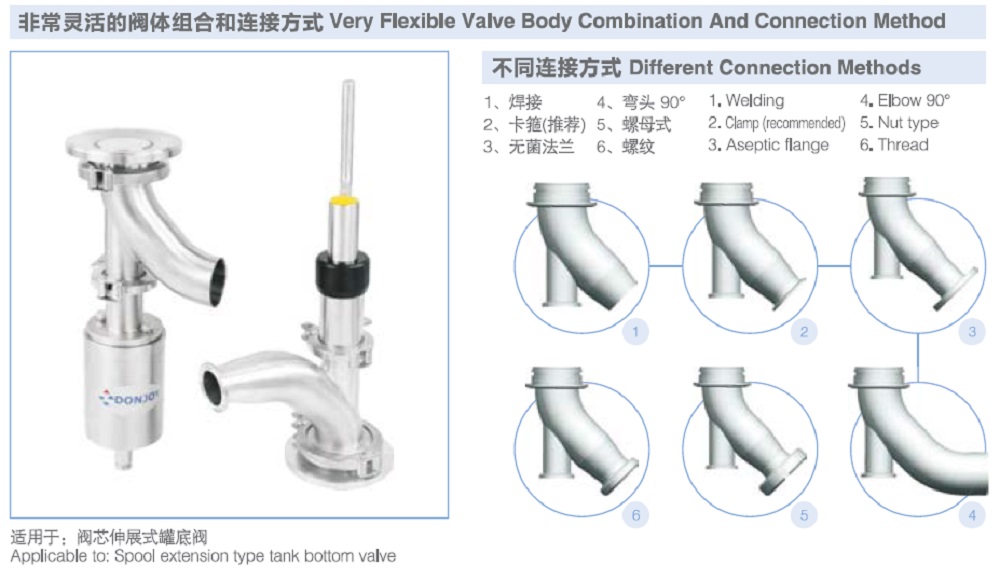

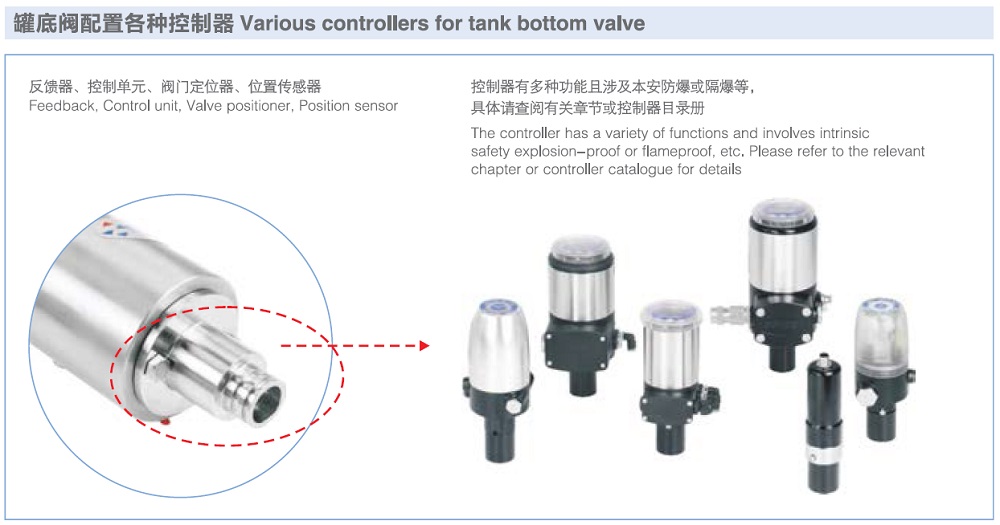

The tank bottom valve has two designs of valve core contraction and valve core extension, and has a very flexible valve body combination and various functional configurations, such as sterilization type, jacket insulation, damping buffer type, etc. Various automatic controls such as valve positioners, control units, feedback devices, and position sensors can also be installed.

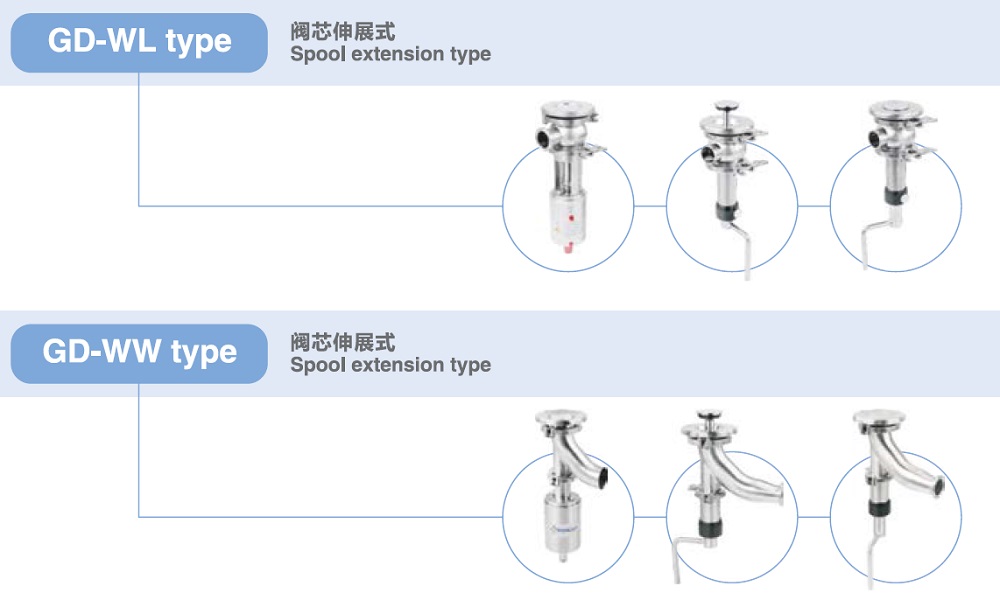

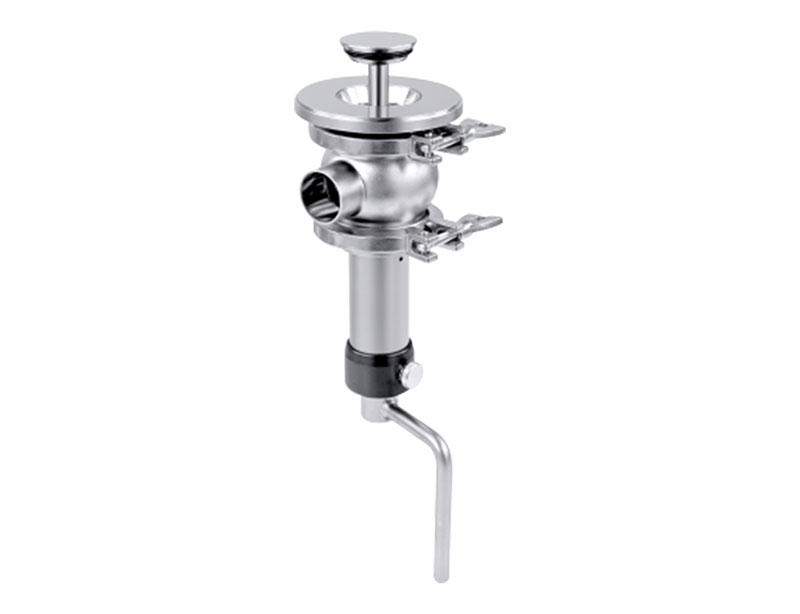

Valve spool extension: the valve stem opens toward the outside of the valve body and the valve stem moves upward. Can be singel acting and double acting
Valve spool extraction: the valve stem opens toward the inside of the valve body and the valve core moves downward. Only double acting,can't do single acting
Technical Features
Temperature: -20℃ to +150℃, Depending on the seal material
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Certification: FDA 177.2600; 3A-53-06; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

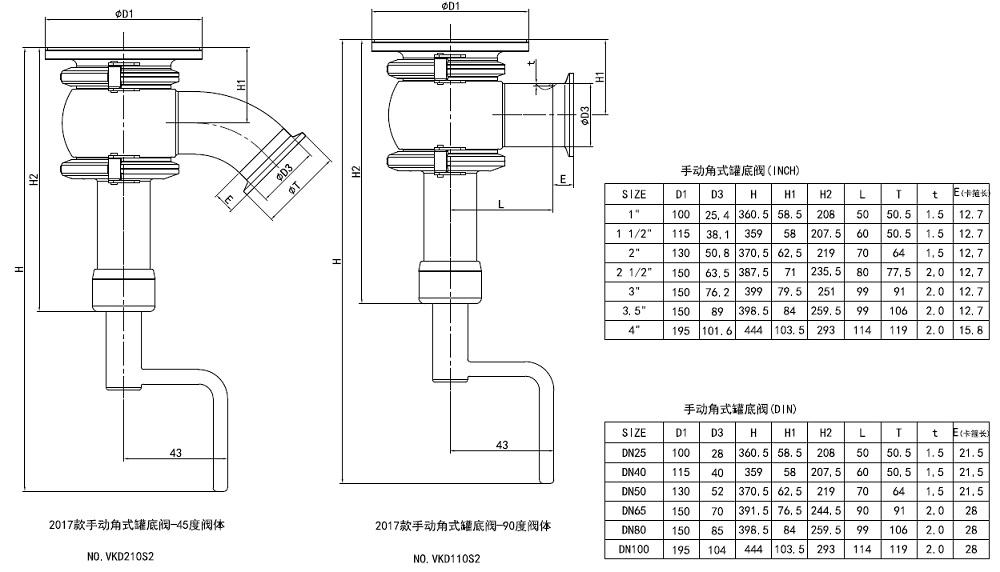

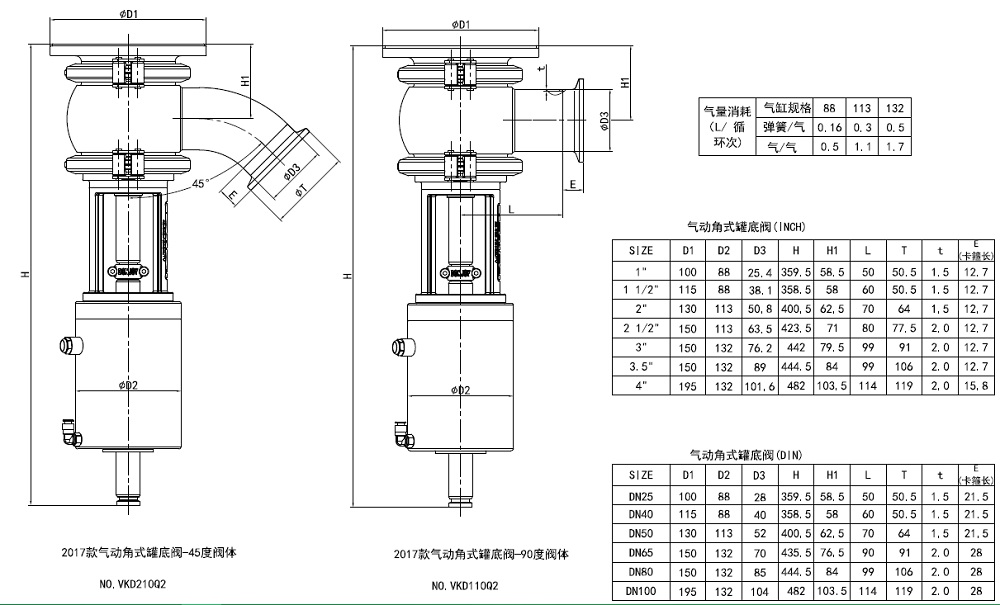

Sanitary tank bottom valve drawing
| File | Language | Size |
|---|---|---|
 Tank bottom valve catalogue |
English | 16.82MB |
| Sanitary valves catalogue |
English | 30.2MB |
| Tank bottom valve catalogue |
English | 6.93MB |
