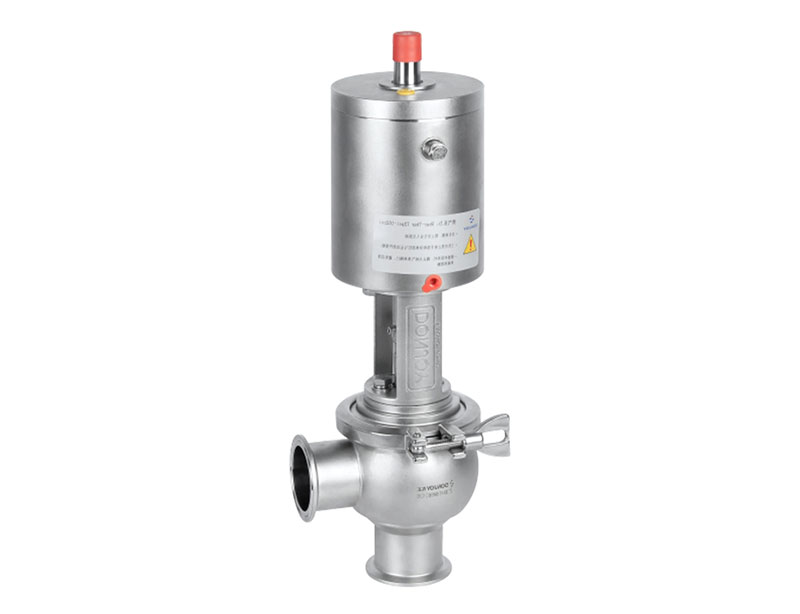

Single seat valve HX

DONJOY pneumatic unique single seat valve,sanitary reversing valve,hygienic divert seat valve

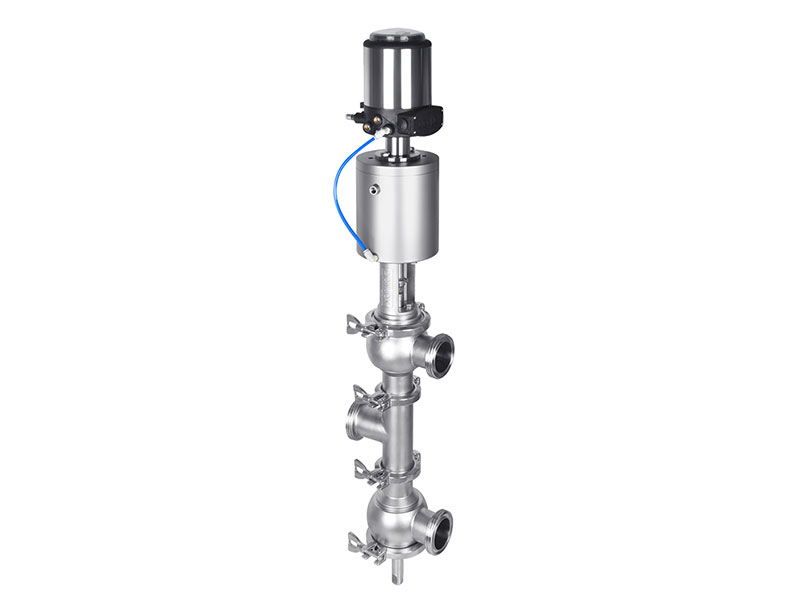

Single seat valve has very flexible valve body combination and various functional configurations,such as aseptiic,sterilization, diaphragm type, adjustable valve position, jacket insulation,damping buffer,double seat etc. Also can install with automatic positioner,control head,feedback device,position sensor etc.

Technical Feature

Temperature: -20℃ to +150℃, Depending on the seal material

Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Certification: FDA 177.2600; 3A-53-07; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

Single seat valve different body type:

L type-20

LL type-21

TL type-22

Single seat valve different connection ends

Single seat valve drawing
