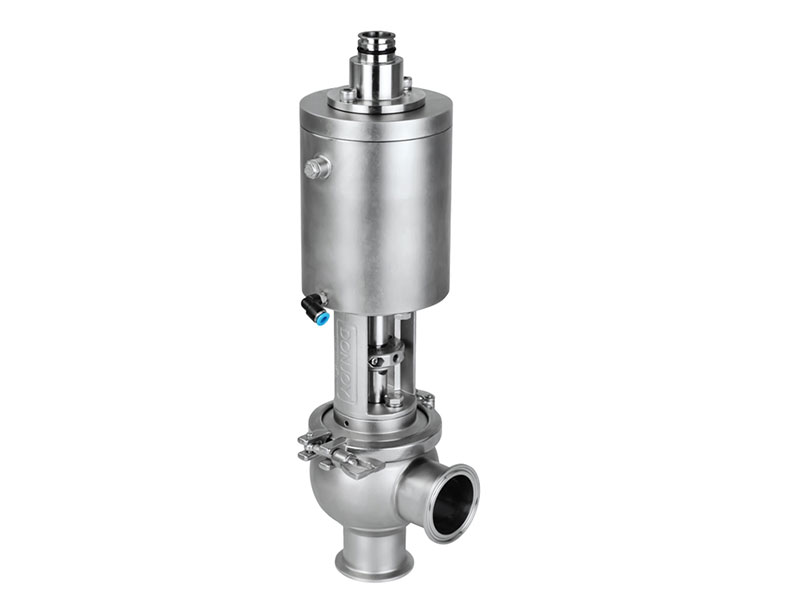

Multi-port single seat valve HX-ZH

Sanitary multi-port single seat valve /divert seat valve/diversing valve

Multi-port valve has a multi-functional combination application, can also be added to the process pipeline, the main valve CIP cleaning and SIP sterilization, the lowest point liquid self-emptying and other functional applications.

Technical Features

Size: 1"-4", DN25-DN100

Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Pressure: vacuum to 10bar (1.0Mpa)

Temperature: -20℃ to +150℃, Depending on the seal material

Seal: EPDM FKM HNBR PTFE

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Connection way: threaded, clamp, welding, flange

Drive mode: manual, pneumatic, electric

Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Certification: FDA 177.2600; 3A-53-07; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

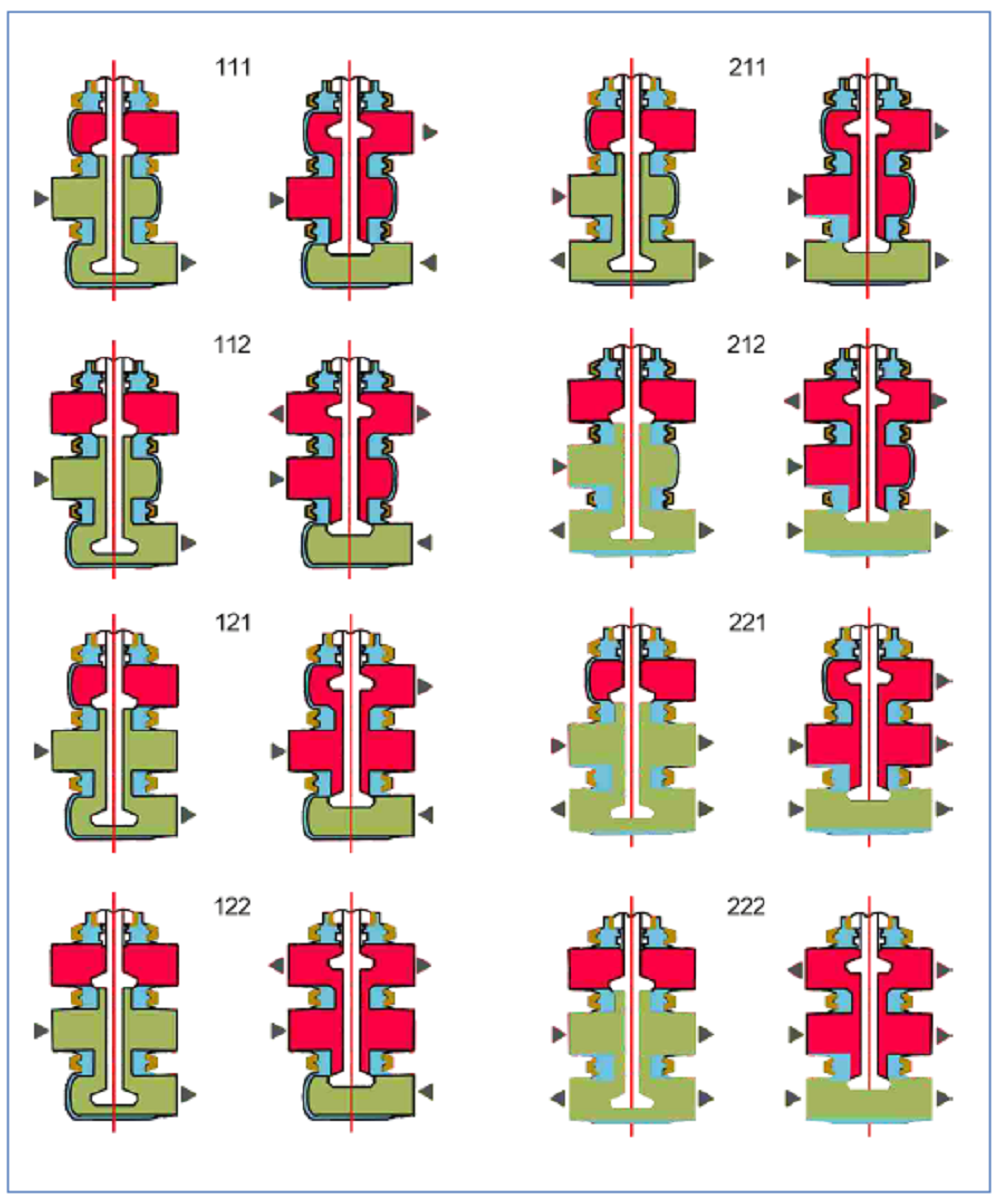

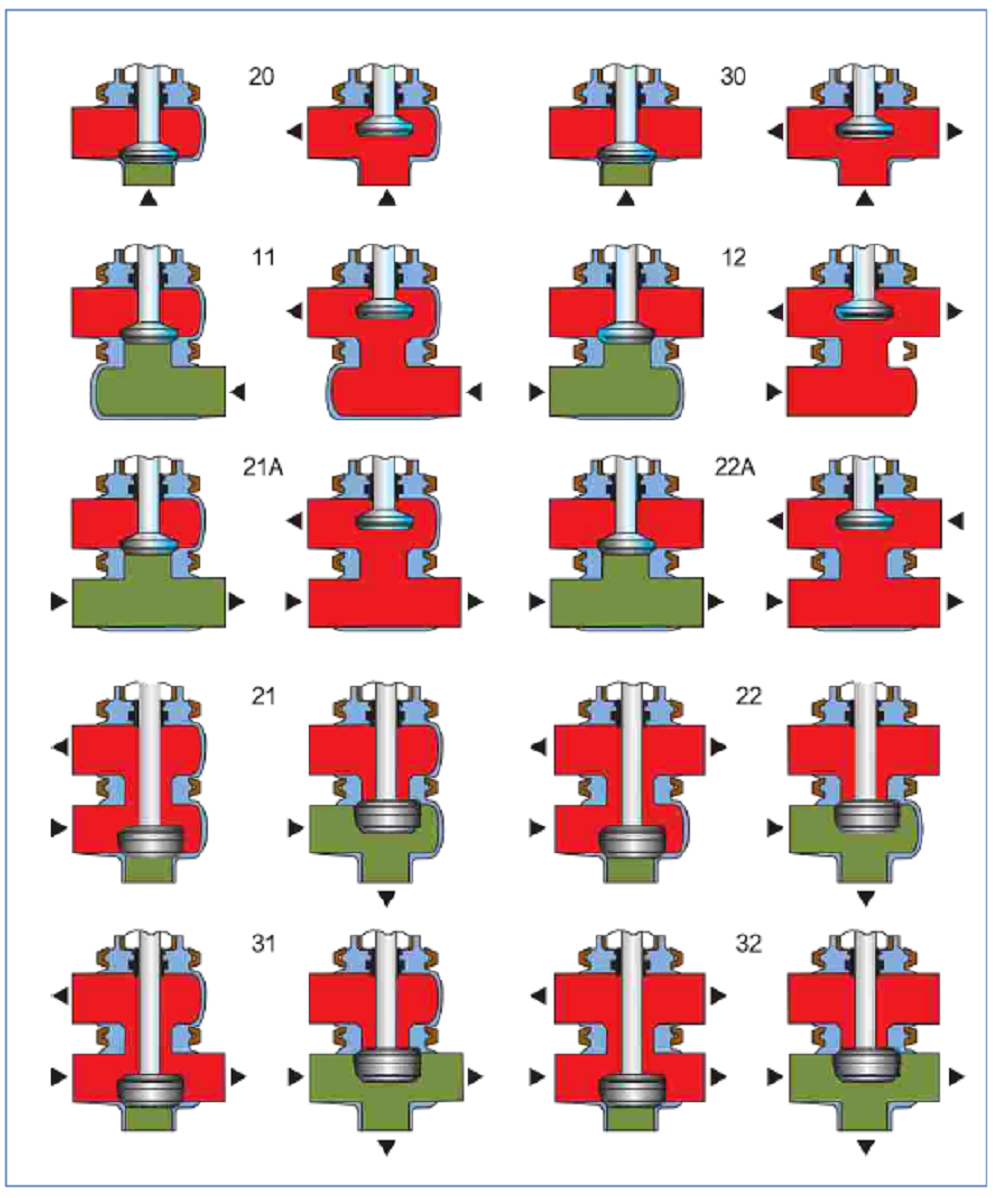

Single seat valve different body type:

L type-20

LL type-21

TL type-22

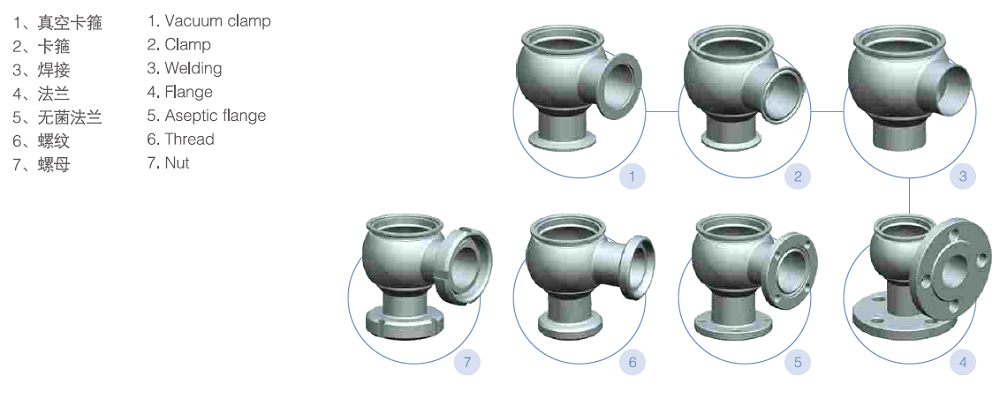

Single seat valve different connection ends

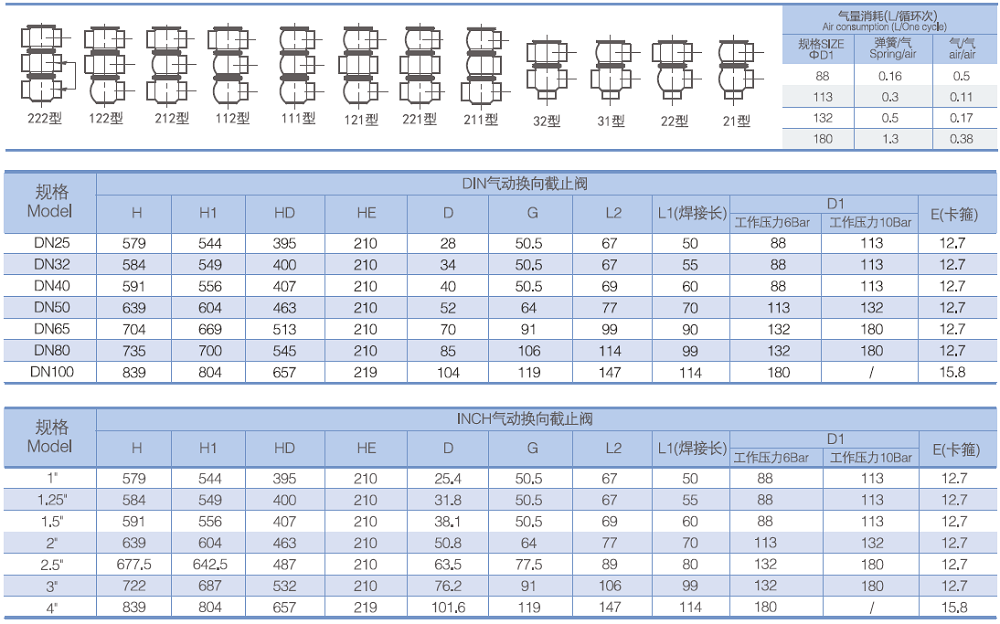

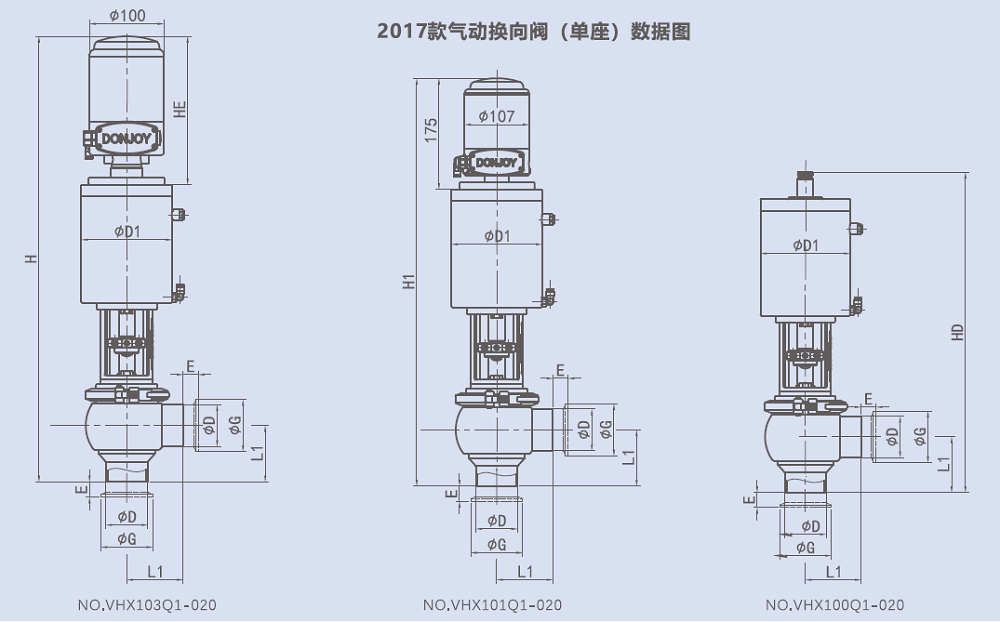

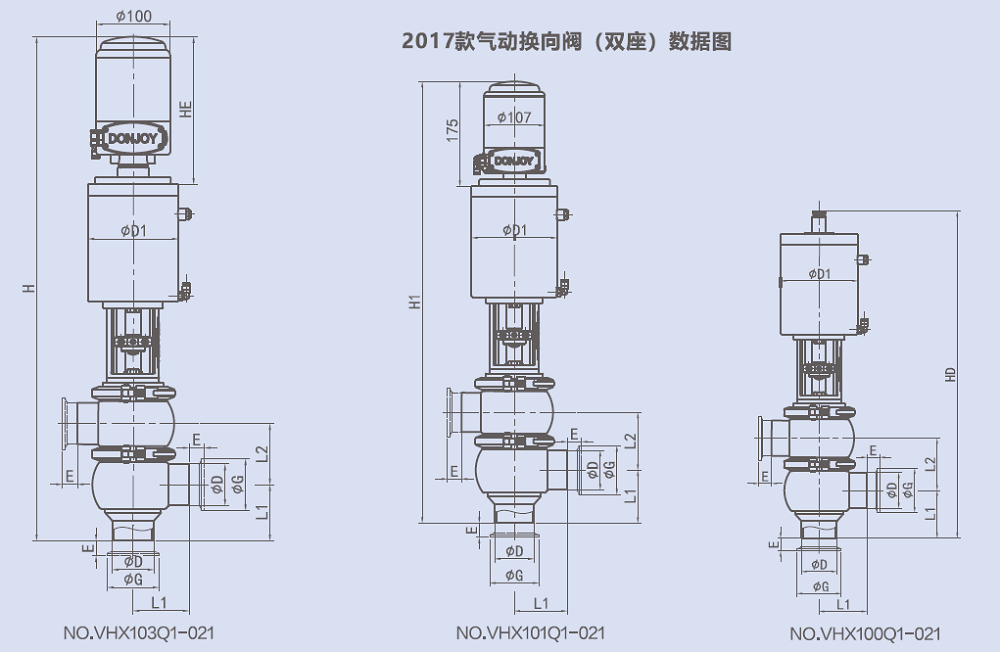

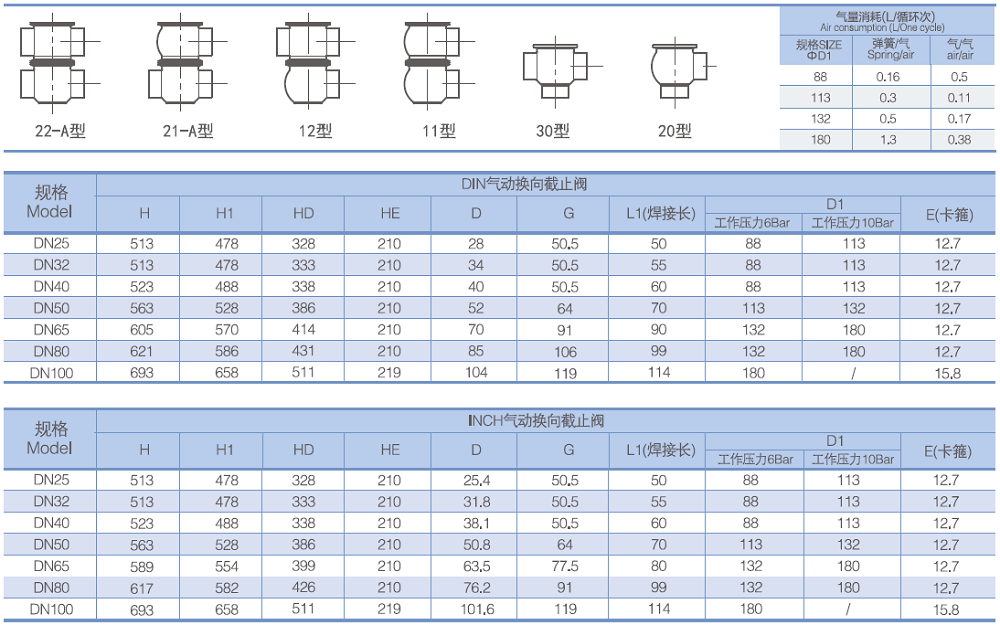

Single seat valve drawing
