Membrane aseptic single seat valve HX-GM

High quality aseptic single seat valve,manual or pneuamtic type.SS304 316L

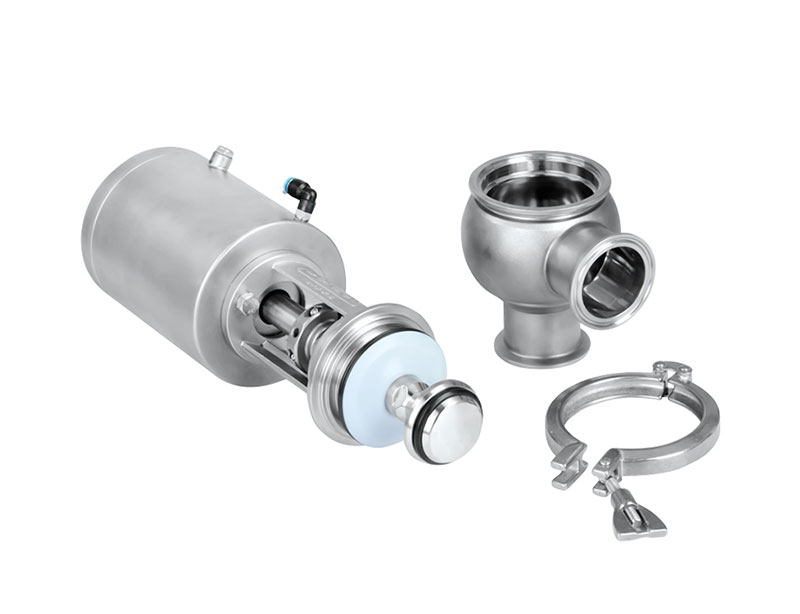

Membrane aseptic design is accomplished by PTFE diaphragm to isolate the valve from outside circumstance, preventing risk if bacteria entering. At the same time, the leak detection chamber is designed to detect diaphragm leakage or damage in real time.

valve body adopts clamp type,normally close and normally open 180° U return round realization,pressure ≤10 bar, size 1/2"-4",DN10-DN100,various controller can be configured.

CPTFE diaphragm isolate the valve from outside circumstance,diaphragm damage can be seen through leakage detective

Technical Features

Size: 1/2"-6", DN10-DN150

Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Pressure: vacuum to 10bar (1.0Mpa)

Temperature: -20℃ to +150℃, Depending on the seal material

Seal: EPDM FKM HNBR PTFE

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Connection way: threaded, clamp, welding, flange

Drive mode: manual, pneumatic, electric

Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Certification: FDA 177.2600; 3A-53-07; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

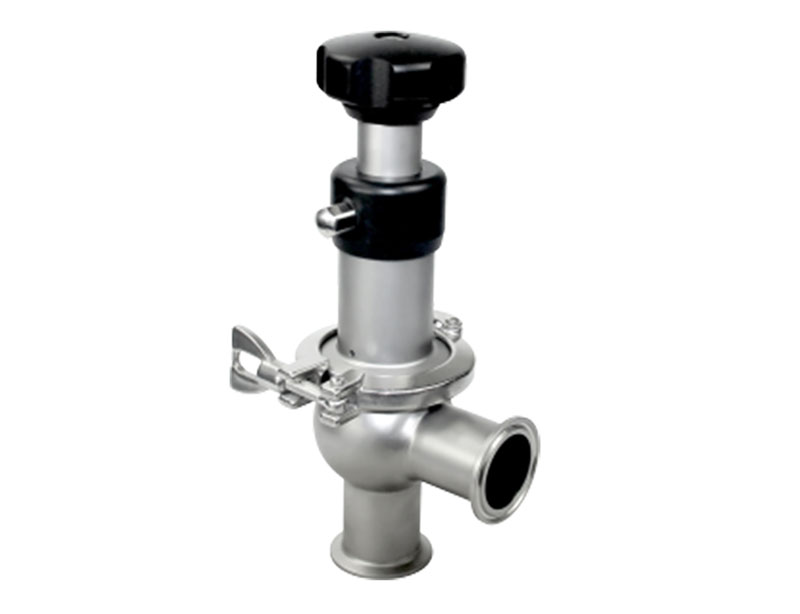

Single seat valve different body type:

L type-20

LL type-21

TL type-22

Single seat valve different connection ends

Single seat valve drawing
