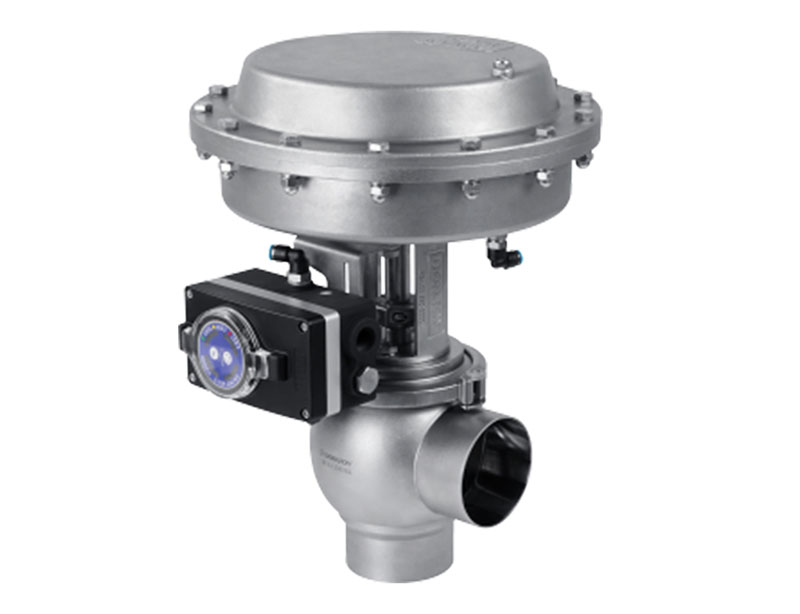

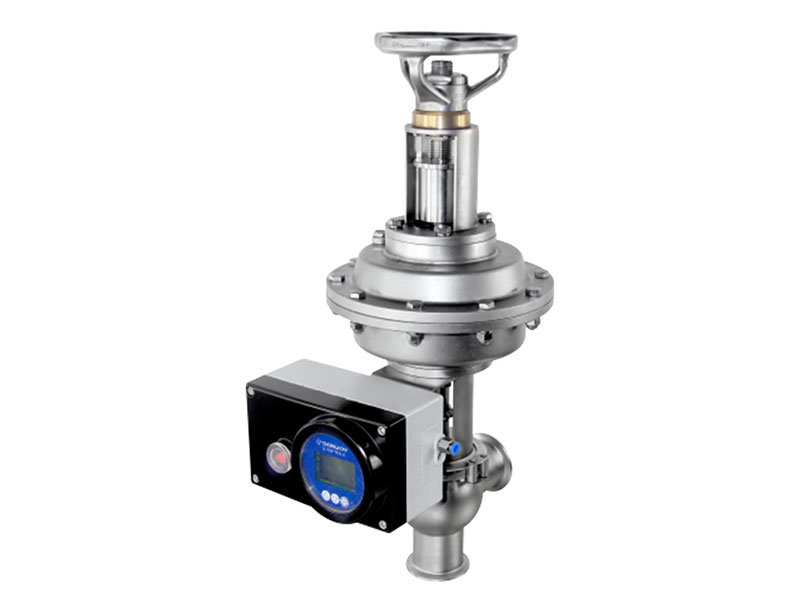

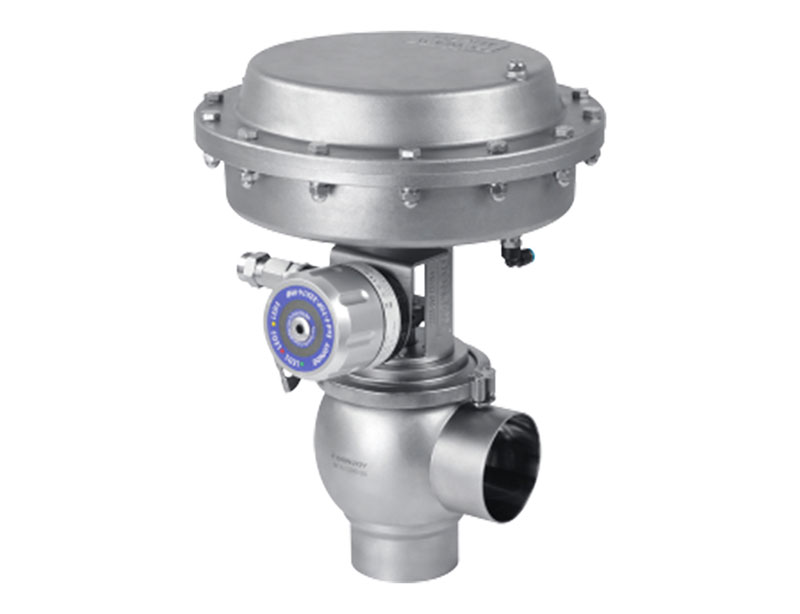

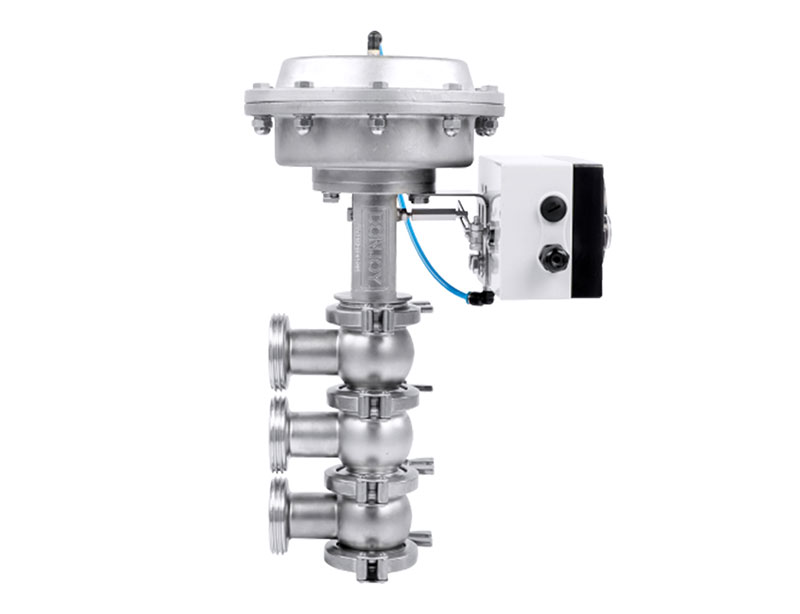

Film-type single seat valve HX-BM

Sanitary flow control regulating valve with positioner IL-TOP

Film-type single seat valve can bear pressure ≤30bar, Shorter height, stainless steel

Sanitary regulating valve is a pneumatic proportional valve,is a equipment to control the flow,widely used to the dairy,food,beverage,pharmacy and cehmical indusutries.Most important applicaiton is the pressure control ,flow control,level etc,

Technical Feature

Temperature: -20℃ to +150℃, Depending on the seal material

Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

Certification: FDA 177.2600; 3A-53-07; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

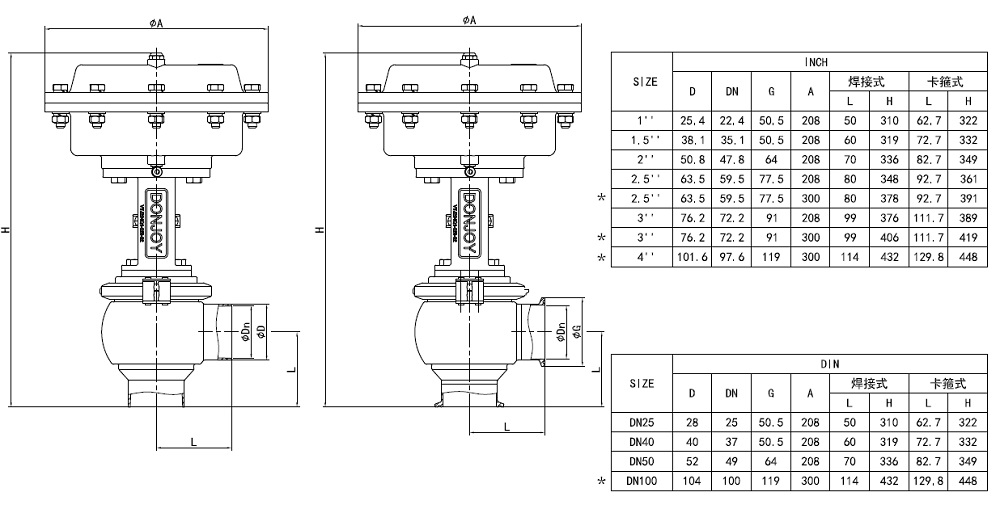

Sanitary regulating valve  drawing

Sanitary regulating valve is a pneumatic proportional valve,is a equipment to control the flow,widely used to the dairy,food,beverage,pharmacy and cehmical indusutries.Most important applicaiton is the pressure control ,flow control,level etc,
