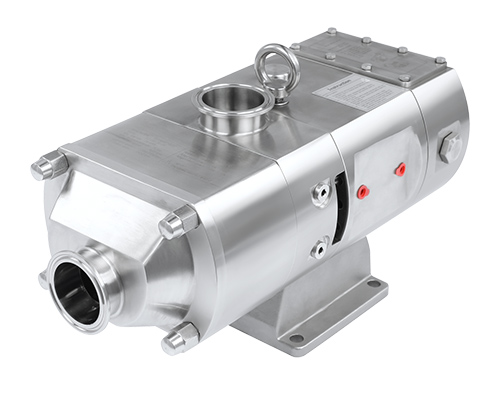

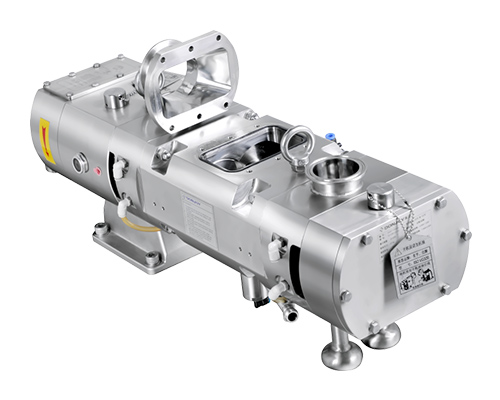

LG series twin screw pump - Double head twin screw pump

TECHNICAL SPECIFICATIONS:

 Max flow:180m3/h
 Max particles:39mm
 Max pressure:20bar
 Speed range:10-3500 R.P.M
 Working temperature:-40℃ to 150℃
 Surface treatment:Ra≤0.6μm;EP=Ra0.4μm

Get a Quote
Share:
RELATED VIDEOS
FEATURES

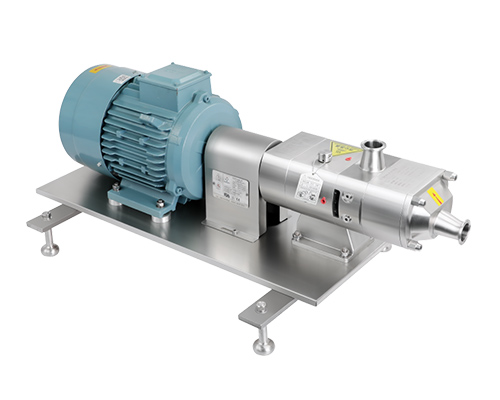

DONJOY sanitary low shear twin screw pump with motor for high viscosity liquids with particles

Advantage:Bidirectional reversible operation, high and low viscosity, no pulse, high pressure, Solutions for non-damaged and flexible conveying of various materials including granule

Twin screw pump application

The application range of twin screw pumps is similar to that of lobe pumps. Both are used for viscous liquids, but twin screw pumps have a wider application range. They can be used for low/high viscosity liquids with particles such as jam, pulp, etc., and are more suitable for higher viscosity media such as emulsion cosmetics, pigments, etc. Twin screw pump mainly used in food, pharmaceuticals, biopharmaceuticals, daily chemicals and CIP applications.
The price of twin screw pumps is much more expensive than that of lobe pumps. Lobe pumps can be used for liquids with normal viscosity. Twin screw pumps are recommended for media with higher viscosity and particles.

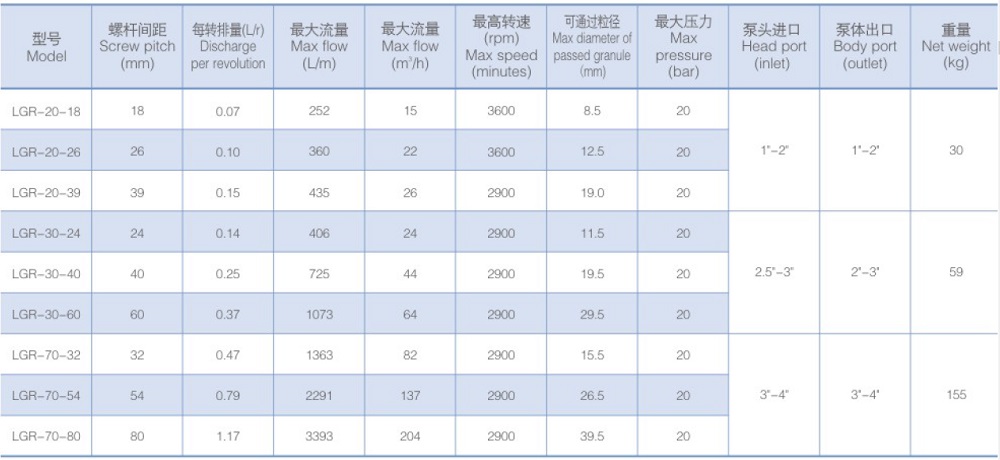

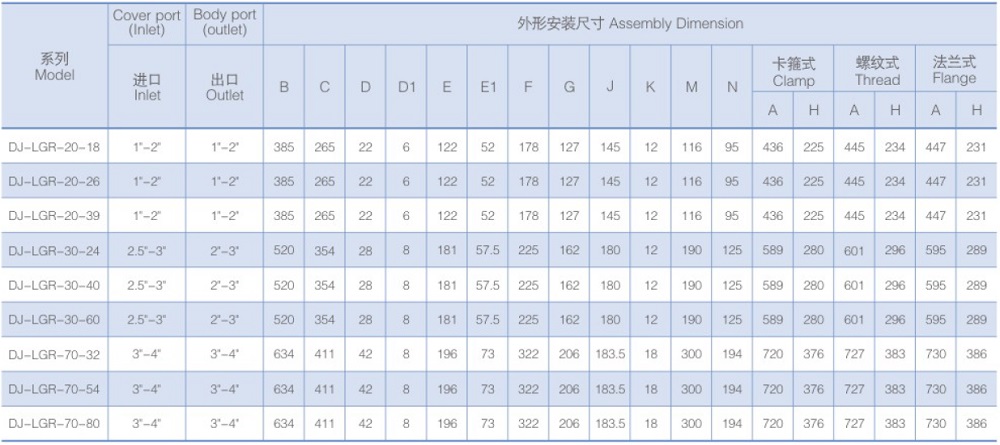

 Twin screw pump model table

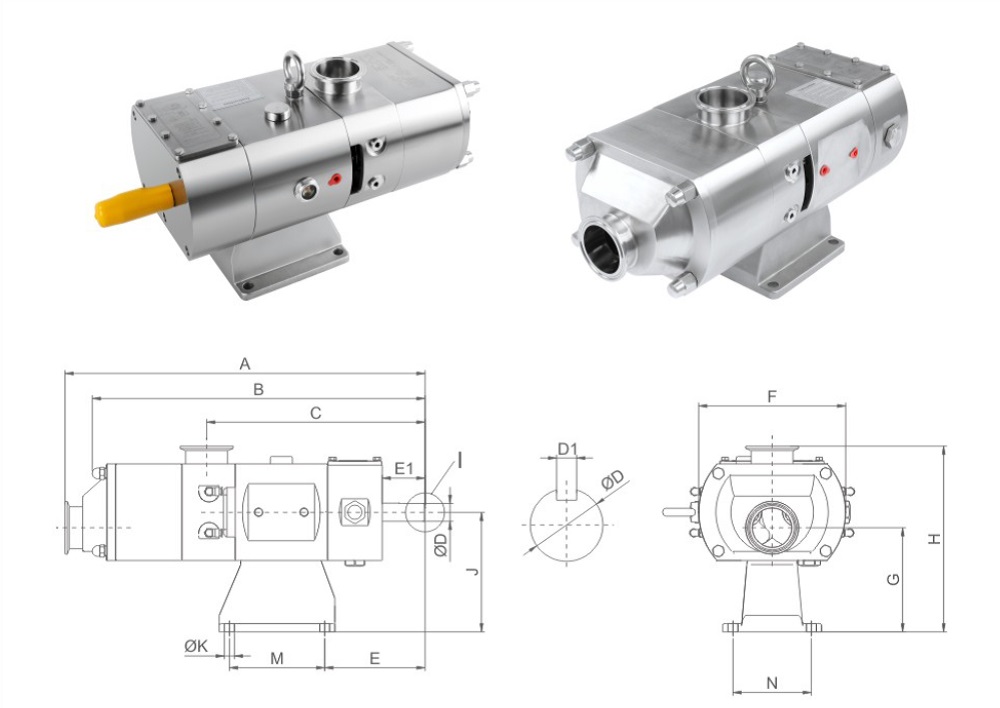

Twin screw pump dimension drawing

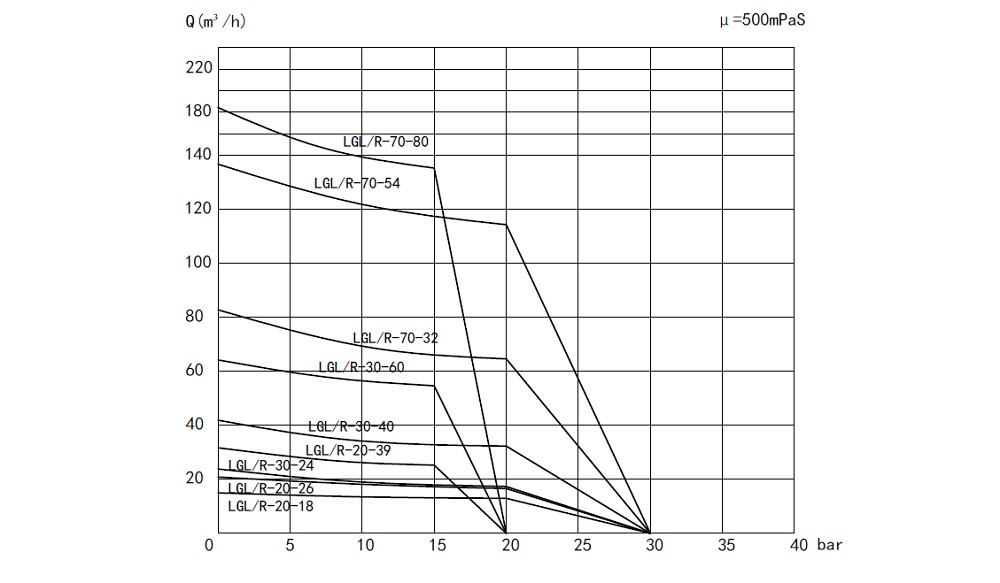

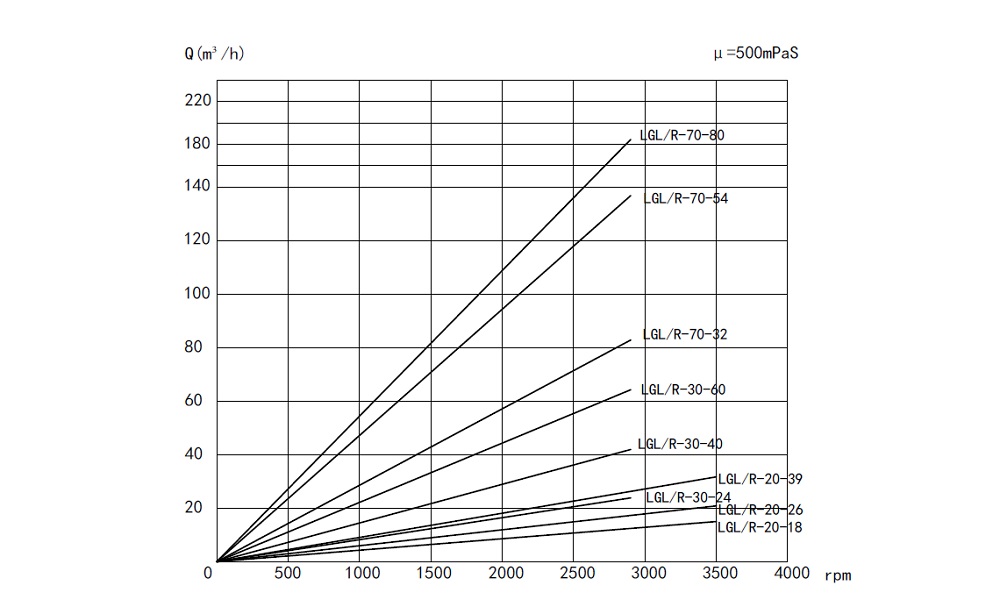

Twin screw pump performance curve

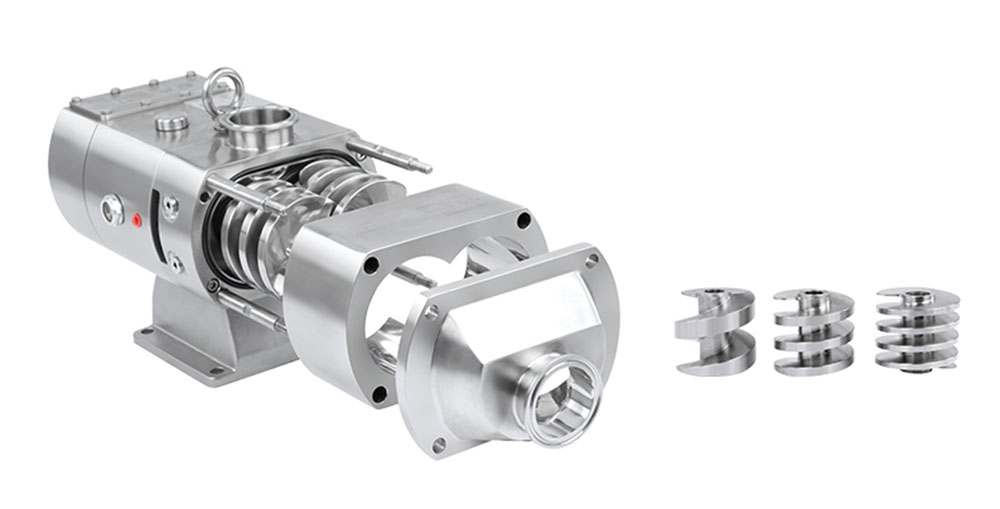

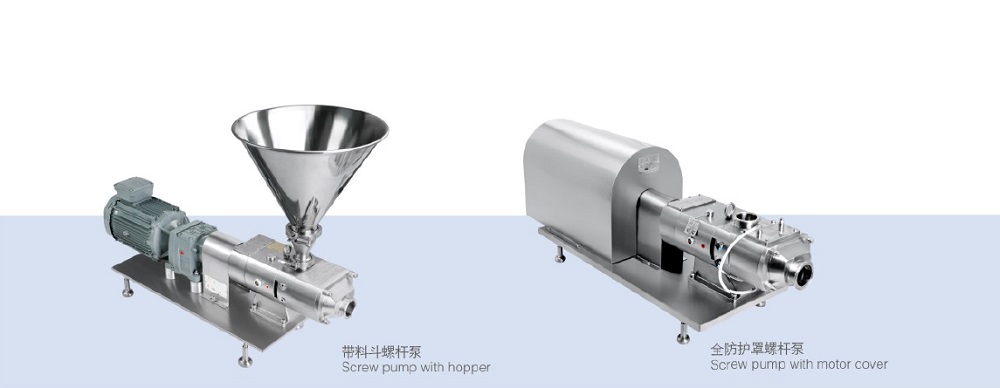

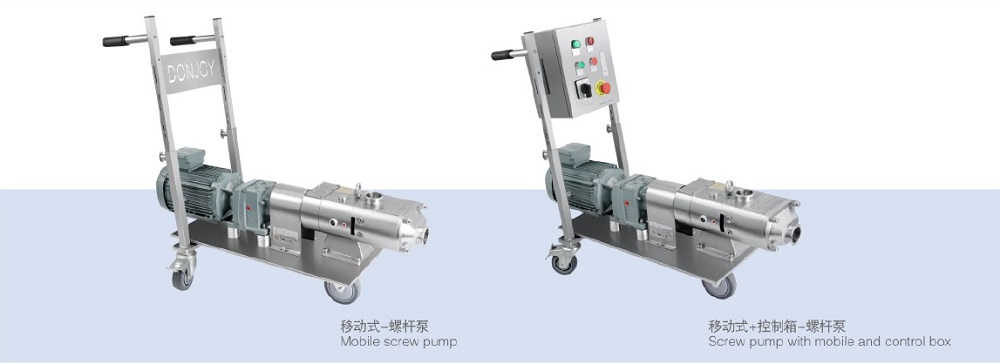

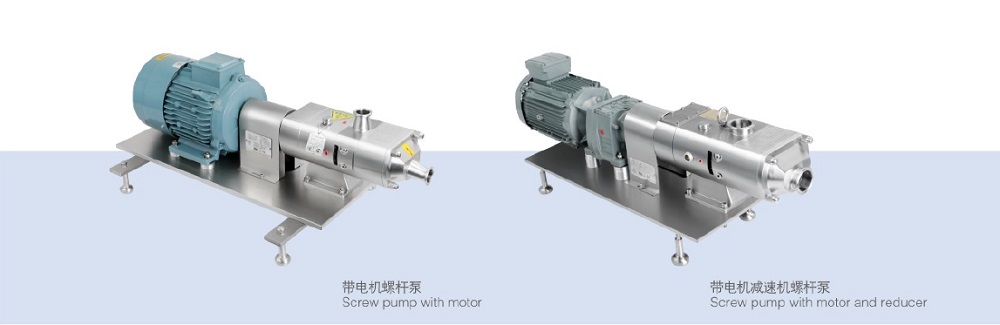

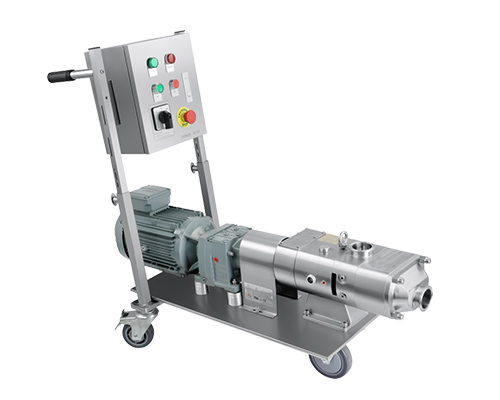

Different twin screw pump configuration



THEORY OF OPERATION

Bidirectional reversible operation, high and low viscosity, no pulse, high pressure, Solutions for non-damaged and flexible conveying of various materials including granule

S-LG series screw pump
Higher flow, higher pressure, double suction inlet, multi-task processing,
multi-function bidirectional reversible operation, high and low viscosity, no pulse, containing
granule and other materials without damage and flexible transportation solutions

Efficient, clean, safe and durable Simple maintenance, no professional required





DOWNLOAD
File Language Size
Twin screw pump catalogue English 6.14MB
Sanitary pump catalogue English 27.54MB
