Max Flow：35m3/h
Max Head：42M
Max suction：8/M
Temperature： -20℃ to 130℃
power：1.5-15KW
Material：304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Dual-phase steel 2205， Hastelloy alloy C276
Surface treatment：≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Mechanical seal： Single seal SIC/C/EPDM, double seal SIC/C/EPDM
Inlet/Outlet Connection：Thread, clamp, flange, Aseptic flange
Certification：3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004

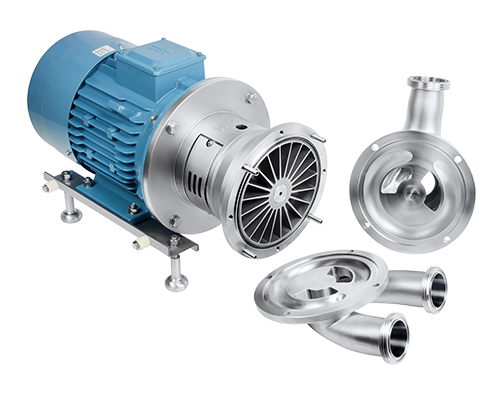

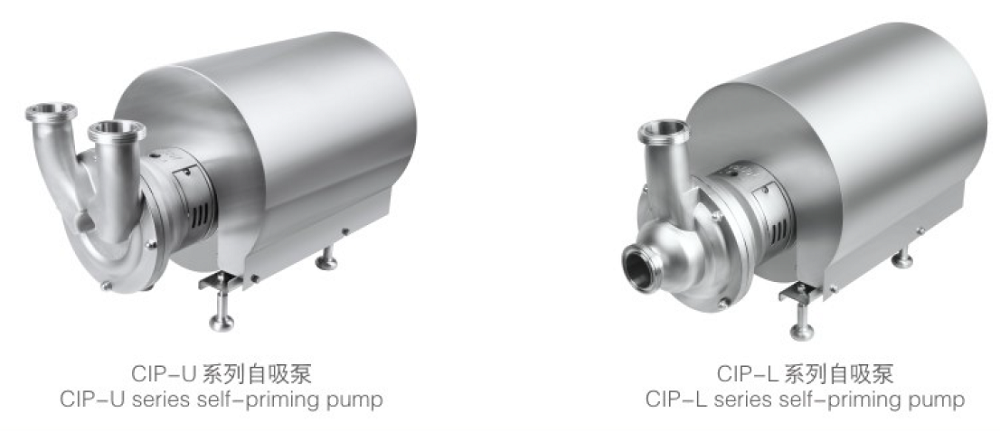

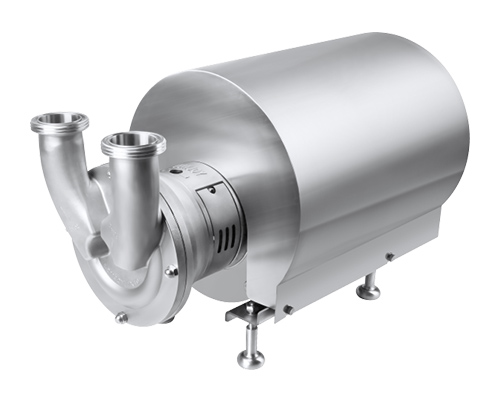

DONJOY sanitary stainless steel self-priming pump,CIP return pump
Solution for high efficiency, low noise, large suction,easy maintenance, high purity
Sanitary self-priming pump model table
| Model |
Motor power (KW) |
Flow rate m3/h |
Head Meters |
Inlet port negative pressure (bar) |
Inlet | Outlet |
Weight kg |
| CIP-L-05 | 2.2 | 10 | 15 | -0.56 | 2“ | 2“” | 45.9 |
| 2.2 | 8 | 18 | 45.9 | ||||
| 3 | 5 | 20 | 54.9 | ||||
|
CIP-L-10 / CIP-U-10 |
5.5 | 20 | 11 | -0.72 | 2.5" | 2.5" | 89 |
| 5.5 | 15 | 18 | |||||
| 5.5 | 10 | 24 | |||||
| 5.5 | 5 | 32 | |||||
|
CIP-L-20/ CIP-U-20 |
7.5 | 25 | 17 | -0.65 | 3" | 2.5" | 95 |
| 7.5 | 20 | 22 | |||||
| 7.5 | 18 | 24 | |||||
| 7.5 | 15 | 28 | |||||
| 11 | 10 | 34 | 139 | ||||
| 11 | 5 | 38 | |||||
|
CIP-L-30/ CIP-U-30 |
11 | 35 | 18 | -0.8 | 3" | 2.5" | 150 |
| 11 | 30 | 19 | |||||
| 11 | 25 | 24 | |||||
| 11 | 21 | 30 | |||||
| 15 | 16 | 38 | 163 | ||||
| 15 | 11 | 42 |

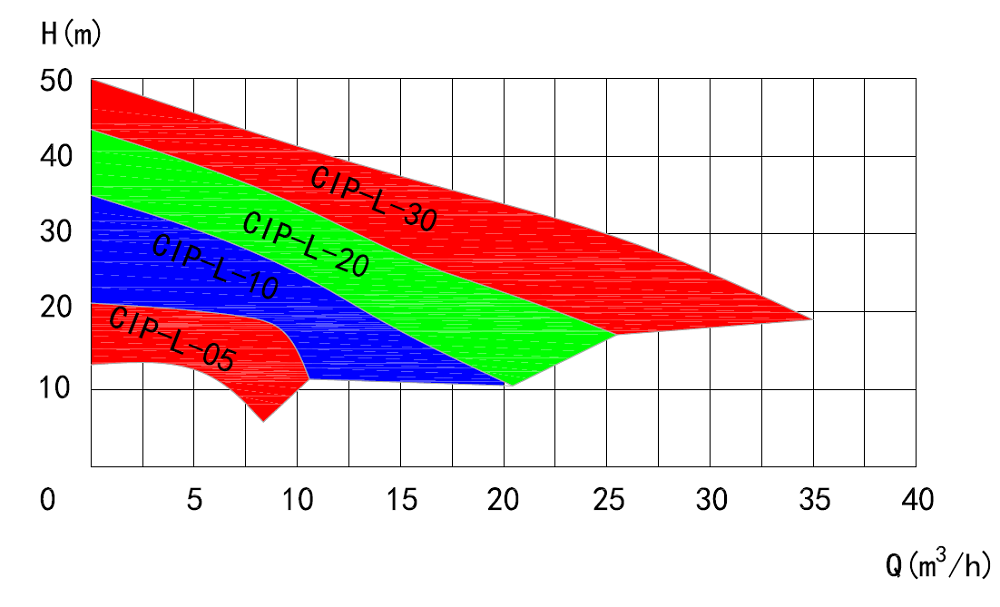

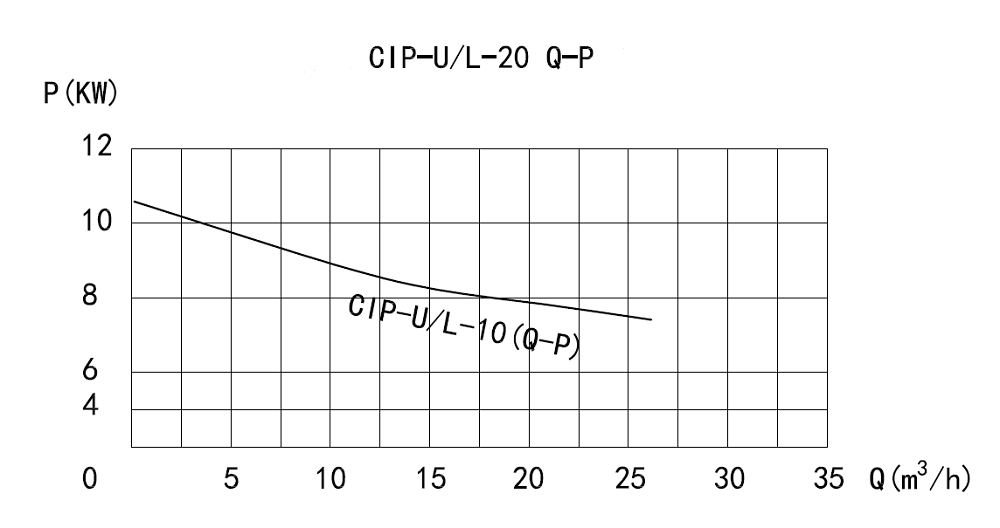

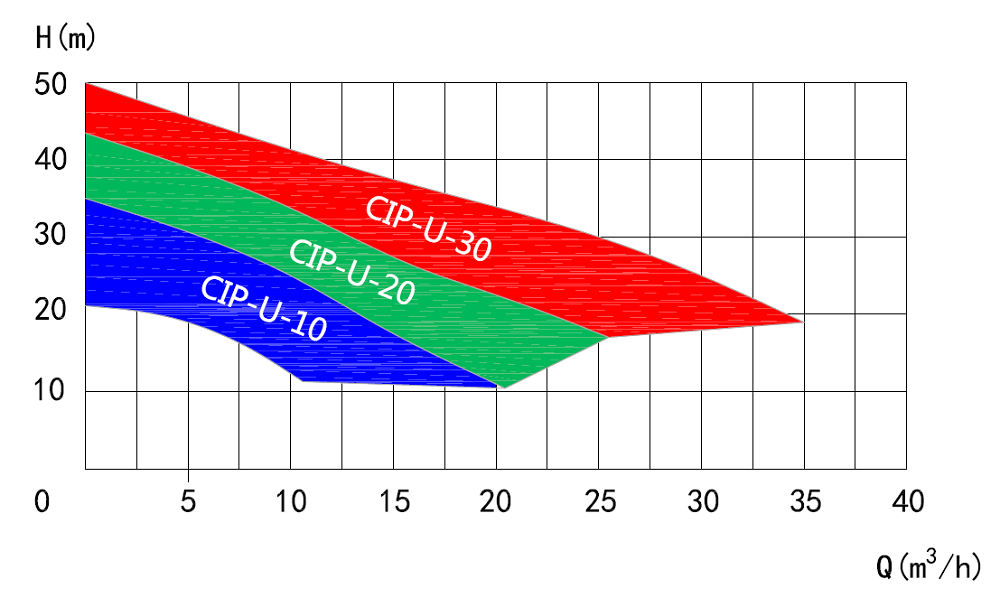

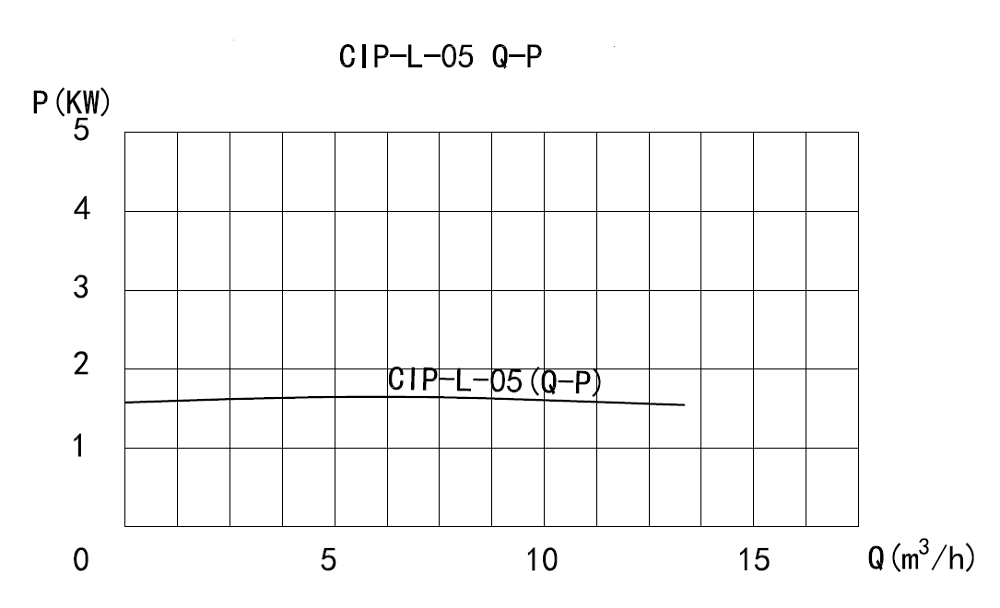

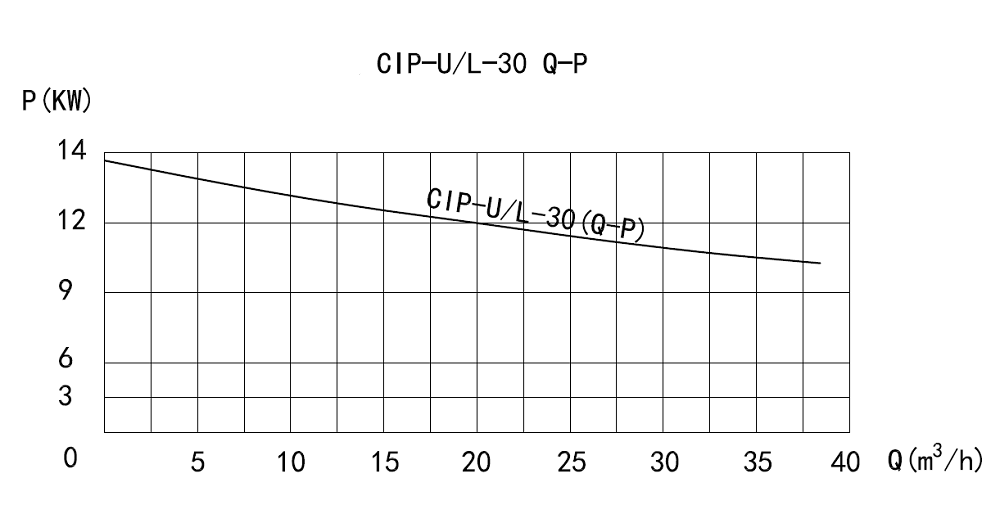

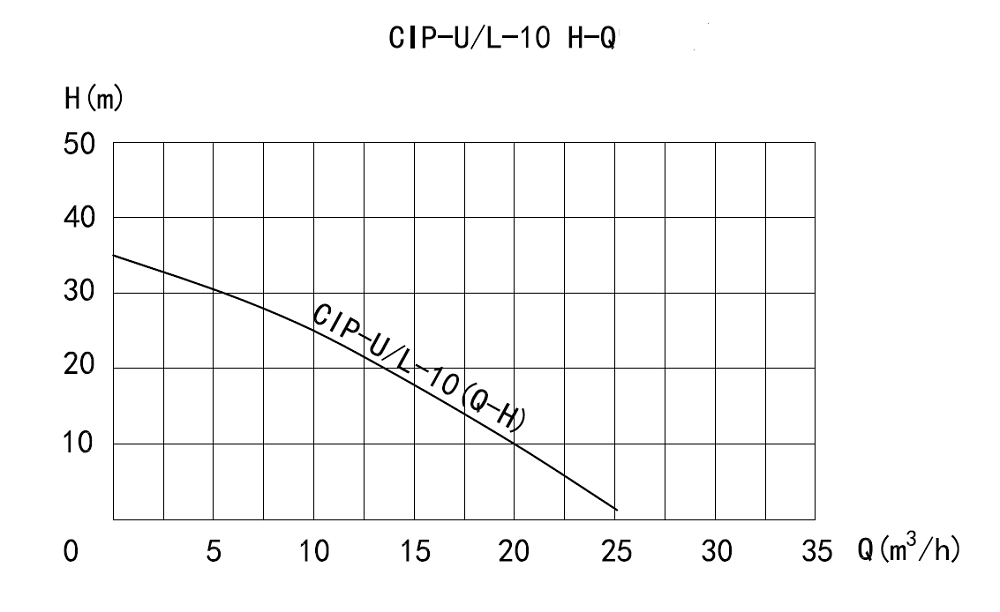

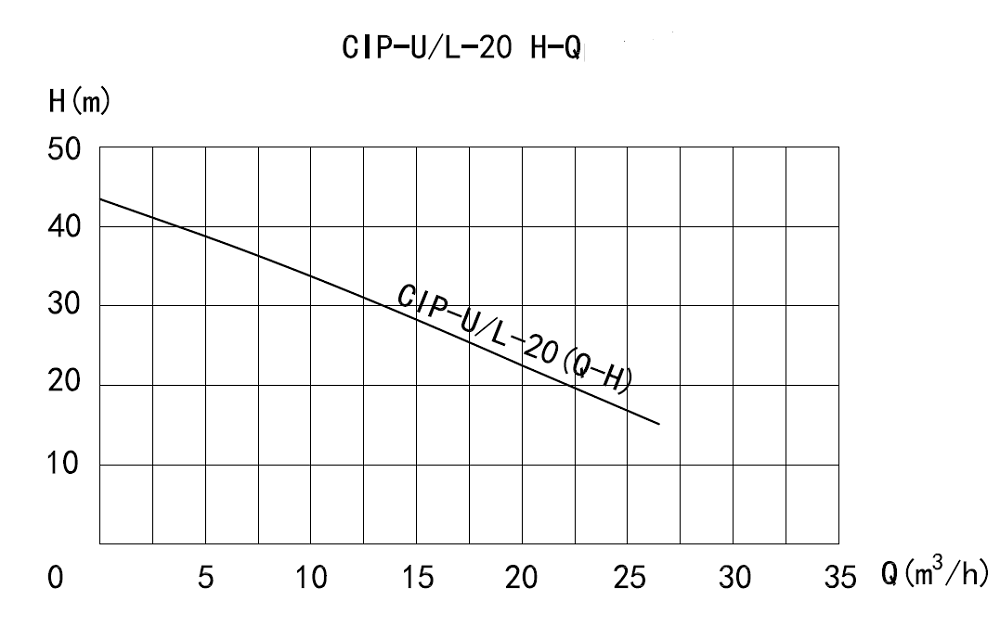

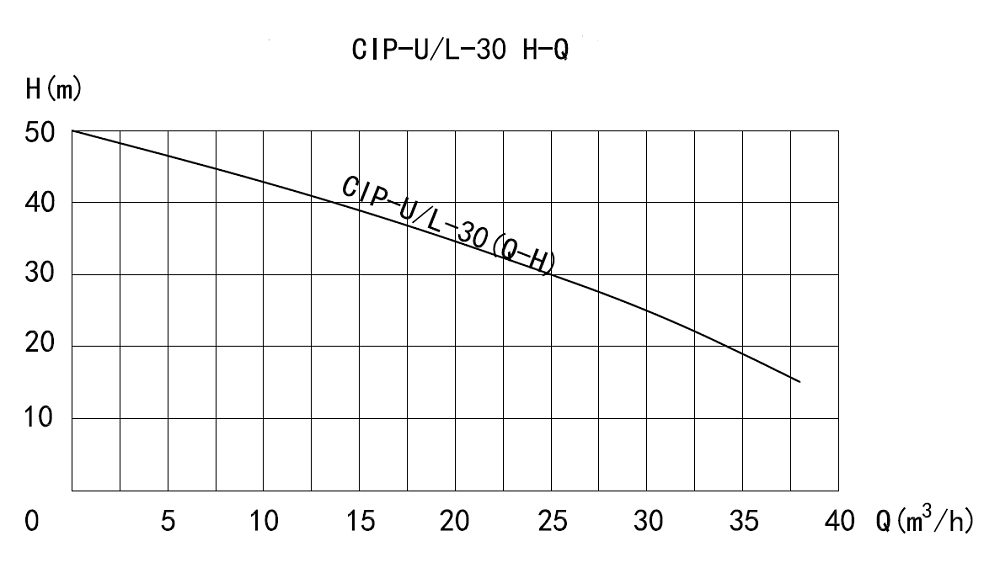

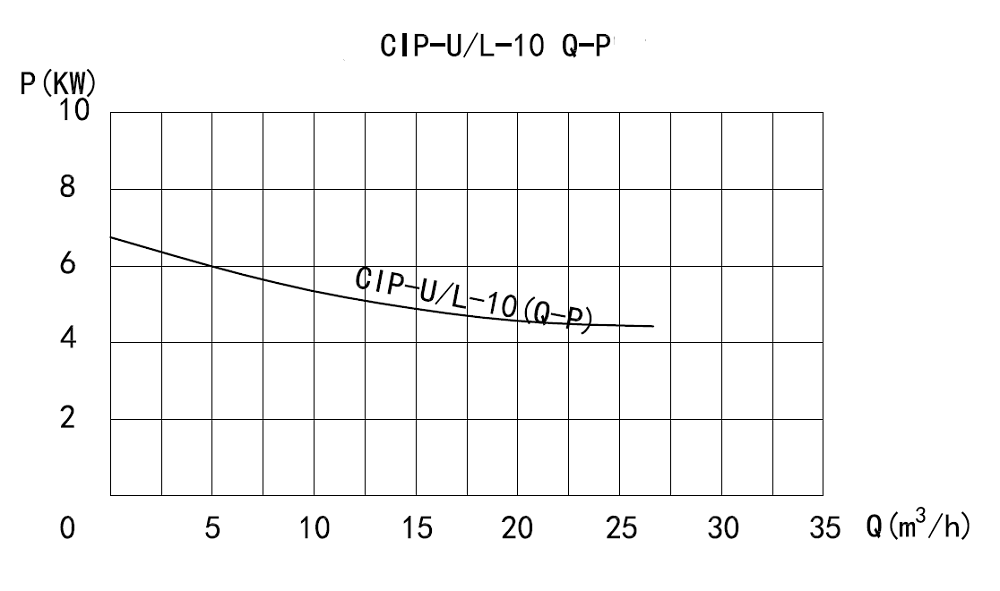

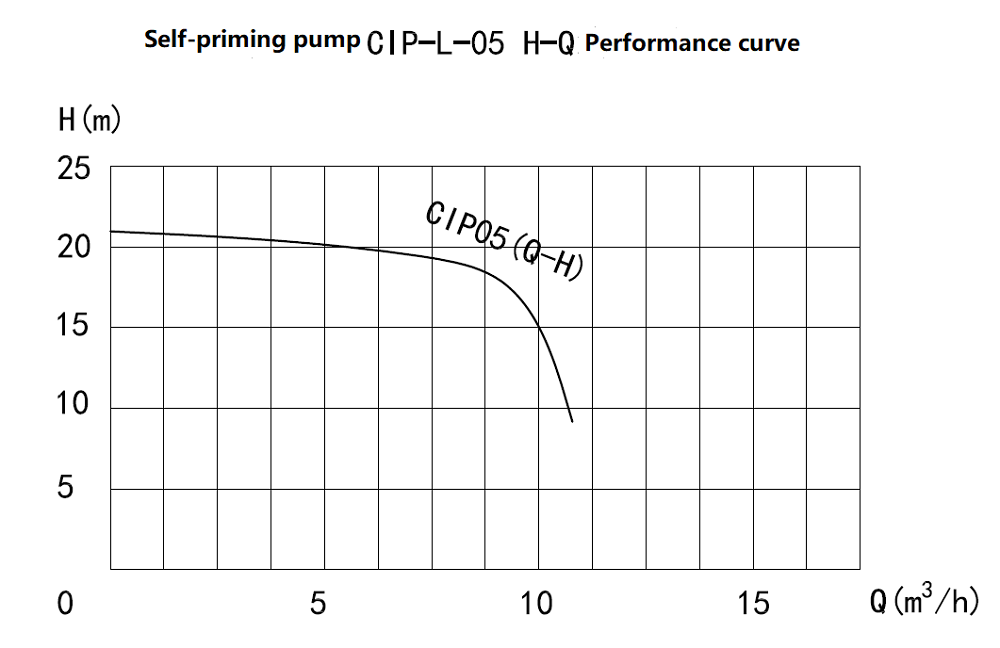

Sanitary self priming pump performance curve

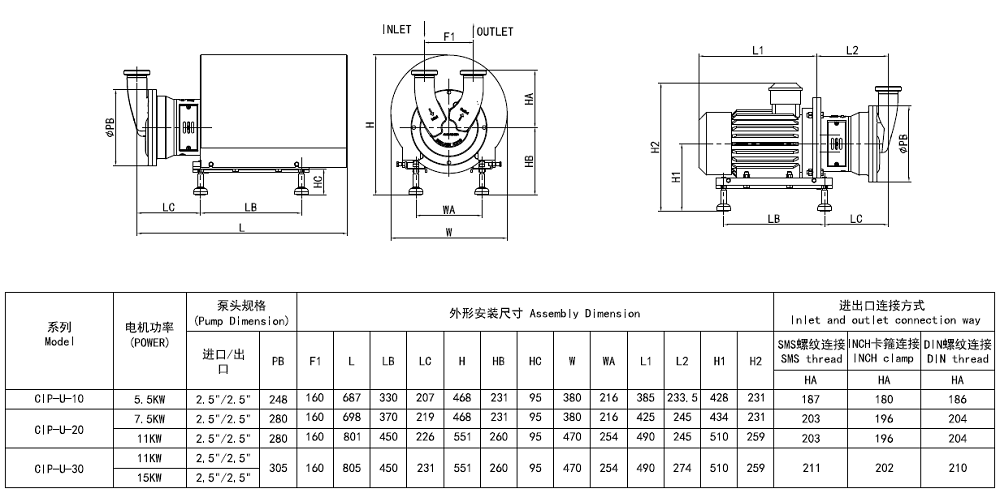

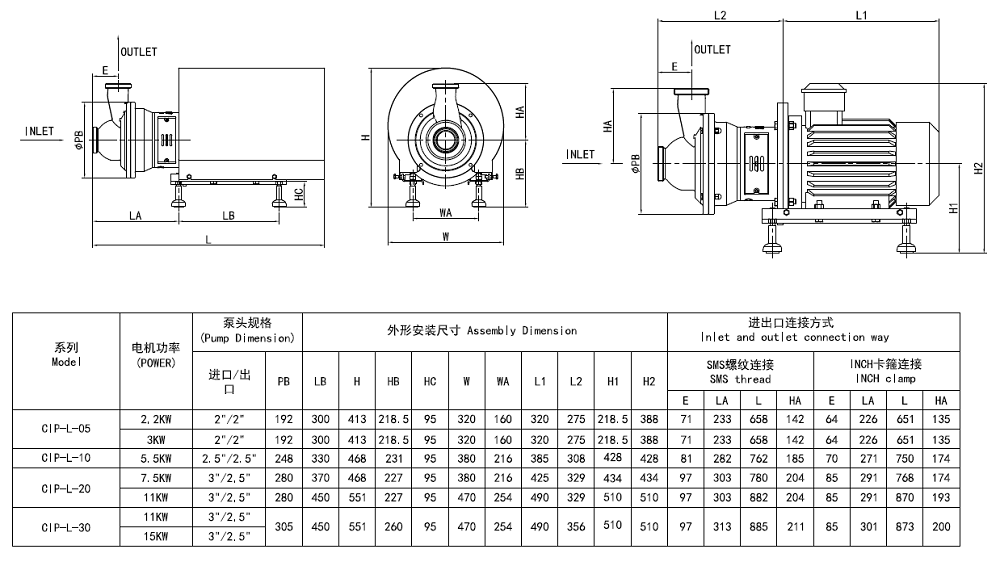

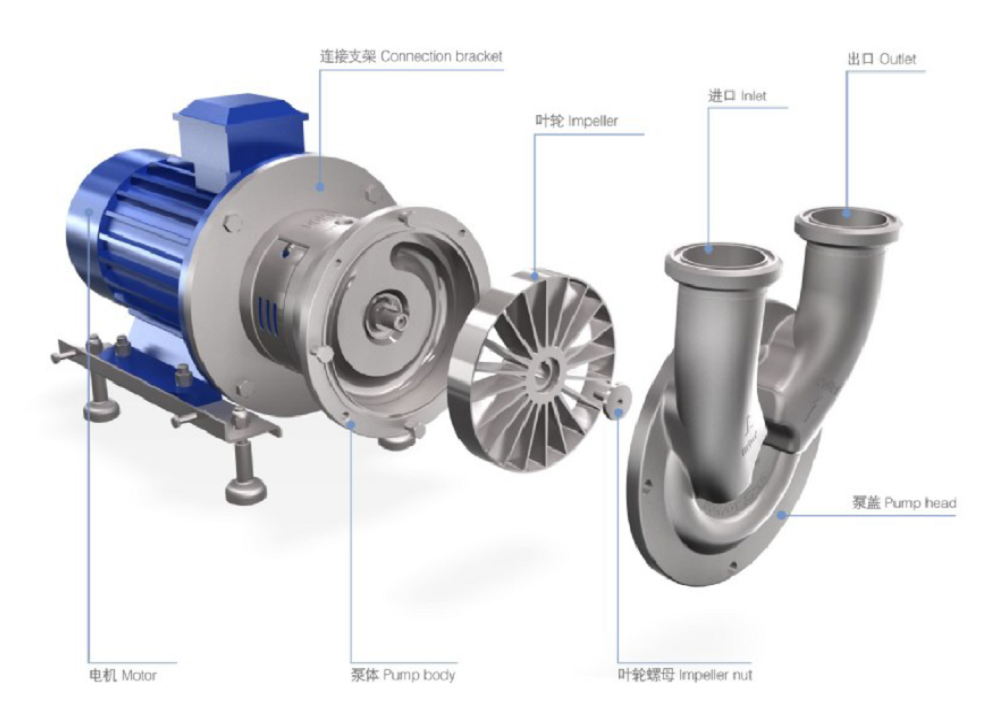

Sanitary centrifugal pump drawing
Solution for high efficiency, low noise, large suction, easy maintenance, high purity
