Specifications: 1/2"-4", DN10-DN100
Pressure: 10bar (1.0 MPa)
Sealing: EPDM FKM HNBR PTFE
Connection method: thread, clamp, welding, flange
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

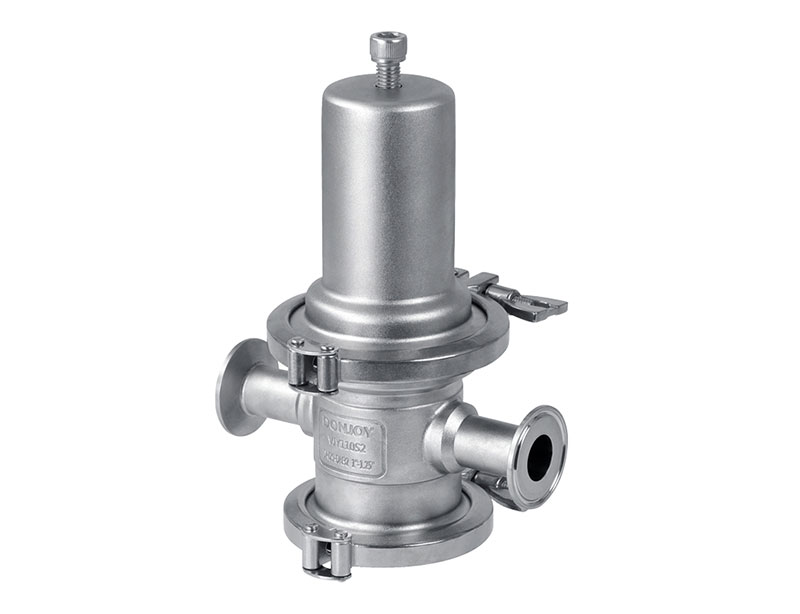

Food grade sanitary SS316L pressure reducing valve

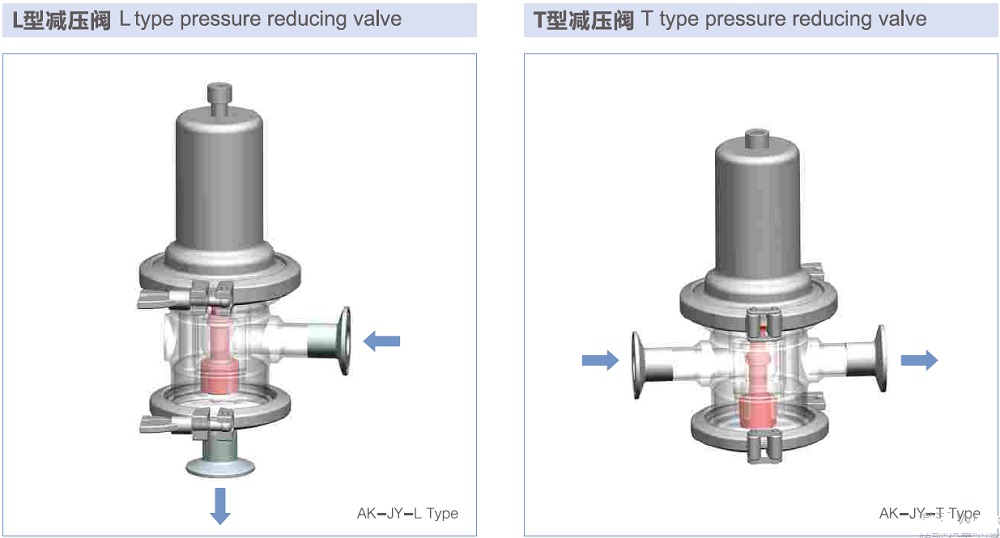

The pressure reducing valve has two designs, T type and L type, with a pressure difference of 0.5 bar to 8 bar, and a maximum pressure of 10 bar. Our Pressure reducing valve designed strictly in accordance with the United States -3-A-64-00 has no dead ends, no retention, and better KV curve characteristics.
Technical Features
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Temperature: -20℃ to +150℃, Depending on the seal material
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Certification: FDA 177.2600; 3A-64-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

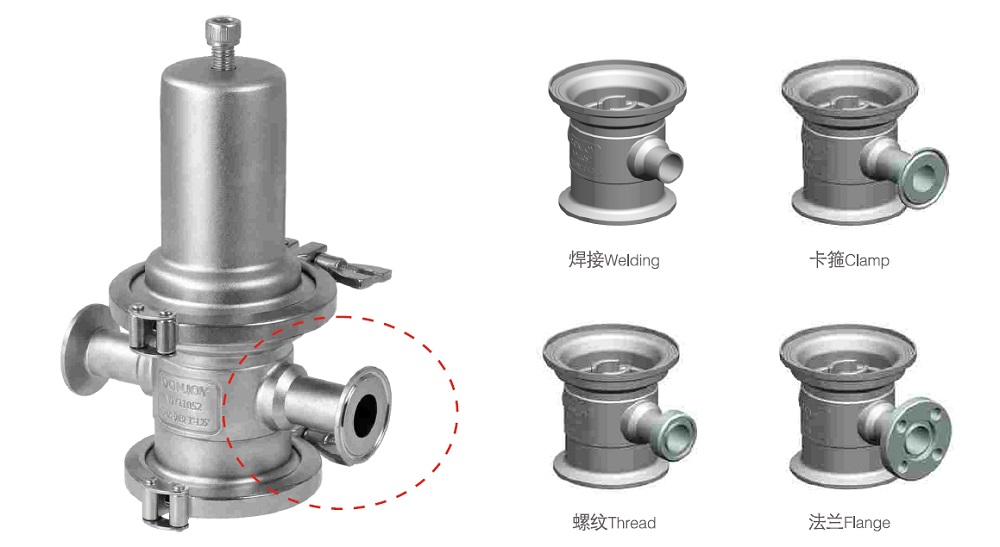

Pressure reducing valve different connection way

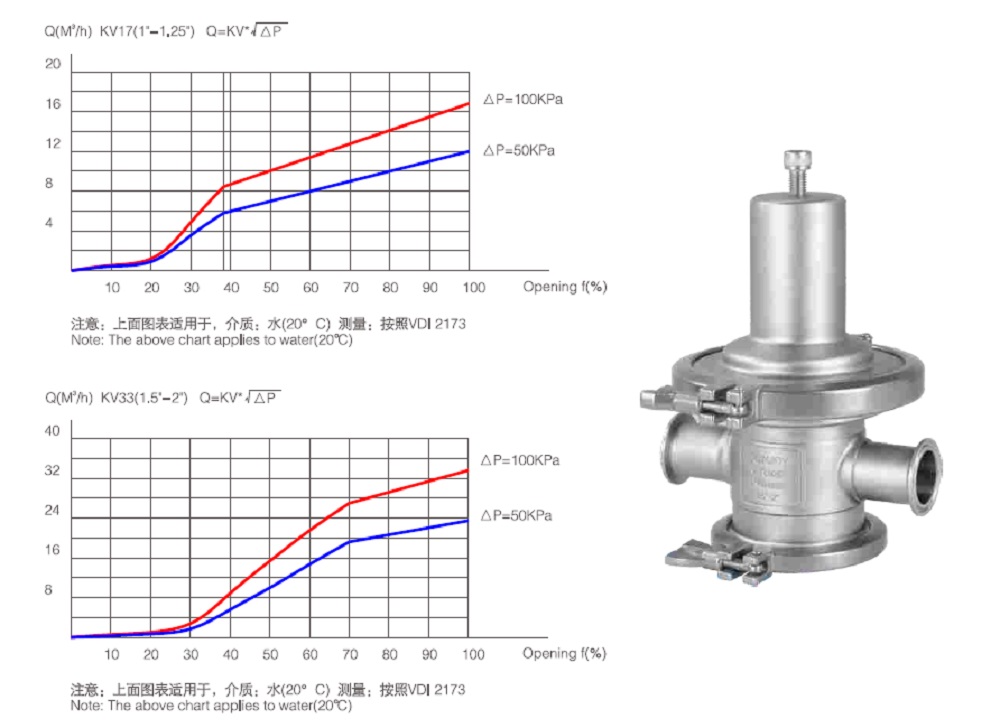

Pressure redue valve performance curve KV value

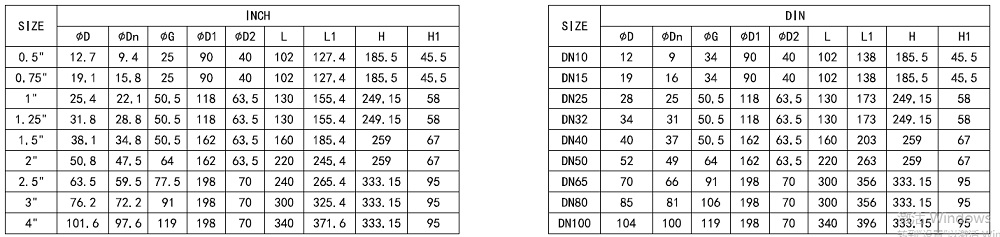

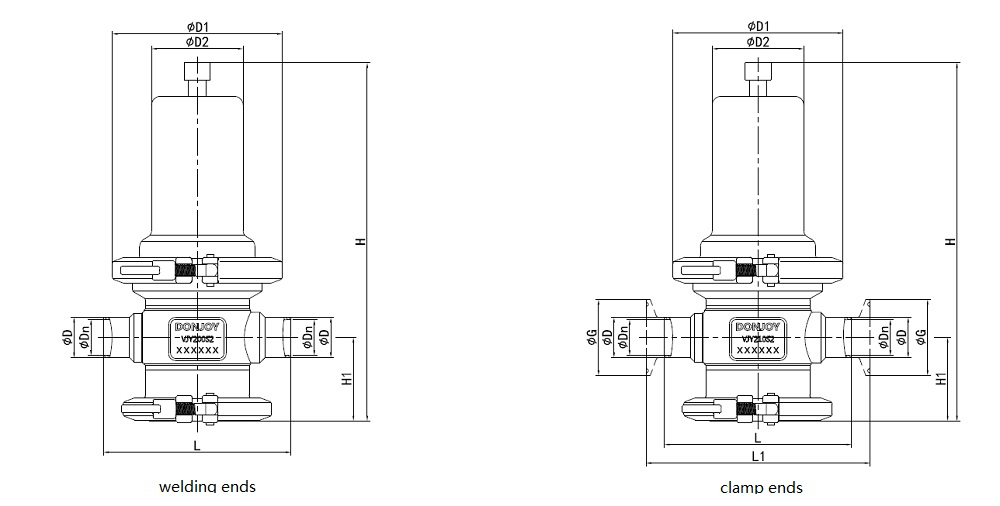

Hygienic pressure reduce valve drawing
Package
The sanitary pressure reducing valve has two designs: T-type and L-type. The maximum pressure can reach 10bar. The valve has no dead angle and no retention.
| File | Language | Size |
|---|---|---|
 Pressure reduce valve catalogue |
English | 15.15MB |
| Sanitary valves catalogue |
English | 30.2MB |
