Sanitary Sample Valve

asepco topline hygienic SS316L sampling valve

The Sanitary Sample Valve strictly complies with the American 3-A standard, which includes various designs such as aseptic sampling valve, non-retention sampling valve, yogurt sampling valve, etc.

Application:

Asepco sampling valve mainly applied to extract sample from tank or pipeline..It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

Operating principle:

When turn the hand wheel clockwise,the valve shaft and seal rise up.At this time,valve is open for sampling.When turn the hand wheel anti clockwise,the valve shaft and seal go down,at that time,the sampling valve closed.

Sampling valve connection way:

1. Welding ends

2. Tri clamp ends

3. Male thread ends

4. Nut ends

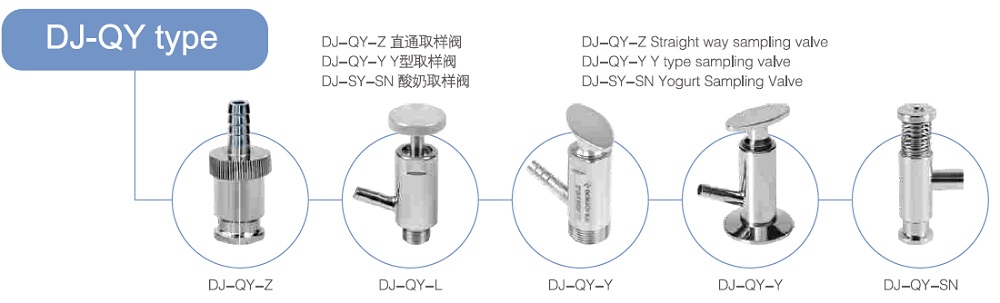

Different sampling valve

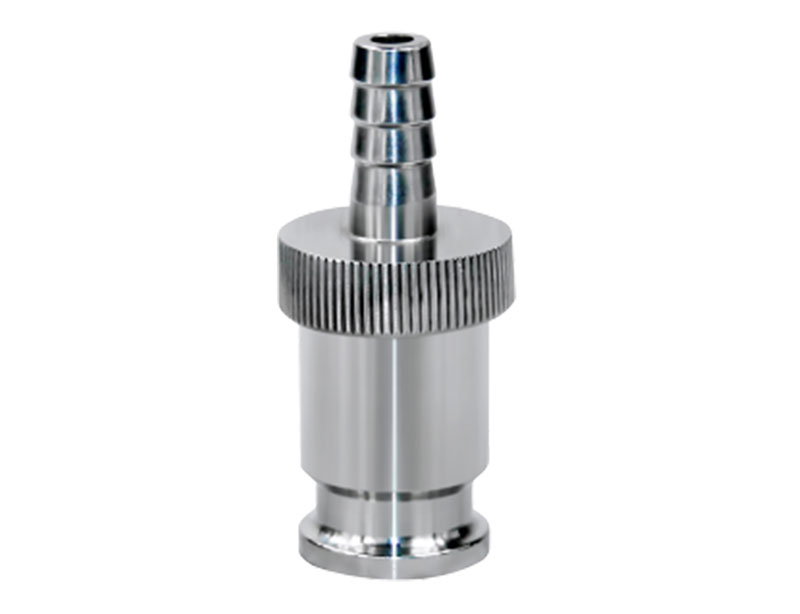

1. Straight sampling valve

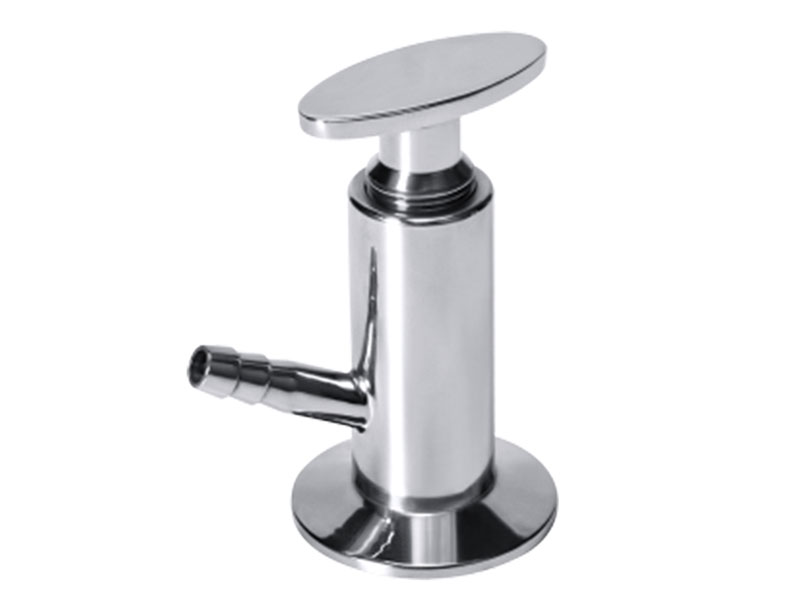

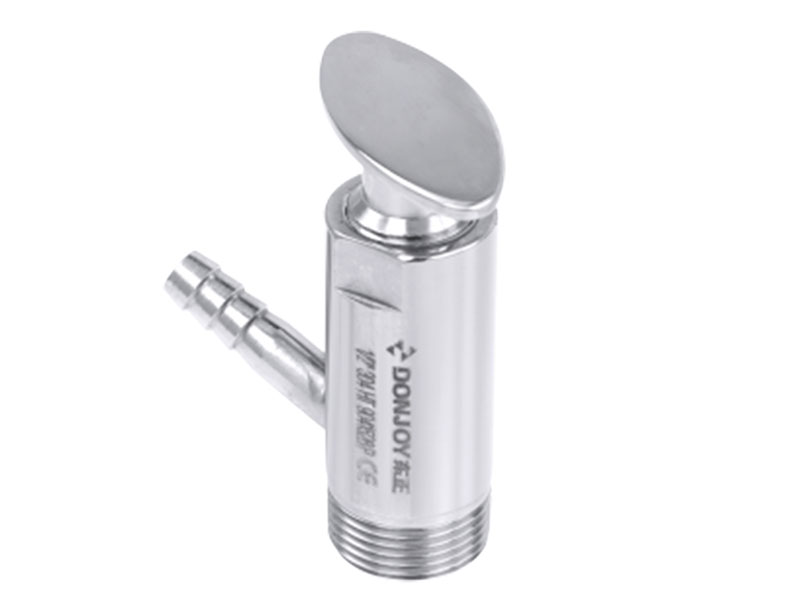

2. Y  type sampling valve

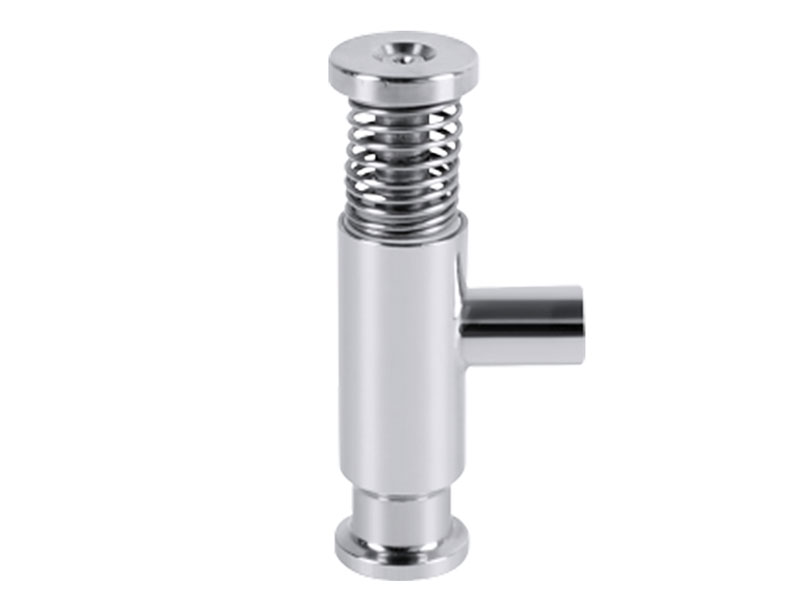

3. Yogurt sampling valve

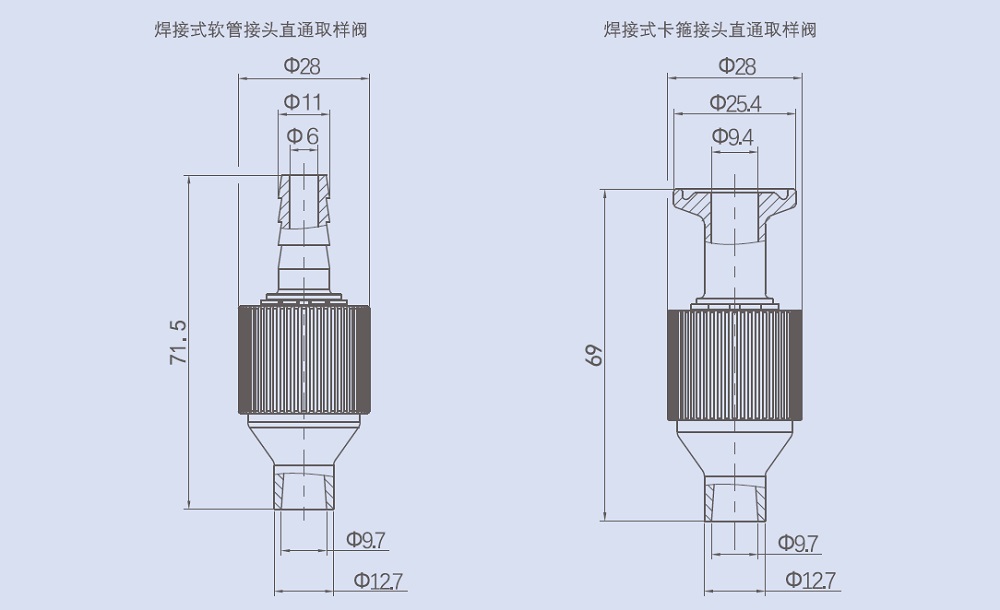

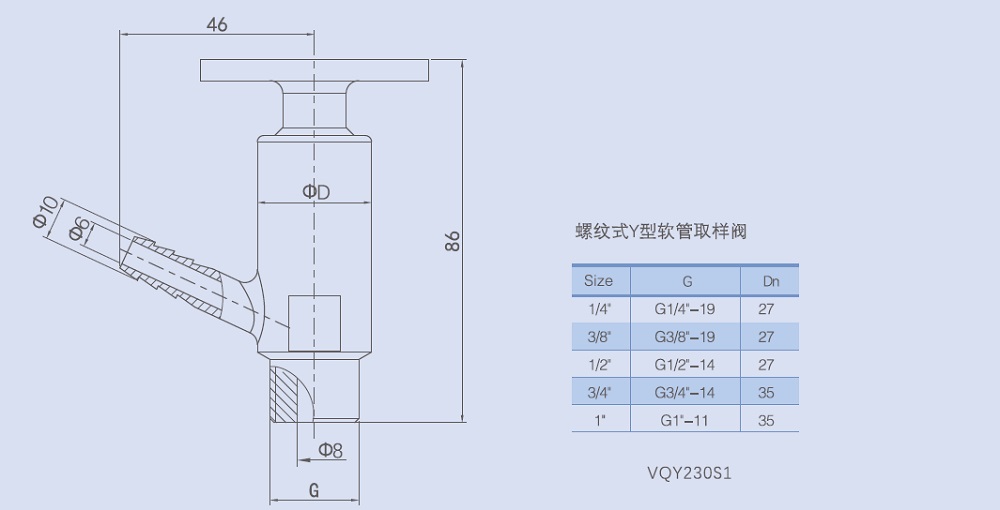

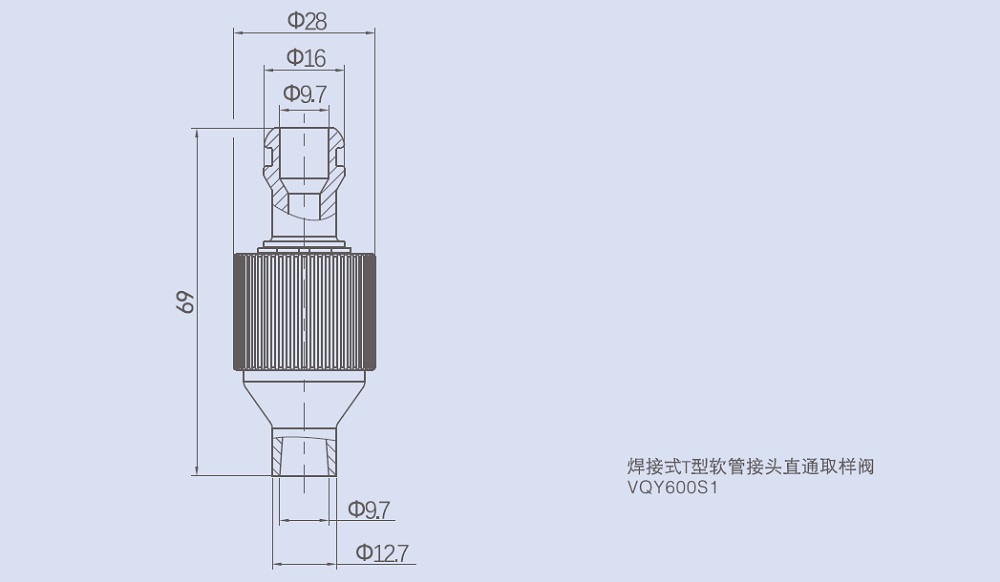

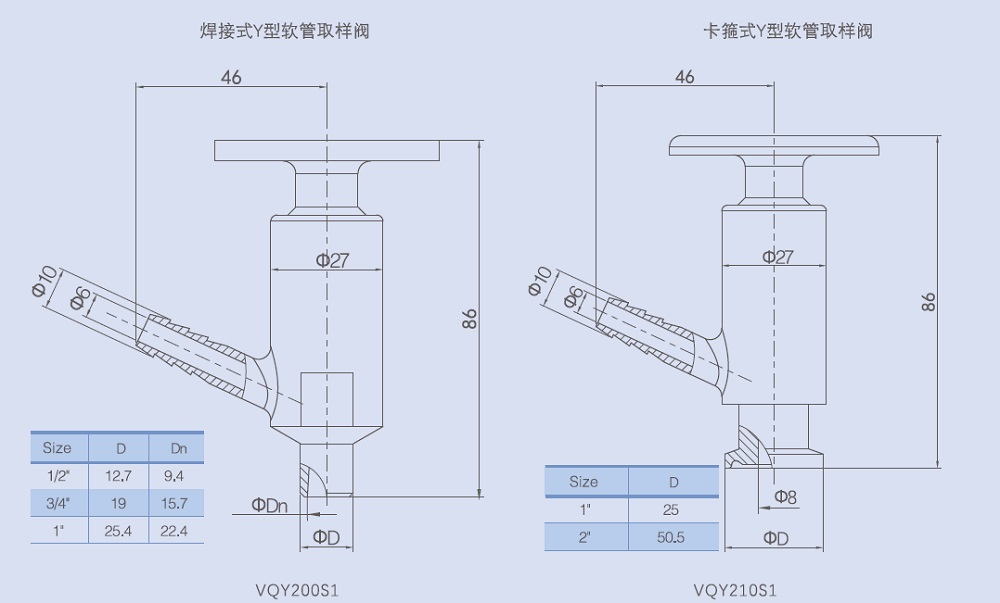

Topline sampling valve drawing
