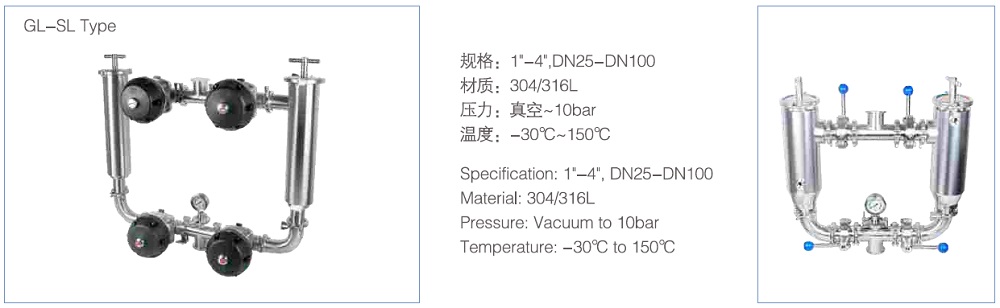

Pipeline duplex filter GL-SL

TECHNICAL SPECIFICATIONS:

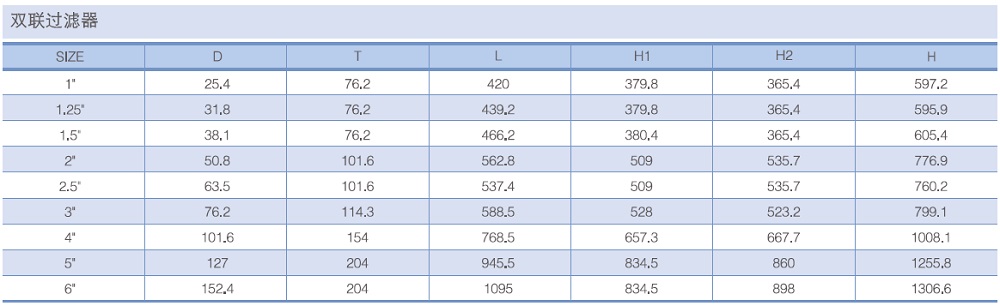

Specification: 1"-4", DN25-DN100

Material: 304/316L

Pressure: Vacuum to 10bar

Temperature: -30℃ to 150℃

Gasket: EPDM FDA 177.2600

Inner polish:Ra <0.8um

External polish:mirror polish

Screen hole:0.5mm-2.0mm

Screen:30-300 meshes



Get a Quote
Share:
RELATED VIDEOS
FEATURES

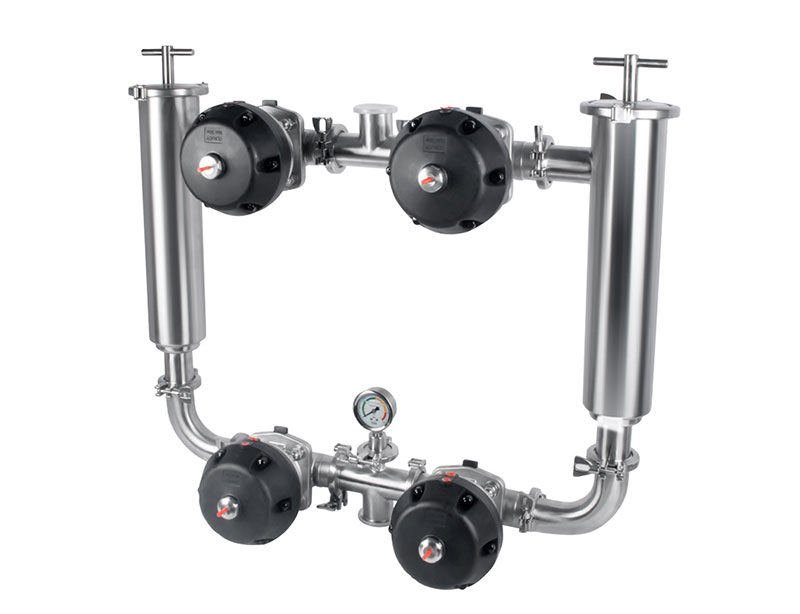

Pipeline sanitary stainless steel 304 316L duplex filter

The filter has a variety of design options:

Pipeline filter: straight, Y type, L type, double filter

Microporous filter: single core, multi core, double filter Ground filtration and drainage (floor drain)

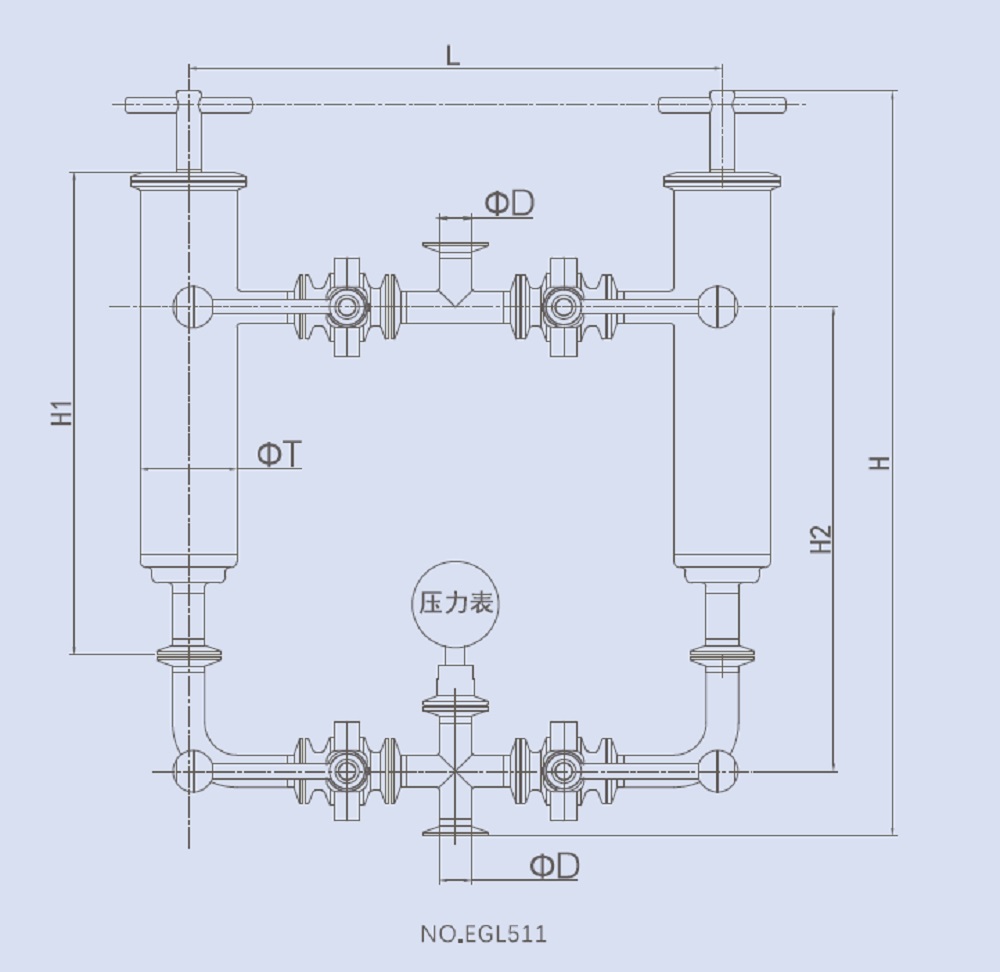

The duplex filter comprise of two angle filters ,butterfly valves,pressure gauge and pipeline fittngs.

Application

This duplex filter is applied to eliminate the invisiable solid from dairy,beverage and pulps,so as to purity the liquids.The two filters can run altenatively and continually.Because they can be replaced or cleaned without powering off.

THEORY OF OPERATION
DOWNLOAD
File Language Size
Filrer catalogue English 17.48MB
Sanitary valves catalogue English 30.2MB
