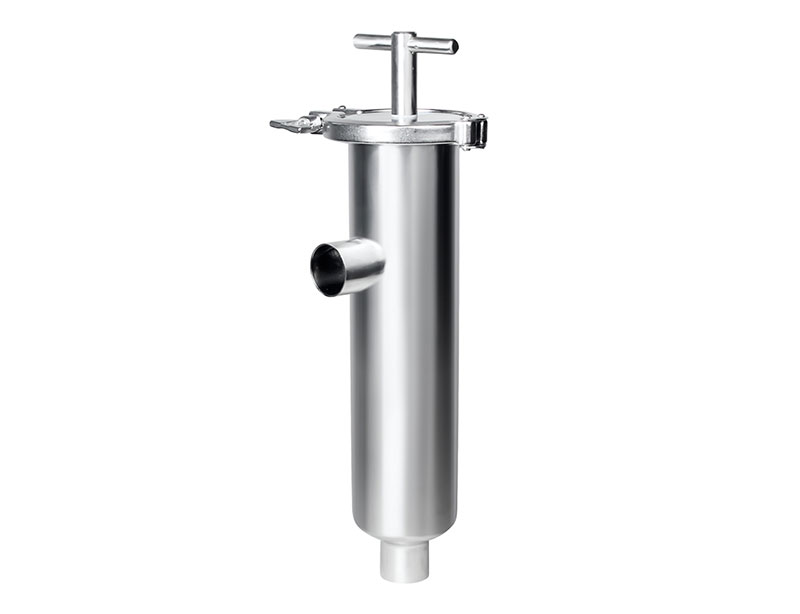

Pipe filter-L type GL-L

Donjoy factory building in 1993 year,located in Wenzhou,China

Sanitary stainless steel 304 316L tri clamp angle filter

The filter has a variety of design options:

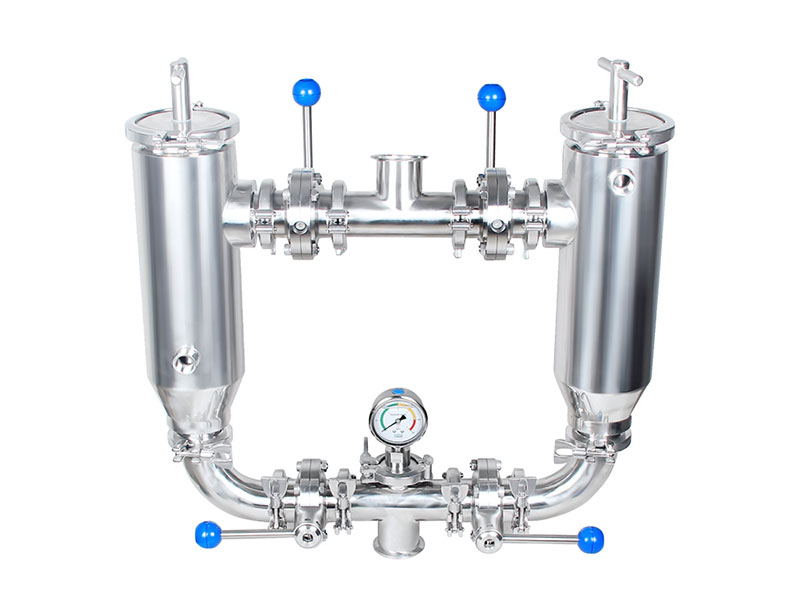

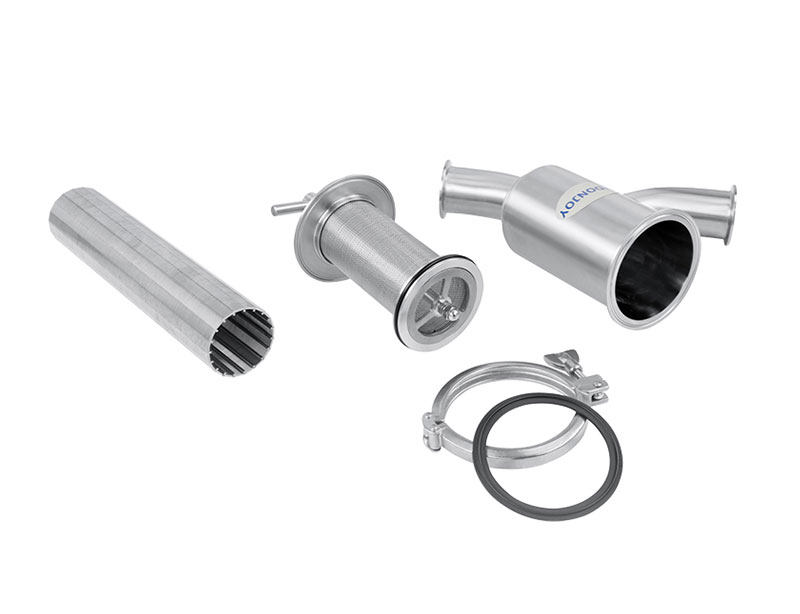

Pipeline filter: straight, Y type, L type, double filter

Microporous filter: single core, multi core, double filter Ground filtration and drainage (floor drain)

Sanitary angile filter application:

Angle filters are widely used in the auxiliary service for food processing,cosmetic,chemical and pharmacy industries.Due to its hygienic design,it is mainly used to filter the particles that destroy pumps and some other equipments.

Sanitary filter operating principles

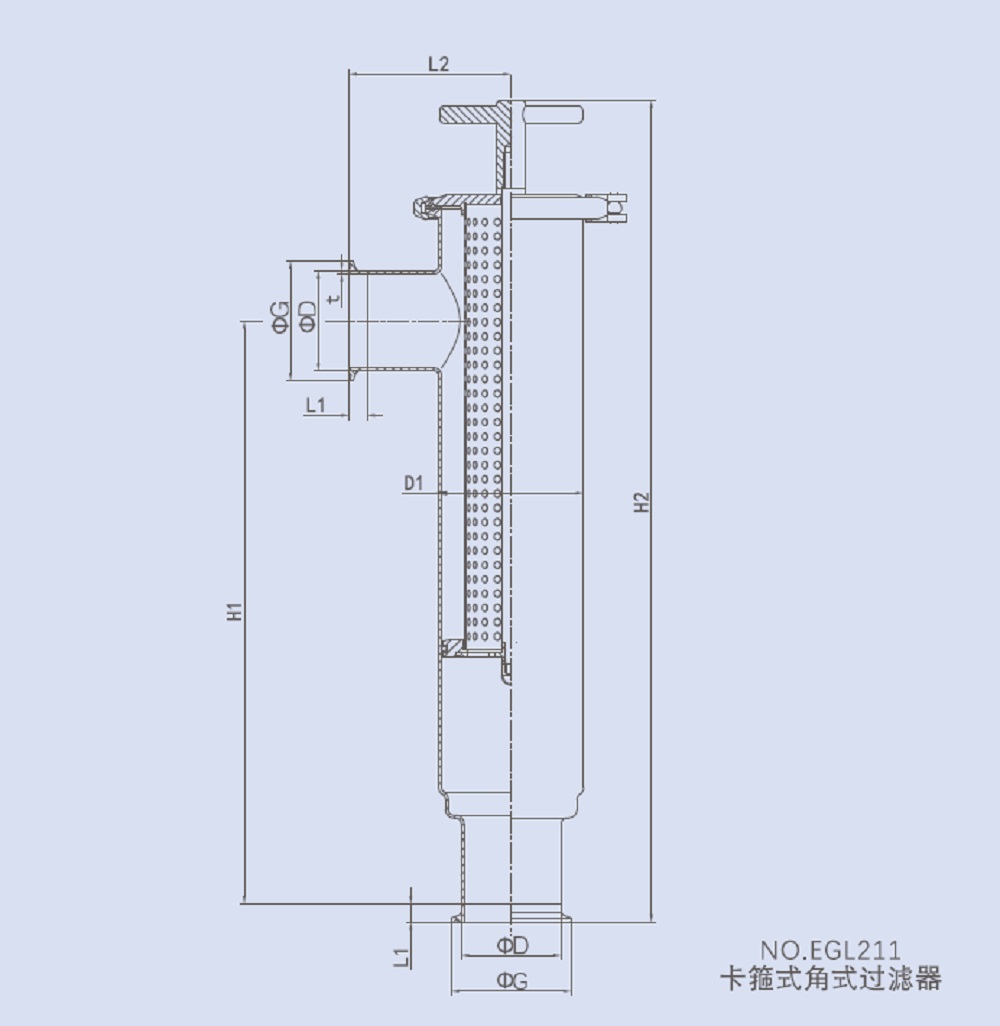

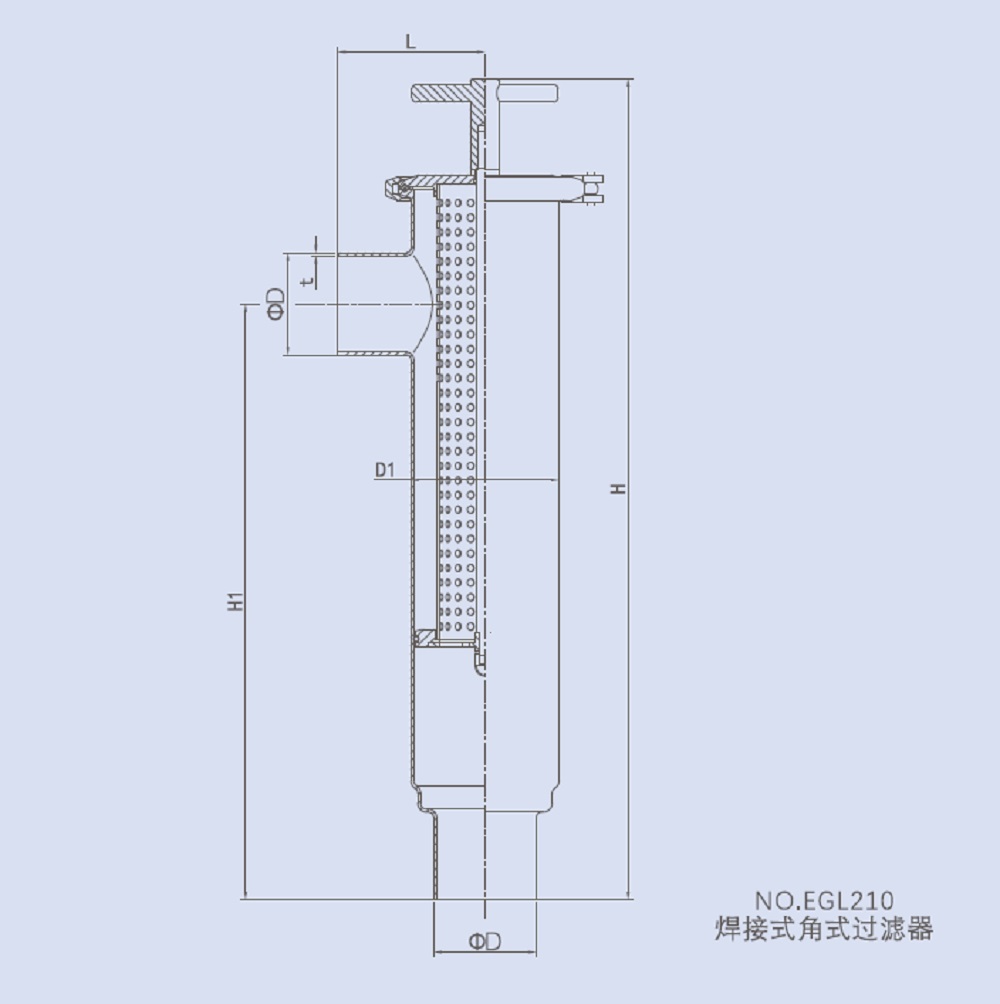

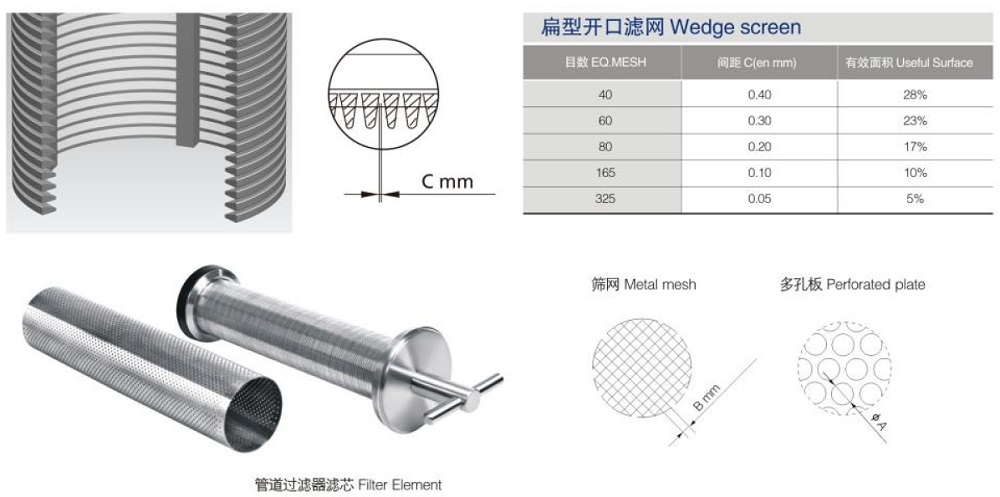

The filter consist of inlet and outlet housing,inner screen mesh to filter the particles and impurities which can't pass the mesh.

PIpeline filter disassembly

For security,please make sure there is no media in pipeline,screw the nut by wrenchor jaw,and then take off the clamp and withdraw the handle together with the filter element.Finally ,you can do the cleaning the replacement safety.
