Material: 304/316L
Size: 1"-6", DN25-DN150
Pressure: Vacuum to 10bar
Temperature: -30℃ to 150℃
Donjoy factory building in 1993 year,located in Wenzhou,China
Sanitary straight filter/strainer
GL- type
The filter has a variety of design options:
Pipeline filter: straight, Y type, L type, double filter
Microporous filter: single core, multi core, double filter Ground filtration and drainage (floor drain)
Sanitary straight filter application:
Straight filters are widely used in the auxiliary service for food processing,cosmetic,chemical and pharmacy industries.Due to its hygienic design,it is mainly used to filter the particles that destroy pumps and some other equipments.
Sanitary filter operating principles
The filter consist of inlet and outlet housing,inner screen mesh to filter the particles and impurities which can't pass the mesh.

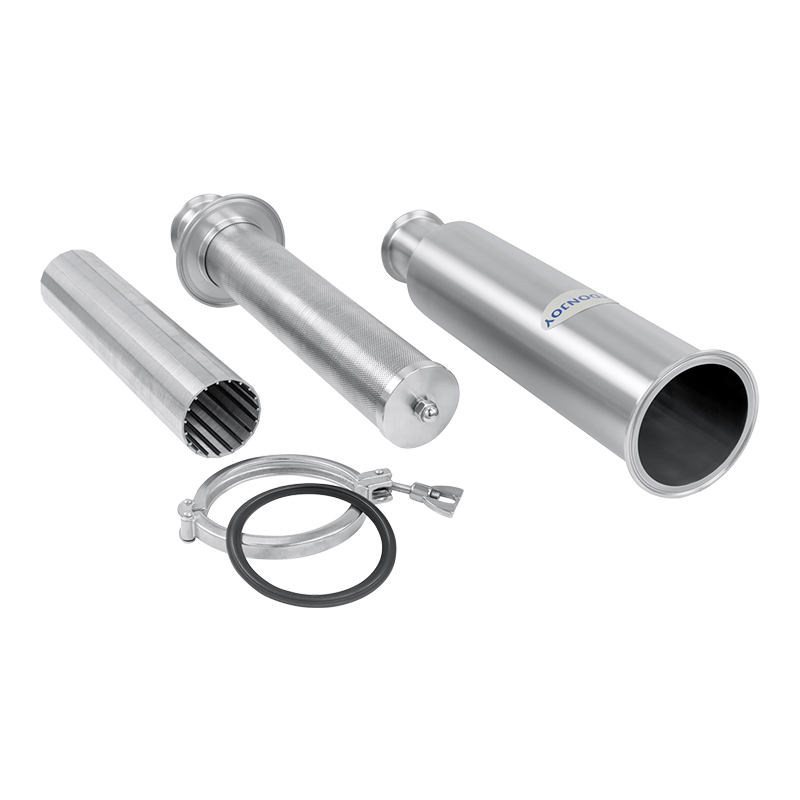

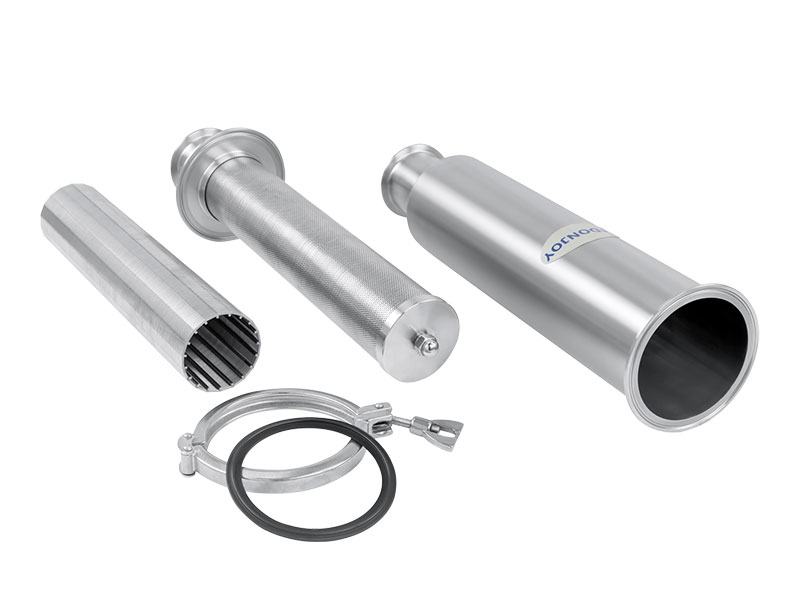

Pipeline filter disassembly
For security,please make sure there is no media in pipeline,screw the nut by wrenchor jaw,and then take off the clamp and withdraw the handle together with the filter element.Finally ,you can do the cleaning the replacement safety.
| Metal Mesh | ||
| Mesh | B(mm) | Useful surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.25 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
| Perforated Plate | |
| A(mm) | Useful surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |

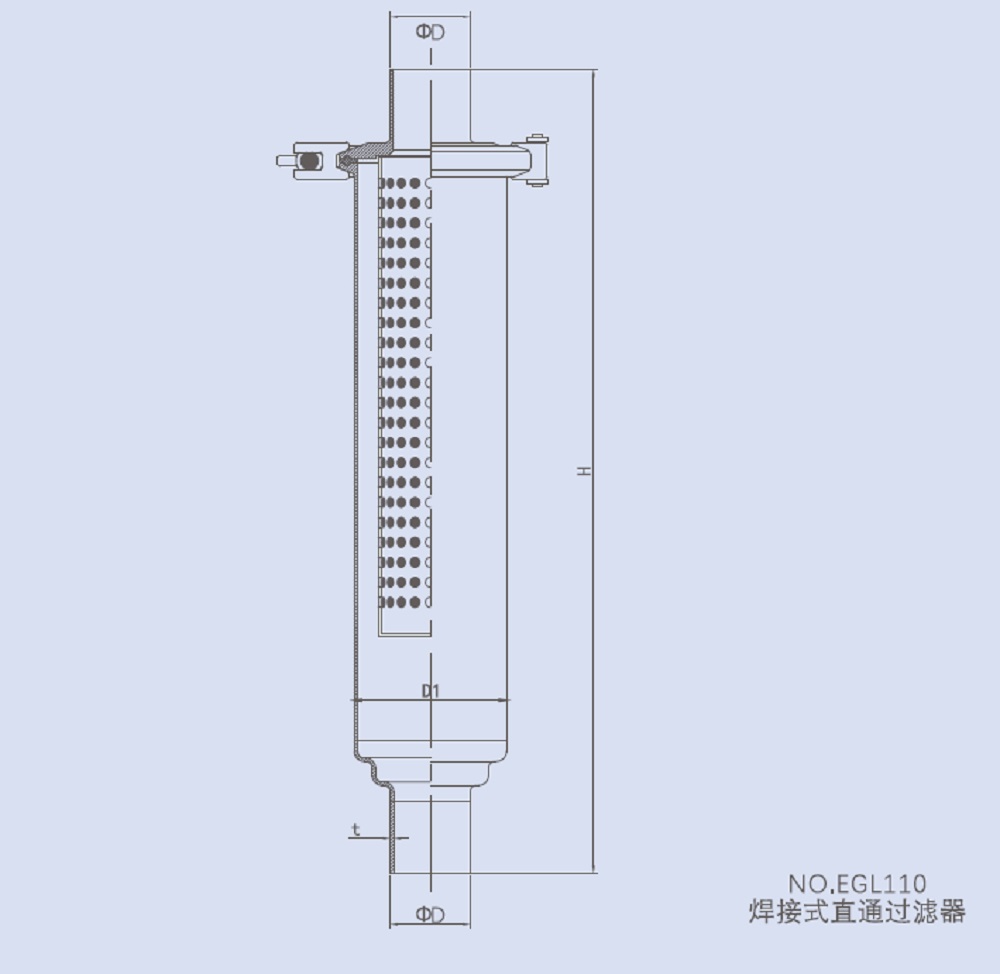

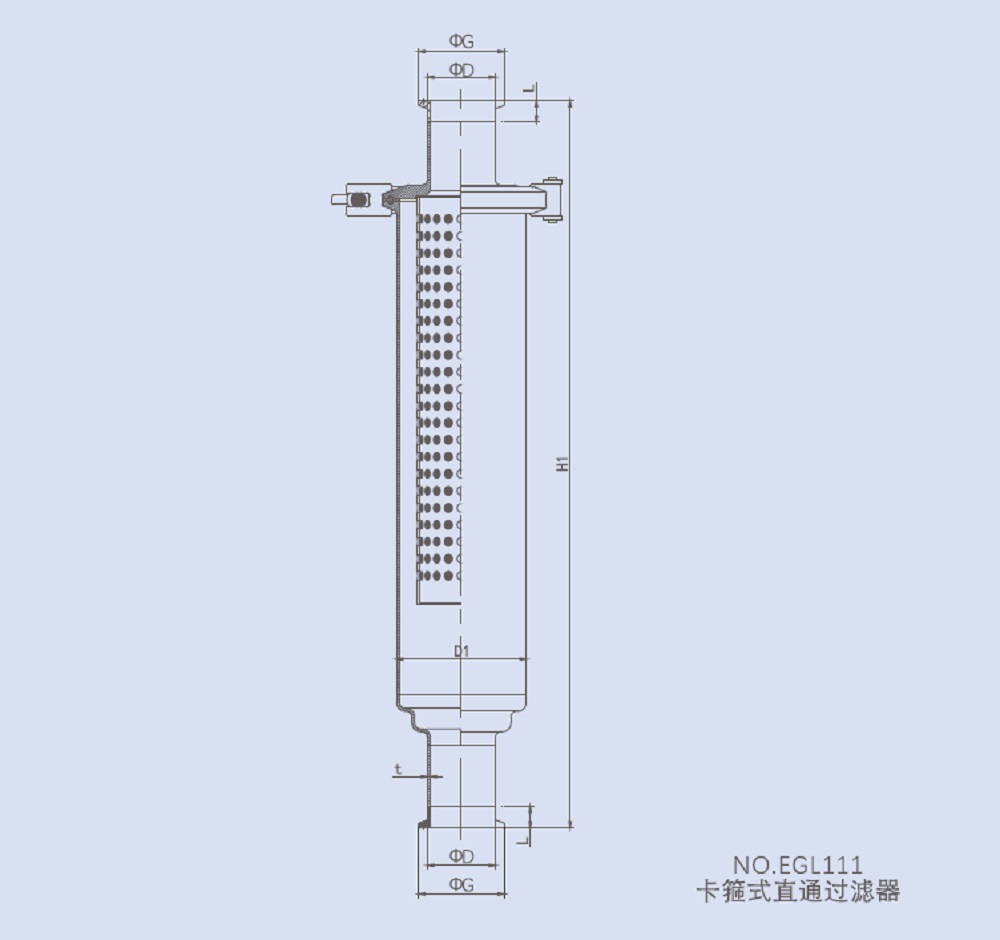

Sanitary pipeline straight strainer drawing
| File | Language | Size |
|---|---|---|
 Sanitrary strainer catalogue |
English | 17.48MB |
| Sanitary stainless steel valves catalogue:food grade |
English | 30.2MB |
