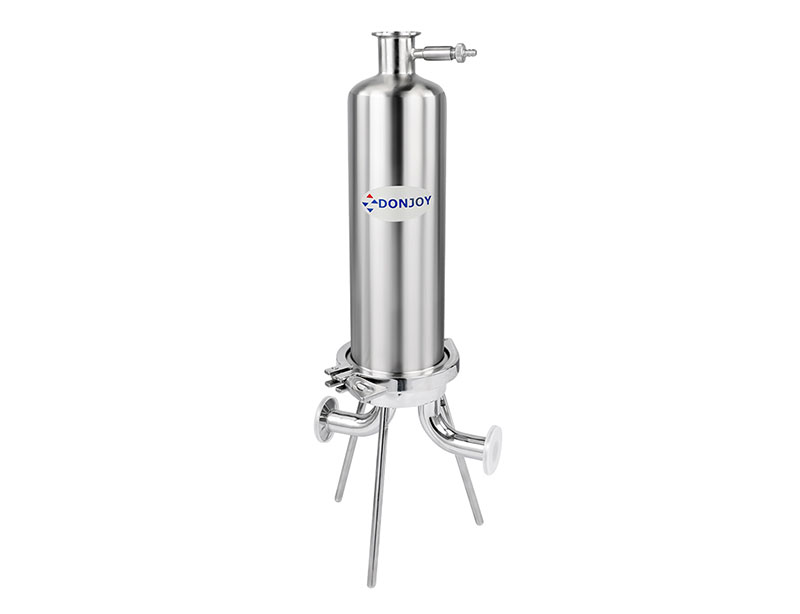

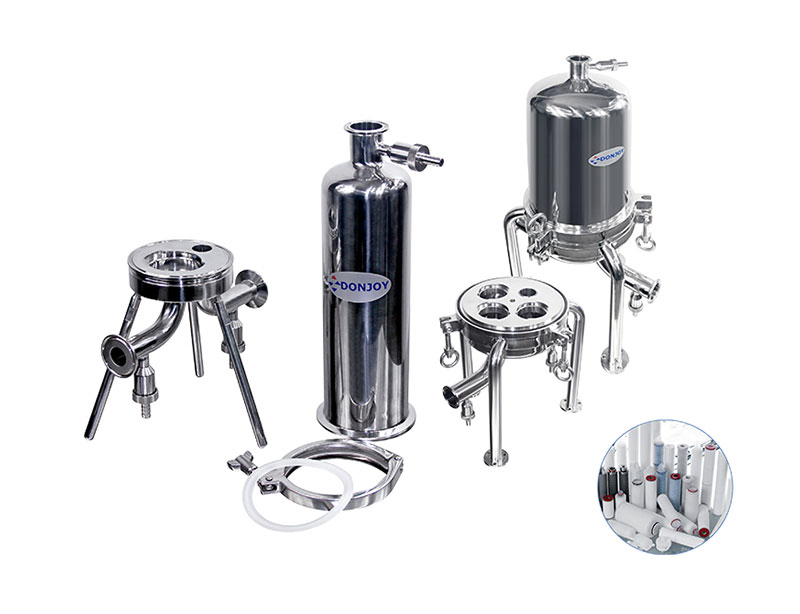

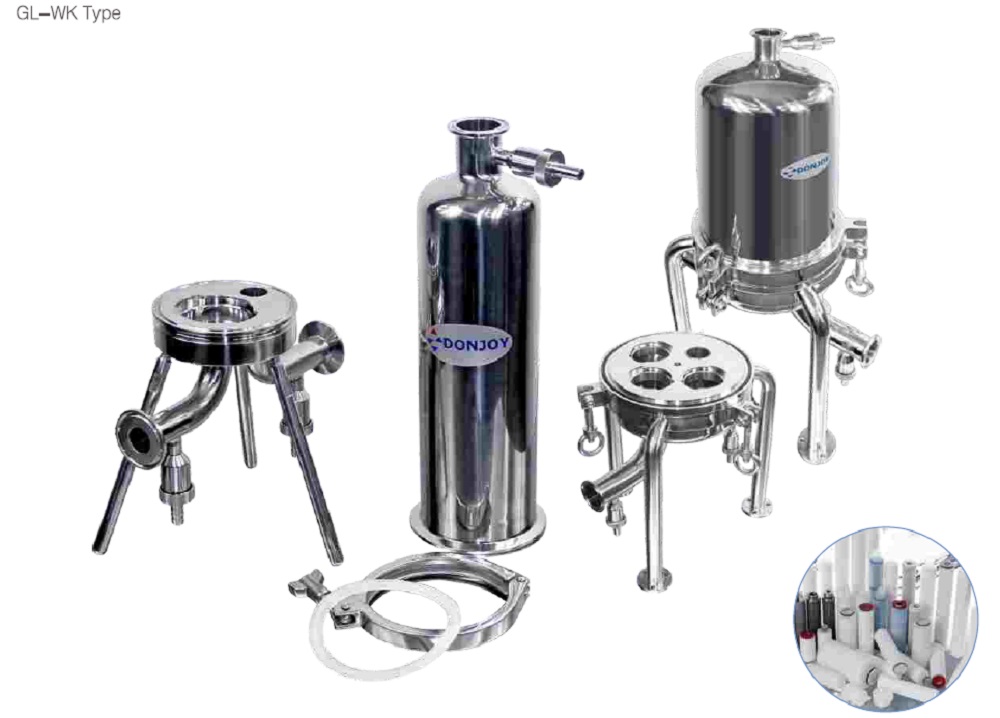

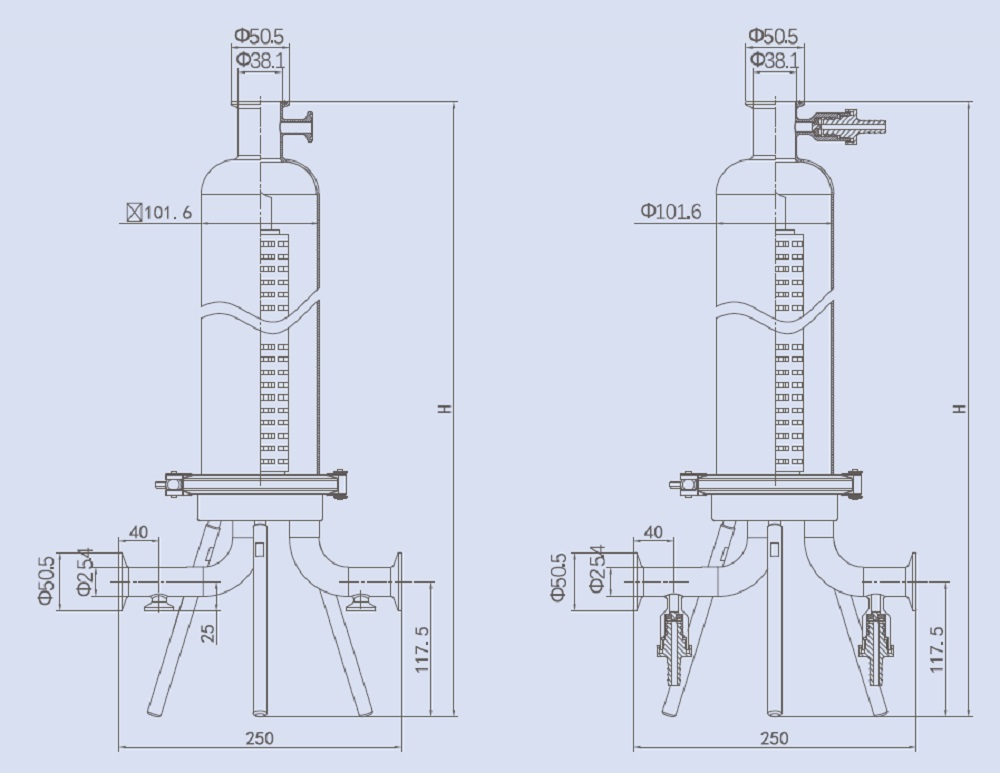

Micro filter GL-WK

TECHNICAL SPECIFICATIONS:

Filter element specifications: 5",10",15",20",30",40"

Filter element interface: 220, 222, 226.

Pressure: Vacuum to 10bar (1.0 MPa)

Temperature: -20℃ to +150℃,Depending on the seal material

Sealing: EPDM FKM HNBR PTFE

Connection method: thread,clamp,welding,flange

Finish: Ra≤0.6μm,MP=Ra≤0.3μm,EP=Ra≤0.3μm

Get a Quote
Share:
Filter
Magnetic Filter Pipeline Duplex Filter Micro Filter Pipe Filter - L Type Pipe Filter - I Type Pipe Filter - Y Type Pipeline Filter Element New Product
FEATURES

Filter element material: PP; PES; PTFE; PVDF; N6; N66; CN-CA; ACF.

Filter element precision (μm): 0.05, 0.1, 0.2, 0.45, 0.65, etc.

Number of filter elements: 1core, 2cores, 3cores, 5cores, 7cores, 9cores, 12cores, 24cores, etc.

Shell material: 304/1.4301; 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%

Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853

Certification: FDA 177.2600, Glass II USP Glass VI Chapter 88, GB4806.11, EG VO/1935-2004, PED/97/23/EC.

THEORY OF OPERATION
DOWNLOAD
File Language Size
Filter English 17.48MB
RELATED PRODUCTS
Retractable washer

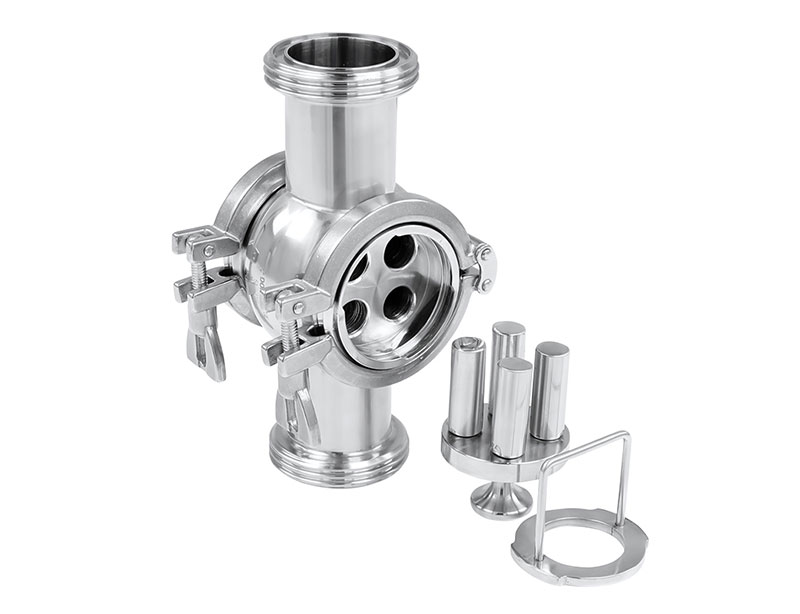

Magnetic filter GL-CX Type

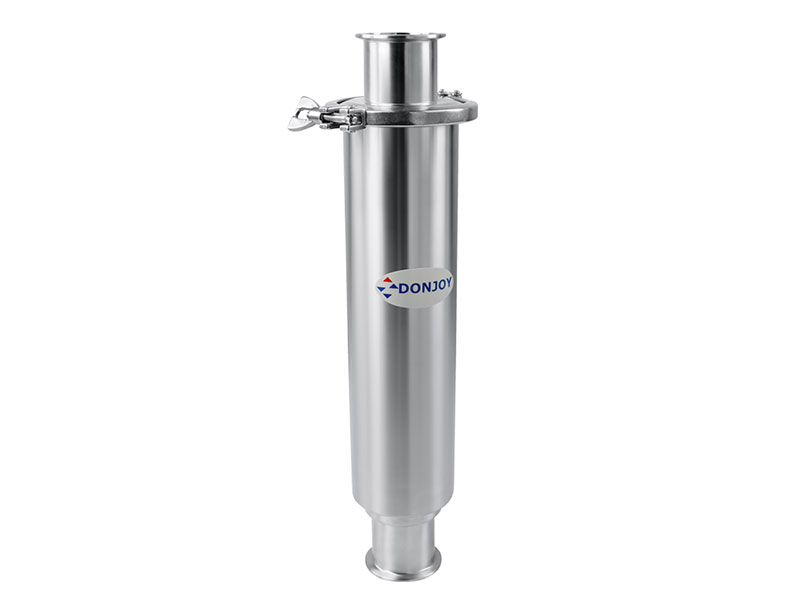

Pipe filter-I type GL-I

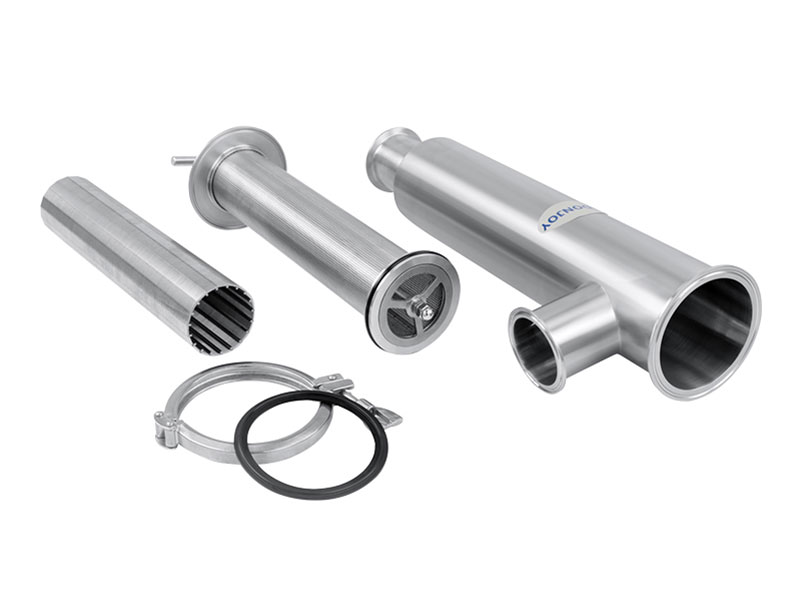

Pipe filter-L type GL-L
