What’s the difference between the centrifugal pump KLX,LX,CLX,SLX,DLX,ZLX and MLX?

10 Tue 2024

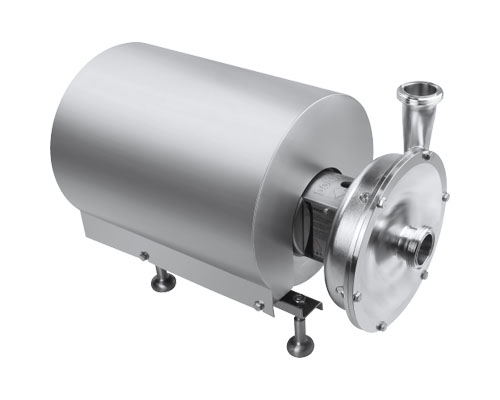

KLX series centrifugal pump is the most cost-effective and cheapest among all sanitary centrifugal pumps. The LX series and CLX series centrifugal pumps are updated on the basis of the KLX series. The performance (flow and head) of these three series are exactly the same, but the LX series centrifugal pumps and CLX series centrifugal pumps can be used for smaller flows and smaller powers such as 1m3/h and 0.55KW.

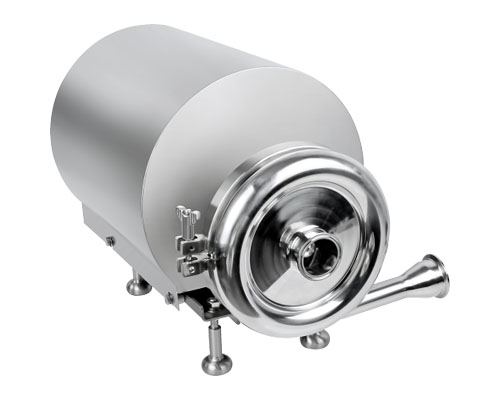

CLX pump head connected by clamped, so you can open the pump head by hand without the help of professional tools. LX centrifugal pumps and KLX centrifugal pumps require tools to open the pump head.

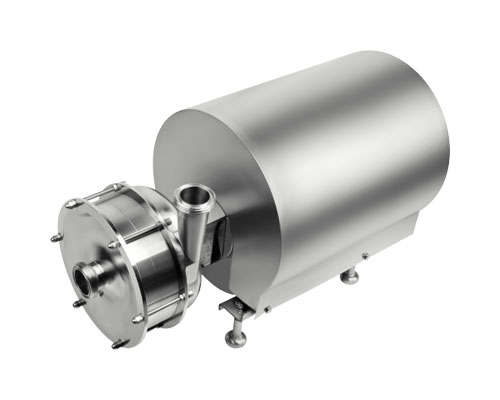

DLX series centrifugal pump is a multi-stage centrifugal pump that can be used for high heads. The maximum head of the KLX and LX series is 70 meters. If you want a larger head, you have to choose DLX. The maximum head of DLX can reach 185 meters, which is 18.5bar.

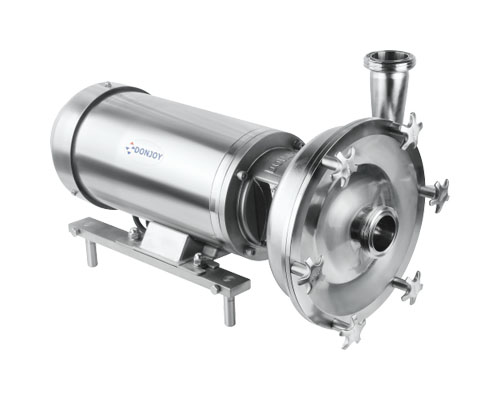

SLX series centrifugal pump is a full stainless steel centrifugal pump, including a motor. This model can be used in cleaner working conditions.

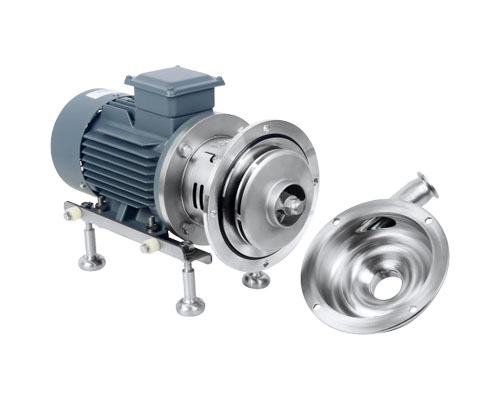

BS series centrifugal pump is our only closed impeller, and other series LX, KLX, SLX,CLX, DLX and MLX are open impellers.

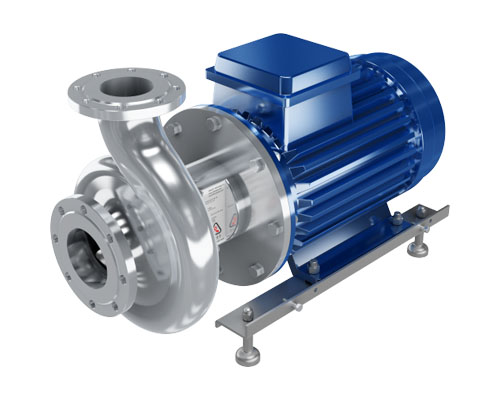

MLX series centrifugal pump is a large flow centrifugal pump, the maximum flow can reach 600m3/h. Other series of centrifugal pumps can not reach such a high flow.

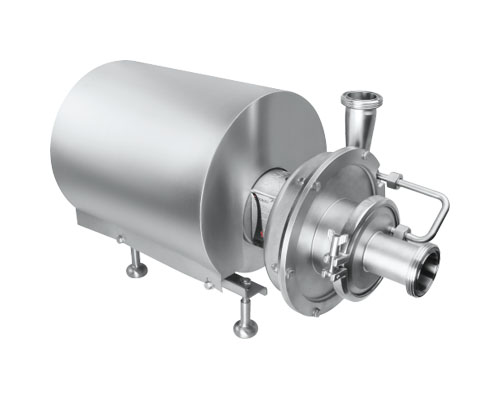

ZLX series centrifugal pump is a self-priming centrifugal pump,but the liquids level have to higher than pump inlet and outlet.
About the mechanical seal: except for the large flow centrifugal pump MLX and the closed centrifugal pump BS series, the mechanical seals of centrifugal pump KLX/LX/CLX/SLX/DLX/ZLX are the same and can be used universally.

About the outlet angle of the pump: the outlet angle of KLX/LX//SLX/BS/DLX centrifugal pumps can be adjusted arbitrarily between 0°-135°,CLX pump outlet angle can be adjusted arbitrarily from 0°to 360°.

Pump picture as follows:

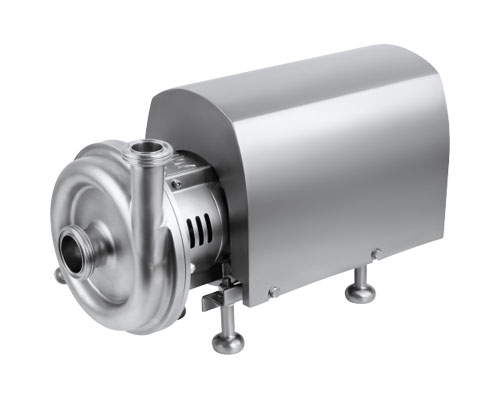

centrifugal pump KLX
