SIZE: DN25-DN100/1"-4"
Temperature: -20℃ to 150℃
Pressure: Vacuum to 10bar
Material: 304/316L, 1.4301/1.4404
DONJOY is a leading manufacturer of sanitary stainless steel 304/316L valves ,pipe fittings and pump products in Wenzhou,China
DONJOY with 29000m2 area ,200 workers around (including 10 professional engineers and 10 inspectors),100 CNC lathes and 100 patented technologies.
Sanitary stainless steel 304/316L pipeline four way sight glass
Application
4 way sight glass is comprised of stainless steel frame and glas.Throught it,operator can observe the flowing of the liquid substance clearly and precisely in the fields of food,cosmetics,pharmaceutical and fine chemicals industries.
Four way sight glass visually observe the flow, color, clarity, and level of liquids in pipelines or vessels without disrupting the process.
The four way sight glass with no dead angle and no retention.
Type

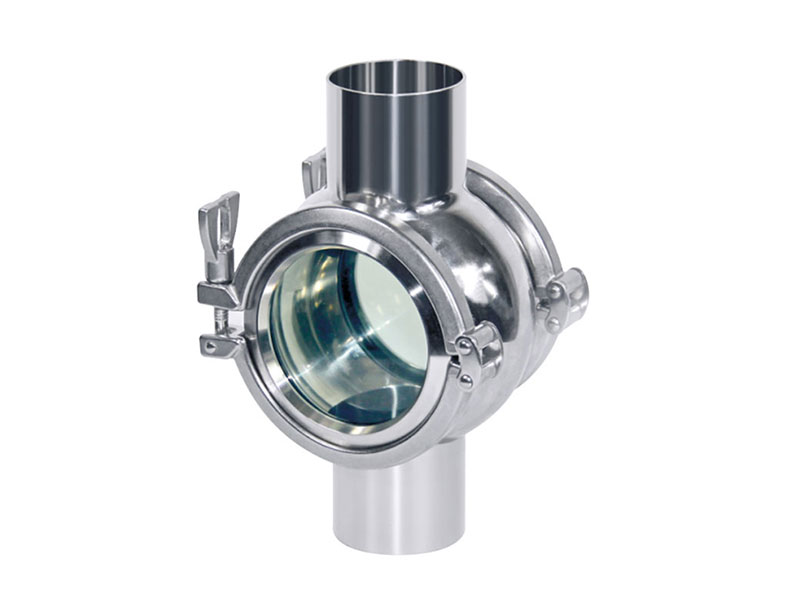

Sanitary four way sight glass

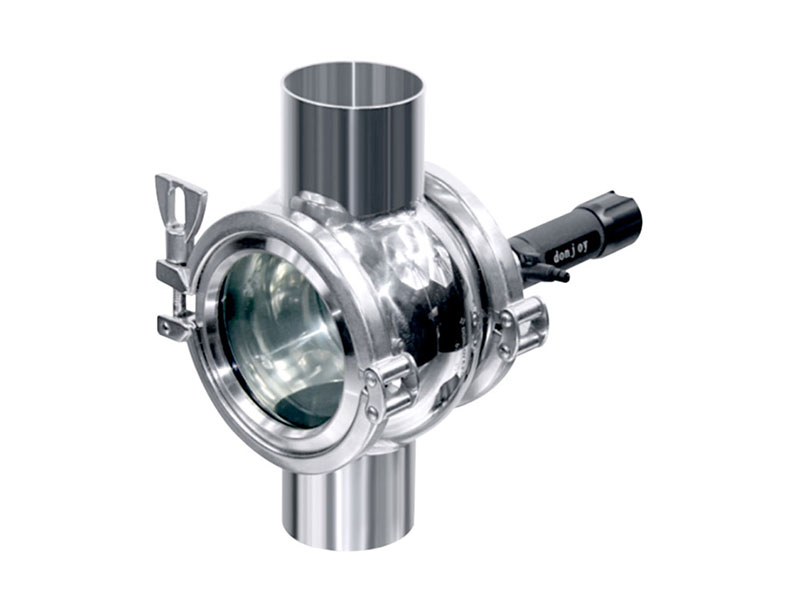

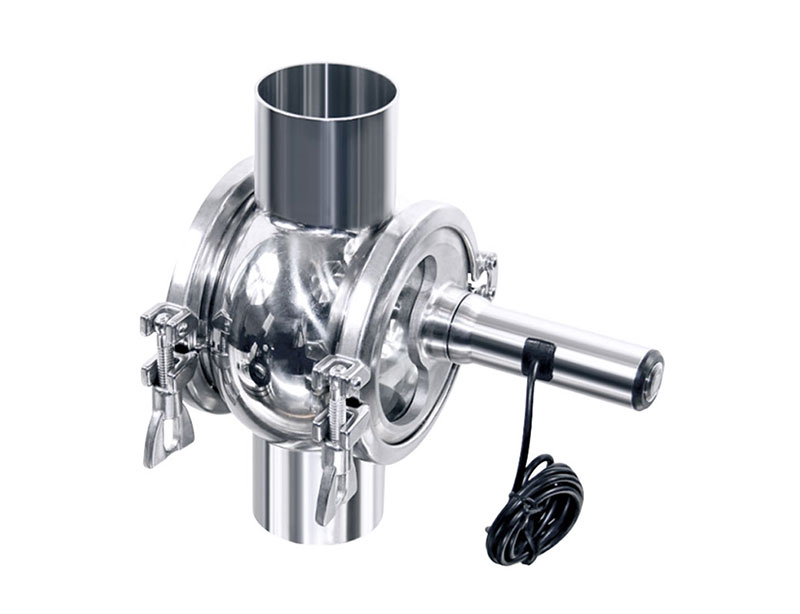

Hygienic sight glass with light

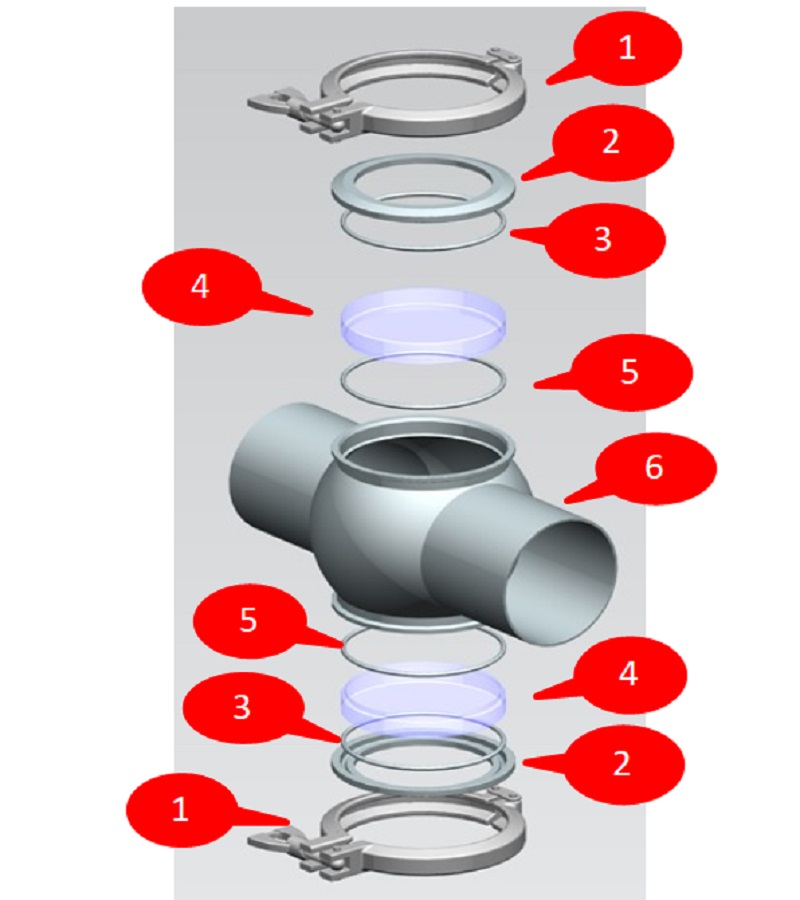

Food grade four way sight glass explosive drawing
| Item | Part number | Material | Quantity |
| Clamp | 1 | 304 | 2 |
| Gland | 2 | 304 | 2 |
| O-ring | 3 | EPDM | 2 |
| Glass | 4 | tempered glass | 2 |
| O-ring | 5 | EPDM | 2 |
| Body | 6 | 304/316L | 1 |

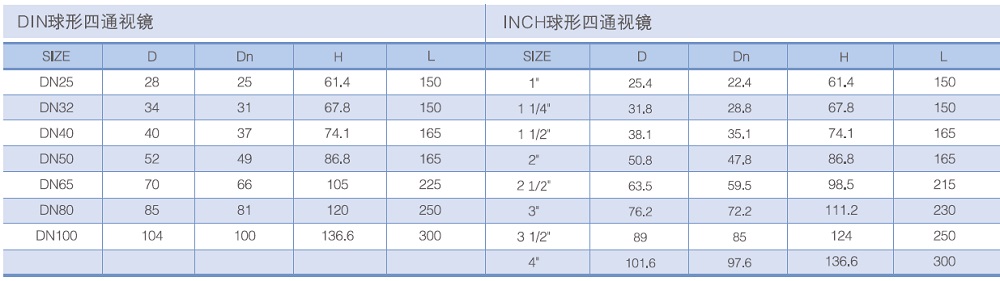

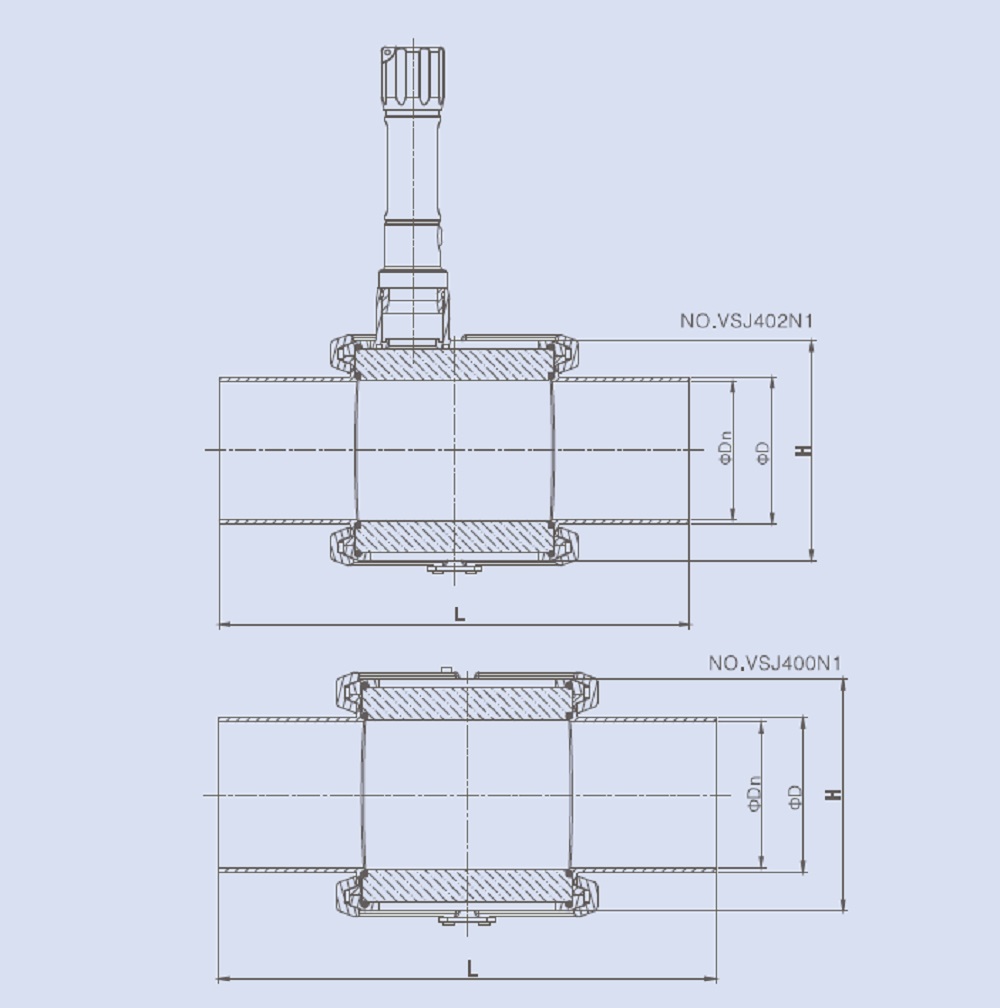

Hygienic 4 way sight glass size
