Size: DN25-DN300/1"-12"
Temperature: -20℃ to 150℃
Pressure: Vacuum to 10bar
Material: 304/316L, 1.4301/1.4404
Sanitary stainless steel tank flange sight glass with light for sale
Application
Flanged sight glass is comprised of stainless steel frame and glas.Throught it,operator can observe the flowing of the liquid substance clearly and precisely in the fields of food,cosmetics,pharmaceutical and fine chemicals industries.
sanitary flange sight glass visually observe the flow, color, clarity, and level of liquids in pipelines or vessels without disrupting the process.
Type
Sanitary flange sight glass

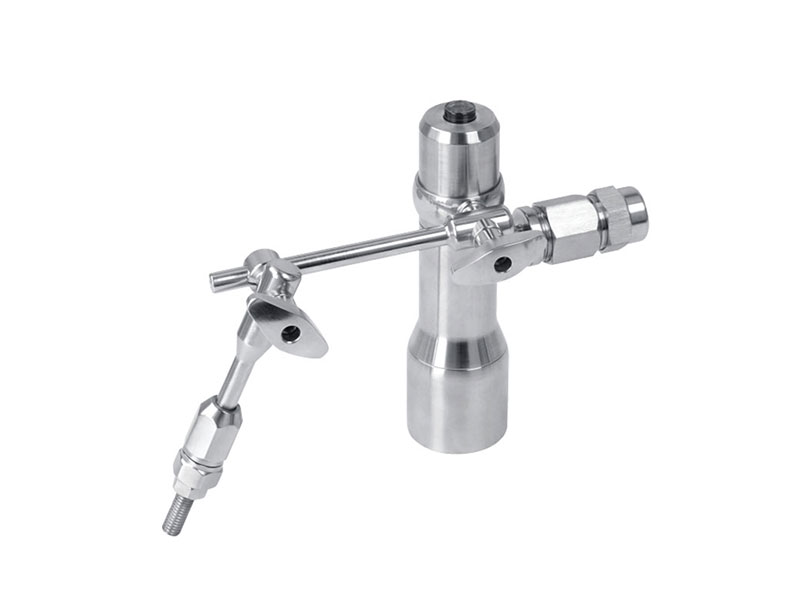

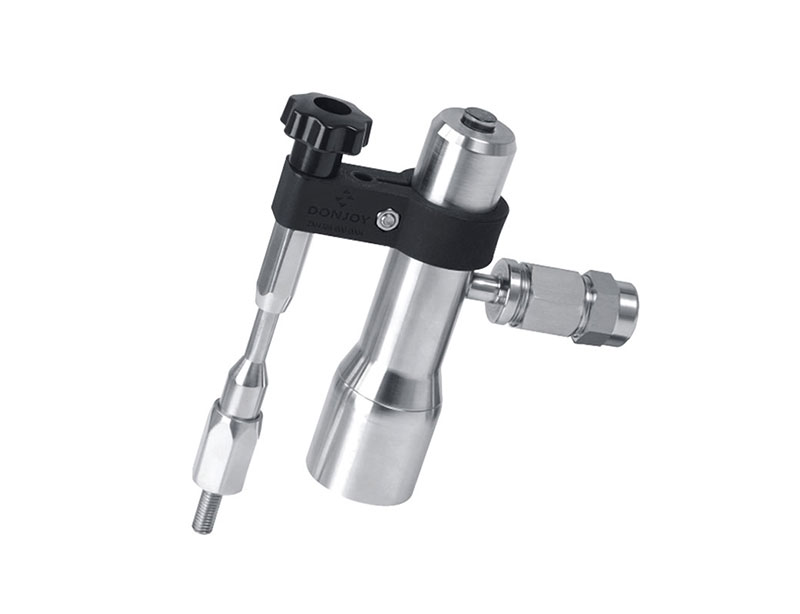

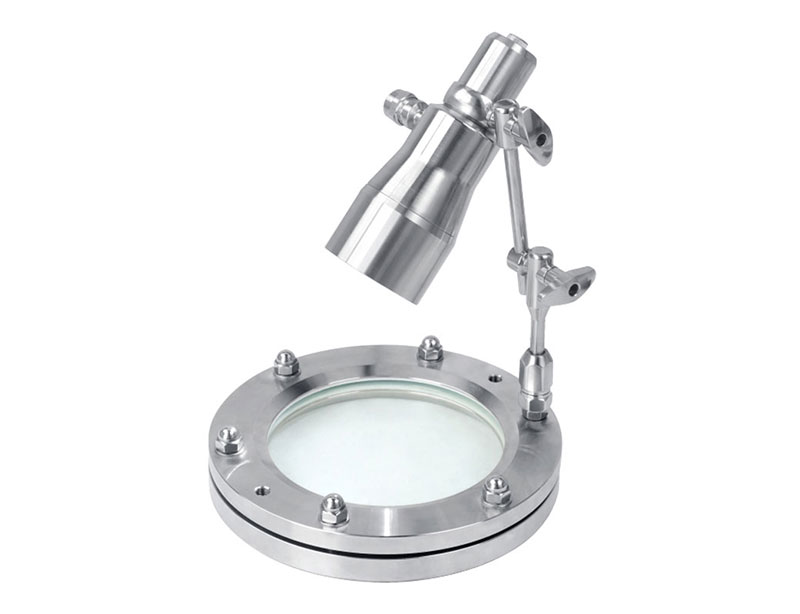

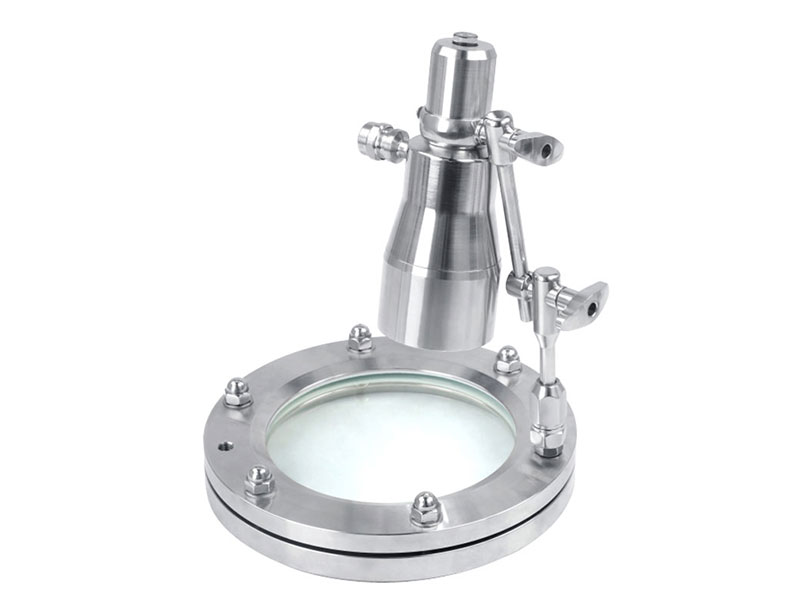

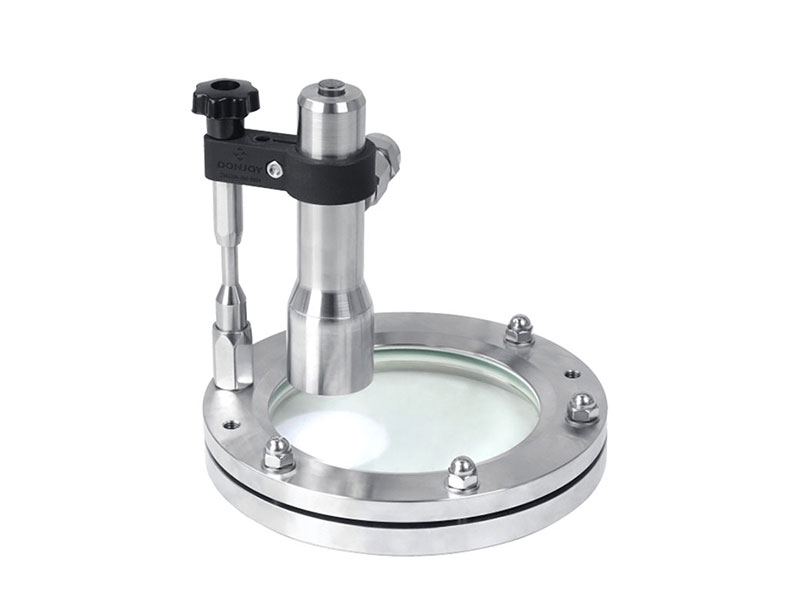

Sanitary flange sight glass with light

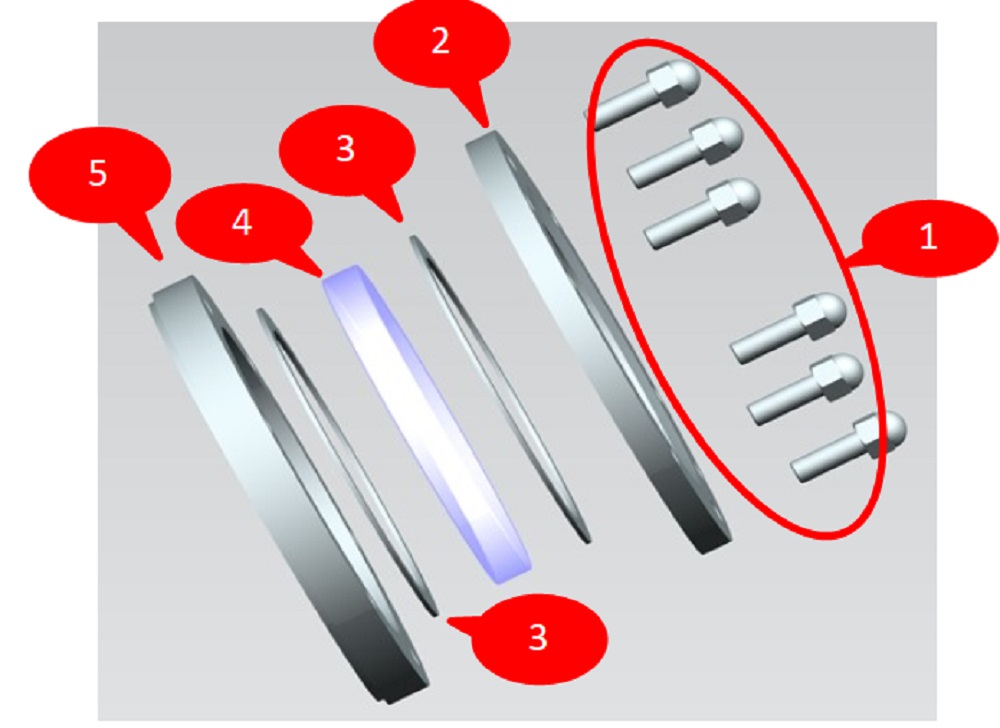

Sanitary flange sight glass explosive drawing
| Name | spare part number | Material |
| Bolt | 1 | SS304 |
| Cover | 2 | SS304/316L |
| Gasket | 3 | PTFE |
| Glass | 4 | tempered glass |
| Base | 5 | SS304/316L |
