Sphere size: 28mm, 35mm, 50mm, 65mm, 75mm
Interface size: 1/2"-2.5", DN10-DN65
Connection method: weld, clamp, thread, nut, bolt, etc.
Working pressure: ≤ 4bar
Working temperature: -10℃ to 130℃
Material: 316L/1.4404
Optional cleaning angle
Hygienic stainless steel 304 316L tank rotary cleaning rotary spray ball
Application
Tank cleaners are mainly used to spray strongly and clean inside of tank and cleaning small tanks and equipment,generally,in field of food-processing,beverage,beer.pharmaceutical industries.
Fixed cleaning spray ball hole:360 degree spray completely, 180 degree spary, aperture of spray is 2.5mm
Rotary cleaning ball: oval type.360 degree spray completely, 180 degree spary, 270 degree mostly covered cleaning
Rotary cleaning ball different connection way

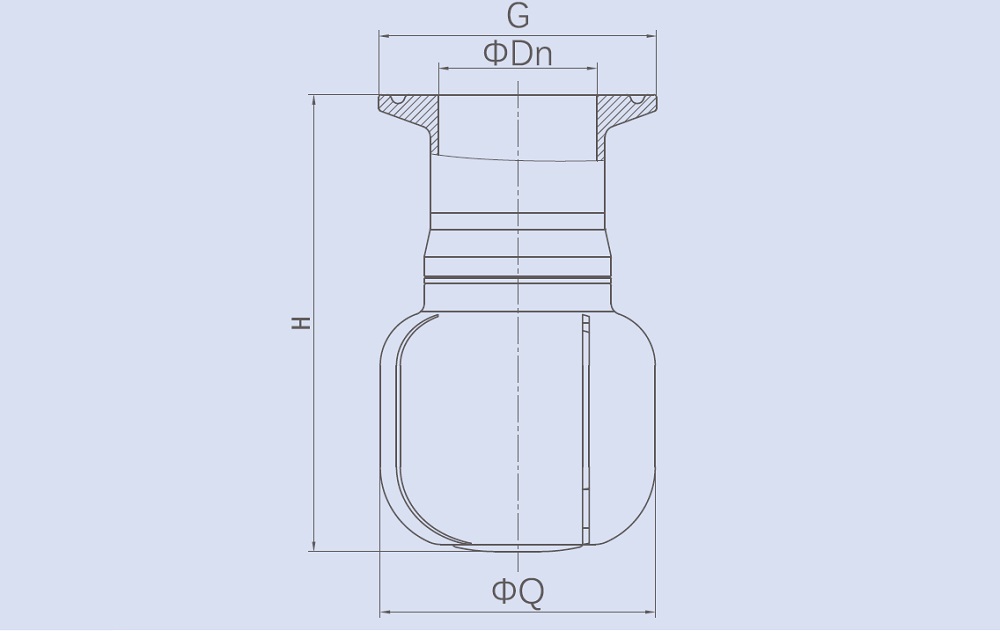

Rotary cleaning spray ball drawing
