Specifications: 1/2"-4", DN10-DN100
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: vacuum to 16bar (1.6 MPa)
Sealing: PTFE/TFM/PEEK
Connection method: thread, clamp, welding, flange
Drive mode: manual, pneumatic, electric
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

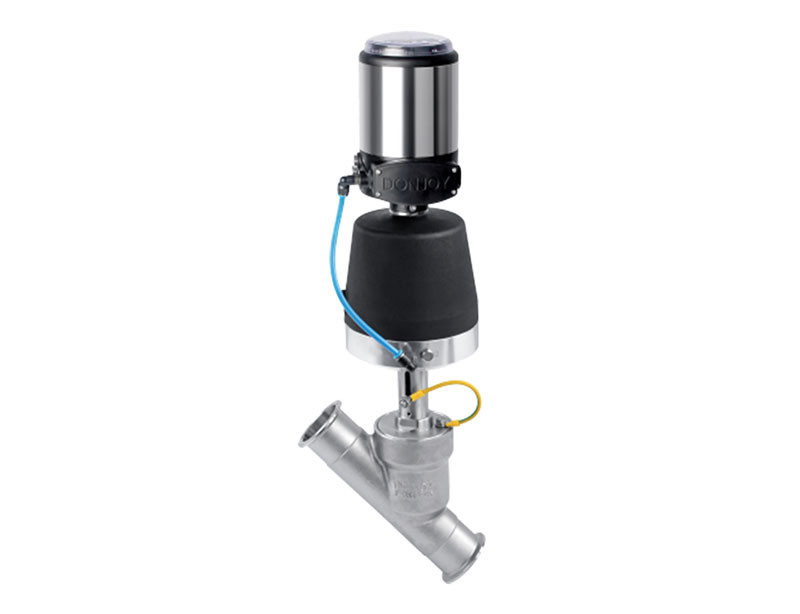

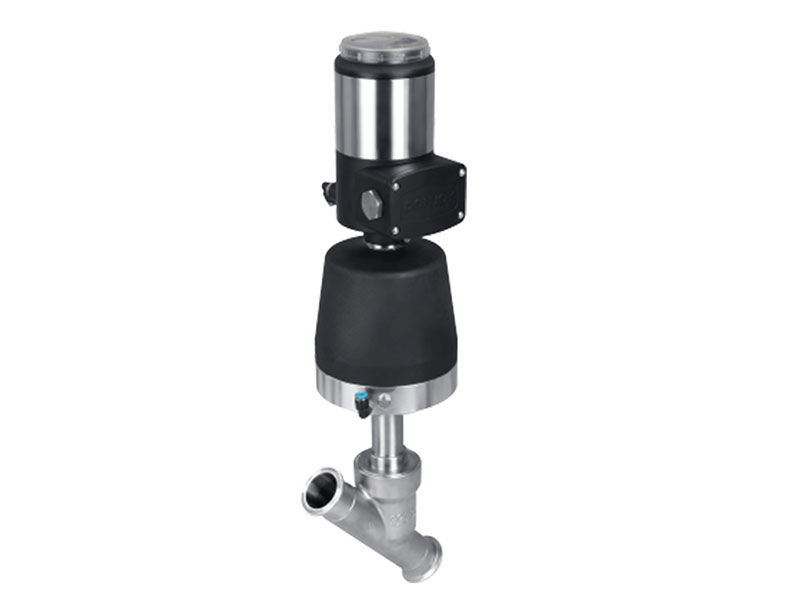

Pharmaceutical food grade sanitary angle seat control valve with positioner IL-TOP
The angle seat valve has the same flux as the diameter, minimal flow resistance, no noise during opening and closing, no dead angle, It can be used in vacuum environment and has various designs.

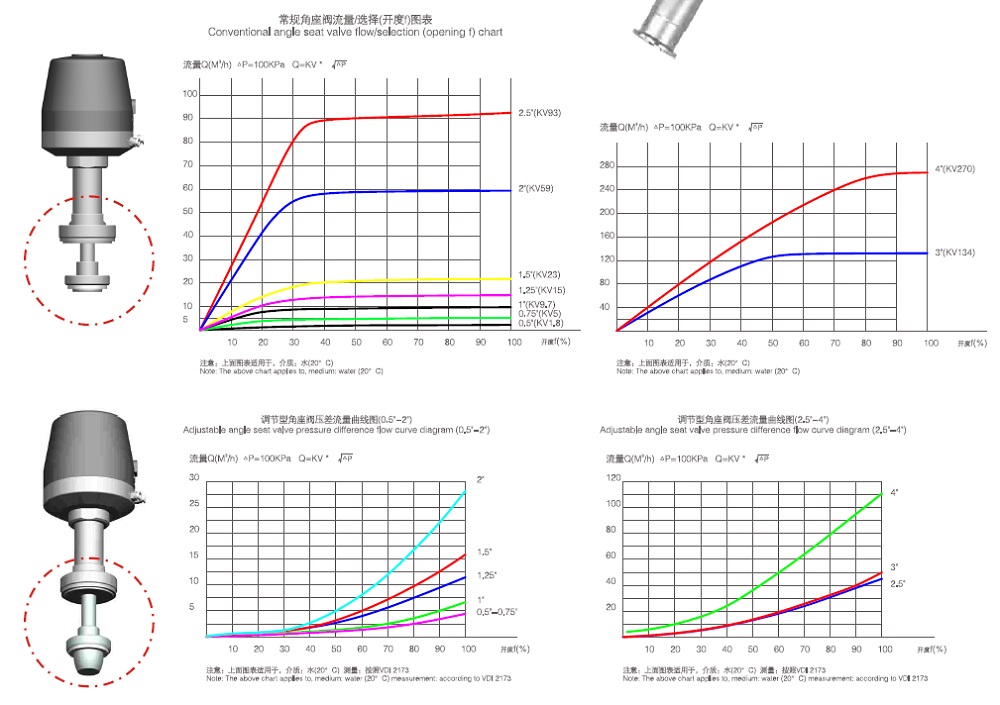

Sanitary angle seat valve flow /selection (opening) chart

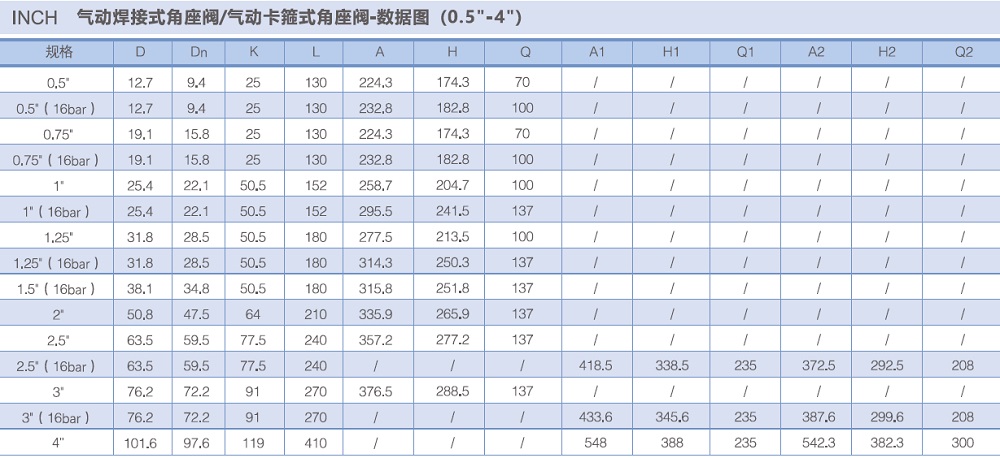

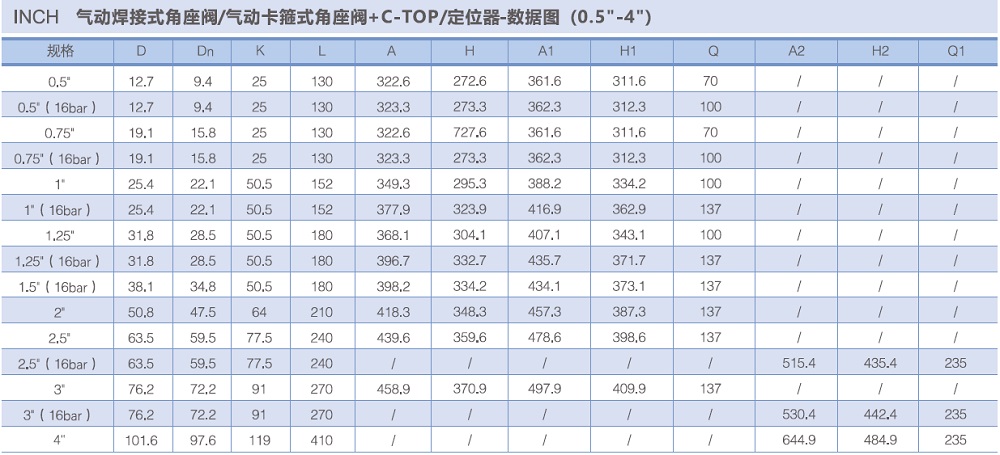

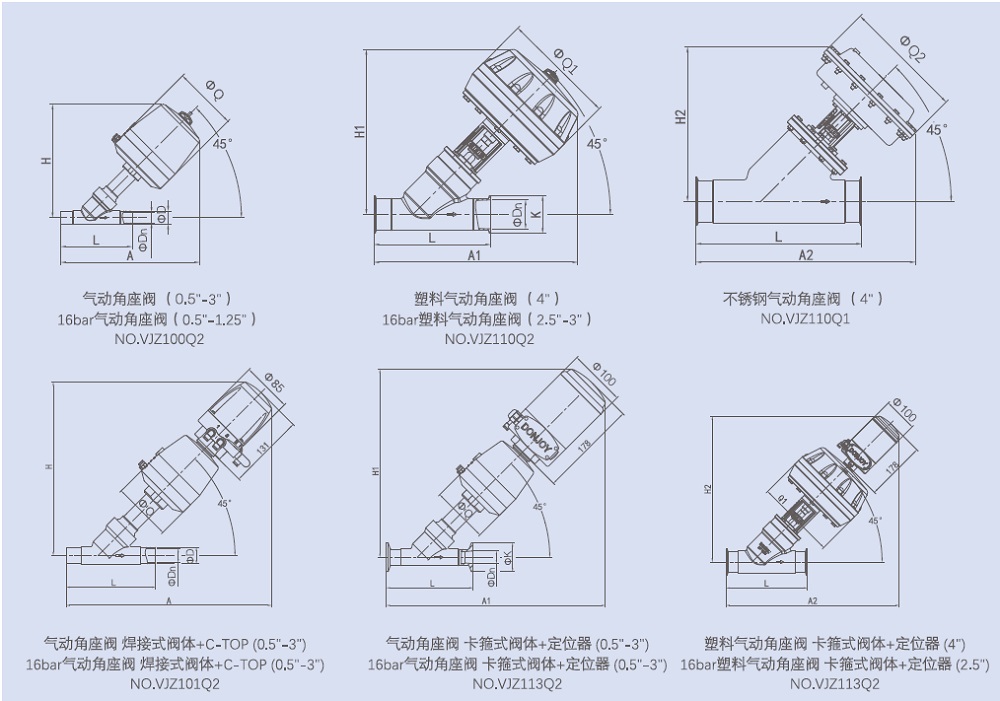

Sanitary angle seat valve drawing
Sanitary angle seat valves regulate the flow of liquids and gases and are commonly used in food, pharmaceutical and other industries. Can be connected to positioner IL-top.
| File | Language | Size |
|---|---|---|
 Angle seat valve catalogue |
English | 18.34MB |
| Sanitary valves catalogue |
English | 30.2MB |
