Specifications: 1/2"-4", DN10-DN100
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: vacuum to 10bar (1.0 MPa)
Sealing: PTFE/TFM/PEEK
Connection method: thread, clamp, welding, flange
Drive mode: manual, pneumatic, electric
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

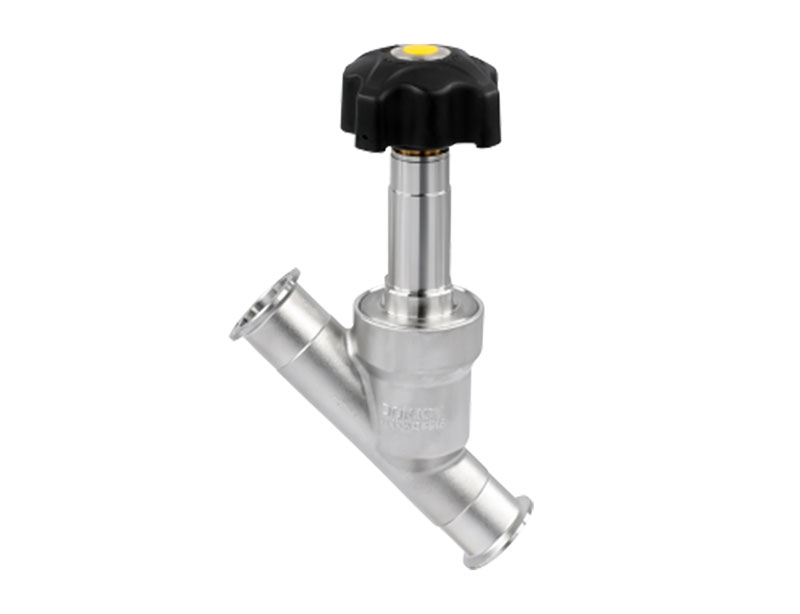

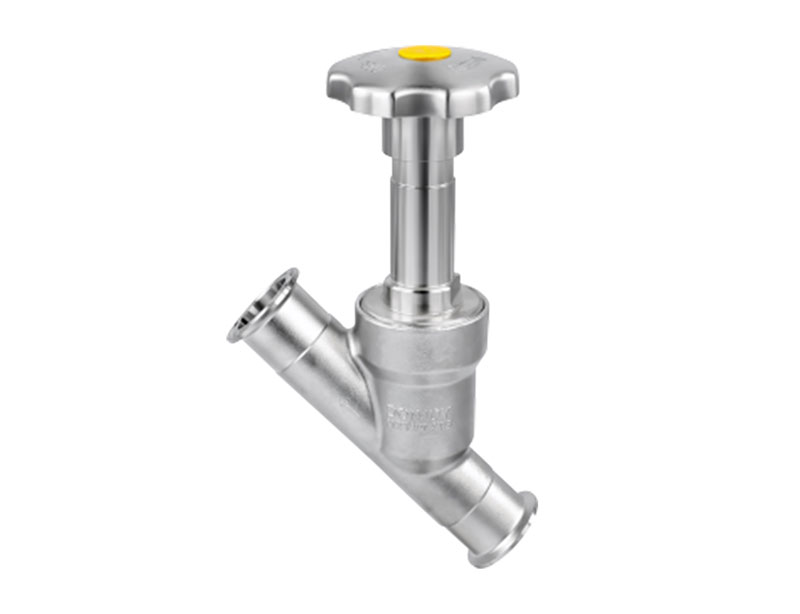

Sanitary manual angle seat valve with plastic handle or stainless steel handle
The angle seat valve has the same flux as the diameter, minimal flow resistance, no noise during opening and closing, no dead angle, It can be used in vacuum environment and has various designs.
Technical Features
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Temperature: -20℃ to +150℃, Depending on the seal material
Certification: FDA 177.2600; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;

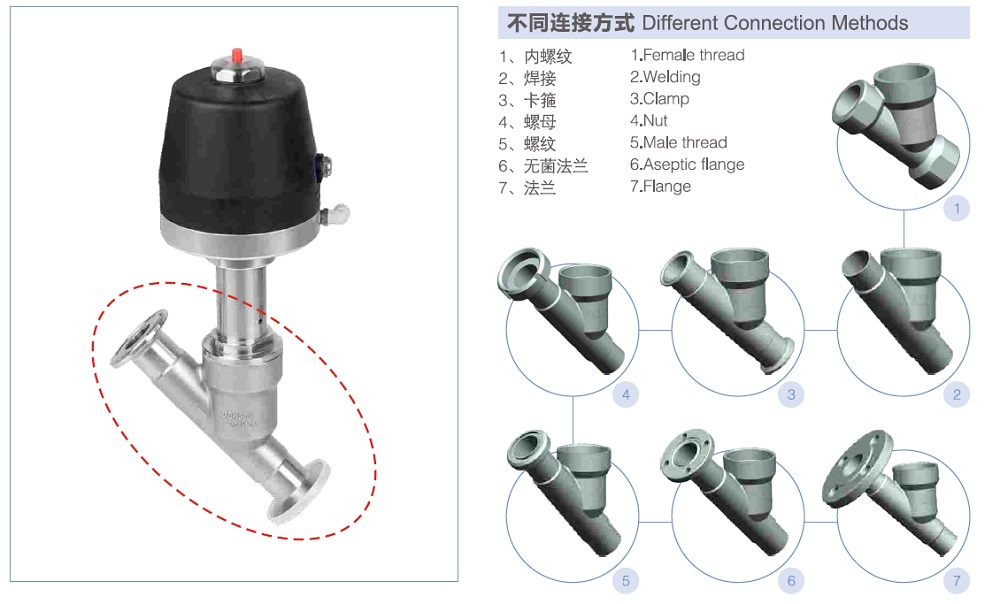

Sanitary angle seat valve connection way

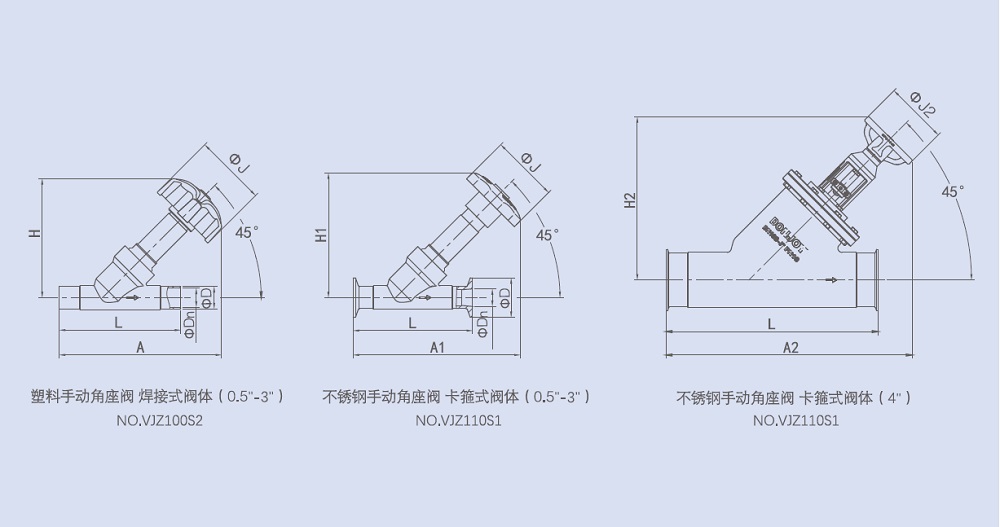

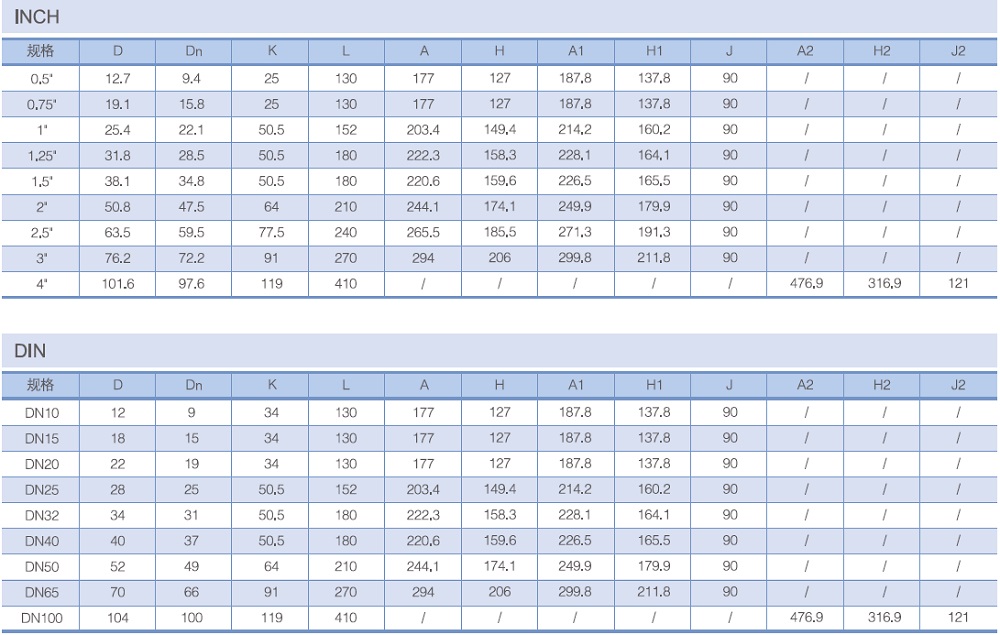

Sanitary angle seat valve drawing
| File | Language | Size |
|---|---|---|
 Angle seat valve catalogue |
English | 18.34MB |
| Sanitary valves catalogue |
English | 30.2MB |
