Specifications: 1/2"-4", DN10-DN100
Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure: vacuum to 10bar (1.0 MPa)
Sealing: PTFE/TFM/PEEK
Connection method: thread, clamp, welding, flange
Drive mode: manual, pneumatic, electric
Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm

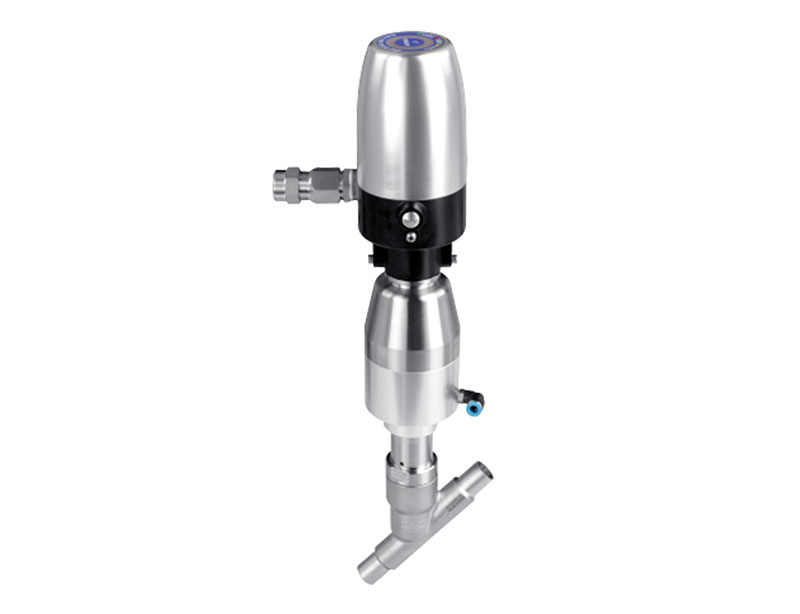

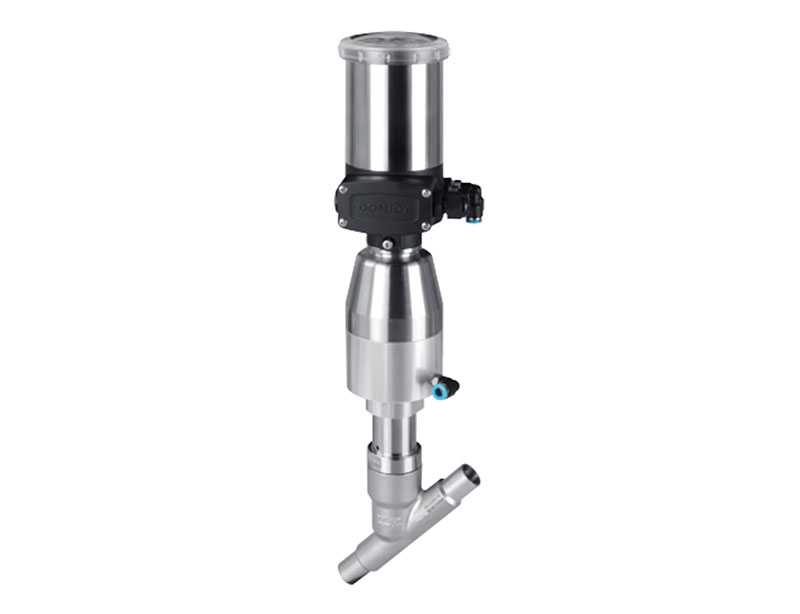

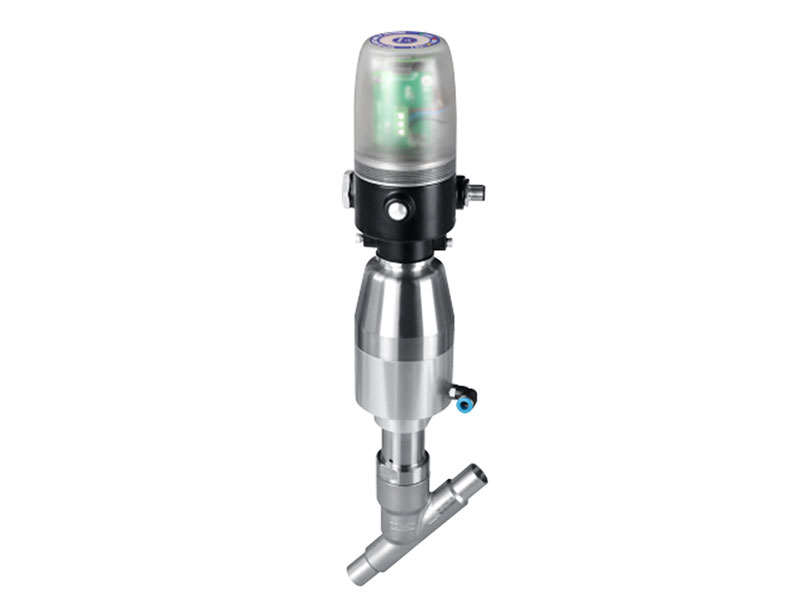

Sanitary welding angle seat valve with stainless steel/plastic pneumatic actuator
The angle seat valve has the same flux as the diameter, minimal flow resistance, no noise during opening and closing, no dead angle, It can be used in vacuum environment and has various designs.
Technical Features
Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Temperature: -20℃ to +150℃, Depending on the seal material
Certification: FDA 177.2600; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC;
Sanitary pneumatic angle seat valve conneciton way
Sanitary angle seat valve drawing
Sanitary angle seat valves are available in manual or pneumatic types. Connection methods include welding, threaded, and tri-clamp ends. They are mainly used in the food and pharmaceutical industries.
| File | Language | Size |
|---|---|---|
 Angle seat valve catalogue |
English | 18.34MB |
| Sanitary valves catalogue |
English | 30.2MB |
